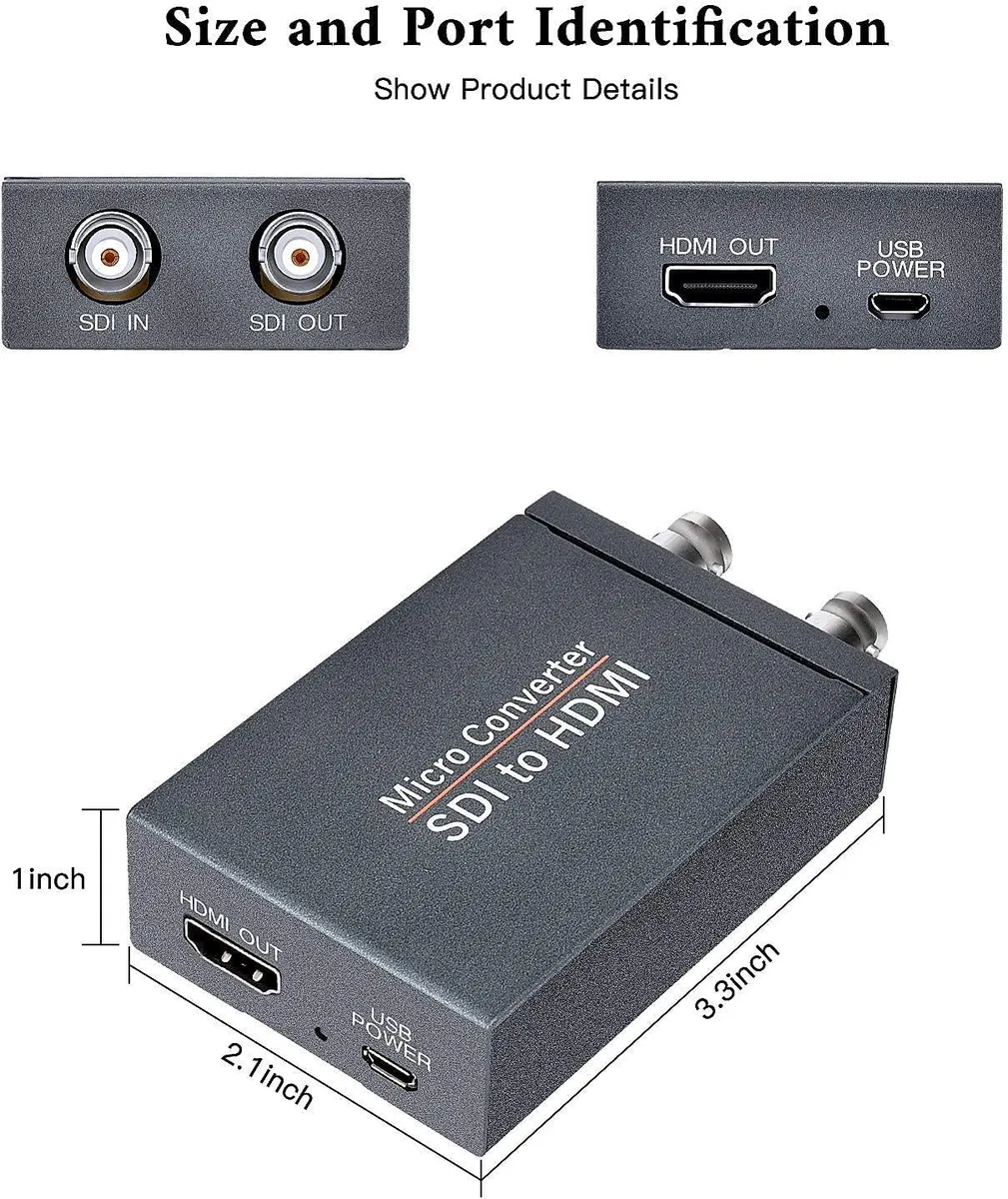

Small black metal box with BNC and HDMI ports, USB power input, and included power adapter

Jansicotek

Jansicotek 3G SDI to HDMI Converter (OZH5)

SKU CH-D8DD-JFZ1M

Converts 3G-SDI, HD-SDI and SD-SDI signals to HDMI up to 1080P@60Hz with a loop-through SDI output for simultaneous monitoring

  • TypeSDI to HDMI Converter
  • Connector A1 x SDI input
  • Connector B1 x SDI output, 1 x HDMI output
  • Package ContentsSDI to HDMI Converter * 1 USB Charge Cable * 1 Power Adapter
  • Convert SDI to HDMI with automatic 3G-SDI, HD-SDI and SD-SDI detection
  • View on HDMI and SDI screens simultaneously via loop-through output
  • Supports 1080p at 60 Hz on both SDI input and HDMI output
  • Extends SDI signals up to 300 ft at 3G-SDI speeds
  • Includes power adapter and USB charge cable for immediate use

SDI to HDMI conversion for video workflows

The Jansicotek OZH5 converts 3G-SDI, HD-SDI and SD-SDI signals to HDMI output up to 1080p at 60Hz. It accepts 480i, 576i, 720p and 1080i or 1080p sources at frame rates of 24, 25, 30, 50 or 60Hz. A built-in SDI loop-through passes the original signal to a second display while the HDMI feed drives a monitor or recorder. Automatic format detection handles the handshake without manual setup.

Suited for broadcast and AV installs needing

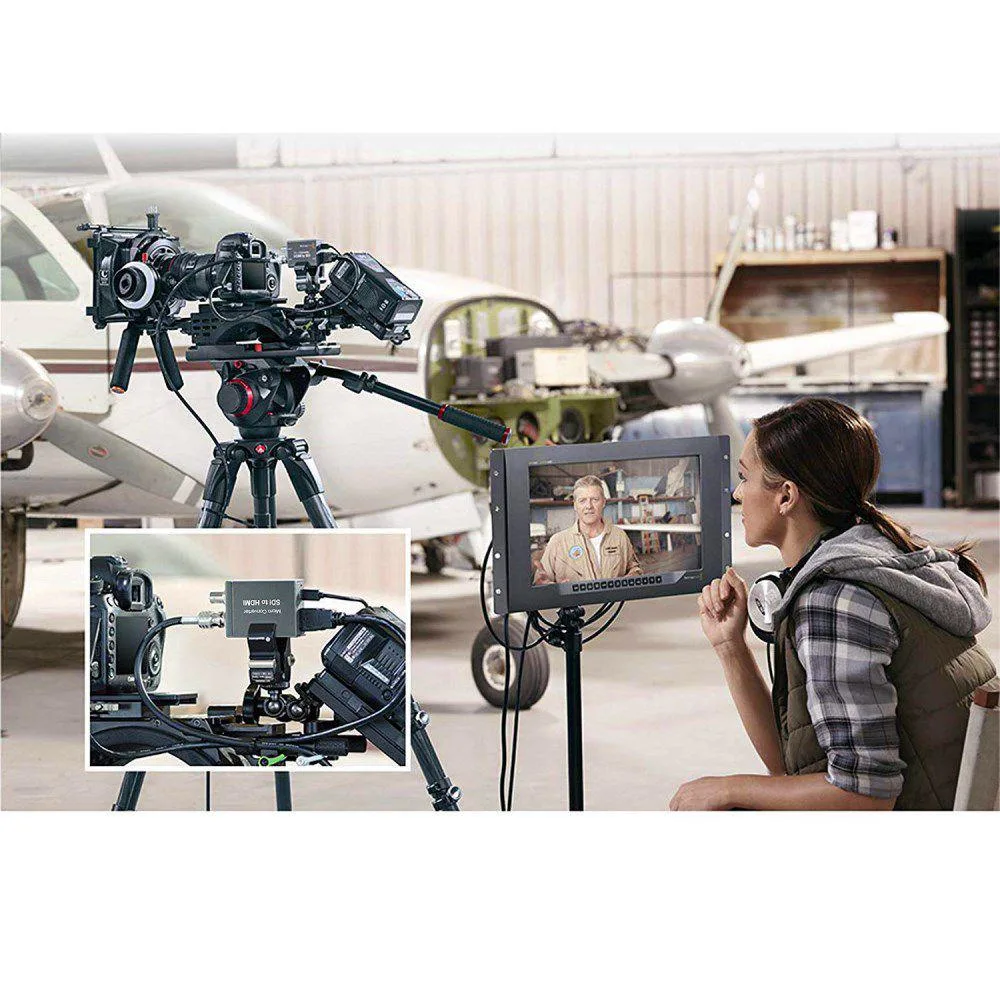

This unit fits camera chains, outside-broadcast racks and post-production bays where an SDI feed must reach an HDMI screen or capture device. It is not for users who need HDMI-to-SDI conversion, bi-directional operation or 4K and higher resolutions. Installers planning long cascades of identical converters should note the manufacturer advises against daisy-chaining multiple units of this type.

Power adapter, USB charge cable and manual included

The bundled power adapter supplies the converter so no external PSU hunting is required. The USB cable is for charging only and carries no video or data, so it cannot replace a proper SDI or HDMI link. The printed manual covers connection order and basic troubleshooting, letting technicians get a link up quickly on site.

Highlights

  • Convert SDI to HDMI with automatic 3G-SDI, HD-SDI and SD-SDI detection
  • View on HDMI and SDI screens simultaneously via loop-through output
  • Supports 1080p at 60 Hz on both SDI input and HDMI output
  • Extends SDI signals up to 300 ft at 3G-SDI speeds
  • Includes power adapter and USB charge cable for immediate use

Specifications

TypeSDI to HDMI Converter
Connector A1 x SDI input
Connector B1 x SDI output, 1 x HDMI output
Package ContentsSDI to HDMI Converter * 1
USB Charge Cable * 1
Power Adapter * 1
User Manual * 1

Questions about this item

Do I need to supply my own power adapter for the OZH5 converter?

No, a power adapter is included in the package along with a USB charge cable and user manual.

Can I keep my existing SDI monitor connected while using the HDMI output?

Yes, the SDI loop output passes the original signal through to an SDI display at up to 2.97 Gbps while the HDMI output shows 1080p@60Hz.

How do I confirm the converter is detecting the input format correctly?

The unit auto-detects SD-SDI, HD-SDI and 3G-SDI; verify the HDMI display shows 720p@50/60Hz or 1080p@24/25/30/50/60Hz matching your source.
