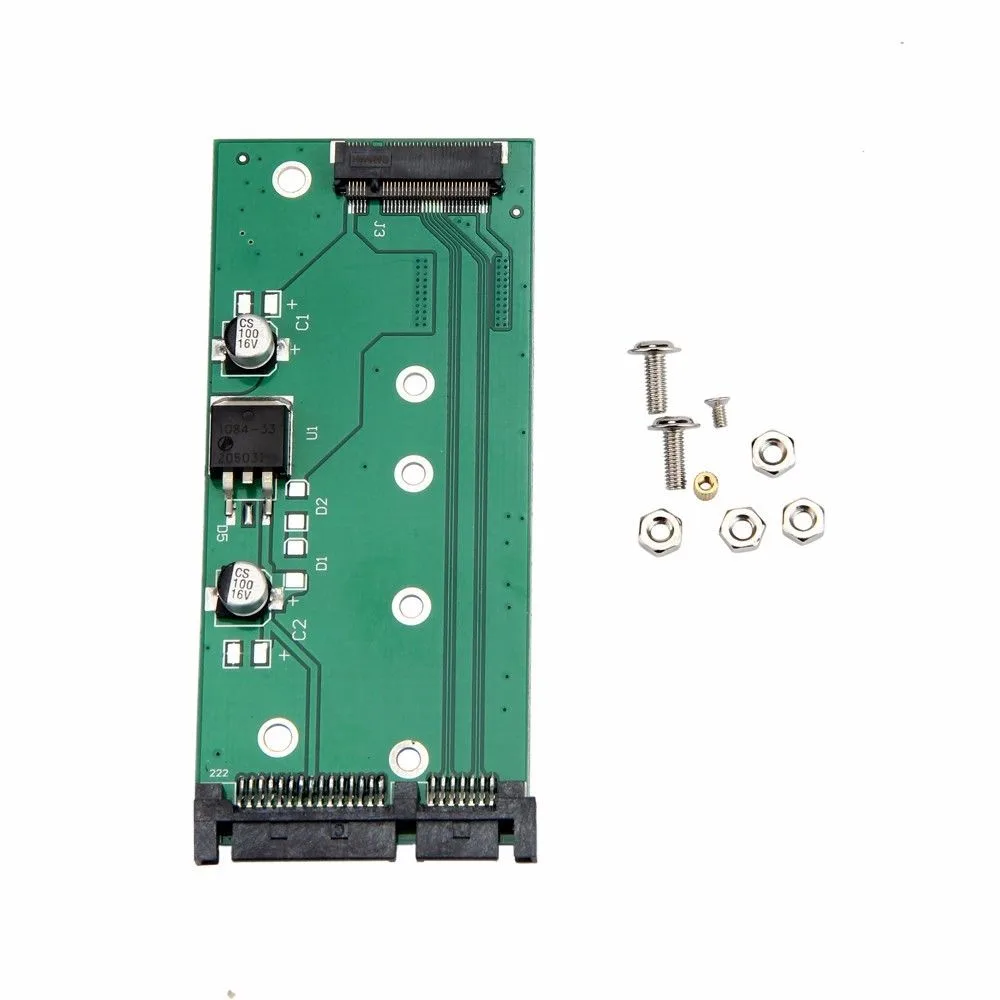

Green rectangular circuit board with M.2 slot and SATA connectors

JacobsParts Inc.

JacobsParts Inc. SATA III to M.2 SATA Adapter Card

SKU CH-WRPG-NE57R

Converts B-key M.2 SATA SSDs (42, 60, 80 mm) to a 2.5″ SATA III 6 Gb/s drive

  • Changer TypeM.2 SATA
  • Converts M.2 SATA SSDs to 2.5" SATA III 6Gb/s

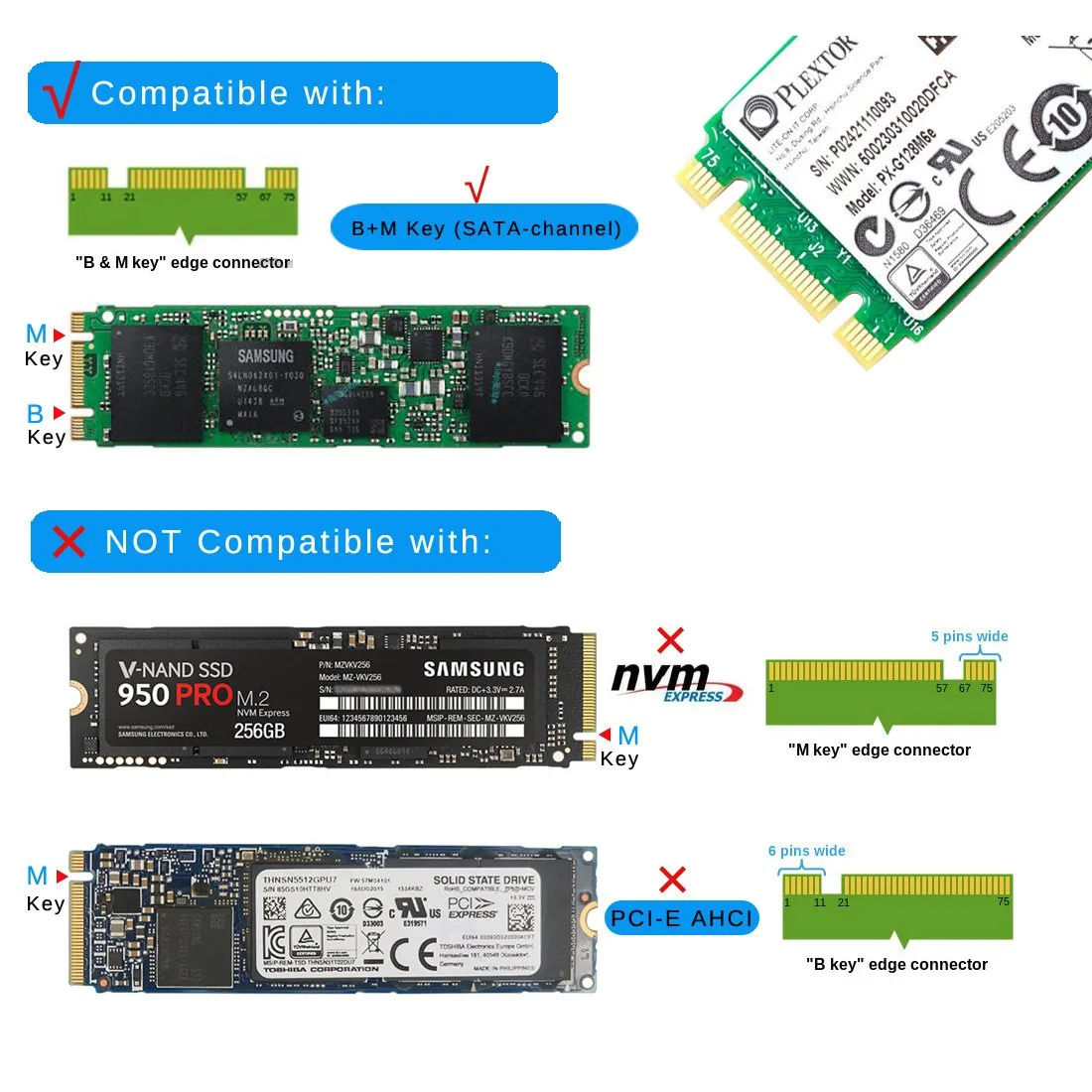

  • Supports B-key M.2 SATA drives in 2242 2260 2280 sizes
  • No NVMe PCIe support — SATA protocol only
  • Compact 94x45mm card fits tight spaces
  • Direct SATA controller communication with adapted power connectors

SATA III to M.2 SATA Adapter Card

This adapter converts an M.2 NGFF SATA SSD into a standard 2.5" SATA III 6Gb/s drive. It supports B-key drives with SATA protocol only and does not work with NVMe PCIe SSDs or M-key drives. Compatible lengths include 2242, 2260 and 2280 form factors. The card measures 94x45mm overall.

Build integration and space savings

The board adapts power and data connectors so the M.2 drive communicates directly with the system SATA controller. It fits 2.5" drive bays and caddies, freeing an M.2 slot on the motherboard for other devices. No extra drivers or configuration are required for the SATA connection.

Upgrade path and limitations

This card replaces a direct M.2 SATA installation when the motherboard lacks a compatible B-key slot or when a 2.5" bay is preferred. The jump is worth it for users reusing existing SATA M.2 drives in older systems. It cannot upgrade NVMe drives or add PCIe bandwidth.

Highlights

  • Converts M.2 SATA SSDs to 2.5" SATA III 6Gb/s
  • Supports B-key M.2 SATA drives in 2242 2260 2280 sizes
  • No NVMe PCIe support — SATA protocol only
  • Compact 94x45mm card fits tight spaces
  • Direct SATA controller communication with adapted power connectors

Specifications

Changer TypeM.2 SATA

Questions about this item

Which M.2 SATA drive lengths fit the 94x45mm adapter card?

The card accepts 2242 (42mm), 2260 (60mm) and 2280 (80mm) B-key SATA drives.

Does the adapter need extra cooling or power when running an M.2 SATA SSD continuously?

No additional power or cooling is required; the drive draws power through the SATA connector.

What host interface and drive key must the system and SSD already have for this adapter to work?

The host needs a standard 2.5" SATA III port and the SSD must be a B-key SATA M.2 drive.
