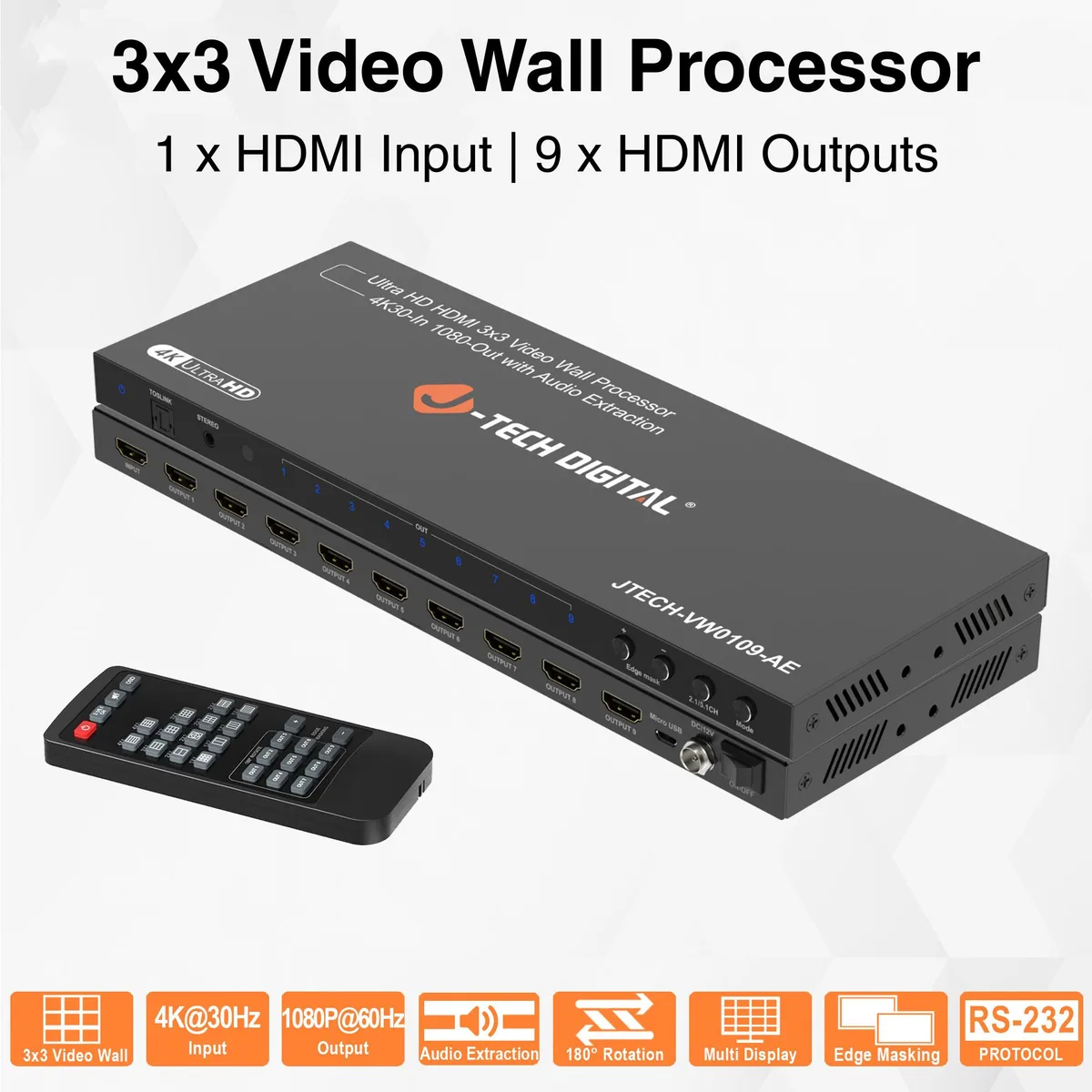

Black metal box with HDMI ports and small front display

J-Tech Digital Inc.

J-Tech Digital JTD-3260 3x3 Video Wall Controller 4K30Hz 1080P 13 Modes 180° Rotation

SKU CH-G533-Z31Q9

Splits a 4K30Hz source across nine 1080P displays in 13 layouts with 180° rotation and audio extraction

  • Connector AHDMI
  • Connector BHDMI
  • Features3x3 Video Wall Controller
  • Combine up to 9 displays into one seamless 1080p video wall
  • 4K input at 30Hz for high-resolution source content
  • Choose from 13 display modes to match any layout
  • Rotate each screen 180° and mask edges up to 8 pixels for perfect alignment
  • Extract audio via SPDIF optical 5.1ch or 3.5mm stereo 2ch outputs

3x3 Video Wall Controller

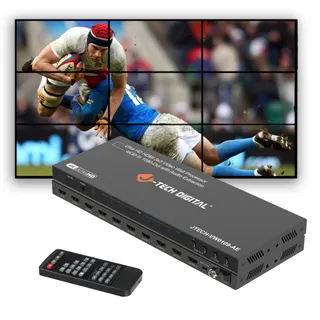

The J-Tech Digital JTD-3260 combines up to nine HDMI displays into a single video wall. It accepts a 4K@30Hz input signal and distributes 1080P output to each connected screen. The unit is designed for professional installations such as digital signage, retail displays and control rooms. Audio can be extracted separately through optical or analogue ports.

Suited for multi-screen layouts needing flexible

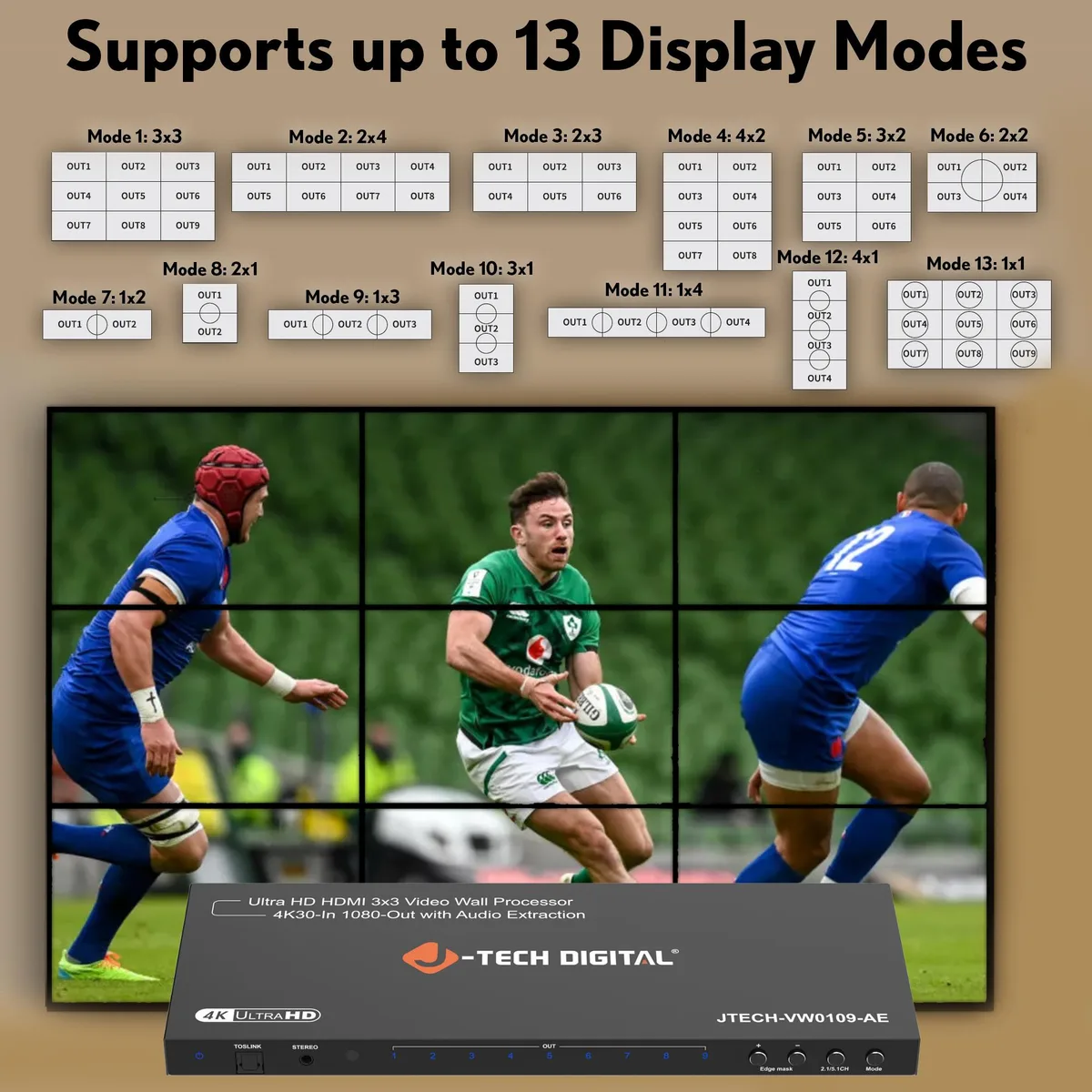

Installers who need configurable display arrangements can choose from 13 preset modes including 3x3, 2x2, 2x4 and various splitter configurations. Individual screens support 180° rotation and edge masking up to 8 pixels for bezel compensation. The 1x1 splitter mode does not offer rotation or masking. Buyers requiring higher output resolution per display or input refresh rates above 30Hz should consider alternative processors.

Handles nine 1080P outputs from a single 4K source

The controller comfortably drives a full 3x3 grid at 1080P per screen while maintaining synchronisation across all outputs. Headroom ends at the 1080P output limit; 4K content is down-scaled and the input remains capped at 30Hz. Audio extraction provides 5.1-channel optical and stereo 3.5mm outputs for external sound systems. Control is available via front panel, IR remote or RS232.

Highlights

  • Combine up to 9 displays into one seamless 1080p video wall
  • 4K input at 30Hz for high-resolution source content
  • Choose from 13 display modes to match any layout
  • Rotate each screen 180° and mask edges up to 8 pixels for perfect alignment
  • Extract audio via SPDIF optical 5.1ch or 3.5mm stereo 2ch outputs

Specifications

BrandJTECH-VW0109-AE
Part NumberJTD-3260
Connector AHDMI
Connector BHDMI
Features3x3 Video Wall Controller

Questions about this item

What HDMI source resolution and refresh rate do I need to drive the 4K@30Hz input on this JTD-3260?

The controller accepts a single HDMI feed at 4K resolution and 30Hz, so any source that can output 4K@30Hz will work.

Will my existing 1080p monitors work with the 1080P outputs of this 3x3 video wall processor?

Yes, each of the nine HDMI outputs delivers a 1080p signal, so standard 1080p displays connect directly without scaling issues.

How can I verify the 180° rotation and edge masking are active on a specific screen after setup?

Use the front panel, IR remote, or RS-232 commands to select modes 1-12; the chosen display will show the rotated image with up to 8 pixels of edge masking applied.
