Small black HDMI EDID emulator with DIP switch and USB-C port

J-Tech Digital Inc.

J-Tech Digital HDMI EDID Emulator Manager 4K60Hz 8 EDID Modes

SKU CH-5NMN-52YHF

HDMI EDID and HDCP emulator with 8 predefined modes, 4K 60Hz support and USB-C power option

  • TypeHDMI EDID and HDCP emulator
  • ColorBlack
  • Connector AHDMI
  • Connector BHDMI
  • Features• Features a DIP switch used to manage EDID and HDCP setting
  • Eliminates HDCP/EDID conflicts with 8 predefined EDID modes and DIP-switch control
  • Handles 4K 60 Hz signals at 18 Gbps with HDMI 2.0 and HDCP 2.2 compliance
  • Converts HDCP 2.2 sources to HDCP 1.4 displays for wider compatibility
  • Powers from HDMI or USB-C without an external adapter
  • Toggles CEC on or off for flexible system integration

EDID Emulator Manager

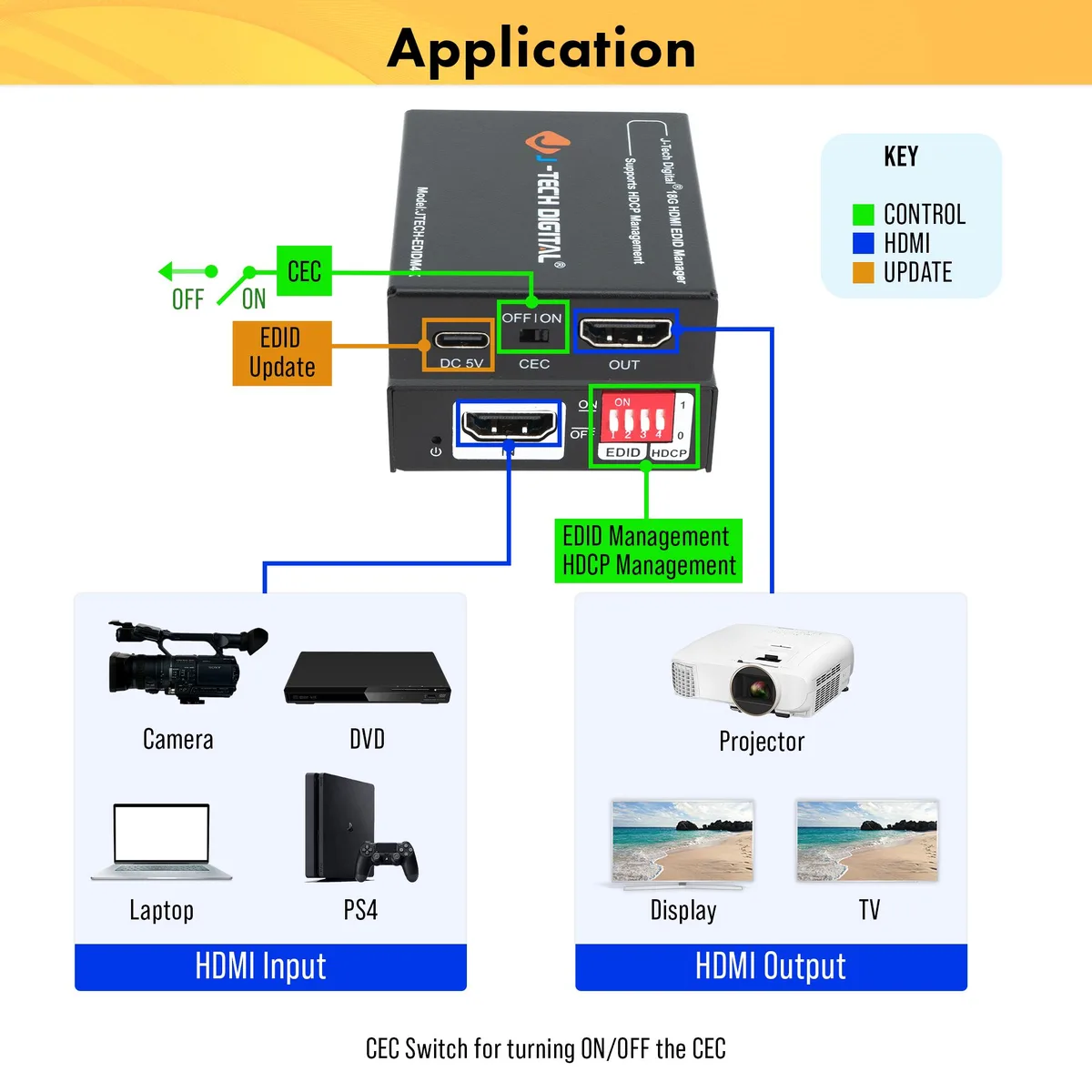

The J-Tech Digital HDMI EDID Emulator Manager resolves HDCP and EDID mismatches between source devices and displays. It provides eight predefined EDID modes and accepts a user-defined EDID uploaded through the USB-C port. A DIP switch controls HDCP conversion from 2.2 down to 1.4. Installers and integrators use it to stabilise handshake issues in residential and commercial AV systems.

Thermal noise power

The unit draws power directly from the HDMI source or the USB-C connector, eliminating external adapters. Passive operation means no fan noise and no measurable heat output during normal use. Power consumption stays within the limits of the host HDMI or USB-C port. The compact black enclosure fits behind equipment without adding thermal load to the rack.

Bundled accessories software

No cables are included in the package. The USB-C port serves both as a power input and as the interface for uploading a custom EDID file from a computer. A CEC toggle switch lets the installer enable or disable CEC pass-through for control-system compatibility. The DIP switch and toggle provide hardware-level configuration without any software installation.

Highlights

  • Eliminates HDCP/EDID conflicts with 8 predefined EDID modes and DIP-switch control
  • Handles 4K 60 Hz signals at 18 Gbps with HDMI 2.0 and HDCP 2.2 compliance
  • Converts HDCP 2.2 sources to HDCP 1.4 displays for wider compatibility
  • Powers from HDMI or USB-C without an external adapter
  • Toggles CEC on or off for flexible system integration

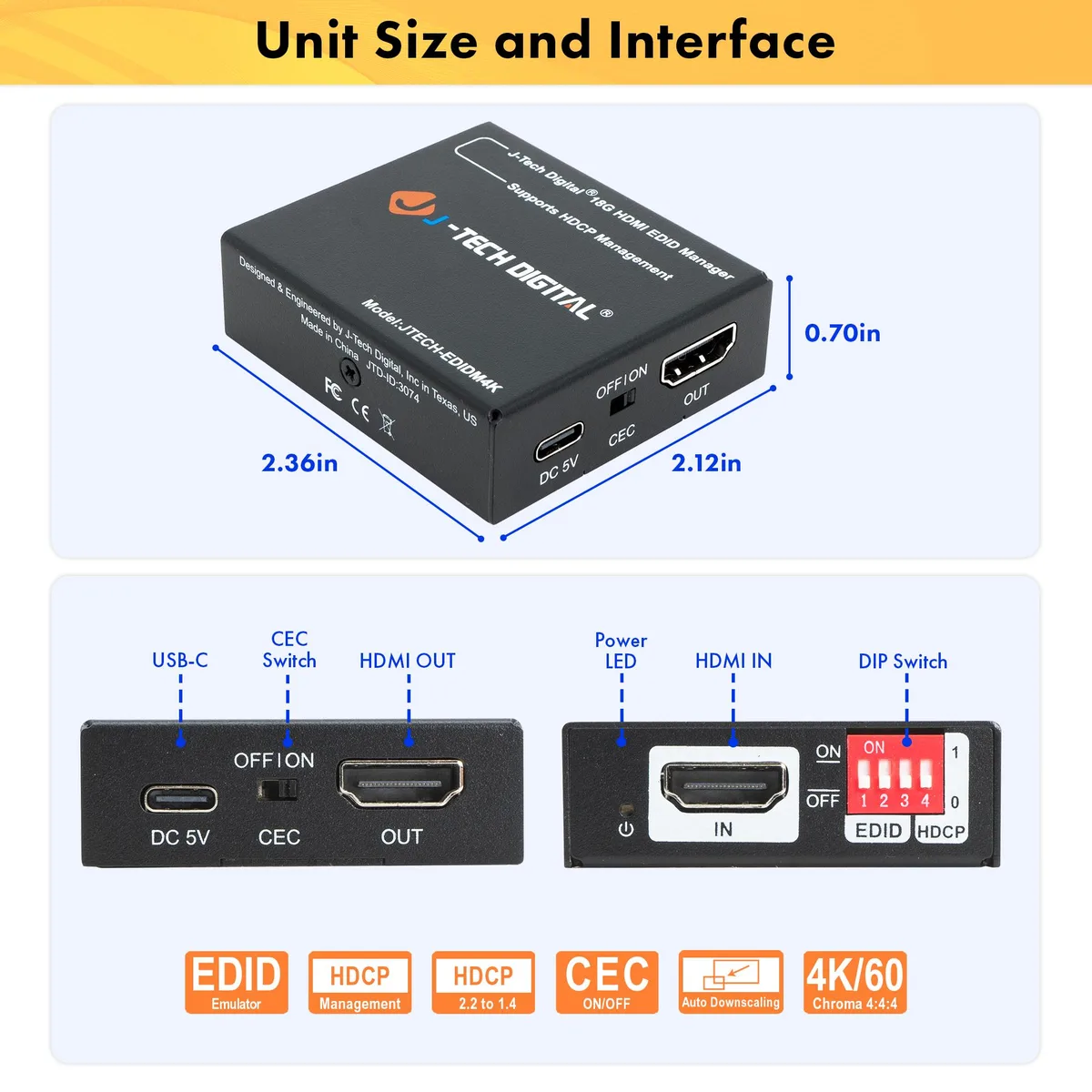

Specifications

BrandJ-TECH DIGITAL
TypeHDMI EDID and HDCP emulator
ColorBlack
Connector AHDMI
Connector BHDMI
Features• Features a DIP switch used to manage EDID and HDCP settings
• Supports up to 4K 60Hz resolution with auto-downscaling. HDMI 2.0, HDCP 2.2 compliant
• Allows for HDCP 2.2 (source) to be converted to HDCP 1.4 (display)
• Unit can be powered by HDMI or USB-C (*Note: Cables not included)
• CEC toggle switch allows for CEC function to be turned on/off as needed
• USB-C port can be used for power, custom EDID upload, and firmware upgrade
• Plug and play function. Compact and portable design

Questions about this item

How do I install the J-Tech Digital EDID emulator and which DIP switch step is often missed?

Connect the unit between source and display using HDMI cables, then power it via the HDMI link or the USB-C port; the step most people miss is setting the DIP switches for the desired EDID mode and HDCP conversion before powering on.

What maintenance or replacement will the J-Tech Digital EDID manager need over time?

The device has no moving parts or consumable components; it requires no scheduled maintenance and only needs replacement if the HDMI ports or USB-C power input suffer physical damage.

What limit appears first when the J-Tech Digital emulator runs continuously at 4K 60 Hz?

The 18 Gbps HDMI 2.0 bandwidth ceiling is the first hard limit; sustained 4K 60 Hz signals cannot exceed this throughput, and the auto-downscaling feature activates only when the source requests a higher format.
