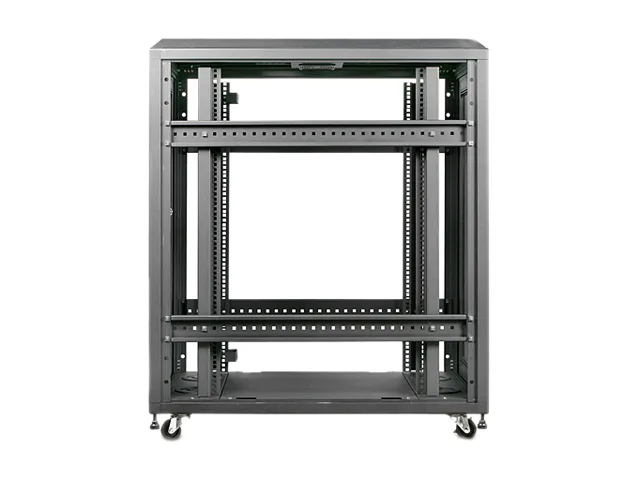

Black 22U four-post open frame server rack, 47.75 by 23.50 by 39.50 inches

iStarUSA Inc.

iStarUSA Inc. WX-2210 22U 4-Post 1000mm Open Frame Server Rack

SKU CH-3H0Y-E029K MPN WX-2210

A 22U four-post open frame rack with 2200.00 lbs loading capacity and fully adjustable rails for chassis up to 34 inches deep

  • Type4 Post Open Frame Rack
  • Rack Units15U
  • ColorBlack
  • MaterialHorizontal Rails: SPCC t:2.0mm Vertical Rails: SPCC t:2.0mm
  • SpecificationLoading Capacity: 2200.00 lbs Supported Chassis Depth: 34" a
  • FeaturesUniversal Fit Most of Rackmount Chassis and Equipment Fully
  • 22U capacity fits dense server deployments
  • 00 lbs load rating supports heavy equipment
  • Fully adjustable rails ensure precise chassis fit
  • 1000mm depth accommodates 34-inch deep hardware
  • SPCC steel construction provides rigid open frame

22U Open Frame Server Rack

The iStarUSA WX-2210 is a 22U four-post open frame rack designed for server rooms and data centres. It accommodates rackmount chassis up to 34 inches deep and suits administrators who need accessible equipment mounting. Builders requiring enclosed cabinets or side panels must source those options separately. The rack ships new and includes M5 mounting screws with cage nuts.

SPCC Steel Construction Details

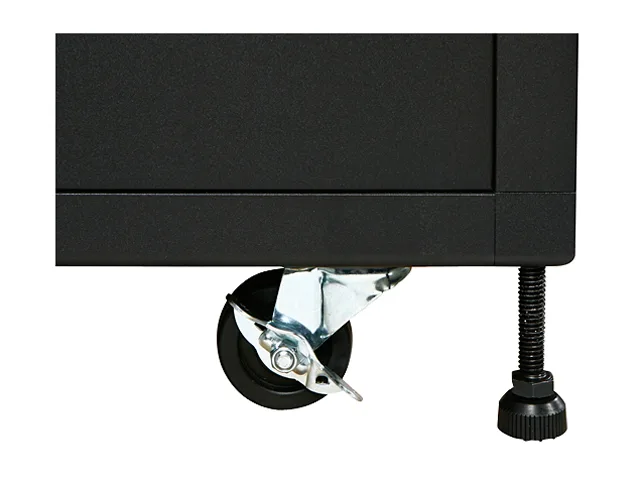

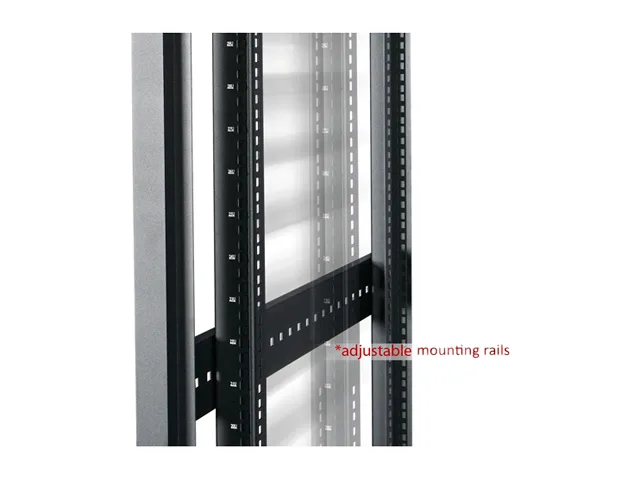

Horizontal and vertical rails use 2.0mm SPCC steel while the top panel uses 1.2mm SPCC steel. The black finish resists corrosion in typical indoor environments. Fully adjustable mounting rails slide horizontally to align with diverse chassis hole patterns. Locking casters secure the unit in position without extra floor anchoring.

2200 lb Static Load Capacity

The frame supports 2200.00 lbs of equipment when weight is distributed across the four posts. Dimensions measure 47.75 inches high by 23.50 inches wide by 39.50 inches deep. First listed by the manufacturer in 2015, the design targets installations that prioritise open airflow over acoustic isolation.

Highlights

  • 22U capacity fits dense server deployments
  • 00 lbs load rating supports heavy equipment
  • Fully adjustable rails ensure precise chassis fit
  • 1000mm depth accommodates 34-inch deep hardware
  • SPCC steel construction provides rigid open frame

Specifications

BrandiStarUSA
ModelWX-2210
Type4 Post Open Frame Rack
Rack Units15U
ColorBlack
MaterialHorizontal Rails: SPCC t:2.0mm
Vertical Rails: SPCC t:2.0mm
Top Panel: SPCC t:1.2mm
SpecificationLoading Capacity: 2200.00 lbs
Supported Chassis Depth: 34" and under
FeaturesUniversal Fit Most of Rackmount Chassis and Equipment
Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best
Fit of Rack-mount Chassis
Optional Side Panels
Optional Front / Rear Doors
Locking Mechanism Design on Casters
Comes with M5 Mounting Screws and Cage Nuts
Unit Dimension47.75" x 23.50" x 39.50"
Shipping weight63.50 kg
Package size1213 × 1003 × 597 mm

Questions about this item

How do I install the WX-2210 and what is the step people often miss?

Bolt the four posts together using the SPCC 2.0 mm vertical rails, then set the horizontal rails to match your chassis depth up to 34 inches; the step often missed is tightening the rail adjustment screws before loading equipment.

What maintenance or replacement will the WX-2210 need later?

Periodically check and retighten all M5 mounting screws and cage nuts, inspect the locking casters for wear, and replace any bent SPCC 1.2 mm top panel sections if they deform under the 2200 lb load rating.

What limit appears first on the WX-2210 during sustained heavy use?

The 2200 lb loading capacity is the first hard limit; exceeding it risks bending the 2.0 mm vertical rails or the 1.2 mm top panel before the 22U vertical space or 34 inch depth allowance is reached.
