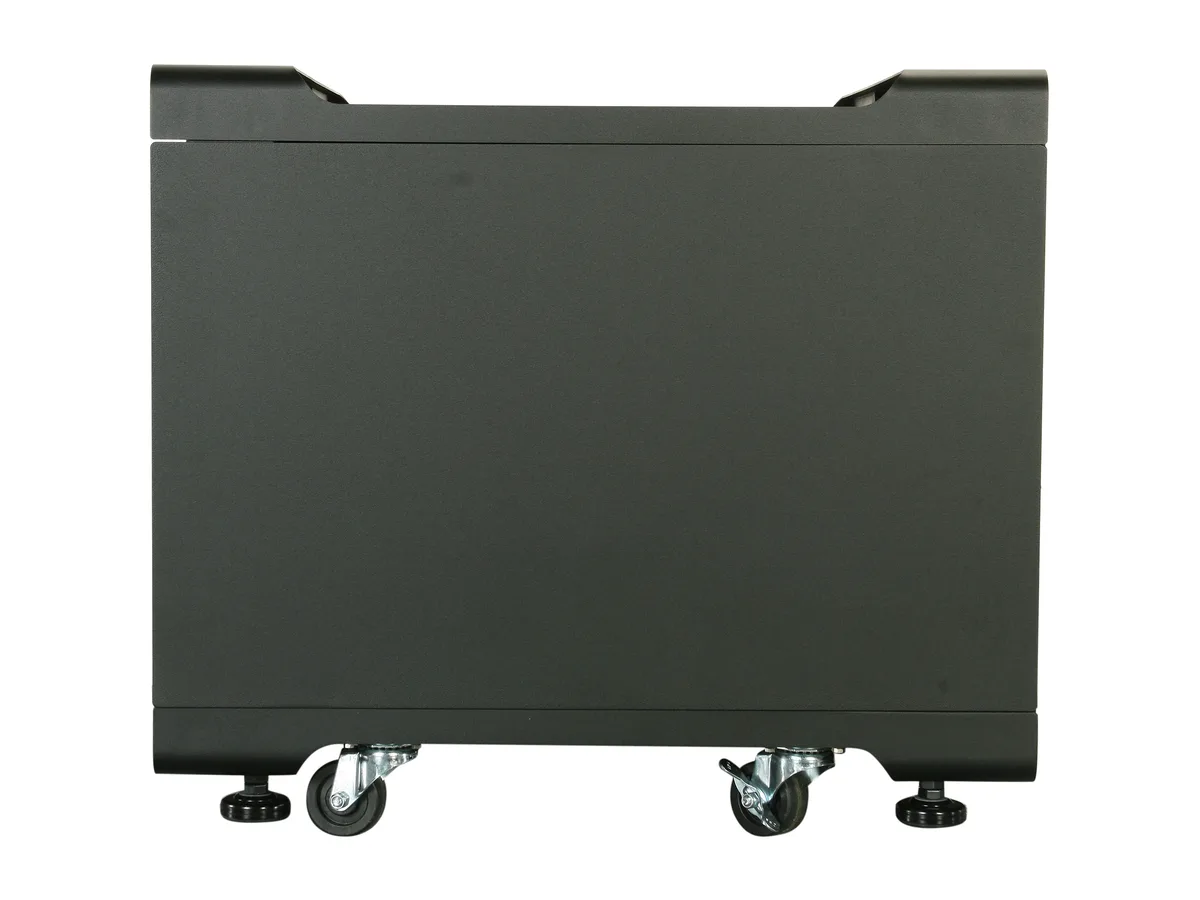

Black 10U rack cabinet with vented front door, aluminum side panels, casters and leveling feet

iStarUSA Inc.

iStarUSA Inc. WS-1070B 10U 700mm server rack

SKU CH-JKXX-2Y69Y MPN WS-1070B

A 10U rack enclosure with 700mm depth, 660 lbs capacity, locking vented doors, adjustable rails and casters for secure equipment mounting

  • TypeRack Enclosure
  • Rack Units10U
  • ColorBlack
  • MaterialAluminum/ Steel
  • Weight Capacity660 lbs
  • SpecificationSupported Chassis Depth: 22" and under Internal Dimensions:
  • 10U rack height fits compact server deployments
  • 660 lb weight capacity supports dense equipment loads
  • Front and rear security locks protect against unauthorised access
  • Horizontal adjustable rails ensure precise chassis alignment
  • Vented doors and removable side panels maximise airflow and service access

10U rack enclosure for AV equipment

The iStarUSA WS-1070B is a 10U rack enclosure built from aluminium and steel for audio and video installations. It accepts rackmount chassis up to 22 inches deep and provides 660 lbs weight capacity. Front and rear security locks protect equipment and data from unauthorised access.

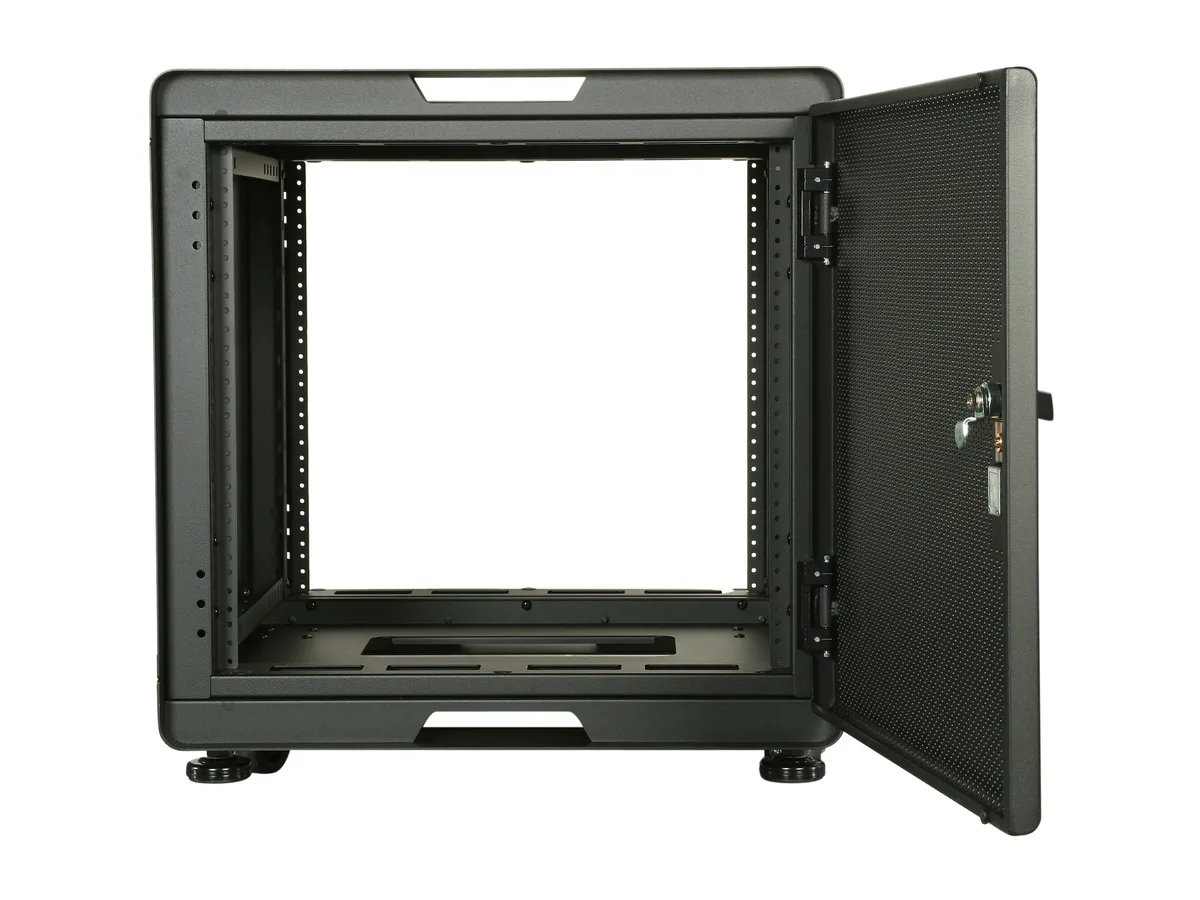

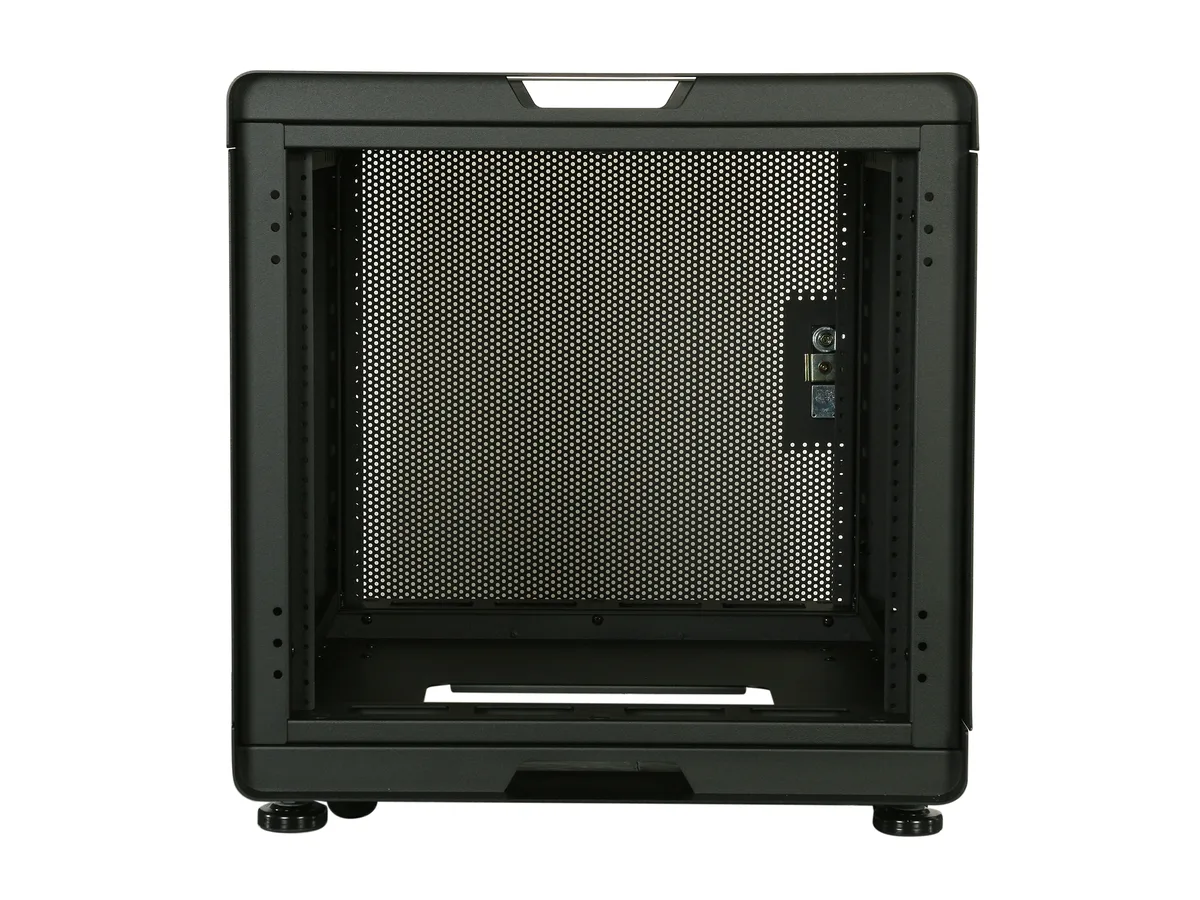

Vented doors and removable panels for airflow

Vented doors constructed from 1.2 mm SPCC steel deliver maximum air flow through the cabinet. Removable aluminium side panels allow quick access to internal hardware during maintenance. The design relies on passive ventilation rather than active cooling components.

Adjustable rails and mobility for sustained use

Horizontal adjustable mounting rails made from 2.0 mm SPCC steel ensure a precise fit for varied chassis depths over long deployments. Locking casters and fixed feet keep the unit stable once positioned. Tapped M5 mounting holes support standard AV rack spacing throughout extended operation.

Highlights

  • 10U rack height fits compact server deployments
  • 660 lb weight capacity supports dense equipment loads
  • Front and rear security locks protect against unauthorised access
  • Horizontal adjustable rails ensure precise chassis alignment
  • Vented doors and removable side panels maximise airflow and service access

Specifications

BrandiStarUSA
ModelWS-1070B
TypeRack Enclosure
Rack Units10U
ColorBlack
MaterialAluminum/ Steel
Weight Capacity660 lbs
SpecificationSupported Chassis Depth: 22" and under
Internal Dimensions: 22.5" max Depth
Material:
- Main Frame:SPCC t1.6
- Mounting Rails:SPCC t2.0
- Top and Bottom frame:SPCC T1.6 to 2.0
- Side Panel:Aluminum t2.0
- Vented Door:SPCC t1.2
FeaturesUniversal Fit Most of Rackmount Chassis and Equipment
Front and Rear Security Locks to Prevent Unauthorized Access to Equipment and Data
Horizontal Adjustable Mounting Rails to Ensure the Best Fit of Rack-mount Chassis
Vented Doors Provide Maximum Air Flow
Removable Side Panels for Easy Access
Tapped Mounting Holes (M5 size) for Audio/Video Equipment
Locking Mechanism Design on Casters
Equipped with Casters and Feet
Unit Dimension22.40" x 24.30" x 27.60"
Shipping weight44.91 kg
Package size762 × 762 × 635 mm

Questions about this item

How do I install the WS-1070B and which step do people often miss?

Mount the M5 tapped rails horizontally to the SPCC t2.0 frame, then secure the SPCC t1.2 vented doors and aluminum t2.0 side panels; the step often missed is locking the caster brakes before loading any equipment.

What maintenance or replacement will the WS-1070B need over time?

The SPCC t1.2 vented doors and aluminum t2.0 side panels can be removed for cleaning dust from airflow paths; caster locks should be checked periodically and replaced if they no longer hold the 660 lbs rated capacity.

What limit appears first when the WS-1070B runs fully loaded for long periods?

The 22.5" maximum internal depth and 660 lbs weight capacity are the first constraints; exceeding either prevents proper door closure or risks frame deformation on the SPCC t1.6 main structure.
