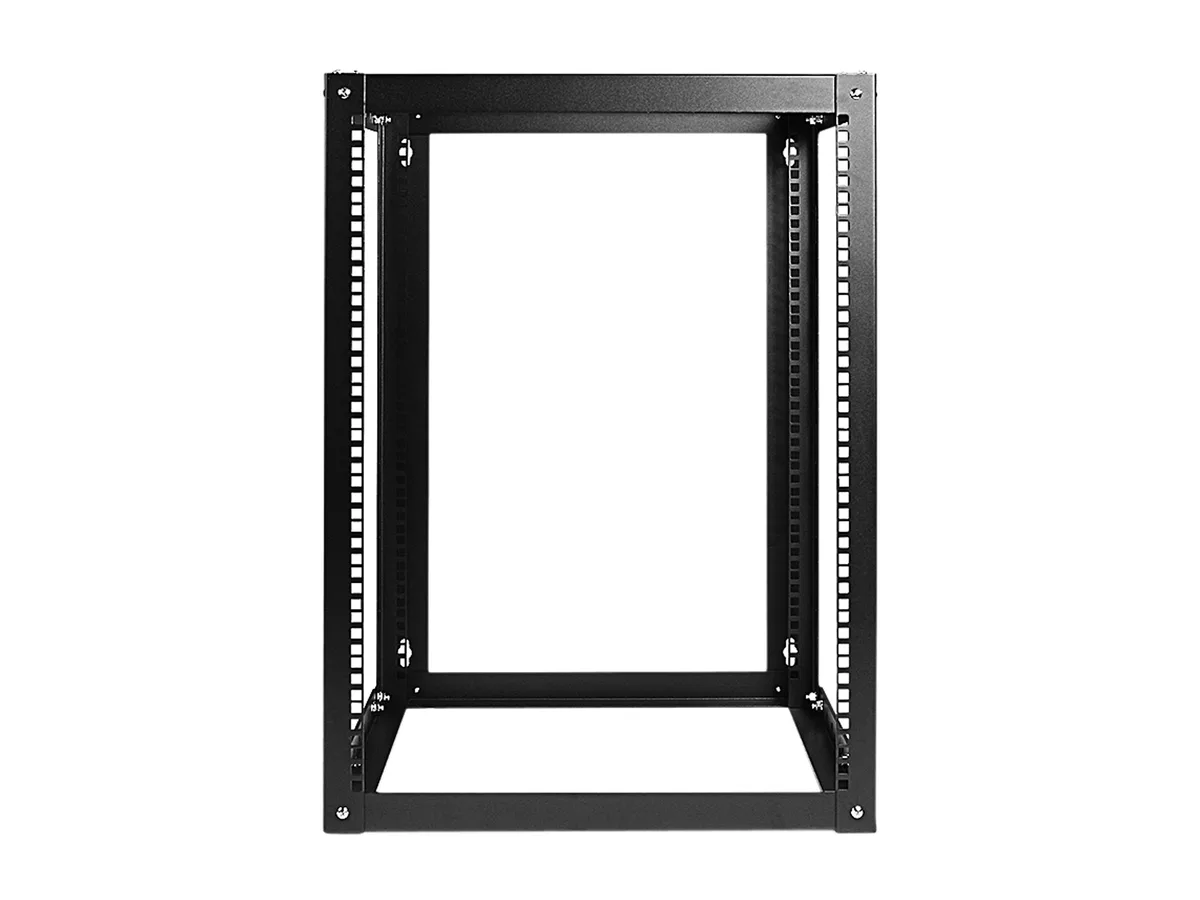

Black 15U wall-mount server rack, open steel frame with adjustable depth and 1U cover plate

iStarUSA Inc.

iStarUSA Inc. WOM1580-P1U 15U 800mm Wall Mount Server Rack

SKU CH-0WV5-5DVPE MPN WOM1580-P1U

Wall-mount cabinet holds 15U of rack equipment up to 31.5" deep with 145 lbs capacity

  • TypeWall Mount Cabinet
  • Rack Units15U
  • ColorBlack
  • MaterialSPCC t: 2.0mm
  • Weight Capacity145.00 lbs.
  • SpecificationSupported Chassis Depth: 31.5" and under
  • Holds 15U of equipment in a compact wall-mount design
  • Adjustable depth supports chassis up to 31.5 inches deep
  • 145 lbs weight capacity from 2.0mm SPCC cold-rolled steel
  • Open-frame construction gives quick access to installed hardware
  • Ships flat-packed with an included 1U cover plate

15U Wall-Mount Server Cabinet

The iStarUSA WOM1580-P1U is a 15U wall-mount cabinet built from SPCC cold-roll steel with a 2.0mm thickness. It supports up to 145.00 lbs of equipment and conforms to the EIA-310 standard. The open-frame design allows quick access to installed rackmount systems. Adjustable depth rails accommodate chassis up to 31.5 inches deep.

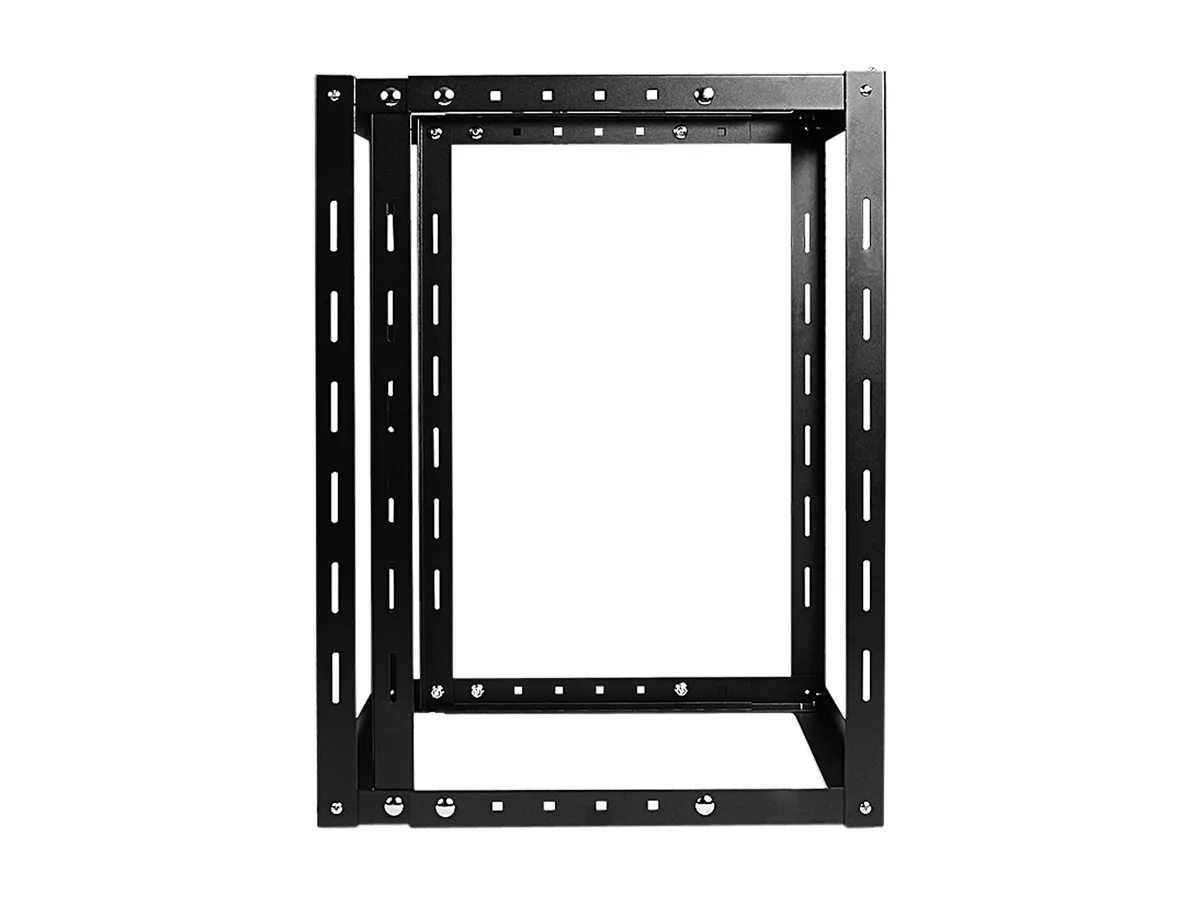

Adjustable Depth Replaces Fixed Racks

This cabinet replaces fixed-depth wall brackets that limit chassis compatibility. The adjustable rails let you match the mounting depth to servers, switches or storage arrays up to 31.5 inches deep. The jump is worth it when you need to secure mixed equipment depths in a single 15U footprint without custom fabrication.

Installers Needing Open Access

The open frame suits installers who need rapid, tool-free access to cable runs and hardware swaps. It is not suited for environments that require lockable side panels, dust filtration or acoustic dampening. Buyers needing enclosed security or integrated cooling ducts should look at a different form factor.

Highlights

  • Holds 15U of equipment in a compact wall-mount design
  • Adjustable depth supports chassis up to 31.5 inches deep
  • 145 lbs weight capacity from 2.0mm SPCC cold-rolled steel
  • Open-frame construction gives quick access to installed hardware
  • Ships flat-packed with an included 1U cover plate

Specifications

BrandiStarUSA
ModelWOM1580-P1U
TypeWall Mount Cabinet
Rack Units15U
ColorBlack
MaterialSPCC t: 2.0mm
Weight Capacity145.00 lbs.
SpecificationSupported Chassis Depth: 31.5" and under
FeaturesSturdy and Rugged Frame Structure
Adjustable Depth, Suitable for a Wide Variety of Rackmount Equipment
Universal Fit Most of Rackmount Chassis and Equipment
SPCC High-Quality Cold Roll Steel
Open Frame Construction Enables Quick Access to Rackmount System
Easy Assemble and Disassemble
Comes with Flat Packaging

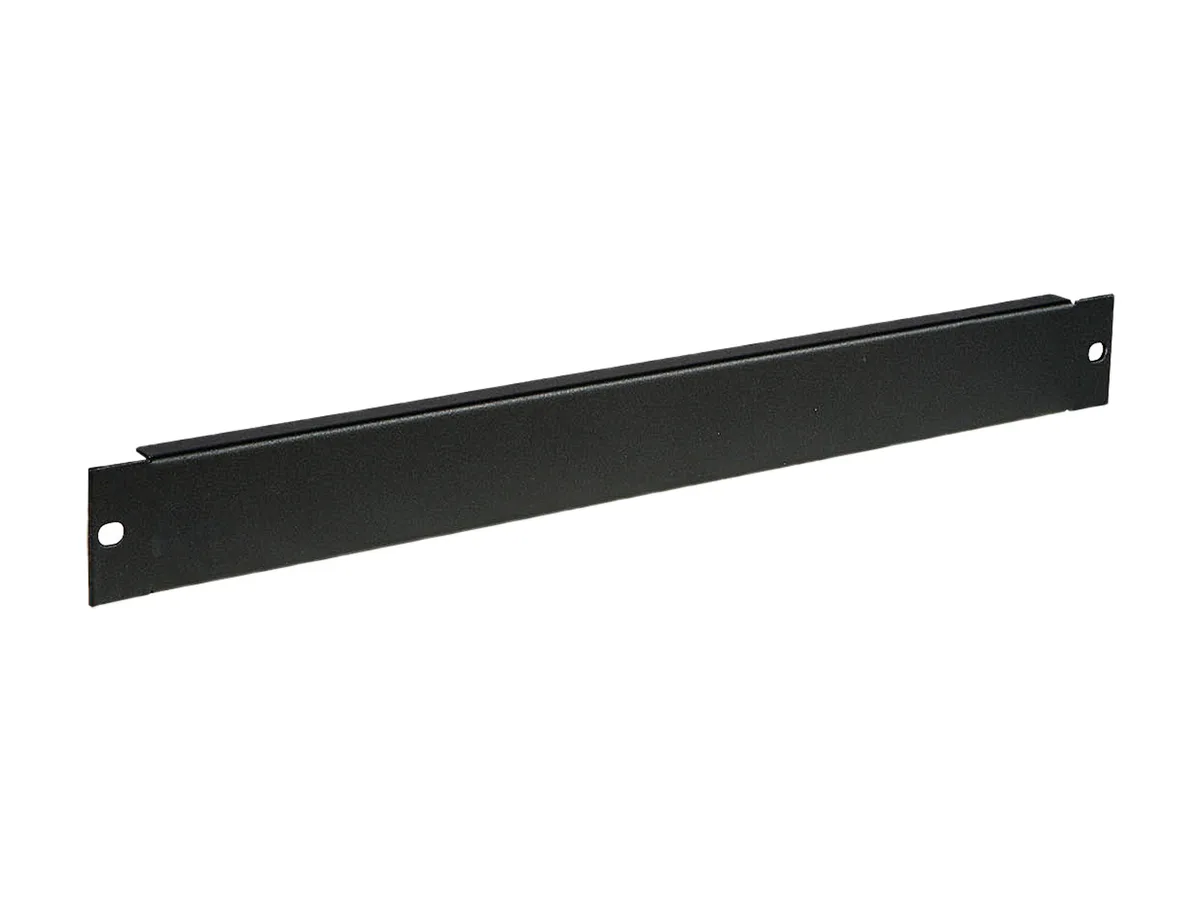

Comes with an 1U Cover Plate
Industry StandardEIA-310
Unit Dimension29.44" x 20.91" x 19.69"
Shipping weight13.61 kg
Package size889 × 635 × 508 mm

Questions about this item

What wall space is required to mount the 29.44" high by 20.91" wide cabinet?

The unit measures 29.44 inches tall and 20.91 inches wide, so you need at least that clear wall area plus room for the 19.69 inch depth to project outward.

How do you set the adjustable depth before securing the rack to the wall?

Loosen the depth-adjustment brackets, slide the rails until the distance between front and rear mounting faces matches your chassis depth up to 31.5 inches, then retighten all bolts before hanging the cabinet.

When should the SPCC 2.0mm steel frame be inspected for loose hardware?

Check all mounting bolts and rail screws after the first week of use and then every six months, tightening any that have worked loose from vibration.
