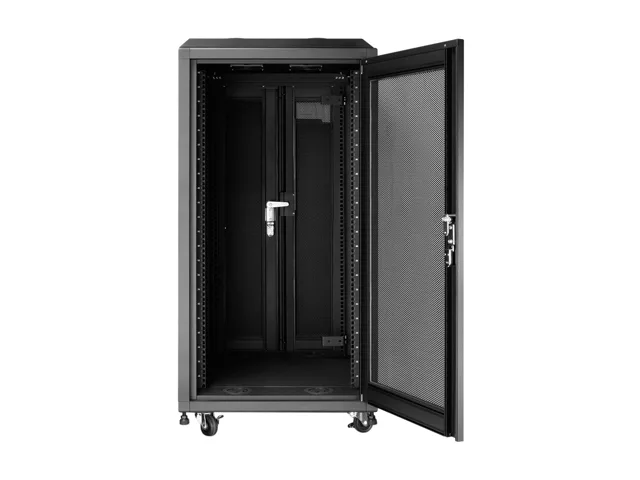

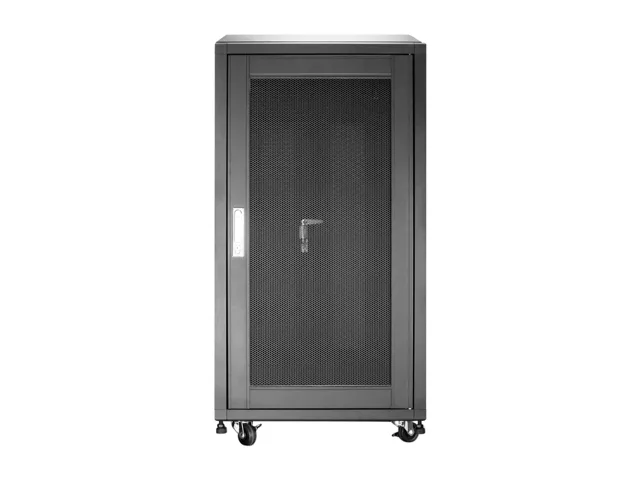

Black 22U server rack cabinet with double rear doors and vented panels

iStarUSA Inc.

iStarUSA Inc. WN228 22U 800mm Depth Server Rack

SKU CH-4M9R-V1GJ8 MPN WN228

A 22U server cabinet with 800mm depth, 2200 lb capacity, vented double rear doors, and a pre-installed 120mm AC fan

  • TypeRack Enclosure
  • Rack Units22U
  • ColorBlack
  • MaterialSide Panel: SPCC t: 0.8mm Horizontal Rails: SPCC t: 2.0mm Ve
  • Cooling (Standard)Pre-installed 1 set of 120mm 120V AC fan
  • Weight Capacity2200 lbs.
  • 22U capacity fits dense server deployments
  • 800mm depth supports chassis up to 29 inches
  • 2200 lb rating handles heavy equipment loads
  • Locking front, rear and side panels secure data
  • Pre-installed 120mm AC fan delivers active cooling

22U 800mm Depth Server Cabinet

The iStarUSA WN228 is a 22U rack enclosure built from SPCC steel with thicknesses of 2.0mm for the vertical and horizontal rails, 1.2mm for the top panel and 0.8mm for the side panels. It supports a static weight capacity of 2200 lbs and includes a pre-installed 120mm 120V AC fan set for active airflow. The cabinet is finished in black and carries RoHS compliance.

Before ordering, verify your equipment depth

Confirm that your rack-mount chassis depth is 29 inches or less to fit within the 26.5 inch maximum internal depth. The universal mounting rails are horizontally adjustable between 17.75 inch post-to-post and 18.5 inch hole-to-hole spacing to align with standard 19 inch equipment. Ensure the installation site can accommodate the external footprint of 23.50 by 31.50 by 47.75 inches and allow clearance for the double rear doors.

Thermals, noise and power draw

The single pre-installed 120mm AC fan draws air through the vented front and rear doors to maintain circulation across installed devices. Fan noise will be present whenever the unit is powered, and the 120V AC supply requires a suitable mains connection. No additional cooling components are included, so high-density deployments may need supplementary airflow planning. Passive heat dissipation relies on the perforated door design and the steel frame's thermal mass.

Highlights

  • 22U capacity fits dense server deployments
  • 800mm depth supports chassis up to 29 inches
  • 2200 lb rating handles heavy equipment loads
  • Locking front, rear and side panels secure data
  • Pre-installed 120mm AC fan delivers active cooling

Specifications

BrandiStarUSA
ModelWN228
TypeRack Enclosure
Rack Units22U
ColorBlack
MaterialSide Panel: SPCC t: 0.8mm
Horizontal Rails: SPCC t: 2.0mm
Vertical Rails: SPCC t: 2.0mm
Top Panel: SPCC t: 1.2mm
Cooling (Standard)Pre-installed 1 set of 120mm 120V AC fan
Weight Capacity2200 lbs.
SpecificationRoHS Compliance Version: Yes
Supported Chassis Depth: 29" and under
Internal Dimensions:
Width: Post-to-post: 17.75":: Hole-to-hole: 18.5"
Height: 39.75"
Depth: 26.5" max
FeaturesUniversal Fit Most of Rackmount Chassis and Equipment.
Double Rear Doors Provide Convenience and Take Less Space to Open.
Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data.
Easy Cabling Management. Cable Entry Provided from Top / Bottom and Front / Back.
Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis.
Vented Doors Provide Maximum Air Flow.
Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line.
Locking Mechanism Design on Casters.
Unit Dimension23.50" x 47.75" x 31.50"
Shipping weight97.98 kg
Package size1334 × 832 × 572 mm

Questions about this item

Does the WN228 rack ship with all mounting hardware and side panels, or do I need to buy rails and panels separately?

The cabinet includes pre-installed vertical and horizontal rails made from 2.0 mm SPCC steel, 0.8 mm SPCC side panels, a 1.2 mm SPCC top panel, a 120 mm 120 V AC fan, and front, rear and side locks; no extra rails or panels are required.

How do I know if my 29-inch-deep server chassis will fit inside the 800 mm depth WN228?

The maximum supported chassis depth is 29 inches; internal depth is 26.5 inches with post-to-post width of 17.75 inches and hole-to-hole width of 18.5 inches, so any 19-inch rackmount unit 29 inches deep or less will mount.

What does the 2200 lb weight capacity mean when the cabinet is fully loaded in a data-centre row?

The 2200 lb rating covers the combined weight of all installed equipment across the 22 U vertical space; the 2.0 mm SPCC vertical and horizontal rails and 1.2 mm top panel are designed to carry that load without deformation.
