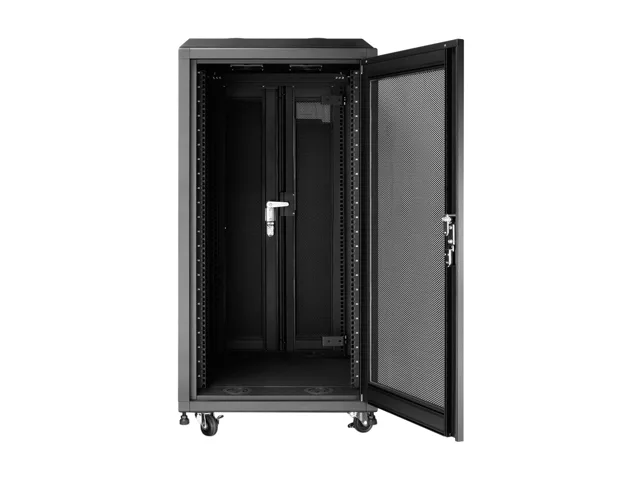

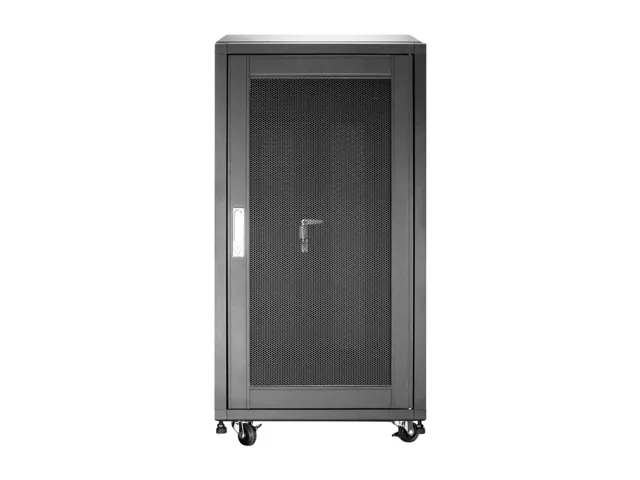

Black 22U server rack cabinet with double rear doors and side panels, 1000mm depth

iStarUSA Inc.

iStarUSA Inc. WN2210 22U 1000mm Depth Server Rack

SKU CH-4FNK-DBGDA MPN WN2210

A 22U server cabinet with 1000mm depth, 2200 lbs capacity, pre-installed 120mm cooling fans, double rear doors and lockable panels for secure equipment storage

  • TypeRack Enclosure
  • Rack Units22U
  • ColorBlack
  • MaterialSide Panel: SPCC t: 0.8mm Horizontal Rails: SPCC t: 2.0mm Ve
  • Cooling (Standard)Pre-installed 1 set of 120mm 120V AC fan
  • Weight Capacity2200 lbs.
  • 22U rack height accommodates dense server deployments
  • 2200 lbs weight capacity supports heavy equipment loads
  • Double rear doors reduce aisle space needed for access
  • Lockable front, rear and side panels secure hardware and data
  • Pre-installed 120mm AC fan and vented doors deliver active cooling

22U Server Cabinet for Secure Equipment

The iStarUSA WN2210 is a 22U rack enclosure with a 1000mm depth designed to house standard 19-inch rackmount chassis and equipment. Adjustable horizontal and vertical rails made from 2.0mm SPCC steel support a broad range of server depths up to 34.25 inches. Lockable front doors, double rear doors and side panels protect hardware and data from unauthorised access. The unit measures 23.50 by 47.75 by 39.50 inches and is rated for a 2200 lbs weight capacity.

Pre-installed 120mm AC Fan and Vented Doors

A single 120mm 120V AC fan comes pre-installed to move air through the cabinet, while vented front and rear doors maximise airflow across installed components. The 1.2mm SPCC top panel and 0.8mm side panels form a rigid structure that helps maintain consistent air paths under load. Double rear doors reduce the clearance needed for rear access during maintenance. The design aims to limit dust buildup inside the enclosure during continuous operation.

50 Sets of M5 Hardware and Lockable Casters

Fifty sets of M5 mounting screws and cage nuts are included so equipment can be secured to the adjustable rails immediately. Locking casters allow the fully loaded cabinet to be moved into position and then immobilised to prevent accidental shifting. The double rear door mechanism and side panel locks operate with the same keyed security system used on the front door. No additional cooling kits or rail kits are required for typical deployments.

Highlights

  • 22U rack height accommodates dense server deployments
  • 2200 lbs weight capacity supports heavy equipment loads
  • Double rear doors reduce aisle space needed for access
  • Lockable front, rear and side panels secure hardware and data
  • Pre-installed 120mm AC fan and vented doors deliver active cooling

Specifications

BrandiStarUSA
ModelWN2210
TypeRack Enclosure
Rack Units22U
ColorBlack
MaterialSide Panel: SPCC t: 0.8mm
Horizontal Rails: SPCC t: 2.0mm
Vertical Rails: SPCC t: 2.0mm
Top Panel: SPCC t: 1.2mm
Cooling (Standard)Pre-installed 1 set of 120mm 120V AC fan
Weight Capacity2200 lbs.
SpecificationSupported Chassis Depth: 34" and under
Internal Dimensions:
Height: 39.75"
Depth: 34.25" max
FeaturesUniversal Fit Most of Rackmount Chassis and Equipment.
Double Rear Doors Provide Convenience and Take Less Space to Open.
Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data.
Easy Cabling Management. Cable Entry Provided from Top / Bottom and Front / Back.
Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis.
Vented Doors Provide Maximum Air Flow.
Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line.
Locking Mechanism Design on Casters.
*1. f
Unit Dimension23.50" x 47.75" x 39.50"
Shipping weight111.77 kg
Package size1232 × 1029 × 622 mm

Questions about this item

How do I install the 22U server rack and what step do people often miss?

Position the cabinet on its locking casters, level it, then secure the 2.0 mm vertical rails at the required depth before mounting equipment; the step often missed is tightening the rail adjustment screws after setting the 34.25 inch maximum depth.

What maintenance or replacement will the 22U rack need later?

The pre-installed 120 mm 120V AC fan set should be inspected periodically and replaced if airflow drops or noise increases; the 50 included M5 screws and cage nuts may also need replenishing after repeated equipment changes.

What limit appears first under sustained heavy loading of the 22U rack?

The 2200 lb weight capacity is the primary structural limit; exceeding it risks deformation of the 2.0 mm horizontal rails and 1.2 mm top panel before any other constraint is reached.
