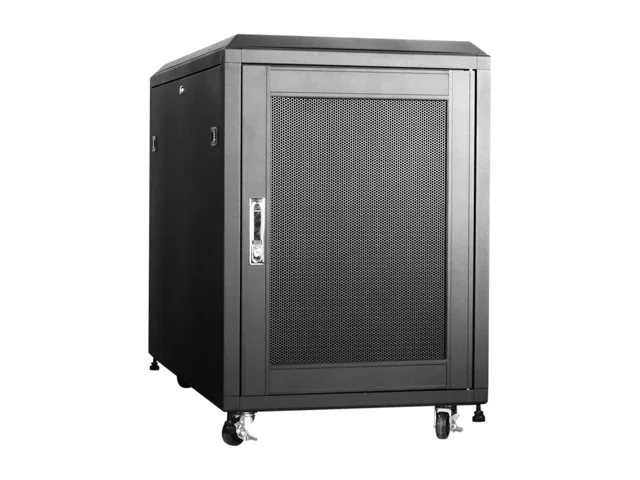

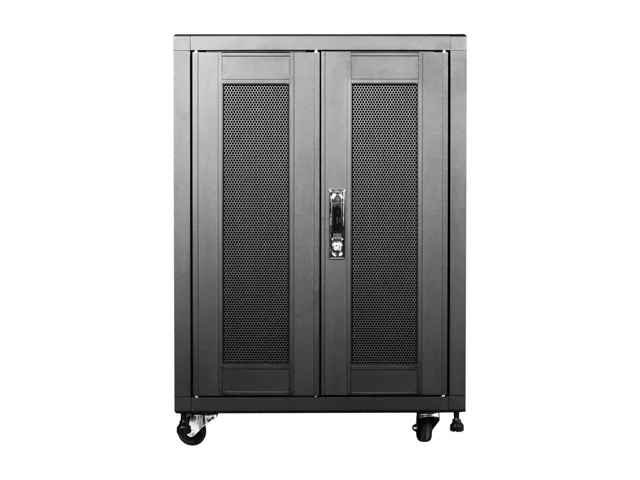

Black 15U server rack cabinet with double rear doors and vented front panel, 800mm depth

iStarUSA Inc.

iStarUSA Inc. WN158 15U 800mm Depth Server Rack

SKU CH-C49F-82CQN MPN WN158

A 15U lockable server cabinet with 800mm depth, vented doors, 120mm cooling fans, and adjustable rails supporting up to 2200 lbs static load

  • TypeRack Enclosure
  • Rack Units15U
  • ColorBlack
  • Weight CapacityStatic loading w/o casters: 2200.00 lbs. Static loading with
  • SpecificationRoHS Compliance Version: Yes Supported Chassis Depth: 27.5"
  • FeaturesUniversal Fit Most of Rackmount Chassis and Equipment Double
  • Holds 15U of equipment in a compact 800mm deep frame
  • Static load rated to 2200.00 lbs without casters for heavy installations
  • Double rear doors open in tight aisles for easier access
  • Locking front, rear and side panels secure data and hardware
  • 120mm AC fans and vented doors deliver strong airflow for cooling

Rack capacity and form factor

The iStarUSA WN158 is a 15U server rack cabinet with an 800mm depth, designed to house standard 19-inch rackmount equipment. Its fully adjustable horizontal rails accommodate most chassis depths up to 27.5 inches, making it suitable for small business server rooms, branch offices, or secure equipment closets where a full-height cabinet is not required.

Maximum supported chassis depth

The single specification that determines fit is the maximum supported chassis depth of 27.5 inches, measured at the outer post-to-post dimension of 26.5 inches. Equipment deeper than this limit cannot be installed, so buyers must verify their hardware dimensions before purchasing this enclosure.

Cooling airflow and structural load

Vented front and rear doors combined with 120mm AC cooling fans provide active air circulation through the cabinet. The steel construction using SPCC 0.8mm side panels and 2.0mm horizontal rails supports a static load of 2200.00 lbs without casters, 880.00 lbs with casters, and a dynamic load of 660.00 lbs during transport.

Highlights

  • Holds 15U of equipment in a compact 800mm deep frame
  • Static load rated to 2200.00 lbs without casters for heavy installations
  • Double rear doors open in tight aisles for easier access
  • Locking front, rear and side panels secure data and hardware
  • 120mm AC fans and vented doors deliver strong airflow for cooling

Specifications

BrandiStarUSA
ModelWN158
TypeRack Enclosure
Rack Units15U
ColorBlack
Weight CapacityStatic loading w/o casters: 2200.00 lbs.
Static loading with casters: 880.00 lbs.
Dynamic loading: 660.00 lbs.
SpecificationRoHS Compliance Version: Yes
Supported Chassis Depth: 27.5" and under
Internal Dimensions:
Height: 27.25"
Depth: outer post-to-post 26.5" max
Material:
Side Panel: SPCC 0.8mm
Horizontal Rails: SPCC 2.0mm
Vertical Rails: SPCC 2.0mm
Top Panel: SPCC 1.2mm
FeaturesUniversal Fit Most of Rackmount Chassis and Equipment
Double Rear Doors Provide Convenience and Take Less Space to Open
Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data
Easy Cabling Management. Cable Entry Provided from Top / Bottom and Front / Back
Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis
Vented Doors Provide Maximum Air Flow
120mm AC Cooling Fans Provide Excellent Air Circulation
Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Produc
Unit Dimension35.25" x 23.50" x 31.50"
Shipping weight77.11 kg
Package size1041 × 838 × 635 mm

Questions about this item

What does the 15U capacity mean for the equipment I can install?

The cabinet provides 15 rack units of vertical space, giving you 27.25 inches of usable height for standard 19-inch rack-mount servers and network gear.

How does the 800mm depth limit what chassis I can mount?

The maximum outer post-to-post depth is 26.5 inches, so any chassis 27.5 inches deep or less will fit on the fully adjustable horizontal rails.

What floor space and clearance does the 31.5-inch deep cabinet need?

The unit measures 35.25 inches high, 23.50 inches wide and 31.50 inches deep; allow extra room for the double rear doors to swing and for cable entry at the top, bottom, front and back.
