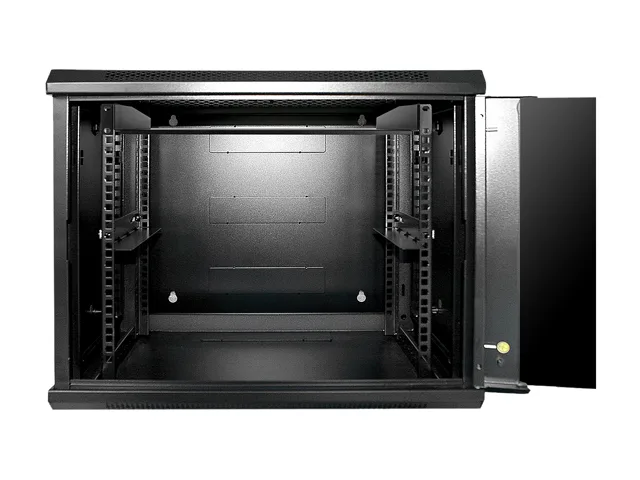

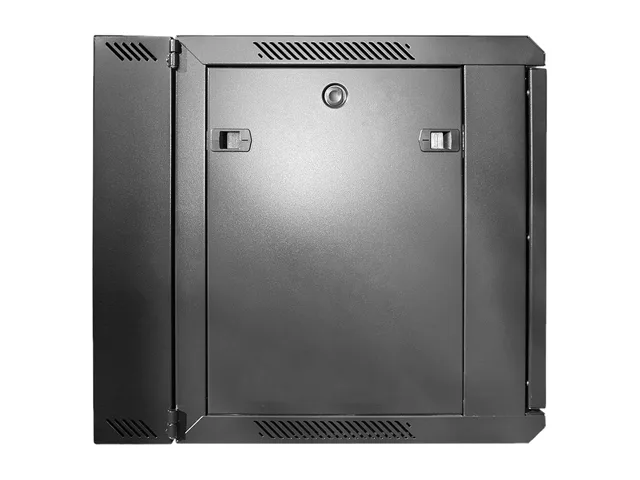

Black 9U wall-mount server cabinet with glass front door, swing-out frame and side panels

iStarUSA Inc.

iStarUSA Inc. WMZ955-SFH25 9U 550mm Wallmount Server Rack

SKU CH-TRQJ-HRX5H MPN WMZ955-SFH25

A 9U wall-mount server cabinet with swing-out frame, 550 mm depth and 130 lb capacity for 16-inch chassis

  • TypeWall Mount Cabinet
  • Rack Units9U
  • ColorBlack
  • MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130 lbs.
  • SpecificationSupported Chassis Depth: 16" and under Internal Dimensions:
  • 9U wall-mount cabinet fits 550 mm depth equipment
  • Swing-out frame allows rear access without removing unit
  • 130 lb load rating on 1.5 mm SPCC steel posts
  • Ventilated design supports optional dual AC cooling fans
  • Lockable strengthened glass door plus removable side panels

9U Wall-Mount Server Cabinet

The iStarUSA WMZ955-SFH25 is a 9U wall-mount server cabinet built from 1.5mm SPCC cold-roll steel posts and 1.2mm SPCC enclosure panels. It supports equipment up to 130 lbs and conforms to ANSI/EIA RS-310-D, IEC297-2, DIN41491, DIN41494 and GB/T3047.2-92 standards. The unit measures 19.74" wide, 23.62" high and 21.65" deep, and ships with M6 mounting hardware and a 1U supporting tray.

16-Inch Maximum Chassis Depth

The cabinet accepts chassis depths of 16 inches and under, with outer post-to-post clearance of 15.5 inches maximum and 11.5 inches by default. This single dimension determines whether your server or network appliance will fit inside the swing-out frame. Verify your hardware depth against this limit before purchase.

Suits Shallow-Depth Wall Installations

This cabinet suits installers mounting shallow-depth servers, switches or patch panels on a wall where swing-out rear access is required. It is not for buyers needing deeper than 16-inch chassis support, floor-standing capacity, or higher weight ratings than 130 lbs.

Highlights

  • 9U wall-mount cabinet fits 550 mm depth equipment
  • Swing-out frame allows rear access without removing unit
  • 130 lb load rating on 1.5 mm SPCC steel posts
  • Ventilated design supports optional dual AC cooling fans
  • Lockable strengthened glass door plus removable side panels

Specifications

BrandiStarUSA
ModelWMZ955-SFH25
TypeWall Mount Cabinet
Rack Units9U
ColorBlack
MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts
Comes with a 1U Supporting Tray
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit Dimension19.74" x 23.62" x 21.65"
Shipping weight27.33 kg
Package size668 × 617 × 579 mm

Questions about this item

How much equipment depth does the 15.5 inch post-to-post clearance actually allow inside the rack?

The outer posts sit 15.5 inches apart at maximum, so any server or shelf must be 16 inches deep or less to fit with the glass door closed.

What does the ANSI / EIA RS-310-D listing mean for the mounting rails in this cabinet?

The rails follow the 19-inch rack standard with universal hole spacing, so any EIA-310 compliant server, switch or patch panel will bolt straight in using the included M6 cage nuts.

What wall structure and hardware are needed to hang the 21.65 inch deep cabinet safely?

The unit weighs up to 130 lbs loaded, so it must be lag-bolted into studs or concrete using heavy-duty anchors; the swing-out hinge adds leverage, so all four mounting points should be secured.
