Black 9U wall-mount server rack with swing-out frame and glass front door

iStarUSA Inc.

iStarUSA Inc. WMZ955-P2UMT 9U 550mm Swing-out Wallmount Server Rack 130 lbs

SKU CH-YAA5-7ZRRH MPN WMZ955-P2UMT

A 9U wall-mount cabinet with a 550 mm depth and swing-out frame for rear access, supporting 130 lbs of equipment up to 16 inches deep

  • TypeWall Mount Cabinet
  • Rack Units9U
  • ColorBlack
  • MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130 lbs.
  • SpecificationSupported Chassis Depth: 16" and under Internal Dimensions:
  • 9U rack space fits standard servers
  • 130 lbs capacity on welded SPCC frame
  • 550 mm depth with 15.5 inch max chassis support
  • Swing-out design eases rear access
  • Lockable glass door plus removable side panels

9U Wall-Mount Cabinet

The iStarUSA WMZ955-P2UMT is a 9U wall-mount cabinet built for network gear and shallow servers up to 16 inches deep. It suits small offices or edge locations where floor space is limited but rack-mount equipment is required.

1.5mm SPCC Steel Frame

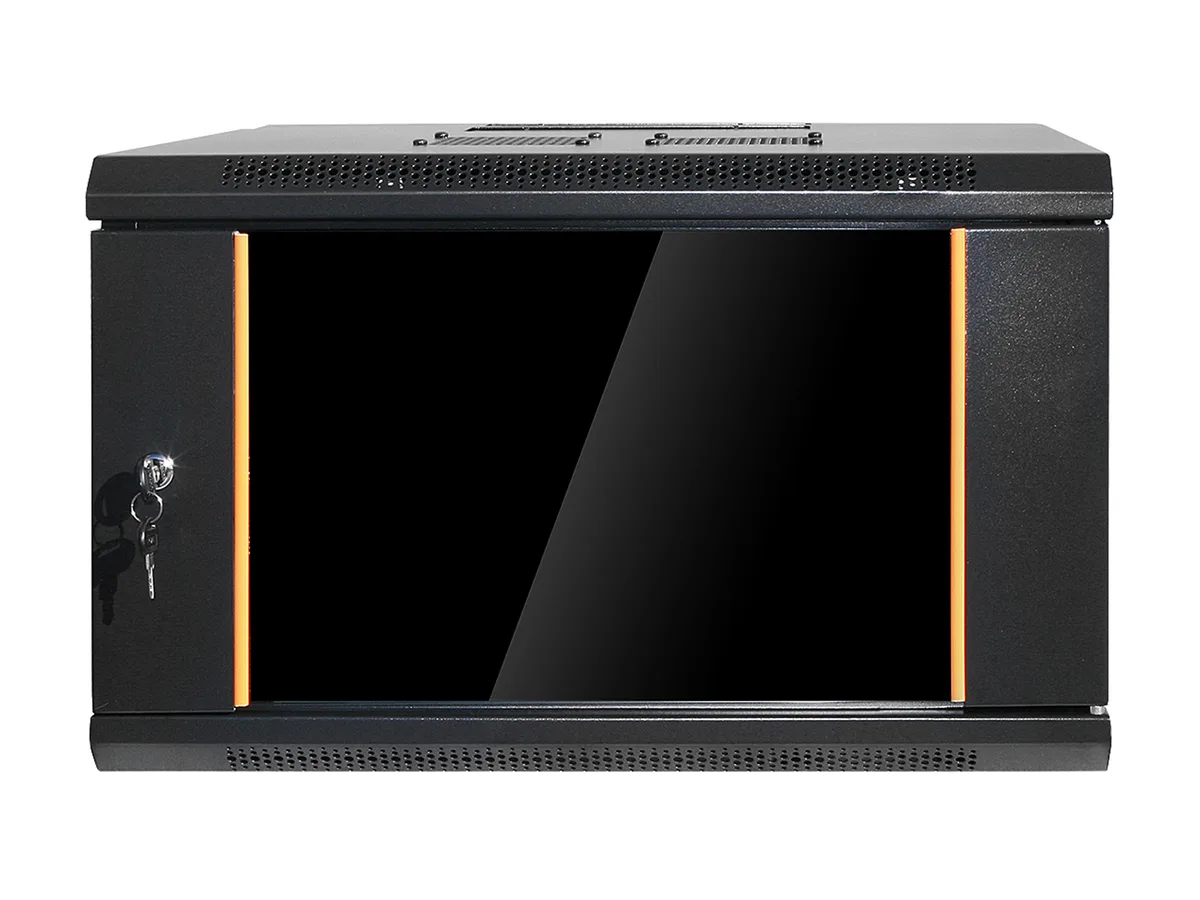

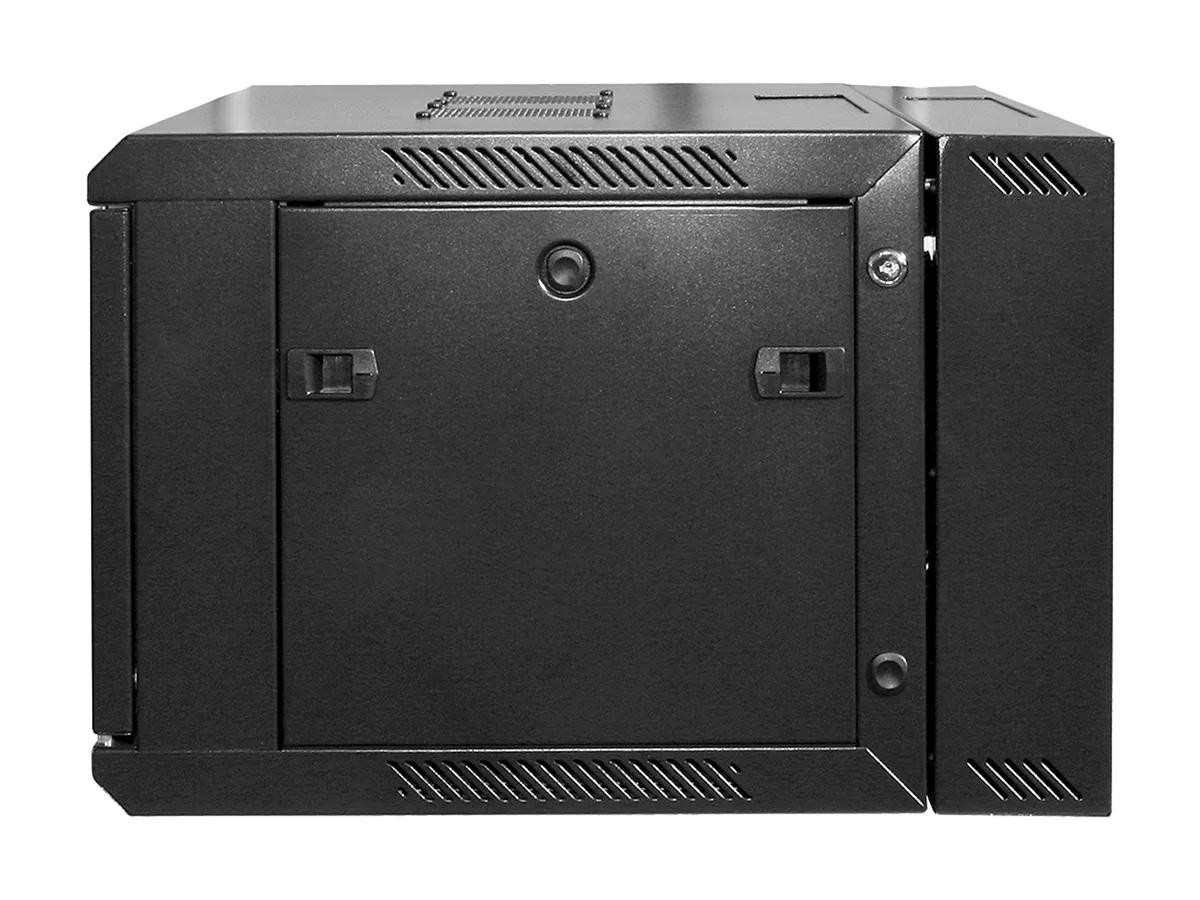

Posts use 1.5mm SPCC cold-rolled steel and the enclosure uses 1.2mm SPCC for a 130 lbs weight capacity. A swing-out design gives rear access, while top, bottom and rear cable tunnels route wiring cleanly. Removable side panels latch by hand and the strengthened glass front door locks with a key.

15.5 Inch Maximum Depth

Verify that your devices fit within the 15.5 inch outer post-to-post depth, or the 11.5 inch default depth before adding the extension. The wall must support the loaded cabinet weight and the mounting hardware supplied uses M6 screws and cage nuts.

Highlights

  • 9U rack space fits standard servers
  • 130 lbs capacity on welded SPCC frame
  • 550 mm depth with 15.5 inch max chassis support
  • Swing-out design eases rear access
  • Lockable glass door plus removable side panels

Specifications

BrandiStarUSA
ModelWMZ955-P2UMT
TypeWall Mount Cabinet
Rack Units9U
ColorBlack
MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts
Comes with a 2U Metallic White Board Panel
Industry StandardANSI/EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB/T3047.2-92
Unit Dimension19.74" x 23.62" x 21.65"
Shipping weight34.93 kg
Package size762 × 762 × 635 mm

Questions about this item

What rack standard does the WMZ955-P2UMT follow and how many units does it hold?

It conforms to ANSI/EIA-310-D and related IEC, DIN and GB standards and provides 9U of rack space.

What wall mounting hardware is required for this 130 lb cabinet?

The unit ships with M6 mounting screws and cage nuts; you must supply lag bolts or anchors rated for the 130 lb load and secure them into studs or concrete.

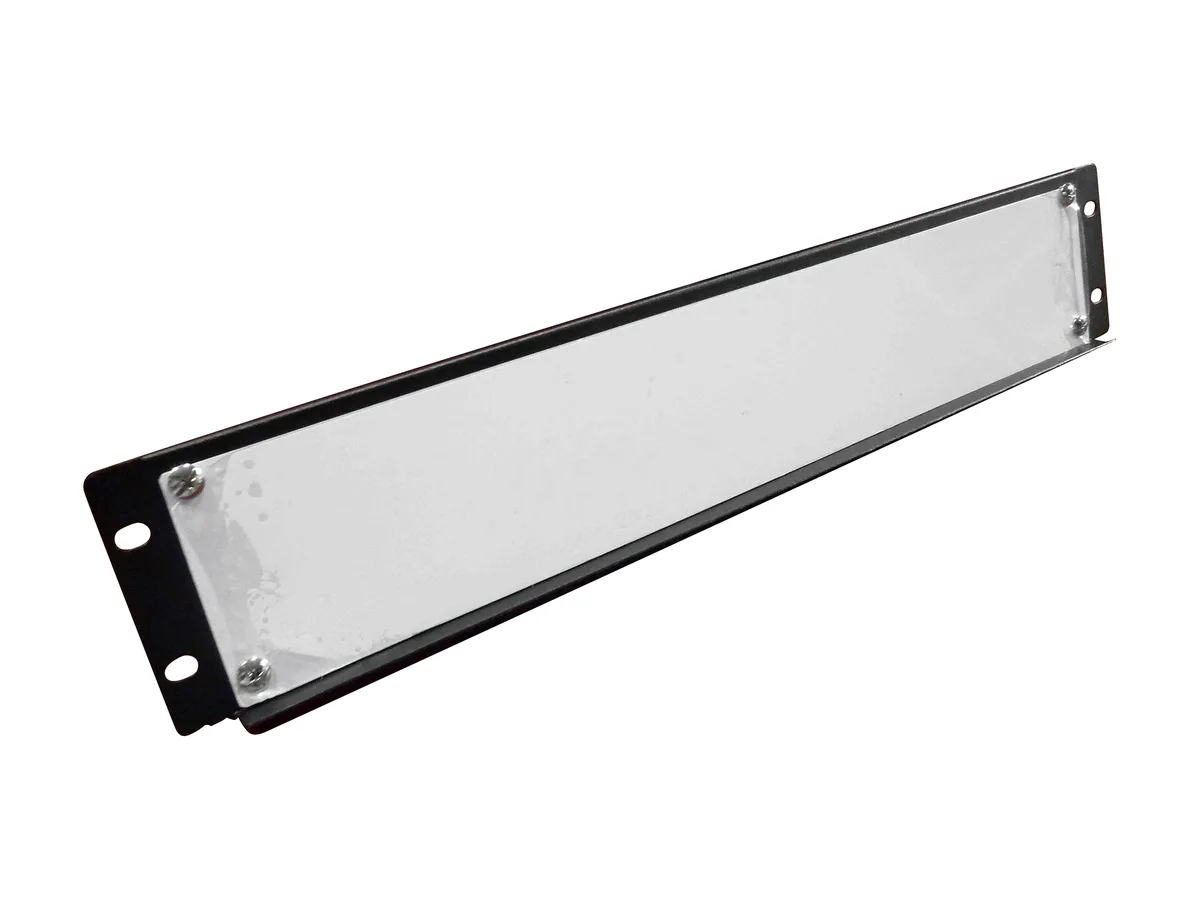

How do you install the included 2U metallic white board panel and what is the common mistake?

Fasten the panel to the front rack rails using the supplied M6 screws and cage nuts; the frequent error is forgetting the cage nuts so the screws have nothing to grip.
