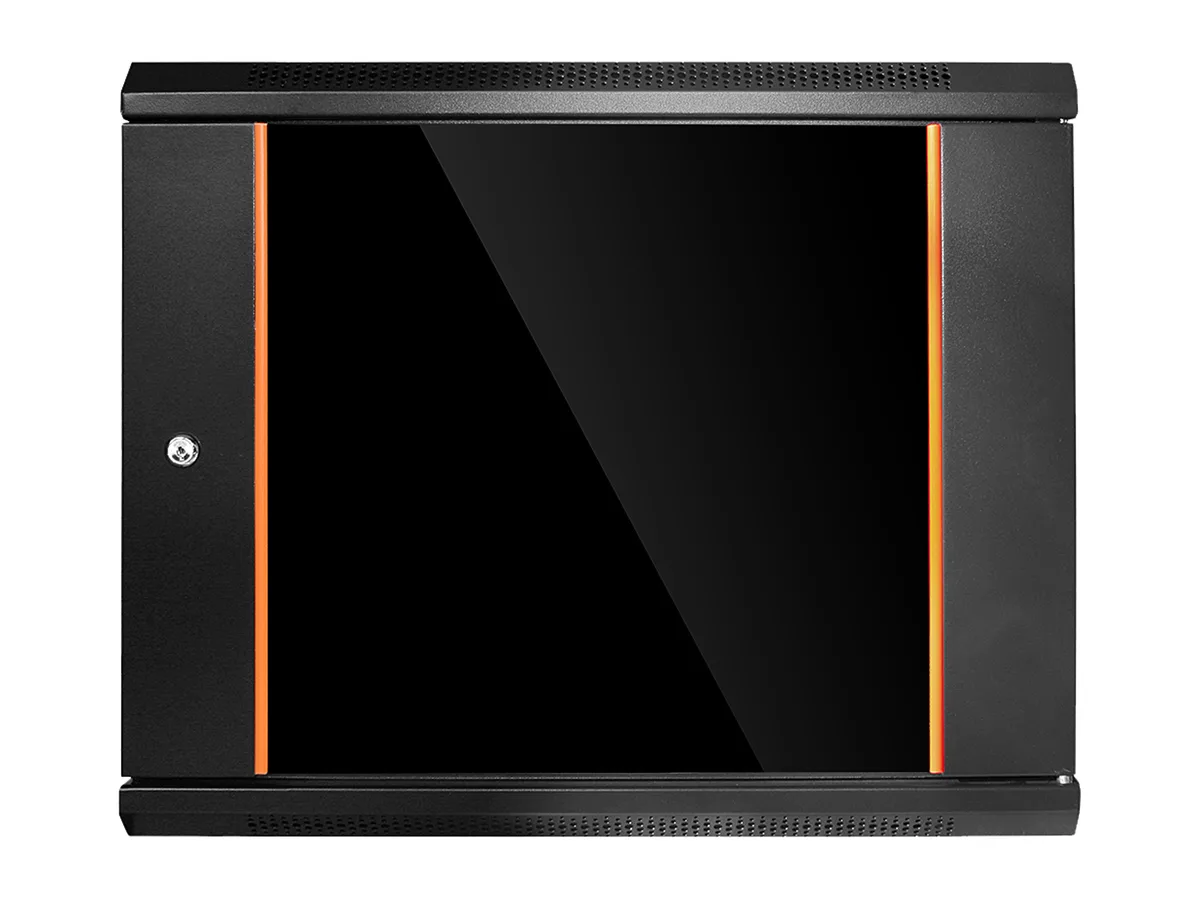

Black 9U swing-out wall-mount server rack with glass front door and 2U cover plate

iStarUSA Inc.

iStarUSA Inc. WMZ955-P2U 9U 550mm Depth Swing-out Wallmount Server Rack with 2U Cover Plate

SKU CH-N29G-C1VD4 MPN WMZ955-P2U

A 9U wall-mount server rack with 550 mm depth, swing-out frame and 130 lb capacity for chassis up to 16 inches deep

  • TypeWall Mount Cabinet
  • Rack Units9U
  • ColorBlack
  • MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130.00 lbs.
  • SpecificationSupported Chassis Depth: 16" and under Internal Dimensions:
  • 9U wall-mount cabinet fits tight spaces
  • 550 mm depth supports 16-inch chassis
  • 130 lb capacity holds heavy gear
  • Swing-out frame simplifies rear access
  • Locking glass door secures equipment

9U Wall-Mount Rack for Compact Servers

The iStarUSA WMZ955-P2U is a 9U swing-out wall cabinet designed for small servers and network gear. It suits offices, labs or edge sites where floor space is limited and rack depth must stay under 16 inches. The 2U cover plate fills unused bays for a clean finish. Buyers needing deeper chassis or floor-standing capacity should look elsewhere.

Thermal Management and Airflow

Perforated panels and an open-frame layout provide passive ventilation across the 11.5 inch default mounting depth. Two optional AC fan positions can be added when equipment generates more heat. The swing-out hinge keeps cables clear of airflow paths during service. No active cooling is included by default.

130 lb Load Rating on 1.5 mm Steel Posts

The welded SPCC frame uses 1.5 mm posts and 1.2 mm enclosure panels to carry up to 130.00 lbs of equipment. Mounting holes follow ANSI/EIA-310-D spacing so standard rails fit directly. Maximum outer post-to-post depth is 15.5 inches, limiting hardware length. Heavier or longer devices exceed the rated capacity.

Highlights

  • 9U wall-mount cabinet fits tight spaces
  • 550 mm depth supports 16-inch chassis
  • 130 lb capacity holds heavy gear
  • Swing-out frame simplifies rear access
  • Locking glass door secures equipment

Specifications

BrandiStarUSA
ModelWMZ955-P2U
TypeWall Mount Cabinet
Rack Units9U
ColorBlack
MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130.00 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts

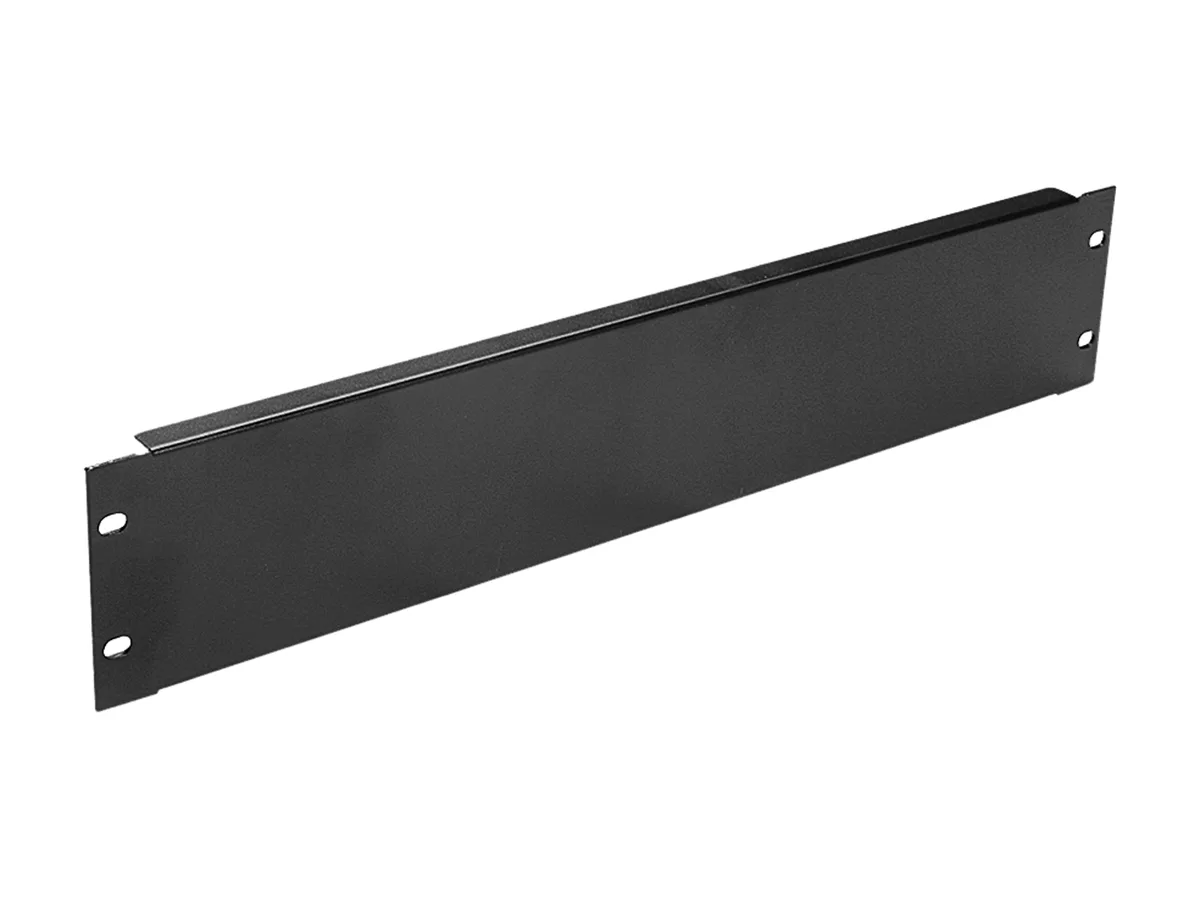

Comes with a 2U Cover Plate
Industry StandardANSI/EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB/T3047.2-92
Unit Dimension19.74" x 23.62" x 21.65"
Shipping weight34.93 kg
Package size673 × 622 × 572 mm

Questions about this item

How do I mount the WMZ955-P2U to the wall and what step is often missed?

Secure the welded frame to studs or concrete using hardware rated for 130.00 lbs, then verify the swing-out hinge moves freely before loading equipment; skipping the hinge check is the common error.

What maintenance will the WMZ955-P2U need over time?

Clean dust from the ventilation openings and the glass front door monthly; check that the M6 screws and cage nuts stay tight after the first week of operation and re-torque if any have loosened.

What limit appears first when the WMZ955-P2U runs fully loaded for long periods?

The 130.00 lbs weight capacity is reached before any thermal limit, so total installed gear must stay at or below that figure to avoid structural stress.
