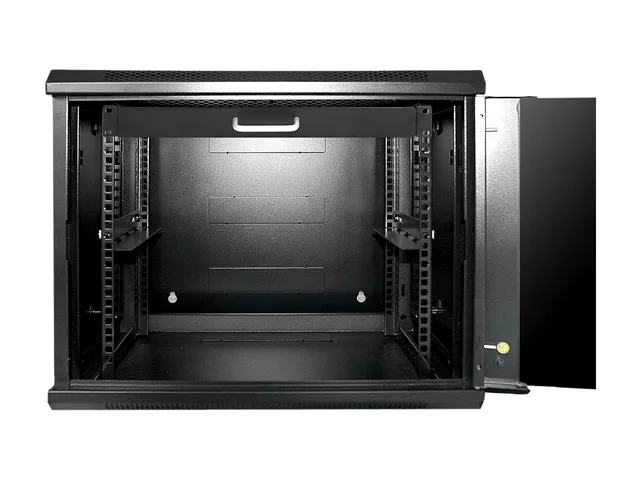

Black 9U wall-mount server cabinet with swing-out frame and 1U keyboard drawer

iStarUSA Inc.

iStarUSA Inc. WMZ955-KBR1U 9U 550mm Swing-out Wallmount Server Rack with 1U Keyboard Drawer

SKU CH-YX03-CNBKP MPN WMZ955-KBR1U

A 9U swing-out wall cabinet with a 1U keyboard drawer, 550mm depth and 130lb load rating

  • TypeWall Mount Cabinet
  • Rack Units9U
  • ColorBlack
  • MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130 lbs.
  • SpecificationSupported Chassis Depth: 16" and under Internal Dimensions:
  • 9U wall-mount cabinet fits tight spaces
  • swing-out frame gives easy rear access
  • 130 lb capacity supports heavy gear
  • 1U keyboard drawer keeps console tidy
  • ventilated design with optional dual fans cools equipment

9U Wall-Mount Cabinet with Keyboard Drawer

The iStarUSA WMZ955-KBR1U is a 9U wall-mount server cabinet finished in black. It provides 130 lbs weight capacity for network gear, patch panels or shallow servers. The integrated 1U keyboard drawer adds local console access without consuming extra rack space. Suited for small offices, branch sites or edge locations where floor space is limited.

Sustained Operation in a Welded Steel Frame

Posts are 1.5 mm SPCC cold-roll steel and the enclosure is 1.2 mm SPCC, forming a rigid welded structure that resists flex under continuous load. Ventilation slots run across the frame and support optional dual AC cooling fans for steady airflow during long duty cycles. Top, bottom and rear cable tunnels keep routing organised so airflow paths stay clear over time. The swing-out hinge allows the chassis to pivot away from the wall for maintenance without removing mounted equipment.

Replacing Open-Frame Racks or Deeper Cabinets

This unit replaces open-frame wall racks when a lockable glass front door and removable side panels with latches are required for physical security. It also replaces deeper floor-standing cabinets where only 15.5 inch maximum chassis depth is needed, saving projection into the room. The jump is worthwhile when you need ANSI/EIA RS-310-D compliant 19 inch mounting in a compact swing-out form factor with an integrated keyboard tray. Buyers needing deeper server chassis or higher unit counts should consider alternative form factors.

Highlights

  • 9U wall-mount cabinet fits tight spaces
  • swing-out frame gives easy rear access
  • 130 lb capacity supports heavy gear
  • 1U keyboard drawer keeps console tidy
  • ventilated design with optional dual fans cools equipment

Specifications

BrandiStarUSA
ModelWMZ955-KBR1U
TypeWall Mount Cabinet
Rack Units9U
ColorBlack
MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts
Comes with a 1U Keyboard Drawer
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit Dimension19.74" x 23.62" x 21.65"
Shipping weight38.10 kg
Package size673 × 622 × 572 mm

Questions about this item

How much heat will the optional dual AC cooling fans move when the cabinet runs continuously?

The fans are optional and their airflow rating is not supplied, so heat removal depends on the specific fan model you install.

Which wall anchors and mounting hardware must I already own to secure the 130 lb steel frame?

The package includes M6 mounting screws and cage nuts for equipment, but wall anchors for the cabinet itself are not included.

Will my existing 16-inch deep servers fit the 15.5-inch maximum post-to-post depth?

The cabinet supports chassis up to 16 inches deep, while the inner post-to-post clearance is 15.5 inches maximum and 11.5 inches by default.
