Black 9U wall-mount server rack with swing-out frame and 2U drawer

iStarUSA Inc.

iStarUSA Inc. WMZ955-DWR2U 9U 550mm Swing-out Wallmount Server Rack with 2U Drawer

SKU CH-9FMZ-XD86G MPN WMZ955-DWR2U

Wall-mount 9U cabinet swings out for rear access, holds 130 lbs of 16-inch-deep gear and includes a locking glass door plus 2U drawer

  • TypeWall Mount Cabinet
  • Rack Units9U
  • ColorBlack
  • MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130 lbs.
  • SpecificationSupported Chassis Depth: 16" and under Internal Dimensions:
  • 9U capacity fits compact server deployments
  • Swing-out frame eases rear access for maintenance
  • 130 lbs weight capacity supports dense equipment loads
  • 550 mm depth accommodates chassis up to 16 inches

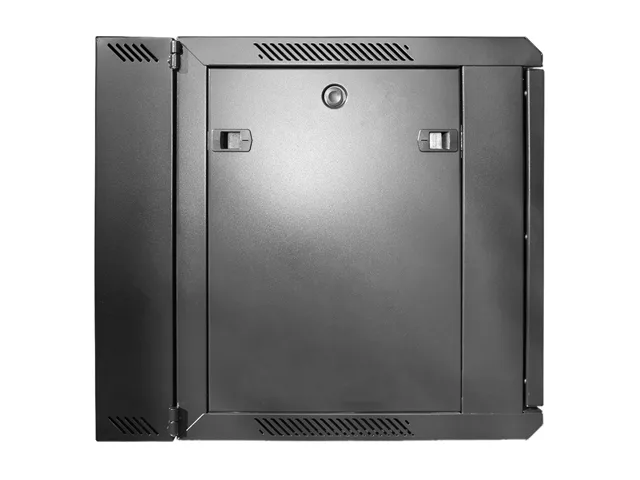

  • Locking glass front door secures installed hardware

9U Swing-out Wall Cabinet

This 9U wall-mount cabinet holds servers up to 130 lbs and accepts chassis depths of 16 inches or less. The swing-out frame pivots away from the wall for full rear access during installation or maintenance. A built-in 2U drawer provides convenient storage for tools, cables or documentation. SPCC steel construction meets ANSI/EIA RS-310-D and related international rack standards.

Sustained Load and Thermal Behaviour

The welded 1.5 mm posts and 1.2 mm enclosure maintain rigidity when fully populated, preventing flex that can stress mounted equipment over time. Perforated panels create passive airflow paths, while dual AC fan mounts allow active cooling to be added if equipment generates continuous heat. Top, bottom and rear cable tunnels keep wiring organised without blocking ventilation channels.

Upgrade Path and Fit Constraints

The unit replaces fixed-depth wall brackets that limit chassis depth to 11.5 inches by extending usable depth to 15.5 inches post-to-post. It suits installations where floor-standing racks are impractical but deeper 19-inch gear is required. Buyers needing more than 9U of rack space or a chassis deeper than 16 inches should consider larger enclosures.

Highlights

  • 9U capacity fits compact server deployments
  • Swing-out frame eases rear access for maintenance
  • 130 lbs weight capacity supports dense equipment loads
  • 550 mm depth accommodates chassis up to 16 inches
  • Locking glass front door secures installed hardware

Specifications

BrandiStarUSA
ModelWMZ955-DWR2U
TypeWall Mount Cabinet
Rack Units9U
ColorBlack
MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts
Comes with a 2U Drawer
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit Dimension19.74" x 23.62" x 21.65"
Shipping weight42.64 kg
Package size673 × 622 × 572 mm

Questions about this item

Does the optional dual AC cooling fans kit add noticeable noise when the cabinet runs continuously?

The cabinet uses an open ventilation design so passive airflow handles most heat; the optional dual AC fans run on standard mains power and are typically quiet enough for office environments.

What wall structure and mounting hardware are required to support the 130 lbs capacity?

You need solid wood studs, concrete or masonry with appropriate lag bolts or anchors; the package includes M6 mounting screws and cage nuts for equipment but not the wall fasteners.

Will a legacy 19-inch server with 15.5 inch depth fit the maximum post-to-post spacing?

Yes, the adjustable rails extend to 15.5 inches post-to-post, matching the supported chassis depth of 16 inches and under, so older 19-inch gear within that depth installs directly.
