iStarUSA Inc. WMZ655-SFH40 6U 550mm Swing-out Wallmount Server Rack with 2U Tray

6U Wall-Mount Cabinet

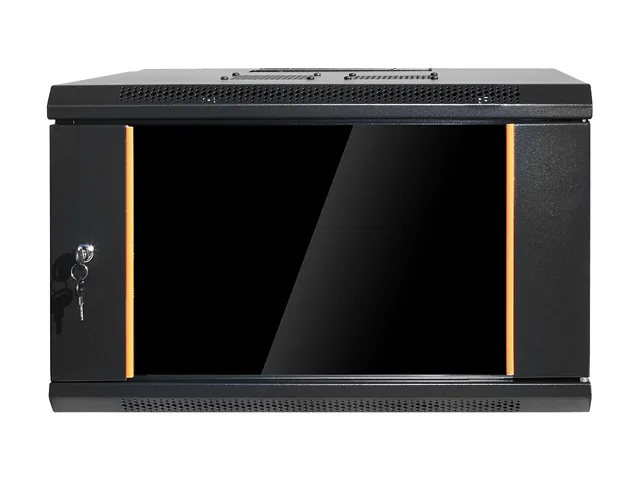

The iStarUSA WMZ655-SFH40 is a 6U swing-out wall-mount server cabinet finished in black. It suits network administrators and small-business installers who need secure, accessible equipment housing where floor space is limited. The welded SPCC steel frame and toughened glass front door with key lock protect mounted gear while the 550 mm depth accommodates chassis up to 16 inches deep. A 2U supporting tray is included for non-rackmount devices.

Wall Structure and Clearance

Verify that the mounting wall can bear the cabinet weight and that studs or masonry anchors align with the supplied M6 hardware. Ensure at least 550 mm of projection space is free for the swing-out frame to rotate fully without striking adjacent objects. Confirm that top, bottom and rear cable-entry tunnels match your trunking routes and that the 16-inch maximum chassis depth covers every device you plan to install.

Upgrade from Open-Frame Racks

This cabinet replaces open-frame wall racks when physical security, dust protection or airflow management become priorities. The lockable glass door and removable side panels with latches restrict unauthorised access while the optional dual AC fan mounts improve thermal control. The jump is worth it when compliance, noise isolation or environmental protection outweigh the simplicity and lower cost of an open frame.
