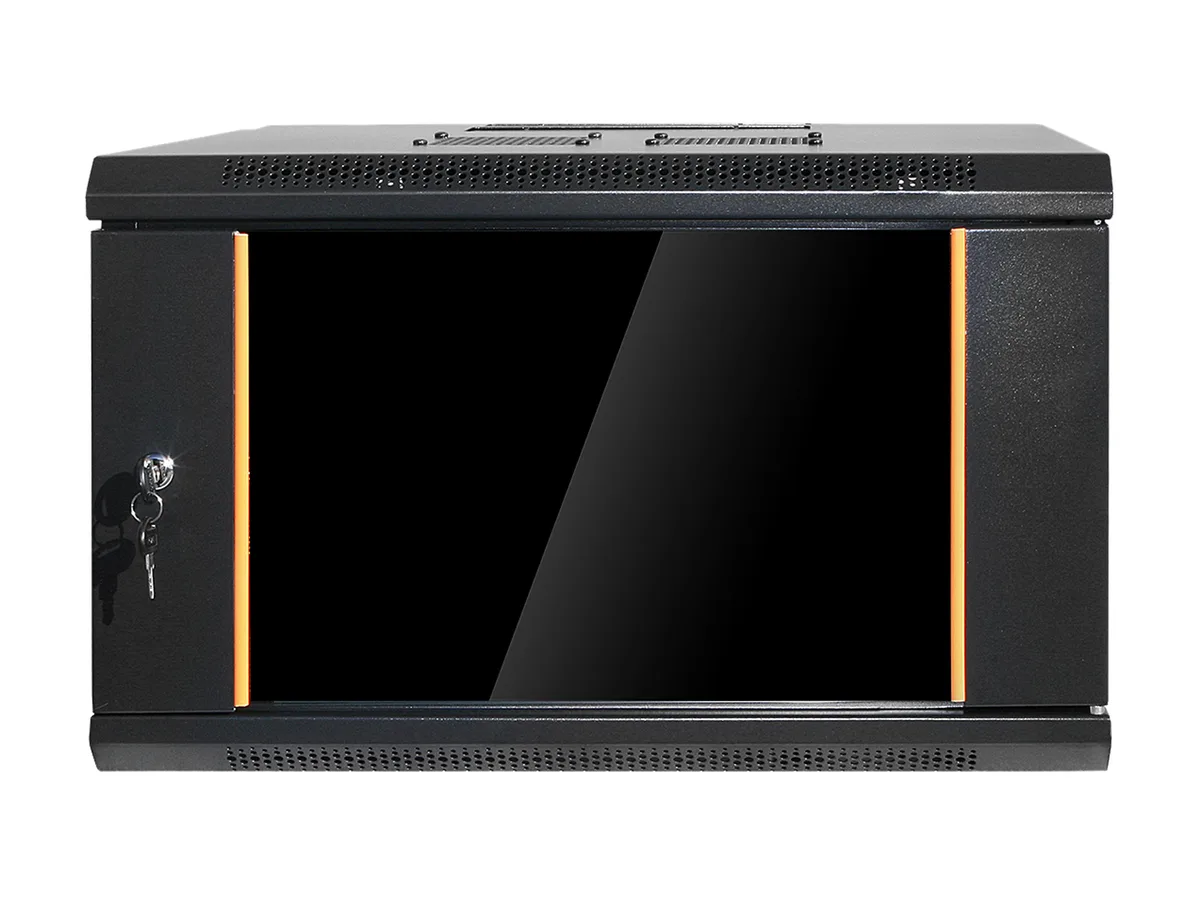

Black 6U wall-mount server rack with swing-out frame and glass front door

iStarUSA Inc.

iStarUSA Inc. WMZ655-P2UMT 6U 550mm Swing-out Wallmount Server Rack

SKU CH-S5GV-SSD8D MPN WMZ655-P2UMT

A 6U swing-out wall-mount rack holds 130 lbs of gear up to 16" deep with lockable glass door and optional dual fans

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130 lbs.
  • SpecificationSupported Chassis Depth: 16" and under Internal Dimensions:
  • 6U capacity fits compact server builds
  • 130 lbs load rating on 1.5 mm SPCC frame
  • 550 mm depth accepts chassis up to 16 inches
  • Swing-out design gives full rear access

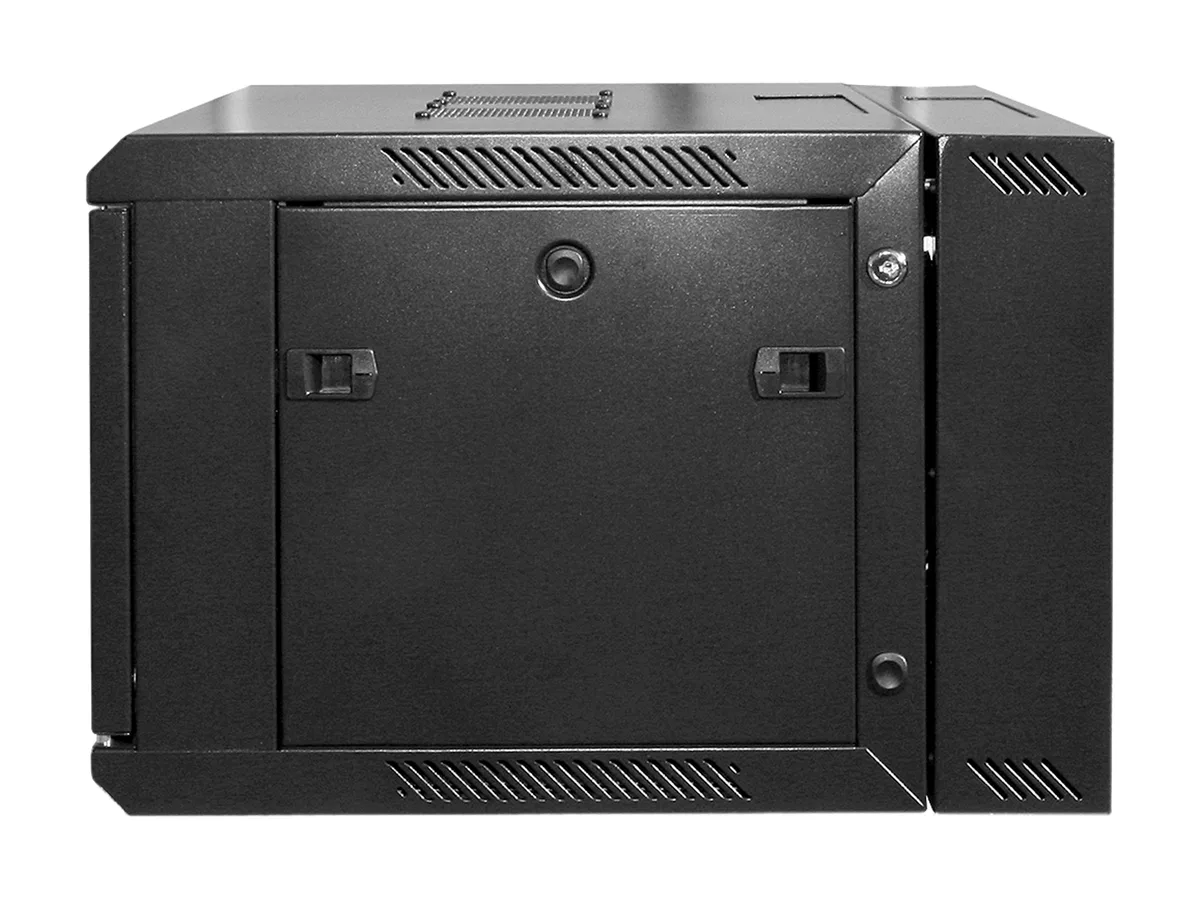

  • Lockable glass door plus removable side panels

6U Wall-mount Cabinet for Shallow-depth Hardware

The iStarUSA WMZ655-P2UMT is a 6U swing-out wall-mount cabinet built from 1.5mm SPCC steel posts and a 1.2mm SPCC enclosure. It supports equipment weighing up to 130 lbs and conforms to ANSI/EIA-310-D and IEC 297-2 mounting standards. The lockable strengthened glass front door and removable side panels with latches secure the installation while allowing quick access.

15.5 Inch Maximum Depth

Internal post-to-post depth reaches 15.5 inches at its maximum setting, while the default configuration provides 11.5 inches of usable space. This capacity comfortably houses patch panels, switches and short-depth servers rated for 16 inches or less. Longer chassis exceeding the supported depth limit cannot be installed in this cabinet.

Swing-out Frame with Top.

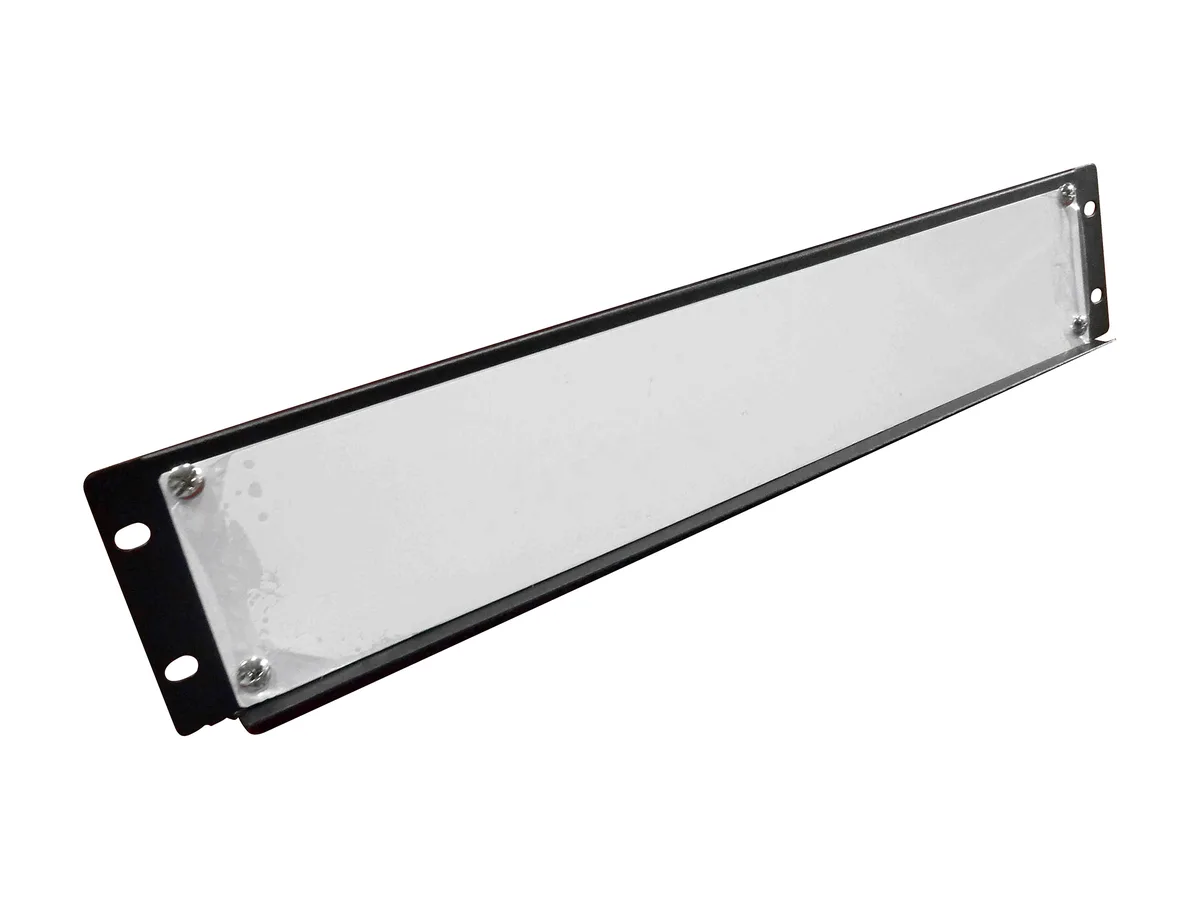

The hinged swing-out design lets the inner frame pivot away from the wall for rear-access maintenance without removing mounted gear. Three integrated cable tunnels at the top, bottom and rear route wiring cleanly into the enclosure. Optional dual AC cooling fans can be added to the ventilation openings when active airflow is required. A 2U metallic white board panel is included for patching or small accessories.

Highlights

  • 6U capacity fits compact server builds
  • 130 lbs load rating on 1.5 mm SPCC frame
  • 550 mm depth accepts chassis up to 16 inches
  • Swing-out design gives full rear access
  • Lockable glass door plus removable side panels

Specifications

BrandiStarUSA
ModelWMZ655-P2UMT
TypeWall Mount Cabinet
Rack Units6U
ColorBlack
MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts
Comes with a 2U Metallic White Board Panel
Industry StandardANSI/EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB/T3047.2-92
Unit Dimension14.49" x 23.62" x 21.65"
Shipping weight27.22 kg
Package size762 × 762 × 508 mm

Questions about this item

Will my existing 15.5 inch deep servers fit the 550mm WMZ655-P2UMT?

The cabinet supports chassis up to 16 inches deep, with outer post-to-post clearance of 15.5 inches maximum and 11.5 inches by default, so most 15.5 inch servers will fit.

How can I verify the swing-out mechanism is aligned after wall mounting?

Open the front door with the security key lock and swing the frame outward; it should move smoothly on its hinges and latch securely when closed, confirming the 130 lb welded frame is properly seated.

Does the WMZ655-P2UMT include the M6 screws, cage nuts and the 2U metallic white board panel shown in the specs?

Yes, the package comes with M6 mounting screws, cage nuts and a 2U metallic white board panel; optional dual AC cooling fans are sold separately.
