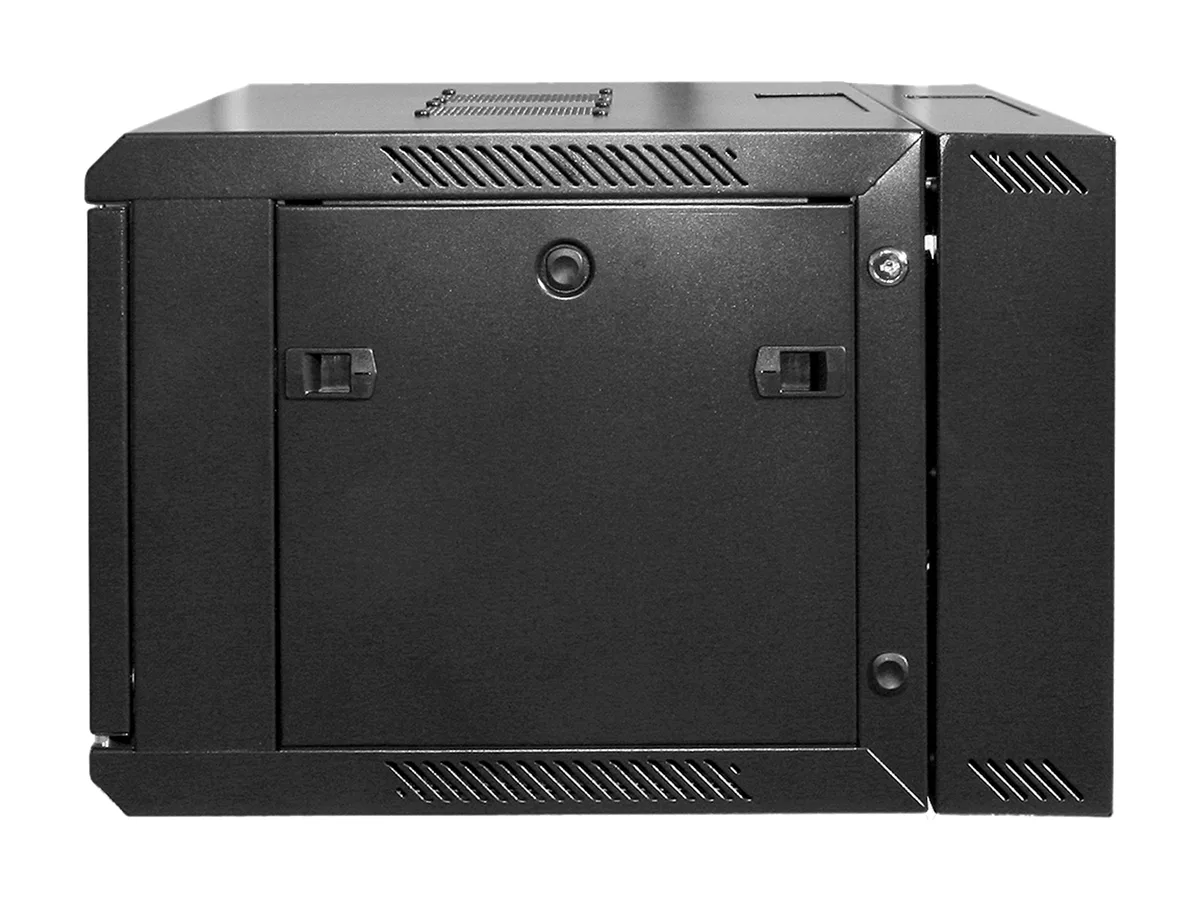

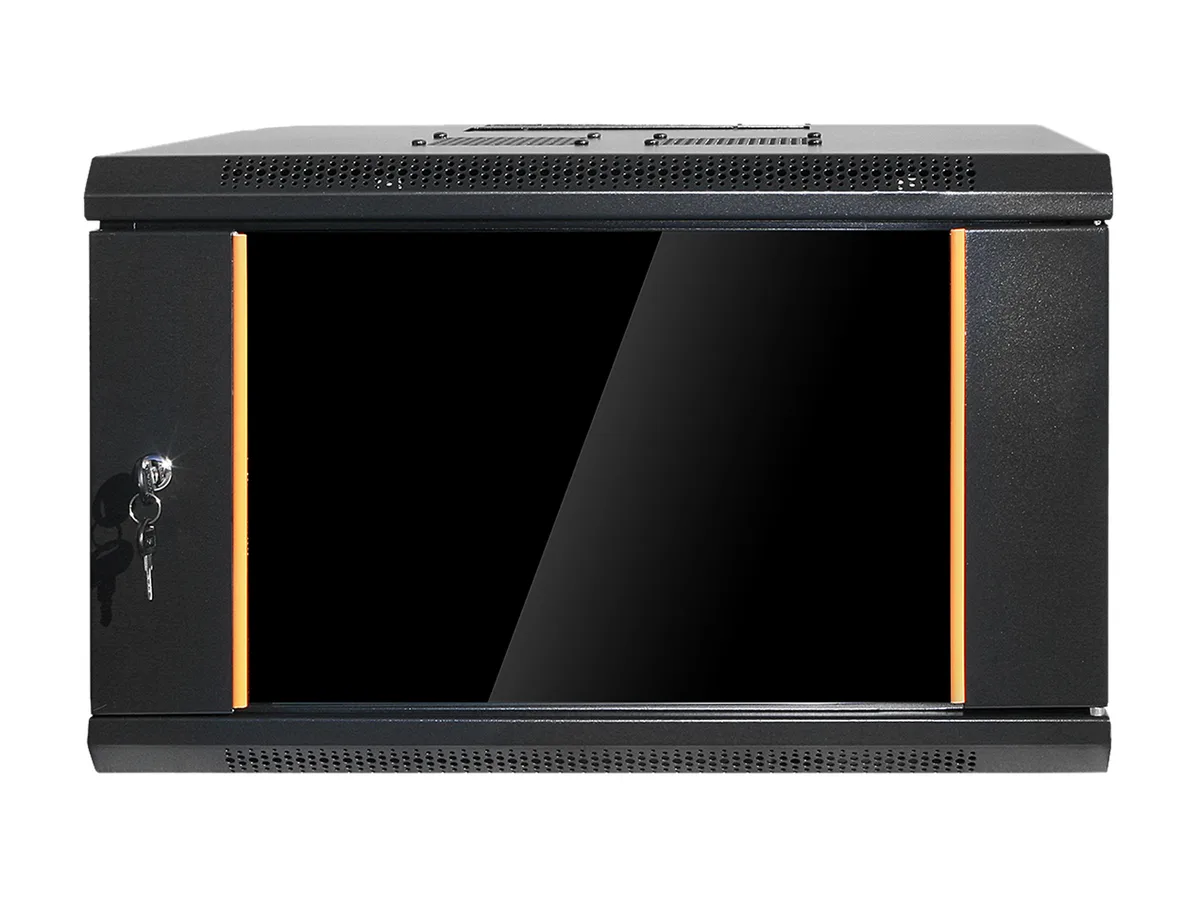

Black 6U swing-out wall-mount server rack with glass front door and 2U cover plate

iStarUSA Inc.

iStarUSA Inc. WMZ655-P2U 6U 550mm Depth Swing-out Wallmount Server Rack with 2U Cover Plate

SKU CH-8MC2-55DMQ MPN WMZ655-P2U

A 6U wall-mount cabinet with a 550 mm depth, swing-out frame and 130 lb capacity for servers up to 16 inches deep

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130.00 lbs.
  • SpecificationSupported Chassis Depth: 16" and under Internal Dimensions:
  • Easy rear access with 6U swing-out wall-mount design
  • Secure equipment behind lockable strengthened glass front door
  • Fits chassis up to 16 inches deep with adjustable 11.5 to 15.5 inch posts
  • Flexible cable routing via top bottom and rear tunnels
  • Built to ANSI EIA RS-310-D IEC 297-2 DIN standards

6U Wallmount Rack for Compact Servers

The iStarUSA WMZ655-P2U is a 6U swing-out wall cabinet built from 1.5mm SPCC posts and 1.2mm SPCC enclosure. It supports equipment up to 130.00 lbs and fits chassis depths of 16 inches and under. The black finish and lockable glass front door suit office or server-room environments.

Check Wall Fixings and Equipment Depth

Verify that the mounting surface can carry the loaded weight and that your hardware depth does not exceed 15.5 inches between the outer posts. The default internal depth is 11.5 inches. Ensure clearance for the swing-out hinge and for top, bottom and rear cable routing tunnels.

Suits Small Deployments Not Large Builds

This cabinet suits installers needing a ventilated, lockable 6U enclosure with optional dual AC fans and a supplied 2U cover plate. It is not for deployments requiring deeper chassis support, higher load ratings or more than six rack units.

Highlights

  • Easy rear access with 6U swing-out wall-mount design
  • Secure equipment behind lockable strengthened glass front door
  • Fits chassis up to 16 inches deep with adjustable 11.5 to 15.5 inch posts
  • Flexible cable routing via top bottom and rear tunnels
  • Built to ANSI EIA RS-310-D IEC 297-2 DIN standards

Specifications

BrandiStarUSA
ModelWMZ655-P2U
TypeWall Mount Cabinet
Rack Units6U
ColorBlack
MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130.00 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts

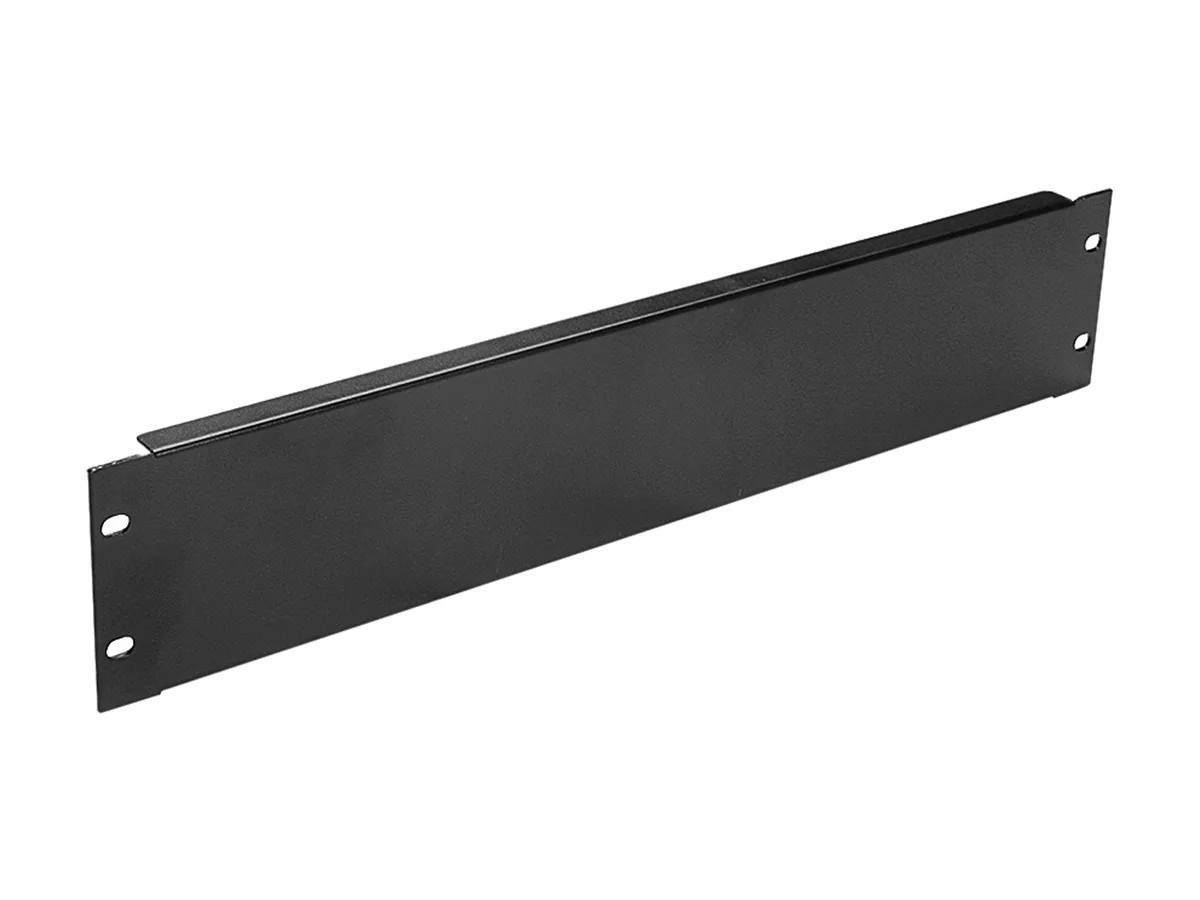

Comes with a 2U Cover Plate
Industry StandardANSI/EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB/T3047.2-92
Unit Dimension14.49" x 23.62" x 21.65"
Shipping weight27.22 kg
Package size673 × 622 × 445 mm

Questions about this item

What comes in the box and what must I buy separately?

The cabinet includes M6 mounting screws, cage nuts and a 2U cover plate. Optional dual AC cooling fans are not included and must be purchased separately.

How do I choose the right internal depth for my chassis?

The outer post-to-post depth adjusts from 11.5 in by default up to 15.5 in max, supporting chassis 16 in and under.

What does the 130.00 lb weight capacity mean once the rack is mounted?

The welded SPCC steel frame is rated to hold up to 130.00 lbs of equipment when securely fixed to a suitable wall structure.
