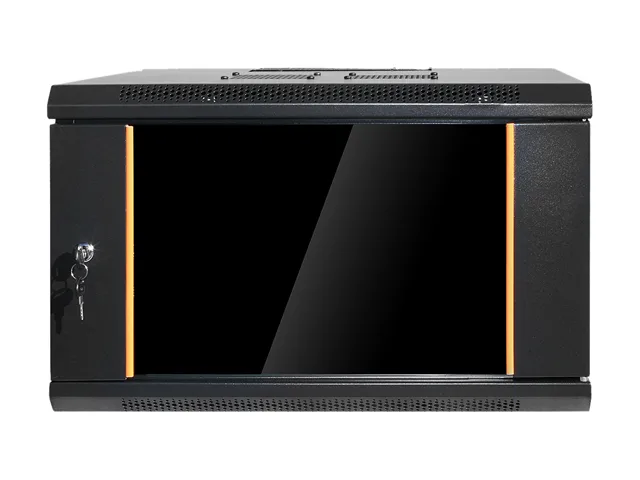

Black 6U wall-mount server rack with swing-out frame and glass front door

iStarUSA Inc.

iStarUSA Inc. WMZ655-P1U 6U 550mm Swing-out Wallmount Server Rack

SKU CH-K42J-673J1 MPN WMZ655-P1U

A 6U wall-mount server cabinet with a 550 mm depth and swing-out frame for rear access to 130 lbs of equipment

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130 lbs.
  • SpecificationSupported Chassis Depth: 16" and under Internal Dimensions:
  • Easy rear access with swing-out wall-mounted design
  • Supports equipment up to 130 lbs weight capacity
  • Fits chassis 16 inches deep or less
  • Meets ANSI/EIA-310-D and IEC 297-2 standards
  • Includes removable side panels with handy latches

6U Wallmount Rack for Network Gear

The iStarUSA WMZ655-P1U is a 6U wall-mounted cabinet built for small server, networking or AV equipment. Its swing-out frame lets a single technician install or service devices without removing the entire unit from the wall.

Welded SPCC Steel Frame with 130 lb Rating

Posts use 1.5mm SPCC cold-rolled steel and the enclosure uses 1.2mm SPCC for a rigid welded structure rated to 130 lbs. Ventilation slots support optional dual AC fans while top, bottom and rear cable tunnels keep routing tidy. A strengthened glass front door with a key lock and removable side panels with handy latches secure the hardware while allowing quick access.

Replaces Bulky Floor Cabinets in Tight Spaces

This cabinet suits rooms where a freestanding rack cannot fit but 6U of ANSI/EIA-310-D compliant mounting is still required. The jump is worth it when you need lockable, ventilated enclosure depth up to 15.5 inches and want the swing-out feature for easier maintenance. It does not suit installations needing deeper chassis support beyond 16 inches or more than six rack units.

Highlights

  • Easy rear access with swing-out wall-mounted design
  • Supports equipment up to 130 lbs weight capacity
  • Fits chassis 16 inches deep or less
  • Meets ANSI/EIA-310-D and IEC 297-2 standards
  • Includes removable side panels with handy latches

Specifications

BrandiStarUSA
ModelWMZ655-P1U
TypeWall Mount Cabinet
Rack Units6U
ColorBlack
MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts
Comes with a 1U Cover Plate
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit Dimension14.49" x 23.62" x 21.65"
Shipping weight26.76 kg
Package size673 × 622 × 445 mm

Questions about this item

What EIA standard does the 6U rack follow and what is the maximum chassis depth it supports?

It meets ANSI/EIA RS-310-D and accepts chassis up to 16 inches deep.

What wall-mount hardware and clearances does the 550 mm deep cabinet require?

The unit measures 14.49 x 23.62 x 21.65 inches and weighs 130 lbs capacity; mount to studs or masonry using appropriate lag bolts (not included).

How do you install the cage nuts and where do installers commonly go wrong?

Snap M6 cage nuts into the 1.5 mm SPCC square holes before hanging equipment; the frequent error is threading screws directly into the rail without the cage nut.
