Black 6U wall-mount server cabinet with swing-out frame and 2U drawer

iStarUSA Inc.

iStarUSA Inc. WMZ655-DWR2U 6U 550mm Wallmount Server Rack with 2U Drawer

SKU CH-FM37-VMWYR MPN WMZ655-DWR2U

A 6U wall-mount cabinet with a swing-out frame, 130 lb capacity and an included 2U drawer for shallow-depth servers

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130 lbs.
  • SpecificationSupported Chassis Depth: 16" and under Internal Dimensions:
  • 6U wall-mount cabinet fits tight spaces
  • 130 lbs capacity on 1.5 mm SPCC posts
  • swing-out frame eases rear access

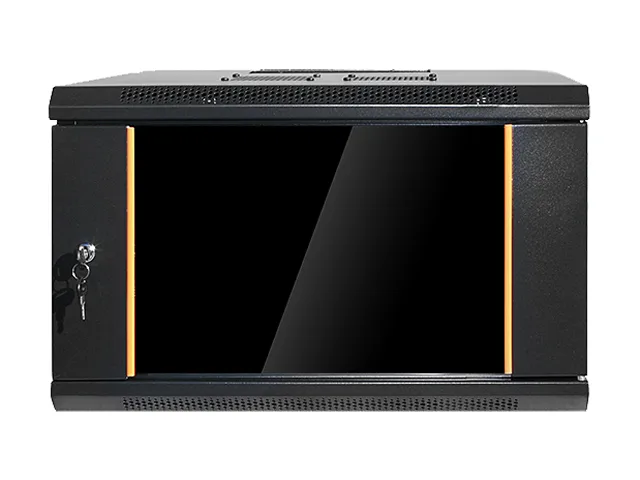

  • lockable glass door plus removable side panels
  • top, bottom and rear cable entry routes

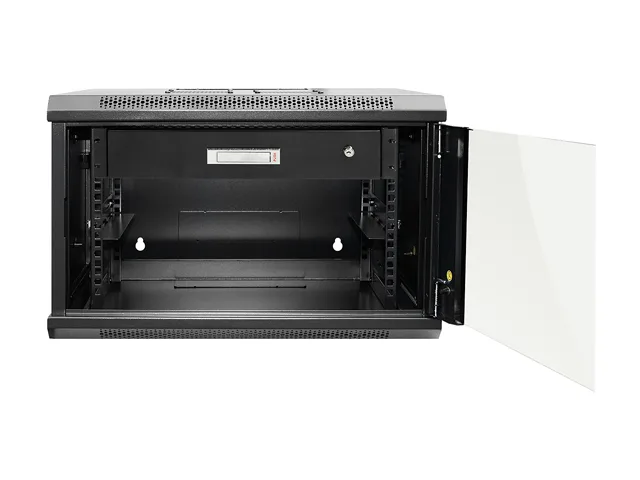

6U Wall-Mount Cabinet with 2U Drawer

The iStarUSA WMZ655-DWR2U is a six-unit wall-mount server cabinet designed for network gear, patch panels and small servers. It suits IT managers and installers who need secure, accessible equipment housing in space-constrained rooms or corridors.

1.5mm SPCC Steel Frame and Swing-Out Access

Posts use 1.5mm SPCC cold-roll steel with a 1.2mm enclosure, supporting 130 lbs of equipment. The swing-out frame allows front and rear access after mounting, while top, bottom and rear cable tunnels keep routing tidy. A lockable strengthened glass front door and removable side panels with latches simplify daily maintenance.

Upgrade from Open Wall Racks

This cabinet replaces open-frame wall racks when physical security, dust protection or airflow management become requirements. The integrated 2U drawer adds convenient storage for tools or documentation. The jump is worth it when equipment depth stays within the 15.5-inch maximum post-to-post limit and a lockable enclosure is mandated.

Highlights

  • 6U wall-mount cabinet fits tight spaces
  • 130 lbs capacity on 1.5 mm SPCC posts
  • swing-out frame eases rear access
  • lockable glass door plus removable side panels
  • top, bottom and rear cable entry routes

Specifications

BrandiStarUSA
ModelWMZ655-DWR2U
TypeWall Mount Cabinet
Rack Units6U
ColorBlack
MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock

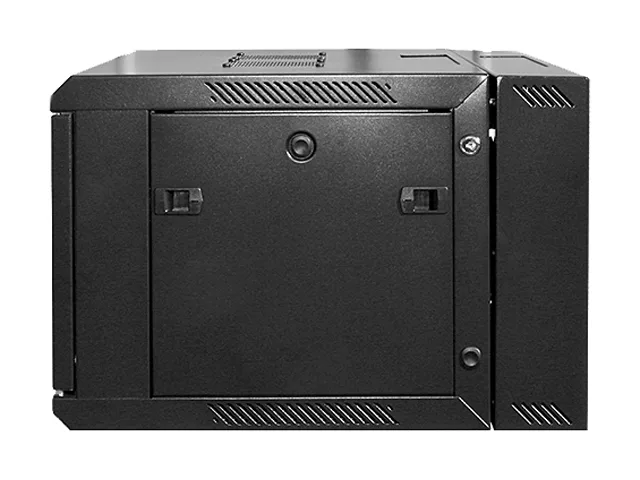

Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts
Comes with a 2U Drawer
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit Dimension14.49" x 23.62" x 21.65"
Shipping weight34.93 kg
Package size673 × 622 × 445 mm

Questions about this item

What rack standard does the WMZ655-DWR2U follow, and what chassis depth does that limit?

It meets ANSI/EIA RS-310-D and supports chassis up to 16 inches deep.

What wall space and clearance does the 6U cabinet need to mount and swing out?

The unit measures 14.49 by 23.62 by 21.65 inches and requires a stud-spaced wall plus swing-out clearance.

How is the cabinet secured to the wall, and which step is often missed?

Lag-bolt the welded frame through its mounting holes into studs, then verify the cage nuts align before loading gear.
