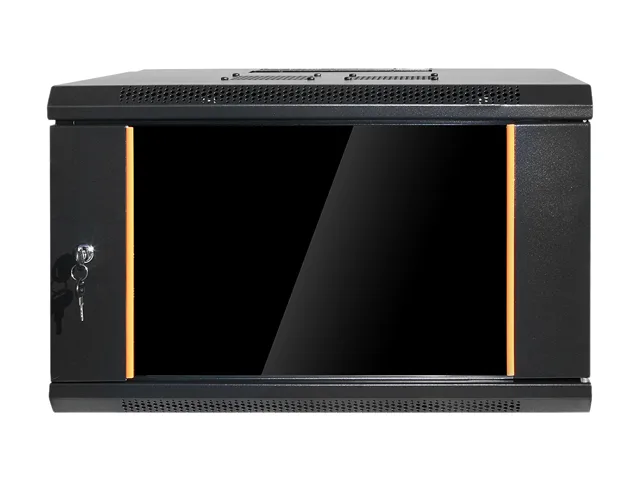

Black 6U wall-mount server cabinet with swing-out frame and 2U cable management tray

iStarUSA Inc.

iStarUSA Inc. WMZ655-CM2U 6U 550mm Swing-out Wallmount Server Rack with 2U Cable Management

SKU CH-WKF3-00BH5 MPN WMZ655-CM2U

A 6U swing-out wall cabinet with 2U cable management, 130.00 lbs capacity and 550 mm depth for equipment up to 16 inches deep

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130.00 lbs.
  • SpecificationSupported Chassis Depth: 16" and under Internal Dimensions:
  • Swing-out design enables rear access for maintenance
  • 6U capacity fits equipment up to 16 inches deep
  • 00 lbs weight capacity supports heavy servers
  • Perforated panels and optional dual fans provide airflow
  • 2U cable manager included for organised routing

6U Wallmount Rack with Cable Management

The iStarUSA WMZ655-CM2U is a 6U wall-mounted server cabinet designed for network equipment and shallow-depth servers. It suits installers who need secure, accessible housing in space-constrained environments such as closets or corridors. The swing-out frame simplifies hardware installation and ongoing maintenance access. It ships with a dedicated 2U cable management panel included.

Welded Steel Frame with Swing-out Access

Posts use 1.5mm SPCC cold-roll steel while the enclosure uses 1.2mm SPCC for a sturdy welded structure rated to 130.00 lbs. The swing-out design allows the chassis to pivot away from the wall for front and rear access. Ventilation slots provide airflow and the cabinet supports optional dual AC cooling fans. Cable entry tunnels are provided at the top, bottom and rear for flexible routing.

550mm Depth for Shallow Chassis Only

The cabinet supports chassis depths of 16 inches and under, with outer post-to-post clearance of 15.5 inches maximum and 11.5 inches by default. Equipment deeper than this limit will not fit regardless of rack-unit height. Buyers needing to mount full-depth servers or blade enclosures should choose a deeper floor-standing rack instead.

Highlights

  • Swing-out design enables rear access for maintenance
  • 6U capacity fits equipment up to 16 inches deep
  • 00 lbs weight capacity supports heavy servers
  • Perforated panels and optional dual fans provide airflow
  • 2U cable manager included for organised routing

Specifications

BrandiStarUSA
ModelWMZ655-CM2U
TypeWall Mount Cabinet
Rack Units6U
ColorBlack
MaterialPosts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130.00 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts
Comes with a 2U Cable Management
Industry StandardANSI/EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit Dimension14.49" x 23.62" x 21.65"
Shipping weight27.67 kg
Package size673 × 622 × 445 mm
