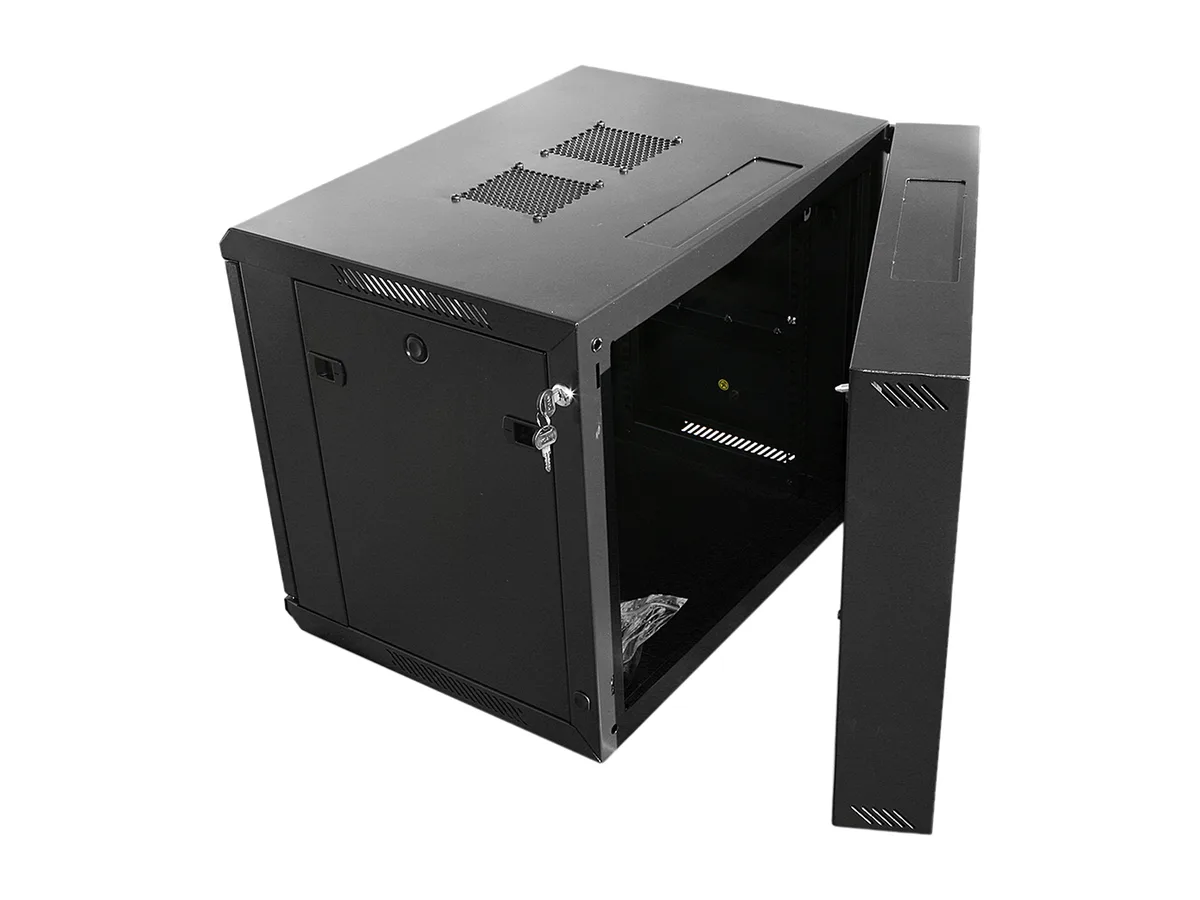

Black steel 9U wall-mount server rack with glass front door, swing-out frame and removable side panels

iStarUSA Inc.

iStarUSA Inc. WMZ-955 9U 550mm Depth Swing-out Wallmount Server Rack

SKU CH-3X81-316SS MPN WMZ-955

A 9U wall-mount cabinet for 19" rack gear with a swing-out frame, lockable glass door, removable side panels and optional dual 120mm fans, supporting 130 lbs load

  • TypeWall Mount Cabinet
  • Rack Units9U
  • ColorBlack
  • MaterialSteel
  • Cooling (Optional)Optional 2x120mm 120V AC fan can be installed on the top (p/
  • Weight Capacity130.00 lbs.

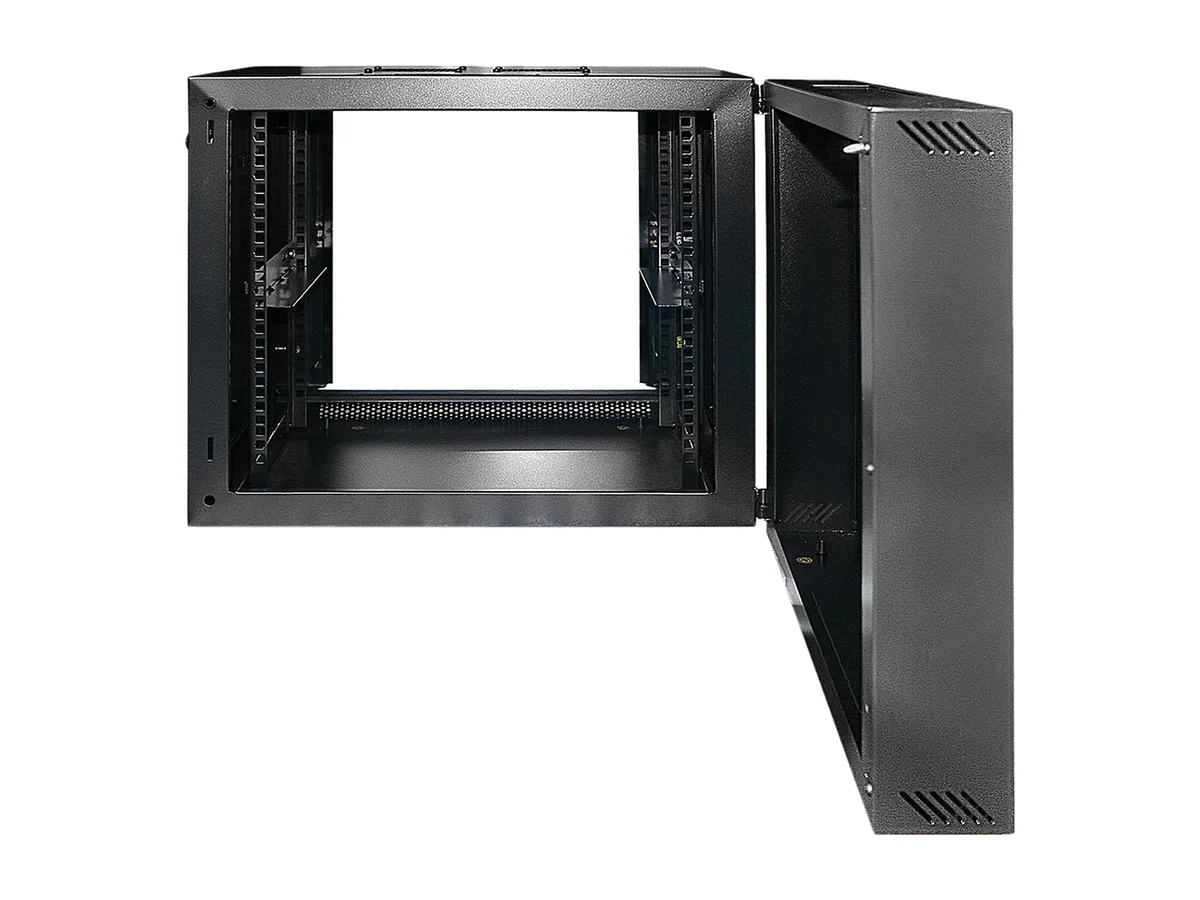

  • Swing-out design gives full rear access for easy maintenance
  • 130 lbs load capacity supports heavy 19-inch rack equipment
  • Three cable routing paths keep wiring organised and tidy
  • Optional dual 120mm fans provide active cooling when needed

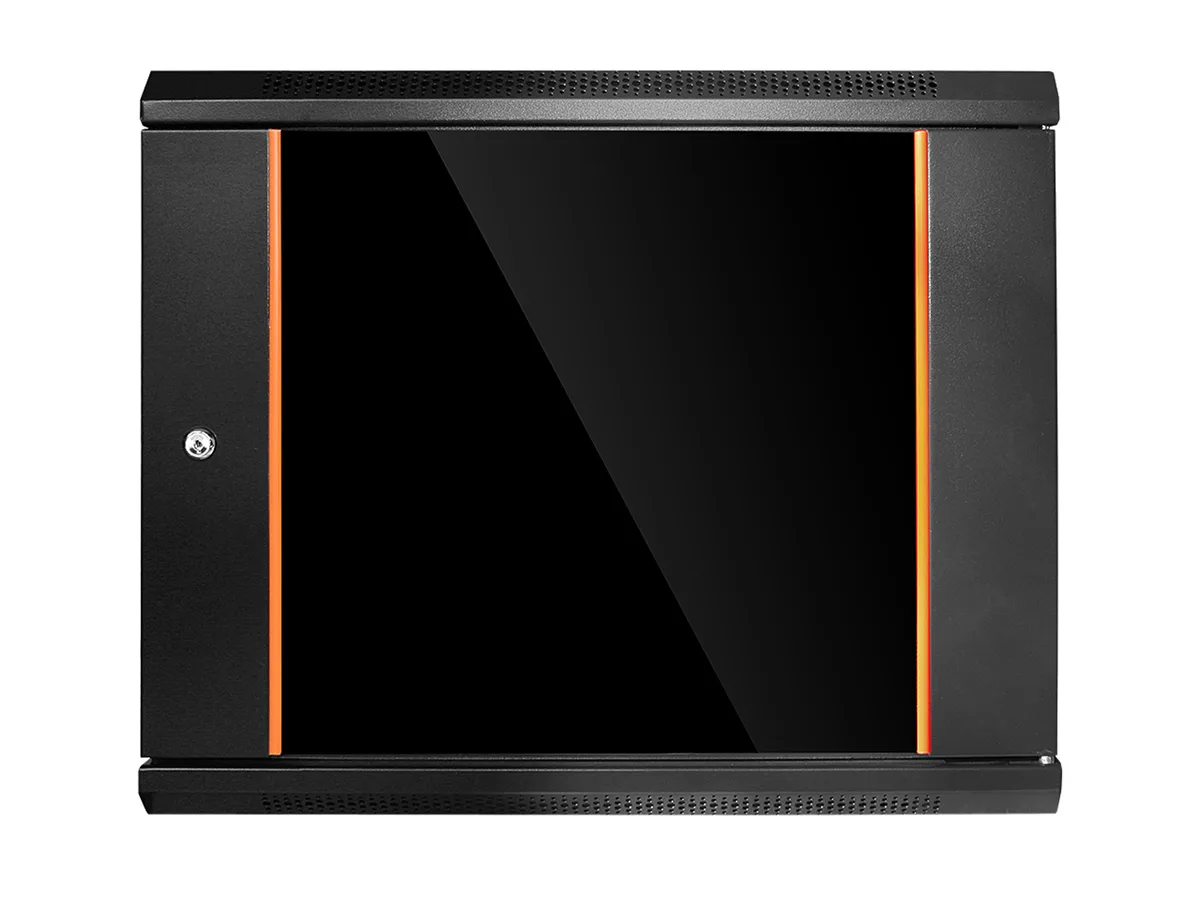

  • Lockable toughened glass door secures hardware against unauthorised access

9U Wall-Mount Cabinet for 19" Equipment

The iStarUSA WMZ-955 is a 9U wall-mount server cabinet built to hold standard 19-inch rack-mount devices such as network switches and patch panels. Its compact depth of 550 mm suits locations where floor space is limited. The welded steel frame supports a load of up to 130 lbs and meets ANSI/EIA RS-310-D and IEC 297-2 mounting standards.

Sustained-Load Behaviour and Cooling Options

The cabinet ships with passive ventilation holes on the frame and a vented top panel that accepts two optional 120 V AC fans (part WA-FANAC120) for active airflow. Under continuous equipment loads the steel structure maintains rigidity without flex, while the tempered glass front door and locking side panels keep the enclosure secure during extended operation.

Installation Practicalities and Common Issues

Mounting hardware includes M6 screws and cage nuts for 19-inch equipment rails. The swing-out hinge lets the entire chassis pivot away from the wall for deep access, and removable side panels use tool-less latches for quick removal. Installers must verify that the wall can bear the combined weight of cabinet plus gear and that chassis depth does not exceed 16 inches; deeper servers will not fit the 15.5-inch post-to-post maximum.

Highlights

  • Swing-out design gives full rear access for easy maintenance
  • 130 lbs load capacity supports heavy 19-inch rack equipment
  • Three cable routing paths keep wiring organised and tidy
  • Optional dual 120mm fans provide active cooling when needed
  • Lockable toughened glass door secures hardware against unauthorised access

Specifications

BrandiStarUSA
ModelWMZ-955
TypeWall Mount Cabinet
Rack Units9U
ColorBlack
MaterialSteel
Cooling (Optional)Optional 2x120mm 120V AC fan can be installed on the top (p/n: WA-FANAC120)
Weight Capacity130.00 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
Material
Posts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
FeaturesElegant and secured WMZ-955 swing-out wall-mounted cabinet by CLAYTEK. The easy side panel access and swing-out design are convenient to perform routine maintenance, but also can be locked to prevent unauthorized access. Three ways, top, bottom, and rear cabling tunnels enable data and cable routing. WMZ series incorporates optimal cooling design. The partially vented frames and two optional AC fans that can be put on the top panel give the wall-mount cabinet excellent air ventilation. Heat-treated glass door provides extra strength and able to silkscreen logos, marks, and labels to
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit Dimension19.74" x 23.62" x 21.65"
Shipping weight25.13 kg
Package size673 × 622 × 584 mm

Questions about this item

How much heat can the WMZ-955 dissipate if I install the optional 120 V AC fans and run equipment all day?

The top panel accepts two optional 120 mm 120 V AC fans (part WA-FANAC120). Combined with the perforated frame vents, they create active airflow to move heat out of the cabinet during continuous operation.

What mounting hardware must I already have to attach this 9U cabinet to the wall?

The cabinet includes M6 screws and cage nuts for rack equipment. You must supply wall anchors and lag bolts rated for the 130 lb load capacity and the 550 mm depth of the unit.

Will my existing 19-inch patch panels and switches fit the EIA-310-D spacing on the WMZ-955?

Yes. The posts follow ANSI/EIA RS-310-D hole spacing, so any standard 19-inch rack-mount gear — including older patch panels and switches — mounts directly without adapters.
