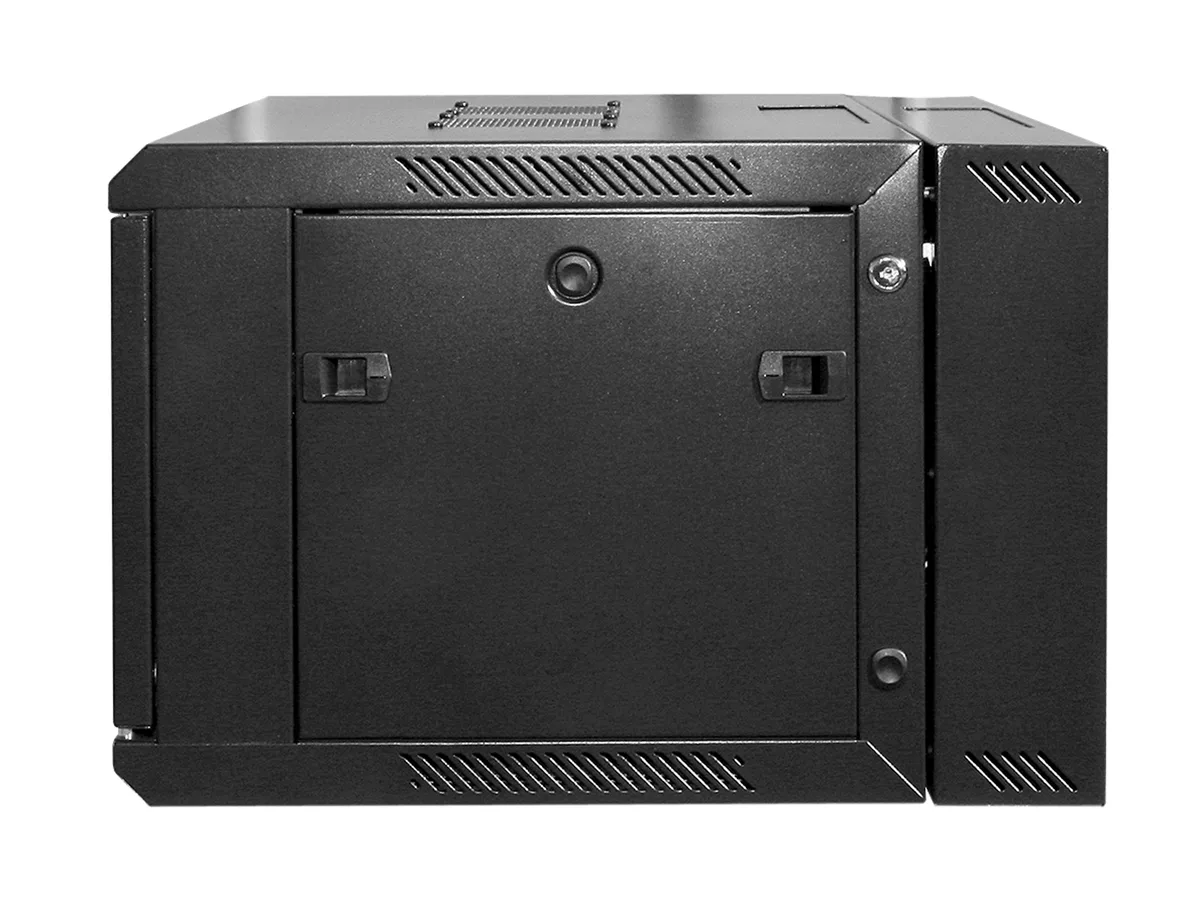

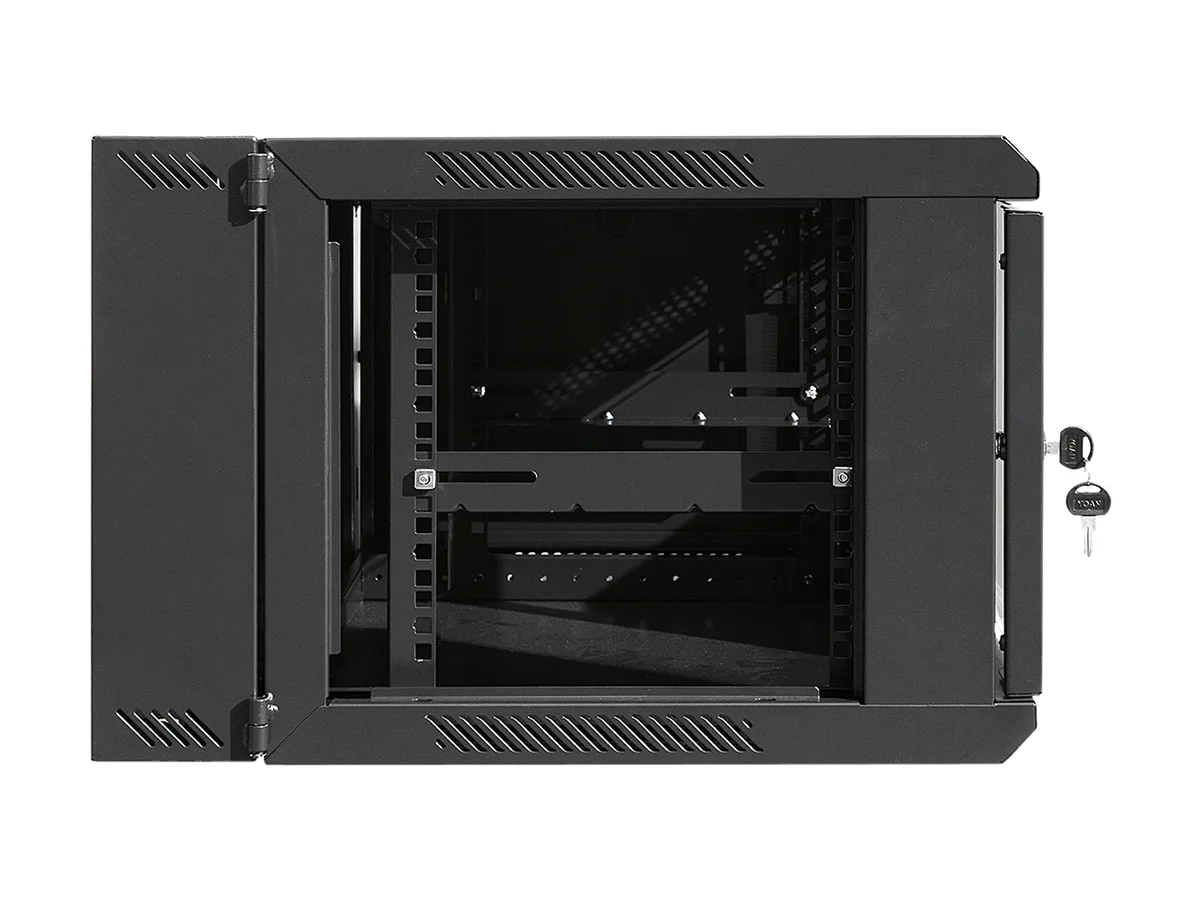

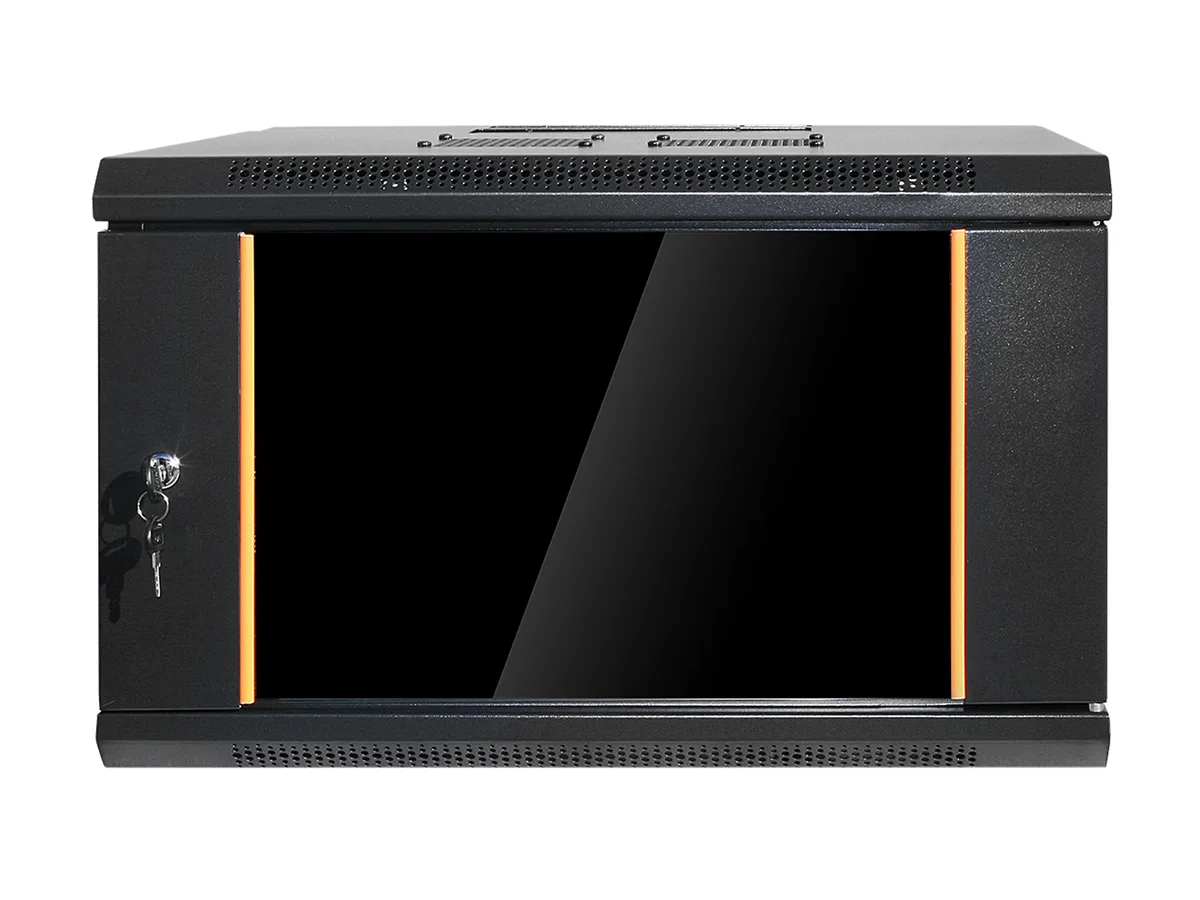

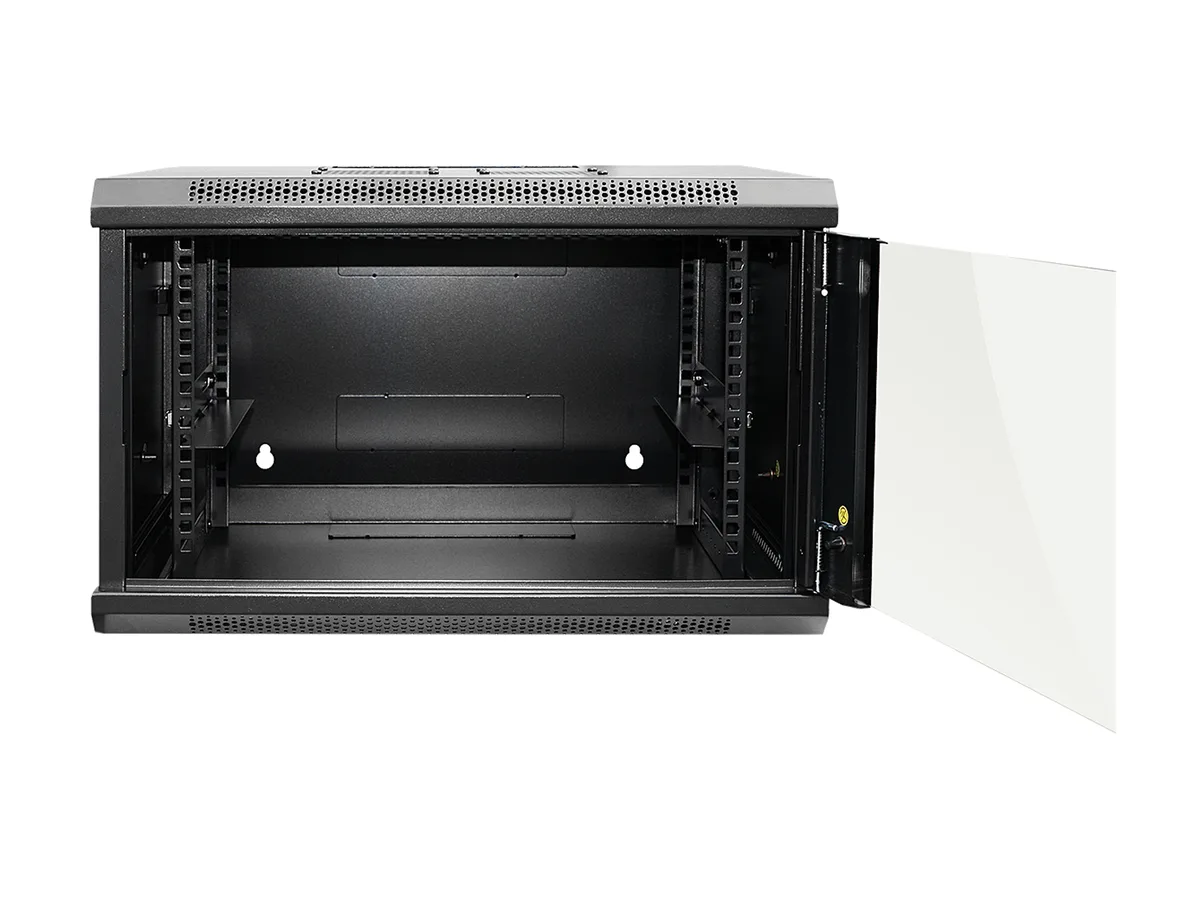

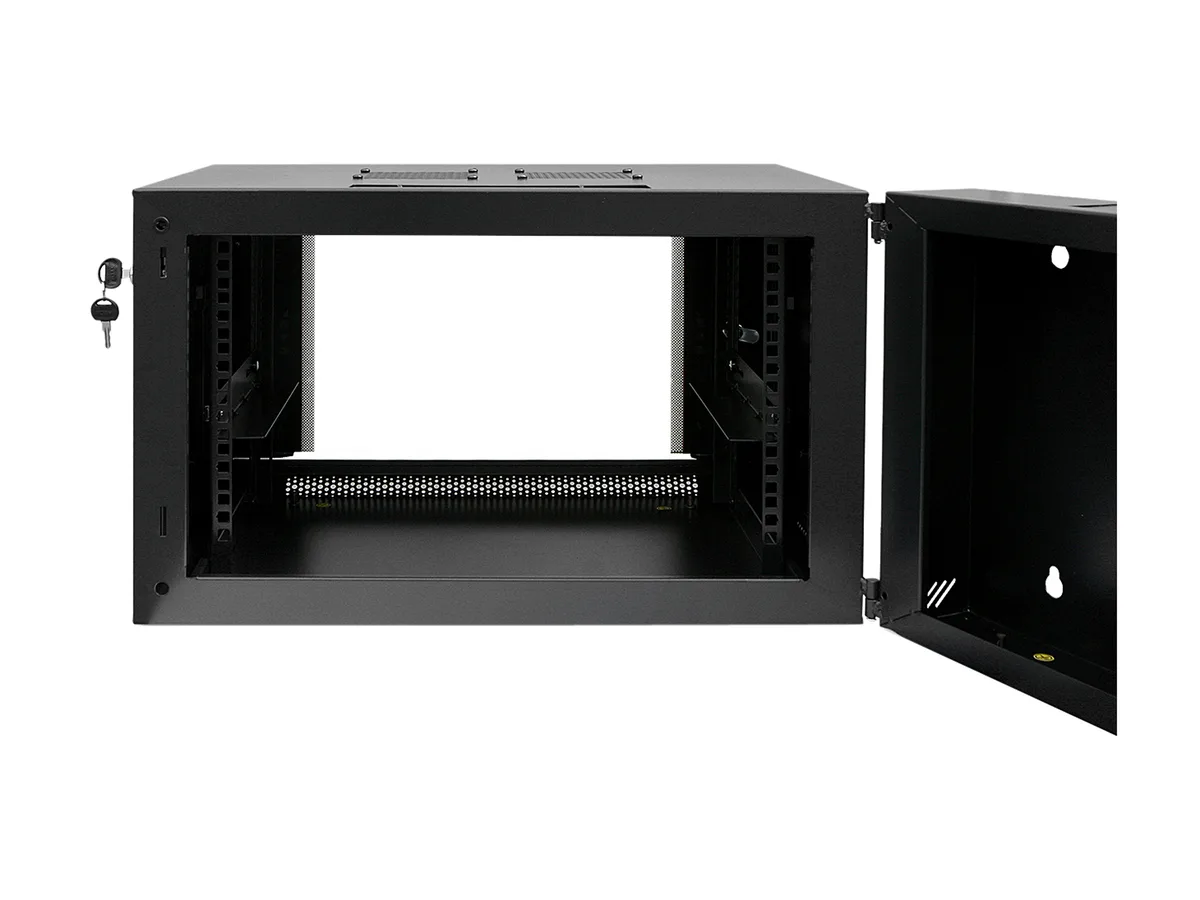

Black steel 6U wall-mount server rack with swing-out frame and glass front door

iStarUSA Inc.

iStarUSA Inc. WMZ-655 6U 550mm Depth Swing-out Wallmount Server Rack

SKU CH-Q00A-23RZH MPN WMZ-655

A 6U swing-out wall-mount cabinet holds rack equipment up to 16 inches deep and supports 130 lbs

  • TypeWall Mount Cabinet
  • Rack Units22U
  • ColorBlack
  • MaterialSteel
  • Cooling (Optional)2 x 120mm 120V AC fan can be installed on the top (p/n: WA-F
  • Weight Capacity130.00 lbs.
  • Swing-out design allows easy rear access to equipment
  • 00 lbs weight capacity supports dense hardware loads
  • 6U wall-mount format saves valuable floor space
  • Optional dual 120mm AC fans provide active cooling
  • ANSI/EIA-310-D compliance ensures universal rack compatibility

Product Identity

The iStarUSA WMZ-655 is a 6U wall-mount server cabinet built from SPCC cold-rolled steel. It provides 130.00 lbs weight capacity and a swing-out frame for front and rear access to installed equipment. The unit measures 14.49 by 23.62 by 21.65 inches and includes M6 mounting hardware.

Target Audience

This cabinet suits installers who need a shallow-depth enclosure for network gear up to 16 inches deep. Buyers requiring deeper chassis support beyond 15.5 inches post-to-post or more than 6U of rack space should look at larger floor-standing racks instead.

Installation Notes

Wall mounting requires secure anchoring to studs or masonry capable of holding the loaded weight. The swing-out hinge adds leverage, so verify the mounting surface before hanging. Optional 120mm AC fans (WA-FANAC120) mount on top for active cooling. Cable entry is provided through top, bottom and rear openings.

Highlights

  • Swing-out design allows easy rear access to equipment
  • 00 lbs weight capacity supports dense hardware loads
  • 6U wall-mount format saves valuable floor space
  • Optional dual 120mm AC fans provide active cooling
  • ANSI/EIA-310-D compliance ensures universal rack compatibility

Specifications

BrandiStarUSA
ModelWMZ-655
TypeWall Mount Cabinet
Rack Units22U
ColorBlack
MaterialSteel
Cooling (Optional)2 x 120mm 120V AC fan can be installed on the top (p/n: WA-FANAC120)
Weight Capacity130.00 lbs.
SpecificationSupported Chassis Depth: 16" and under
Internal Dimensions:
Depth: outer post-to-post 15.5" max. 11.5" by default
Material
Posts: 1.5mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
FeaturesSturdy and Rugged Welded Frame Structure
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Swing-out Wall-mounted Design
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
SPCC High-Quality Cold Roll Steel
Comes with M6 Mounting Screws and Cage Nuts
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit Dimension14.49" x 23.62" x 21.65"
Shipping weight25.70 kg
Package size673 × 546 × 546 mm

Questions about this item

What mounting hardware must I already have to attach the WMZ-655 to the wall?

The cabinet includes M6 mounting screws and cage nuts for rack equipment; you must supply wall anchors and lag bolts rated for the 130.00 lbs capacity and your wall type.

Will my existing 15.5-inch deep servers fit in the WMZ-655 alongside the swing-out frame?

Yes, the outer post-to-post depth is 15.5 inches maximum, matching the supported chassis depth of 16 inches and under, so current hardware within that limit installs directly.

How can I confirm the WMZ-655 is correctly aligned and secure after installation?

Verify the cabinet is level, the swing-out section moves smoothly and locks in the closed position, the front glass door latches with its security key, and all M6 cage nuts accept server rails without binding.
