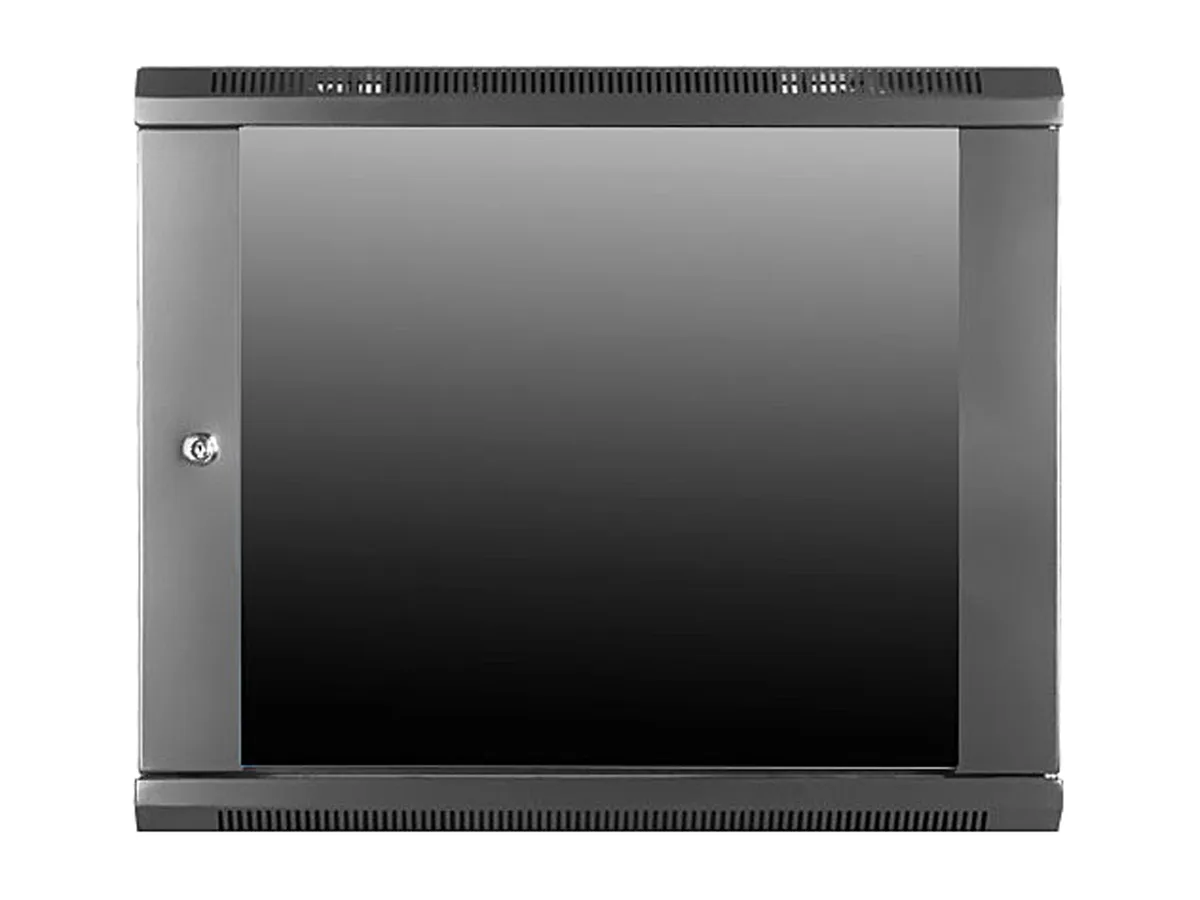

Black 9U wall-mount server rack with 1U keyboard drawer and glass front door

iStarUSA Inc.

iStarUSA Inc. WM960-KBR1U 9U 600mm Wallmount Server Rack with 1U Keyboard Drawer

SKU CH-V0KM-0S5CK MPN WM960-KBR1U

Wall-mount 9U cabinet with 1U keyboard drawer, 600 mm depth, 130 lb capacity, pre-assembled steel frame and 230° door swing

  • TypeWall Mount Cabinet
  • Rack Units9U
  • ColorBlack
  • MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Cooling (Optional)Optional 2 x 120mm 120V AC fan can be installed on the top (
  • Weight Capacity130.00 lbs.
  • Pre-assembled welded steel frame speeds up installation
  • 00 lbs weight capacity supports dense equipment loads
  • 9U height fits 22.00" deep chassis in 600mm cabinet
  • Integrated 1U keyboard drawer enables direct rack management
  • Optional dual 120mm AC fans provide active cooling

9U Wallmount Cabinet with Keyboard Drawer

The iStarUSA WM960-KBR1U is a 9U wallmount server cabinet built from 2.0mm SPCC cold-roll steel posts and 1.2mm enclosure panels. It ships pre-assembled with a lockable toughened-glass front door that opens 230 degrees and an integrated 1U keyboard drawer for local console access. Removable side panels use handy latches for quick internal access.

Suits Small Server Rooms and Edge Deployments

This cabinet fits chassis up to 22.00 inches deep and supports 130.00 lbs of equipment, making it suitable for compact network gear, patch panels or a shallow-depth server. It is not suited for deeper rackmount chassis, high-density blade enclosures or installations that require forced-air cooling without purchasing the optional dual 120V AC fan kit separately.

Verify Wall Fixing and Depth Clearance

Confirm the mounting surface can carry the loaded weight and that the 23.62-inch overall depth clears doors or walkways when the front door swings open. Cable entry is provided through top, bottom and rear tunnels, so plan routing before fixing the unit to the wall. The included M6 screws and cage nuts match standard EIA-310-D rail spacing.

Highlights

  • Pre-assembled welded steel frame speeds up installation
  • 00 lbs weight capacity supports dense equipment loads
  • 9U height fits 22.00" deep chassis in 600mm cabinet
  • Integrated 1U keyboard drawer enables direct rack management
  • Optional dual 120mm AC fans provide active cooling

Specifications

BrandiStarUSA
ModelWM960-KBR1U
TypeWall Mount Cabinet
Rack Units9U
ColorBlack
MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Cooling (Optional)Optional 2 x 120mm 120V AC fan can be installed on the top (p/n: WA-FANAC120)
Weight Capacity130.00 lbs.
SpecificationRoHS Compliance Version: Yes
Supported Chassis Depth: 22.00" and under
Internal Dimensions: Depth: 22.00" max
FeaturesSturdy and Rugged Welded Frame Structure Comes Pre-Assembled
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Wallmount or Desktop Standalone
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
Comes with M6 Mounting Screws and Cage Nuts
Easily to Switch Door Side and Door Opens 230 Degree
Comes with an 1U Keyboard Drawer
Industry StandardANSI/EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB/T3047.2-92
Unit Dimension20.08" x 23.62" x 23.62"
Shipping weight48.53 kg
Package size762 × 762 × 660 mm

Questions about this item

Which screws and cage nuts must I already have to mount servers in the 9U WM960-KBR1U?

The cabinet ships with M6 mounting screws and cage nuts, so no additional fasteners are required for standard equipment.

Will the 22.00-inch maximum chassis depth accommodate the older 2U servers I plan to keep?

Yes, any server 22.00 inches deep or less will fit inside the 600 mm deep enclosure.

How can I confirm the front door is properly secured after installation?

The strengthened glass door opens to 230 degrees and locks with the supplied security key; turn the key to verify the latch engages.
