iStarUSA Inc. WM960-DWR2U 9U 600mm wallmount server rack with 2U drawer

Wallmount 9U cabinet with 2U drawer

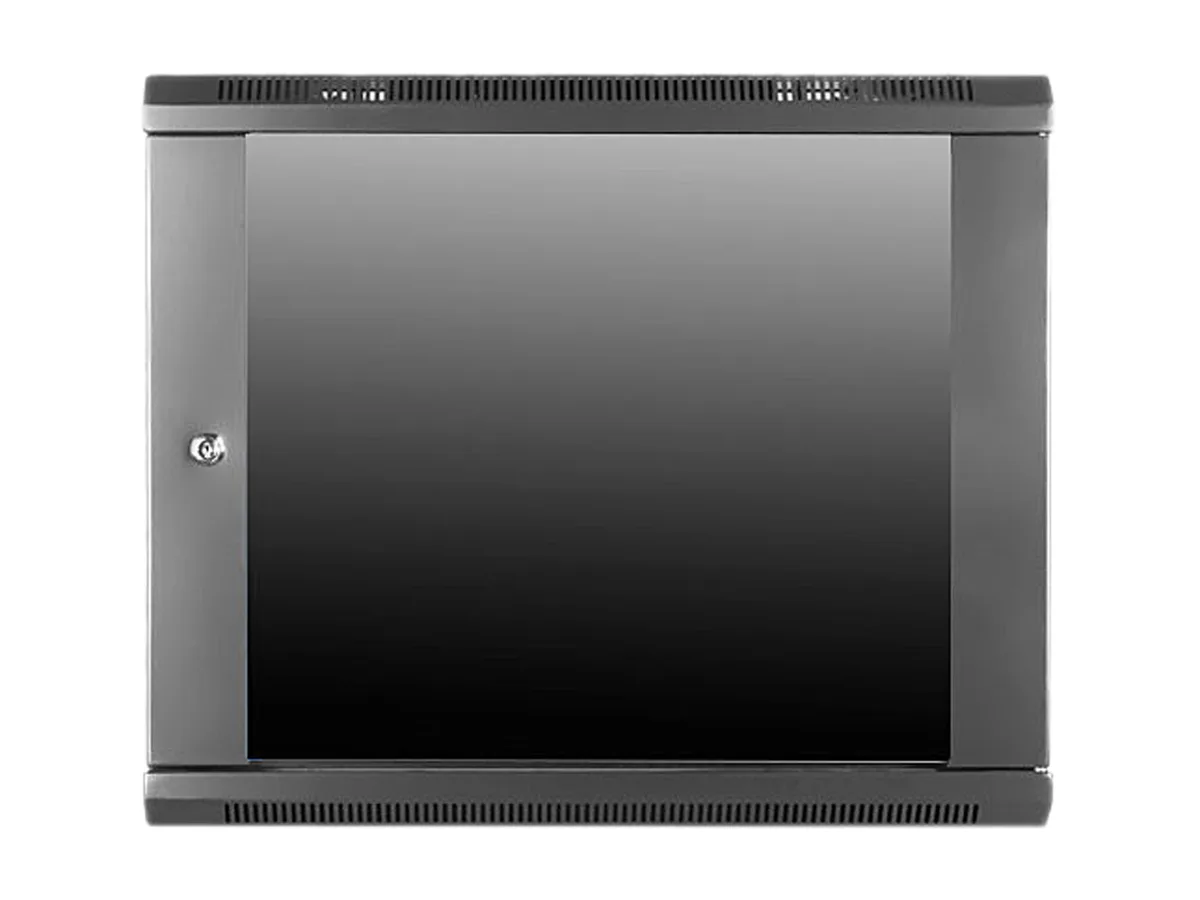

The iStarUSA WM960-DWR2U is a wall-mounted steel rack cabinet offering 9U of vertical mounting space and a built-in 2U pull-out drawer. Cold-rolled steel construction and a heat-treated glass front door provide physical security while allowing visual inspection of installed equipment. Lockable side panels prevent unauthorised access yet swing open for routine maintenance. The unit suits server, networking or AV gear in space-constrained environments.

Mounting surface and cable entry checks

Verify that the wall or mounting surface can support the cabinet plus the intended equipment load. Confirm that top, bottom and rear cable routing openings align with your existing conduit or trunking paths. Ensure sufficient clearance in front of the glass door for it to swing open fully. The optional top-panel fan mounts require a power source if active cooling is planned.

Sustained thermal behaviour

Partially vented side frames and the option to fit two AC fans on the top panel create a passive-to-active airflow path that scales with equipment heat output. Under continuous load the steel chassis acts as a heat sink while forced air from the optional fans exhausts rising warm air through the top vents. This design maintains stable internal temperatures during extended operation without relying on a single high-speed burst cycle.
