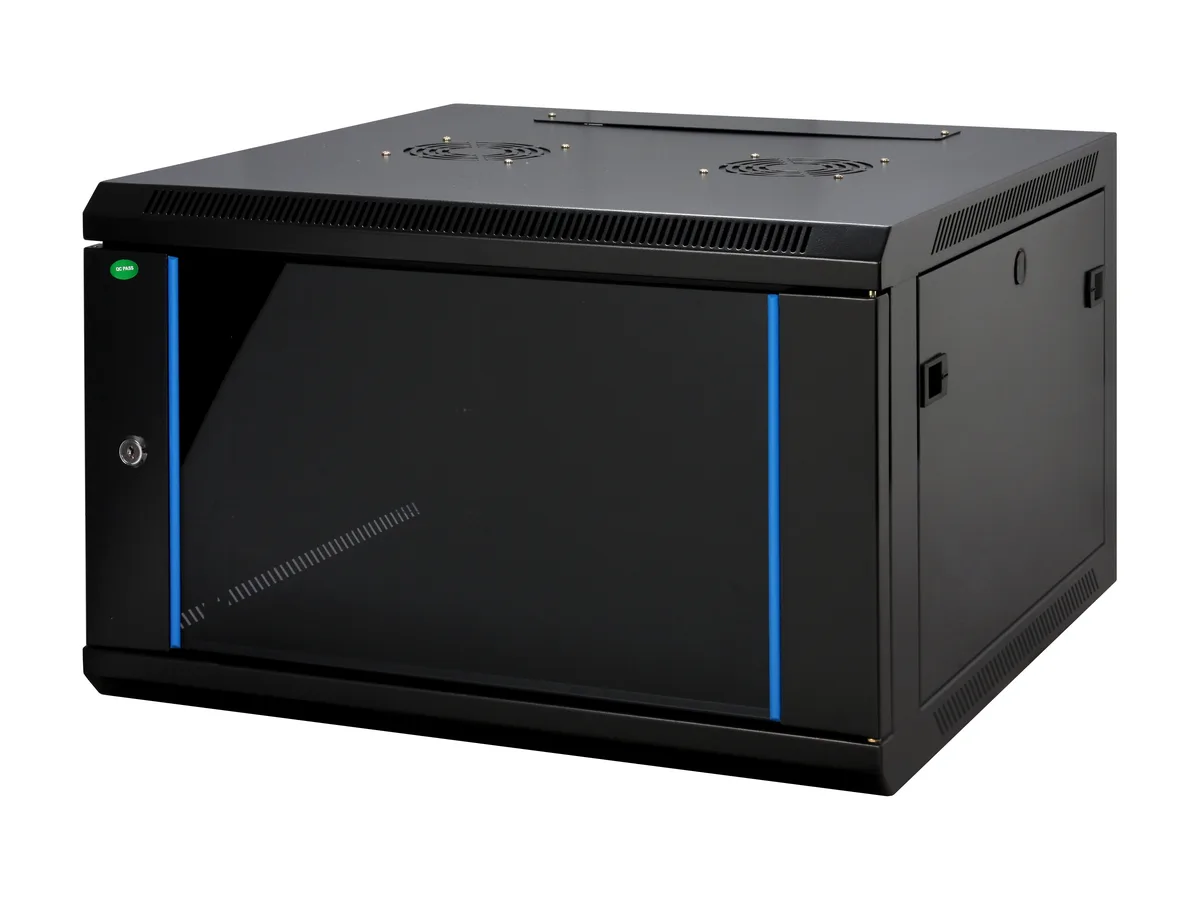

Black wall-mount server cabinet, 6U, 600 mm deep, glass front door, steel frame

iStarUSA Inc.

iStarUSA Inc. WM660B 6U 600mm Depth Wallmount Server Rack

SKU CH-VES5-WR6K4 MPN WM660B

A 6U wall-mount server cabinet with 600 mm depth, welded steel frame, IP20 rating and 130 lb capacity, pre-assembled for quick deployment

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Cooling (Optional)Optional 2 x 120mm 120V AC fan can be installed on the top (
  • Weight Capacity130.00 lbs.
  • Pre-assembled welded steel frame saves installation time
  • 00 lbs capacity supports dense equipment loads
  • 6U height with 22.00" depth fits standard servers
  • Locking glass front door plus removable side panels secure hardware
  • Optional dual 120mm fan mounts enable active cooling

6U Wallmount Server Rack

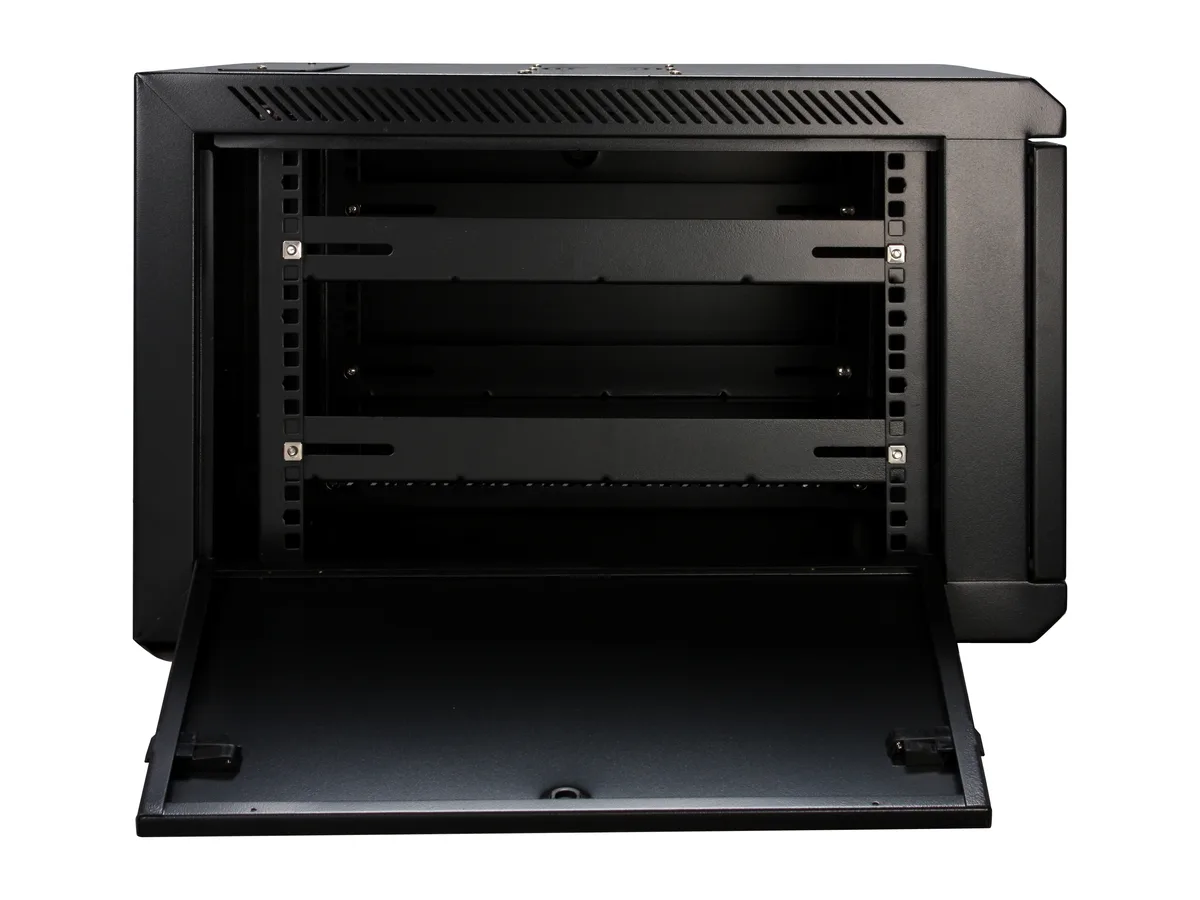

The iStarUSA WM660B is a 6U wallmount cabinet built from 2.0mm SPCC steel posts and 1.2mm enclosure panels. It supports equipment up to 22.00 inches deep and carries a 130.00 lbs weight capacity. The unit arrives pre-assembled with a lockable strengthened glass front door and removable side panels.

Pre-Installation Checks

Verify the wall structure can bear the combined load of the cabinet and mounted hardware. Confirm that your devices do not exceed the 22.00 inch maximum chassis depth. Ensure clearance for the top, bottom and rear cable tunnels and for the optional 2 x 120mm 120V AC fan kit.

Ideal for Small Deployments

Suits offices or edge sites needing a compact 6U enclosure that meets IP20 protection and ANSI/EIA RS-310-D, IEC297-2, DIN41491, DIN41494 standards. Not intended for installations requiring deeper chassis support, higher load ratings, active cooling included, or larger rack-unit counts.

Highlights

  • Pre-assembled welded steel frame saves installation time
  • 00 lbs capacity supports dense equipment loads
  • 6U height with 22.00" depth fits standard servers
  • Locking glass front door plus removable side panels secure hardware
  • Optional dual 120mm fan mounts enable active cooling

Specifications

BrandiStarUSA
ModelWM660B
TypeWall Mount Cabinet
Rack Units6U
ColorBlack
MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Cooling (Optional)Optional 2 x 120mm 120V AC fan can be installed on the top (p/n: WA-FANAC120)
Weight Capacity130.00 lbs.
SpecificationRoHS Compliance Version: Yes
Supported Chassis Depth: 22.00" and under
Internal Dimensions: Depth: 22.00" max
FeaturesSturdy and Rugged Welded Frame Structure Comes Pre-Assembled.
Three Ways, Top, Bottom, and Rear Cabling Tunnels.
Wallmount or Desktop Standalone.
Meet IP20 Protection Grade.

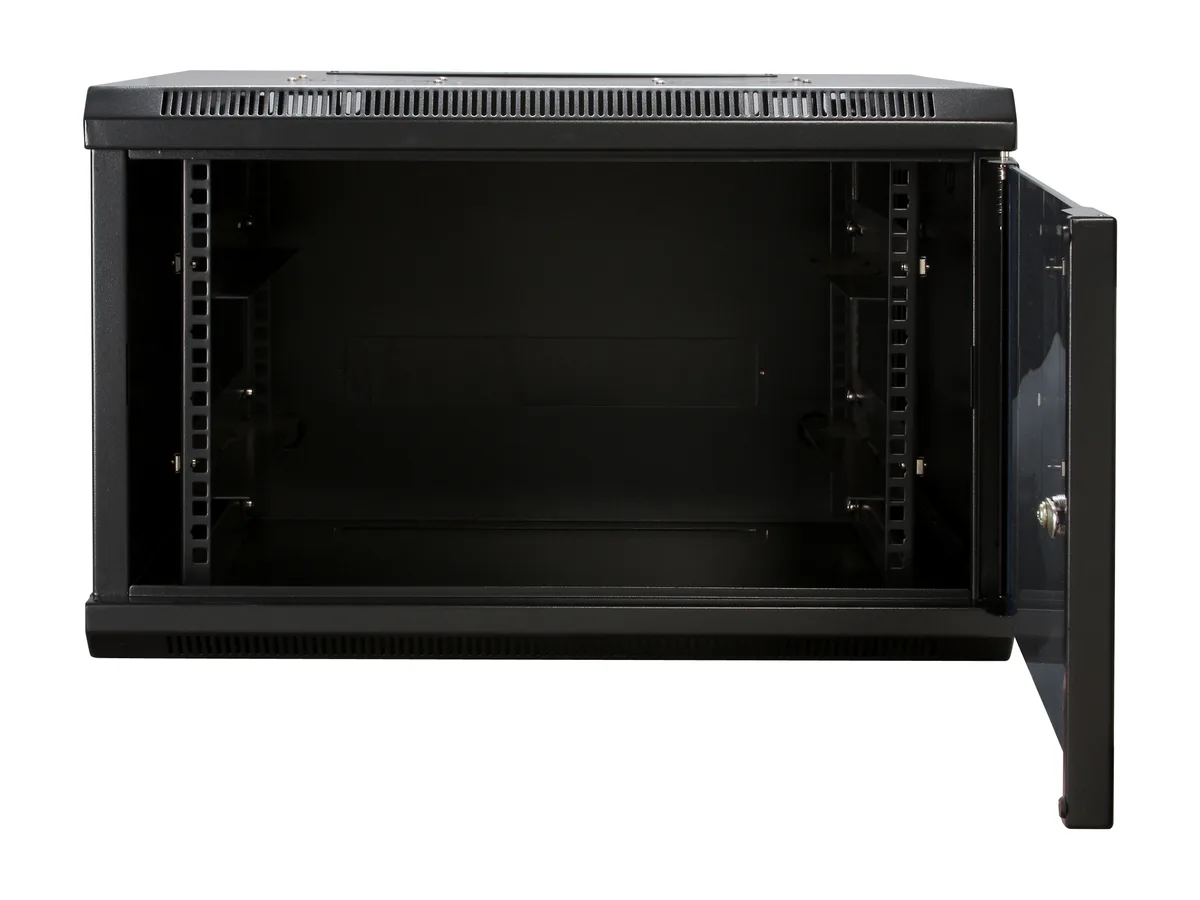

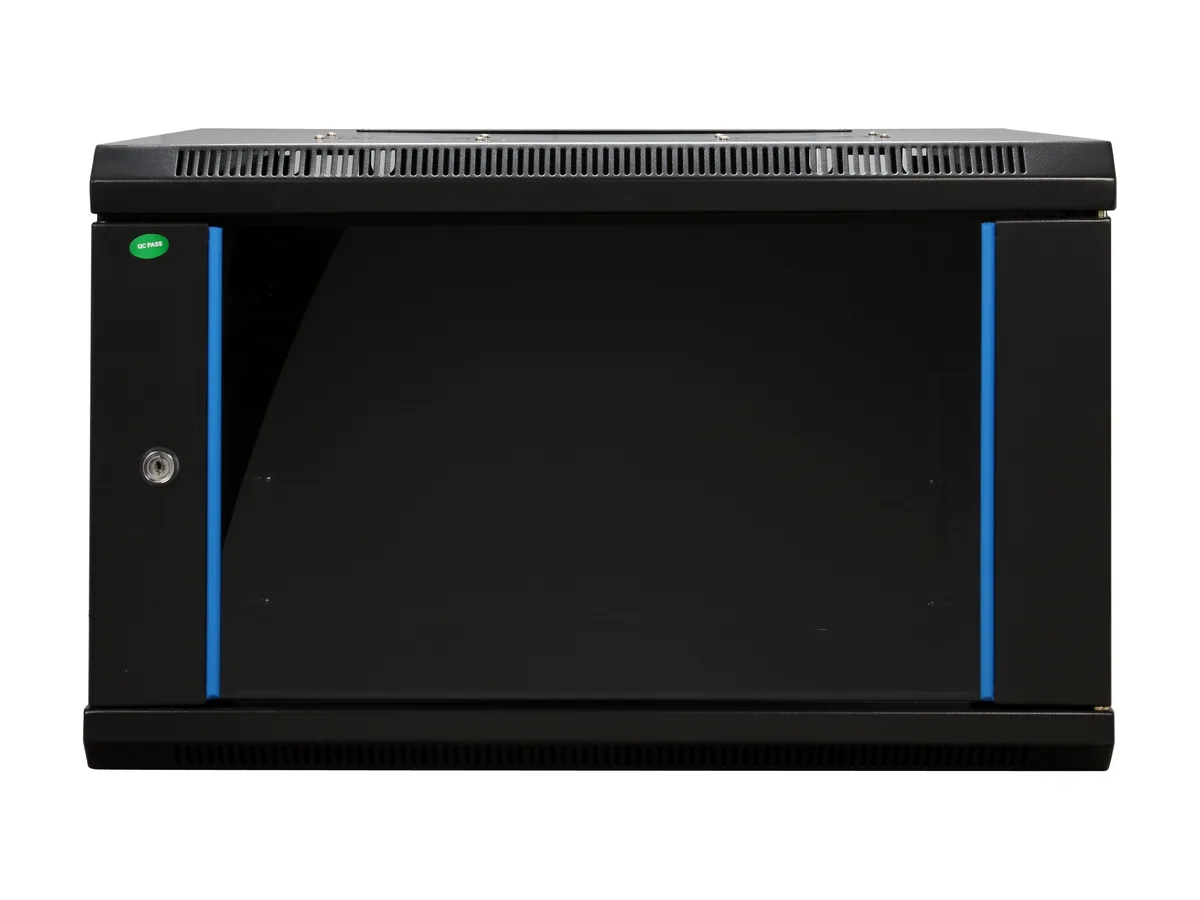

Enforced Strengthen Glass Front Door with Security Key Lock.

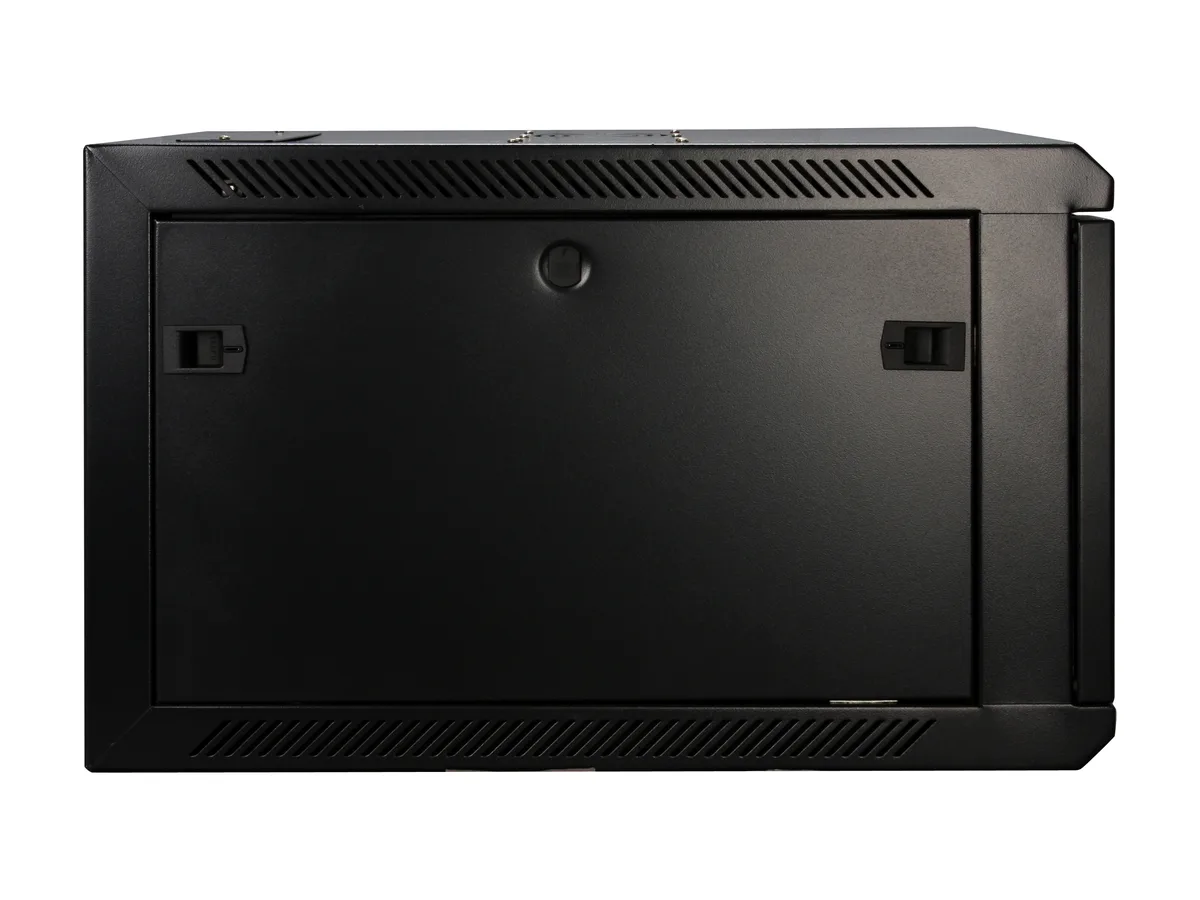

Removable Side Panels with Easy Handy Latches.
2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2 mm for Enclosure.
Degreasing, Acidification, Phosphoric, Static Electricity or Powder Coat Surface Finish.
Front Lock [side panel key lock].
*1. HTS code: 8473.30.5100 (ECCN is not applicable).
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit DimensionH x W x D: 14.49" x 23.62" x 23.62"
Shipping weight25.40 kg
Package size673 × 673 × 432 mm

Questions about this item

Does the WM660B arrive fully assembled or must I buy mounting hardware separately?

The 6U wall-mount cabinet ships pre-assembled with a welded 2.0 mm SPCC steel frame, 1.2 mm enclosure, tempered glass front door with security lock, and removable side panels with latches; mounting screws for your equipment are not included.

Which depth version of the WM660B should I choose for a 22-inch deep server chassis?

The cabinet supports chassis up to 22.00 inches deep, matching the 600 mm / 23.62 inch overall depth, so the single listed depth fits any server 22.00 inches or shorter.

What does the 130.00 lb weight capacity mean when the rack is mounted on a concrete wall?

The 130.00 lb rating is the maximum static load the 2.0 mm SPCC posts and welded frame can carry when the unit is properly bolted to a suitable wall structure per the ANSI / EIA RS-310-D mounting pattern.
