Black 6U wall-mount server rack with glass front door, steel frame, vented sides

iStarUSA Inc.

iStarUSA Inc. WM645B 6U 450mm Depth Wallmount Server Rack

SKU CH-BWZB-6H2DQ MPN WM645B

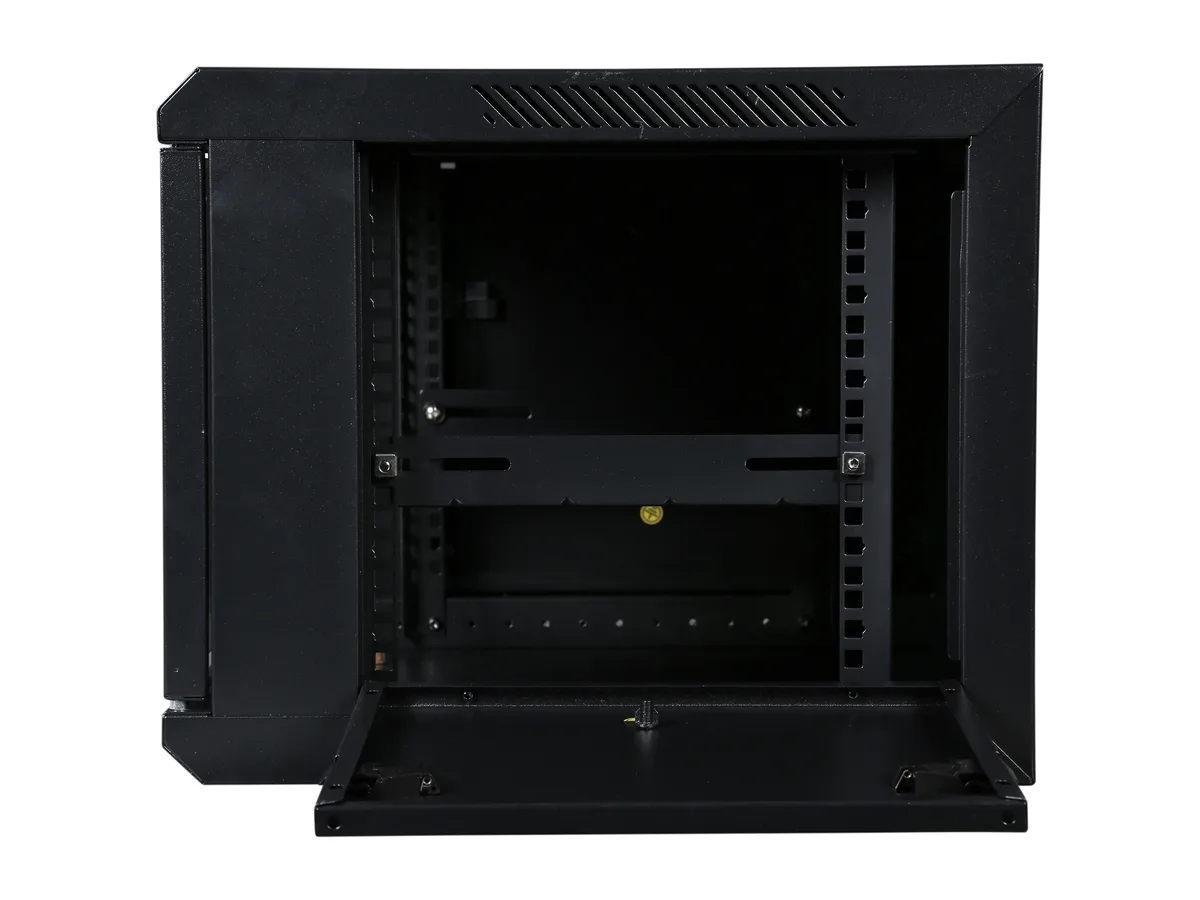

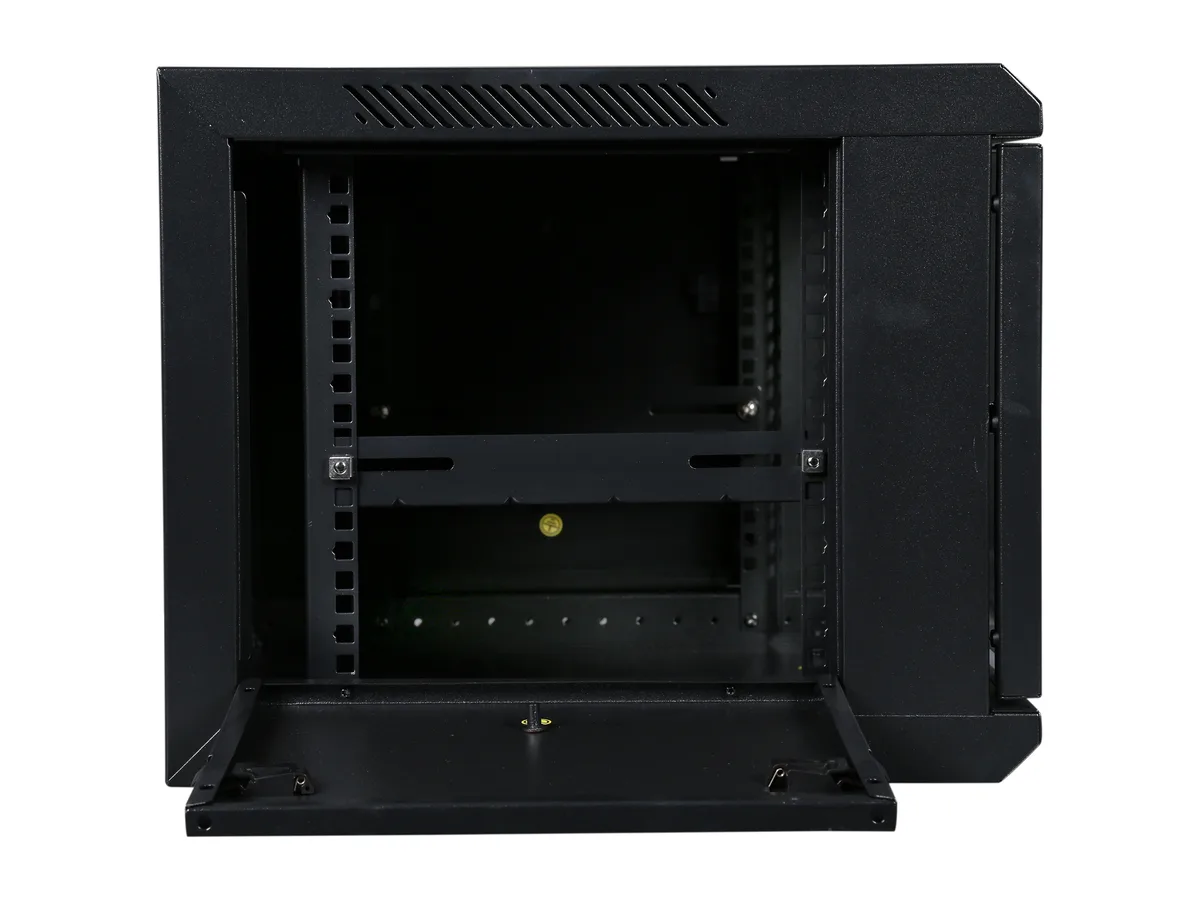

A 6U wall-mount server cabinet with 450mm depth, welded steel frame, three-way cable routing, optional dual 120mm fans and a lockable glass front door

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Cooling (Optional)Optional 2 x 120mm 120V AC fan can be installed on the top (
  • Weight Capacity130.00 lbs.
  • 6U wall-mount cabinet fits 16-inch deep servers
  • 00 lbs capacity on welded 2.0mm SPCC steel frame
  • Three-way cabling tunnels route top, bottom and rear
  • Optional dual 120mm AC fans mount on vented top
  • Reinforced glass front door with lock and removable side panels

Wallmount Cabinet for Server Gear

The iStarUSA WM645B is a 6U wall-mount cabinet designed for network equipment and servers up to 16 inches deep. It suits installers who need a secure, pre-assembled enclosure that can be fixed to a wall or used as a standalone desktop unit. Buyers who require deeper chassis support or more than 6U of rack space should look elsewhere.

Welded Steel Frame with Three-Way Cable Routing

Posts are 2.0mm SPCC cold-roll steel and the enclosure is 1.2mm SPCC with a powder-coat finish. The welded frame arrives pre-assembled and supports 130.00 lbs. Top, bottom and rear cabling tunnels allow flexible cable entry, while removable side panels with latches simplify maintenance. Optional dual 120mm AC fans can be added to the top panel for active airflow.

6U Capacity Meets ANSI/EIA-310-D Standard

The cabinet provides six rack units of mounting space compliant with ANSI/EIA-310-D, IEC297-2, DIN41491, DIN41494 and GB/T3047.2-92. Internal depth maxes out at 16 inches, so any server or switch deeper than that will not fit. The strengthened glass front door includes a key lock, and the unit meets IP20 protection grade.

Highlights

  • 6U wall-mount cabinet fits 16-inch deep servers
  • 00 lbs capacity on welded 2.0mm SPCC steel frame
  • Three-way cabling tunnels route top, bottom and rear
  • Optional dual 120mm AC fans mount on vented top
  • Reinforced glass front door with lock and removable side panels

Specifications

BrandiStarUSA
ModelWM645B
TypeWall Mount Cabinet
Rack Units6U
ColorBlack
MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Cooling (Optional)Optional 2 x 120mm 120V AC fan can be installed on the top (p/n: WA-FANAC120)
Weight Capacity130.00 lbs.
SpecificationRoHS Compliance Version: Yes
Supported Chassis Depth: 16" and under
Internal Dimensions: Depth: 16" max
FeaturesSturdy and Rugged Welded Frame Structure Comes Pre-Assembled.
Three Ways, Top, Bottom, and Rear Cabling Tunnels.
Wallmount or Desktop Standalone.
Meet IP20 Protection Grade.

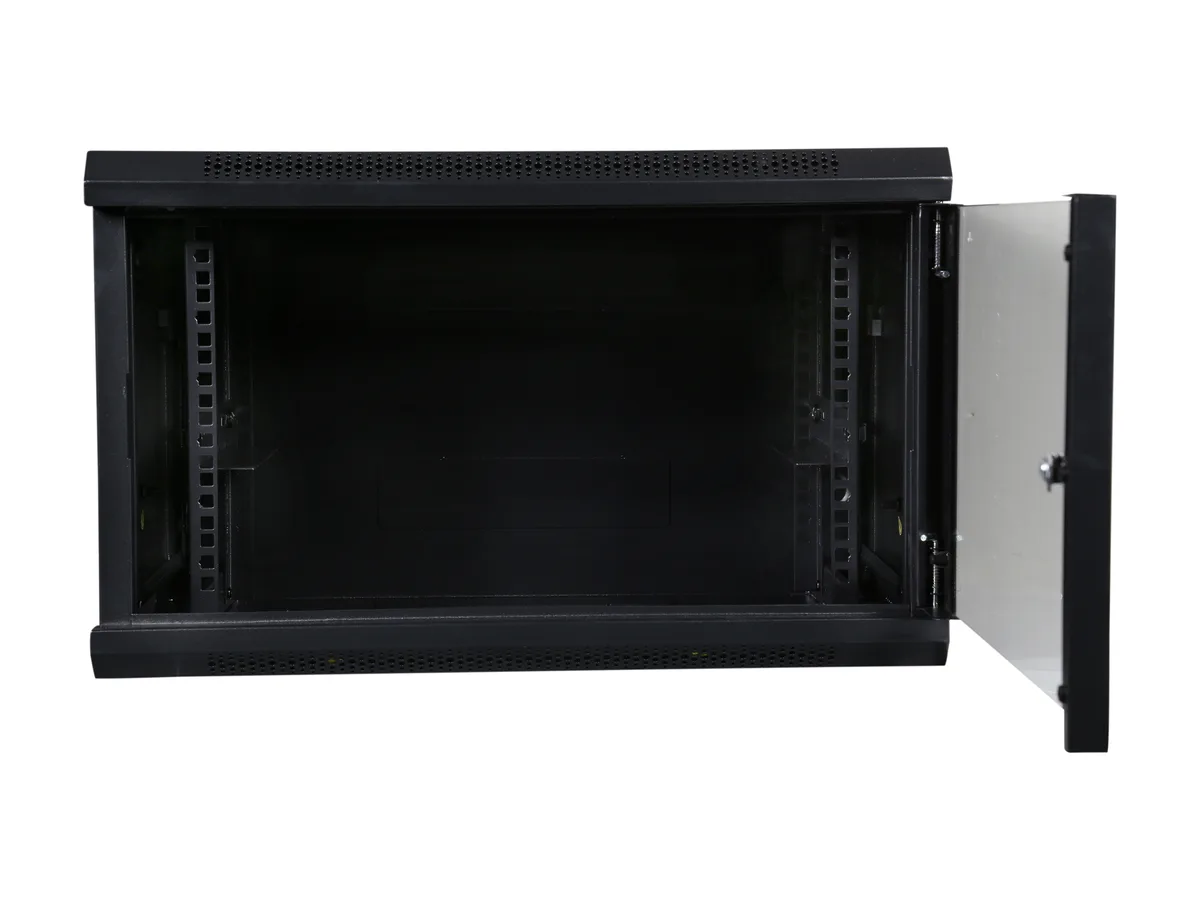

Enforced Strengthen Glass Front Door with Security Key Lock.
Removable Side Panels with Easy Handy Latches.
2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2 mm for Enclosure.
Degreasing, Acidification, Phosphoric, Static Electricity or Powder Coat Surface Finish.
Front Lock [side panel key lock].
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit Dimension14.96" x 23.62" x 17.72"
Shipping weight17.28 kg
Package size660 × 533 × 457 mm

Questions about this item

What rack standard does the WM645B follow and what chassis depth does that limit me to?

It conforms to ANSI/EIA RS-310-D and supports chassis up to 16 inches deep.

What wall-mount hardware and clearances does the 6U cabinet require?

The unit measures 14.96 by 23.62 by 17.72 inches and weighs 130 lbs; mounting screws are included but wall anchors are not.

How do I add active cooling and what step is often missed?

Two optional 120 V AC fans (part WA-FANAC120) fit the top panel; the frequent mistake is forgetting to wire them to a switched circuit so they run with the equipment.
