Black 15U wall-mount server cabinet with glass front door and vented steel frame

iStarUSA Inc.

iStarUSA Inc. WM1545B 15U 450mm Depth Wallmount Server Rack

SKU CH-YNDB-RSVJ5 MPN WM1545B

A 15U wall-mount or desktop server cabinet with 450mm depth, welded steel frame, three cable tunnels, optional dual 120mm fans and 130 lbs load capacity

  • TypeWall Mount Cabinet
  • Rack Units15U
  • ColorBlack
  • MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Cooling (Optional)Optional 2 x 120mm 120V AC fan can be installed on the top (
  • Weight Capacity130.00 lbs.
  • 15U wall-mount cabinet fits 15 rack units in compact 450mm depth
  • Welded 2.0mm SPCC steel frame supports 130.00 lbs static load pre-assembled
  • Three integrated cable tunnels at top bottom rear simplify routing
  • Optional dual 120mm AC fans mount on vented top panel for active cooling
  • Strengthened glass front door with key lock meets IP20 protection grade

15U Wallmount Cabinet for Network Gear

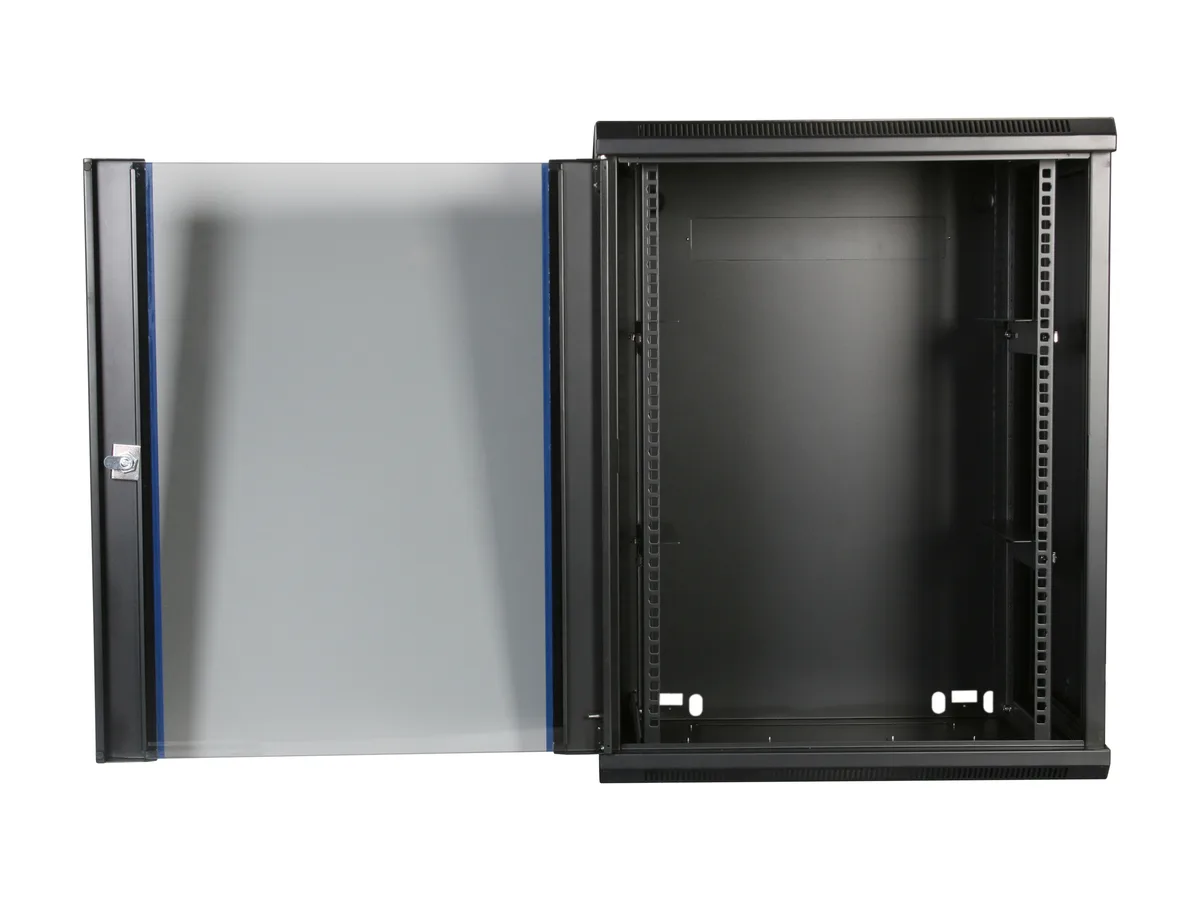

The iStarUSA WM1545B is a 15U wall-mounted server cabinet built from 2.0mm SPCC steel posts and 1.2mm enclosure panels. It supports equipment weighing up to 130.00 lbs and fits chassis up to 16.00 inches deep. The unit arrives pre-assembled with a strengthened glass front door and key lock for physical security.

16.00-Inch Depth Limit and Optional Cooling

Internal depth is fixed at 16.00 inches, so deeper servers or blade chassis will not fit. Ventilation relies on passive airflow through vented frames plus two optional 120V AC fans (part WA-FANAC120) that mount on the top panel. Cable entry is provided through top, bottom and rear tunnels only.

ANSI/EIA RS-310-D Compliant 15U Height

The cabinet provides exactly 15U of rack space compliant with ANSI/EIA RS-310-D and IEC 297-2 standards. Buyers needing more than 15U of vertical mounting space or a deeper enclosure for full-length servers must choose a larger floor-standing rack instead.

Highlights

  • 15U wall-mount cabinet fits 15 rack units in compact 450mm depth
  • Welded 2.0mm SPCC steel frame supports 130.00 lbs static load pre-assembled
  • Three integrated cable tunnels at top bottom rear simplify routing
  • Optional dual 120mm AC fans mount on vented top panel for active cooling
  • Strengthened glass front door with key lock meets IP20 protection grade

Specifications

BrandiStarUSA
ModelWM1545B
TypeWall Mount Cabinet
Rack Units15U
ColorBlack
MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Cooling (Optional)Optional 2 x 120mm 120V AC fan can be installed on the top (p/n: WA-FANAC120)
Weight Capacity130.00 lbs.
SpecificationRoHS Compliance Version: Yes
Supported Chassis Depth: 16.00" and under
Internal Dimensions: Depth: 16.00" max
FeaturesSturdy and Rugged Welded Frame Structure Comes Pre-Assembled.
Three Ways, Top, Bottom, and Rear Cabling Tunnels.
Wallmount or Desktop Standalone.
Meet IP20 Protection Grade.
Enforced Strengthen Glass Front Door with Security Key Lock.
Removable Side Panels with Easy Handy Latches.
2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure.
Degreasing, Acidification, Phosphoric, Static Electricity or Powder Coat Surface Finish.
Front Lock [side panel key lock].
*1. HTS code: 8473.30.5100 (ECCN is not applicable).
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit DimensionH x W x D: 25.00" x 23.62" x 17.72"
Shipping weight28.53 kg
Package size848 × 668 × 513 mm

Questions about this item

Is the 15U height enough for my patch panel, switch, and small server?

The cabinet provides 15U of vertical rack space, with an internal depth of 16.00 inches and a 130.00 lbs weight capacity, so you can stack a patch panel, network switch, and a short-depth server as long as each chassis is 16.00 inches deep or less.

What does the 450 mm external depth mean once the cabinet is on the wall?

The unit measures 17.72 inches deep overall, so it projects that far from the wall; the usable internal depth remains 16.00 inches for equipment.

Does the ANSI/EIA RS-310-D compliance guarantee M6 mounting holes?

The rack follows ANSI/EIA RS-310-D and related standards, and the package includes M6 mounting screws for installing equipment.
