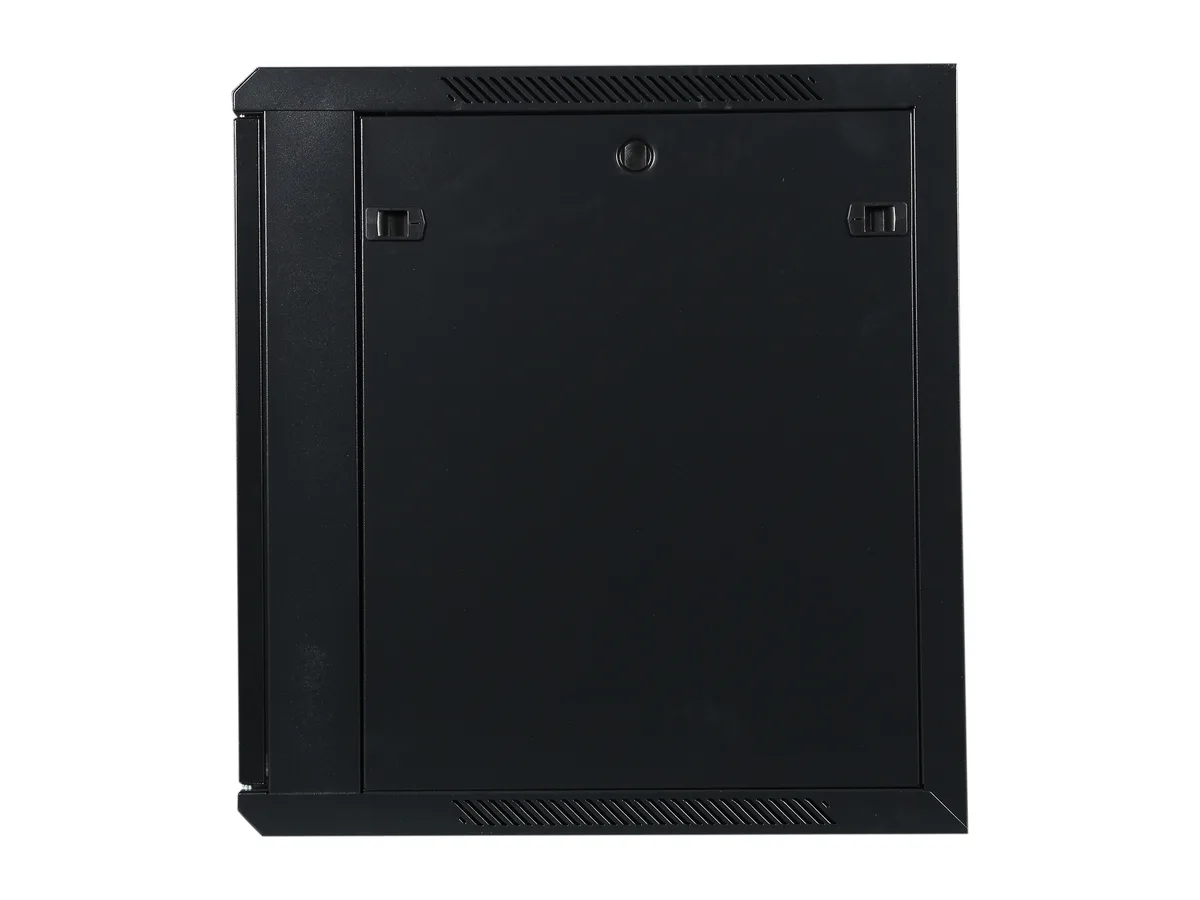

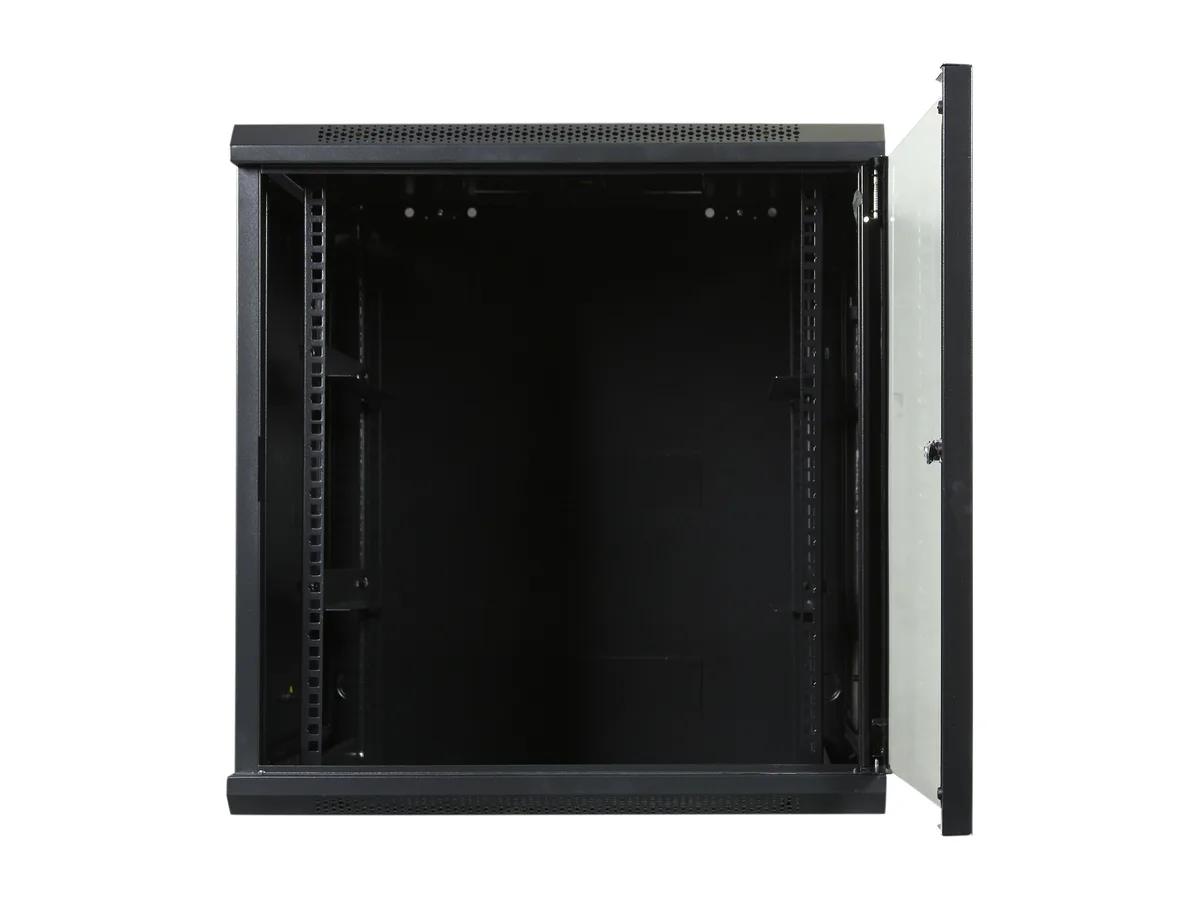

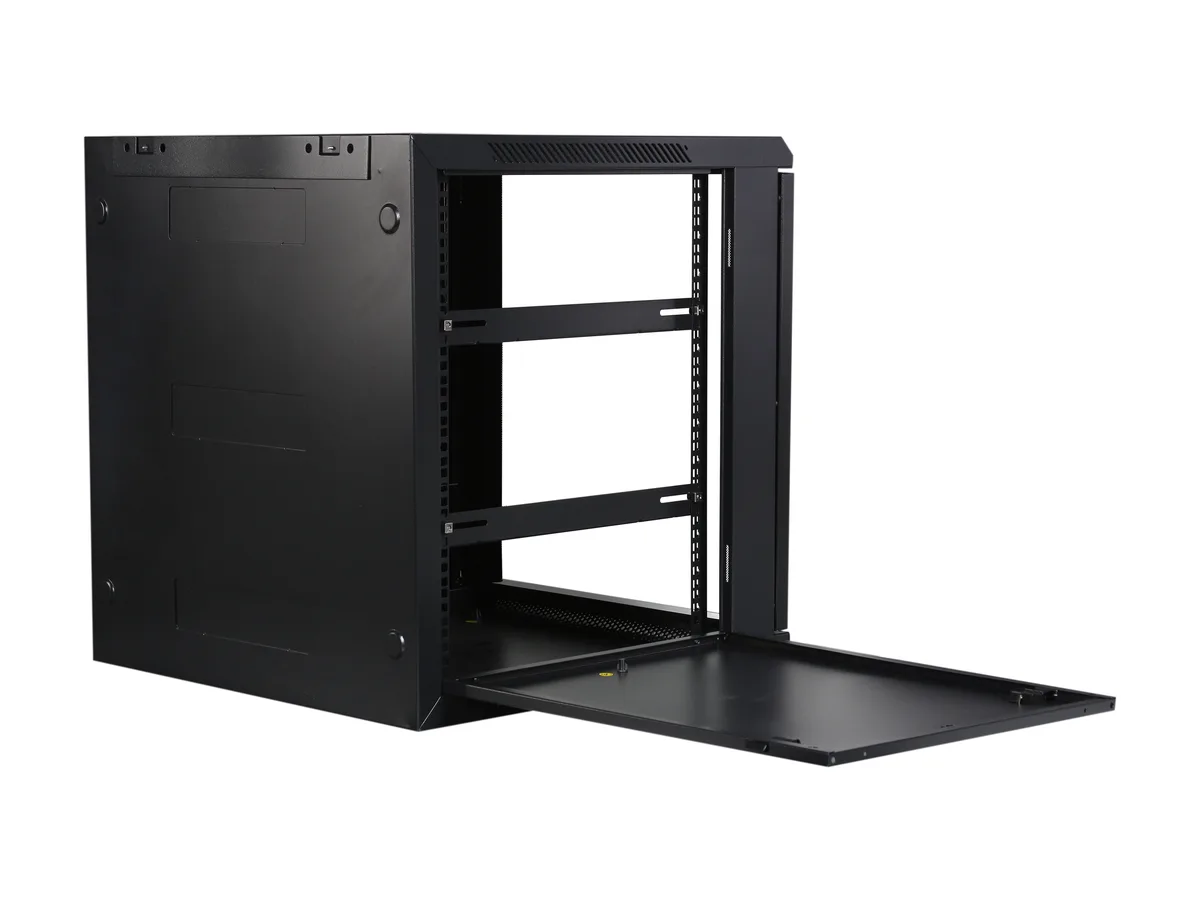

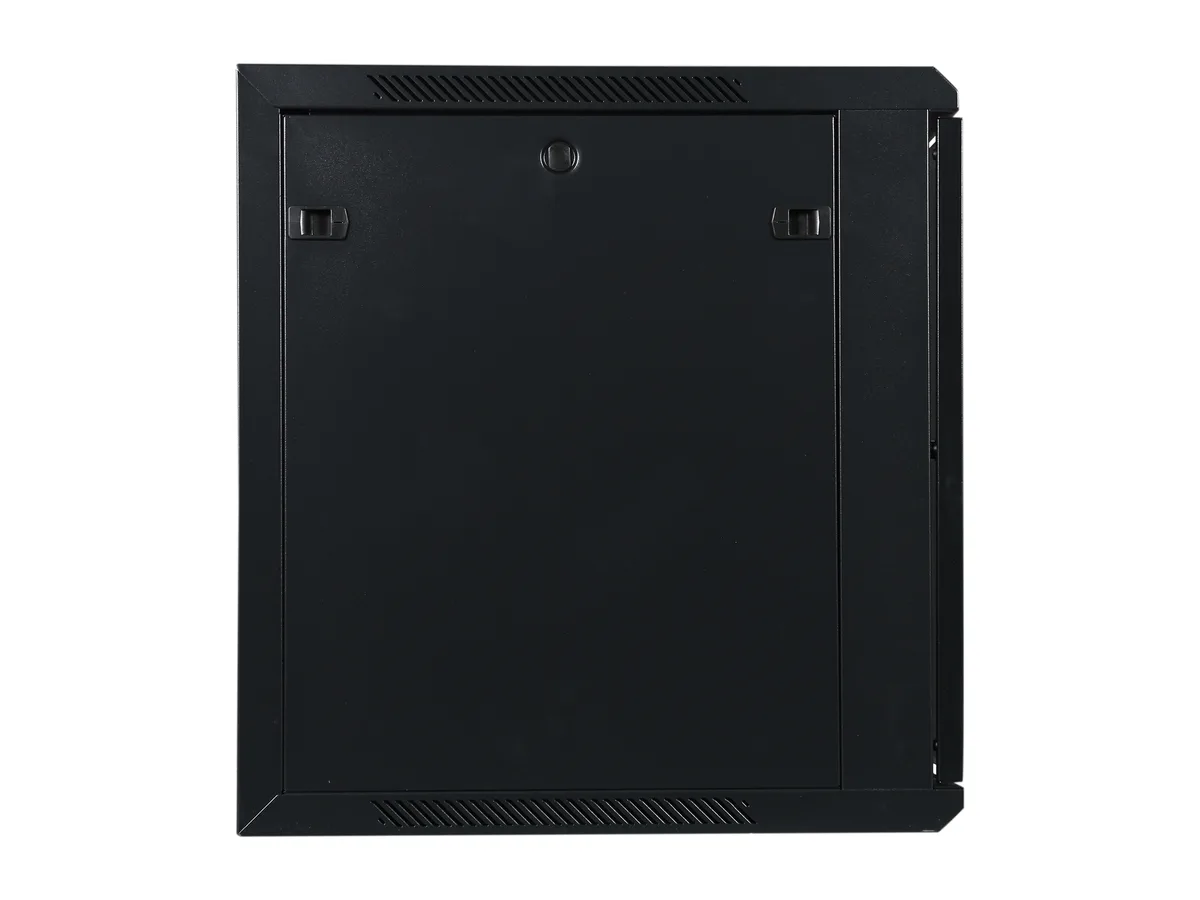

Black 12U wall-mount server cabinet, 600 mm depth, steel frame, glass front door, removable side panels

iStarUSA Inc.

iStarUSA Inc. WM1260B 12U 600mm Wallmount Server Rack

SKU CH-1M3W-TAHBW MPN WM1260B

A 12U wall-mount server cabinet with 600 mm depth, 2.0 mm steel posts, 1.2 mm enclosure, 130.00 lb capacity and optional dual 120 mm fans

  • TypeWall Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Cooling (Optional)Optional 2 x 120 mm 120V AC fan can be installed on the top
  • Weight Capacity130.00 lbs.
  • 12U wall-mount rack saves floor space
  • 0 mm SPCC steel posts support 130.00 lb load
  • 600 mm depth fits chassis up to 22.00 in
  • Pre-assembled welded frame installs immediately
  • Lockable glass door and removable side panels secure equipment

12U Wall-Mount Cabinet

The iStarUSA WM1260B is a 12U wall-mount server cabinet built for network, security or audio-visual equipment in offices, classrooms or edge locations. It ships fully assembled and supports chassis up to 22.00 inches deep, making it suitable for standard-depth switches, patch panels and short servers.

Thermals and Power

The frame uses partially vented side panels and top cut-outs for passive airflow, while two optional 120 mm 120V AC fans (part WA-FANAC120) can be added to the roof for active cooling. No fans or power distribution are included, so power draw and noise depend entirely on the installed equipment and whether the optional fans are fitted.

Build and Cabling

Posts are 2.0 mm SPCC cold-roll steel and the enclosure is 1.2 mm SPCC with a powder-coat finish, giving a 130.00 lb weight capacity. A lockable tempered-glass front door and key-locked removable side panels secure the gear while allowing quick access. Three-way cable tunnels at the top, bottom and rear simplify routing, and the unit can also stand on a desktop when wall mounting is not preferred.

Highlights

  • 12U wall-mount rack saves floor space
  • 0 mm SPCC steel posts support 130.00 lb load
  • 600 mm depth fits chassis up to 22.00 in
  • Pre-assembled welded frame installs immediately
  • Lockable glass door and removable side panels secure equipment

Specifications

BrandiStarUSA
ModelWM1260B
TypeWall Mount Cabinet
Rack Units12U
ColorBlack
MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Cooling (Optional)Optional 2 x 120 mm 120V AC fan can be installed on the top (p/n: WA-FANAC120)
Weight Capacity130.00 lbs.
FeaturesSupported Chassis Depth: 22.00" and under
Internal Dimensions: Depth: 22.00" max
Sturdy and Rugged Welded Frame Structure Comes Pre-Assembled
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Wallmount or Desktop Standalone with Optional Caster or Stand
Meet IP20 Protection Grade
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
Degreasing, Acidification, Phosphoric, Static Electricity or Powder C
Unit Dimension23.62" x 25.00" x 23.62"
Shipping weight29.05 kg
Package size709 × 678 × 678 mm

Questions about this item

How do I mount the WM1260B to the wall and what step is often missed?

Secure the pre-assembled frame to wall studs using appropriate lag bolts for the 130.00 lbs capacity; the step often missed is verifying stud centres match the cabinet's mounting-hole pattern before drilling.

What maintenance will the optional cooling fans need over time?

The optional WA-FANAC120 120 mm AC fans on the top panel should be cleaned of dust every few months and replaced if bearing noise appears or airflow drops.

What is the first limit reached when loading this 12U cabinet continuously?

The 130.00 lbs weight capacity or the 22.00 inch maximum chassis depth will be reached before the 12U vertical space fills.
