Black 12U wall-mount server rack with 2U drawer and glass front door

iStarUSA Inc.

iStarUSA Inc. WM1260-DWR2U 12U 600mm Depth Wallmount Server Rack with 2U Drawer

SKU CH-MZ10-W9QZS MPN WM1260-DWR2U

A 12U wall-mount cabinet with a 2U drawer, 22" max chassis depth, 130 lbs capacity, and 230° door swing

  • TypeWall Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel Enclosure: SP
  • Weight Capacity130 lbs.
  • SpecificationSupported Chassis Depth: 22" and under Internal Dimensions:
  • 12U capacity fits dense server deployments
  • 130 lbs weight capacity supports heavy equipment
  • 22 inch depth accommodates standard chassis
  • 230 degree door swing eases rear access
  • Pre-assembled welded frame saves installation time

12U Wallmount Server Cabinet with 2U Drawer

The iStarUSA WM1260-DWR2U is a 12U wall-mounted enclosure built from 2.0mm SPCC steel posts and 1.2mm SPCC enclosure panels. It supports equipment up to 22 inches deep and carries a 130 lbs weight capacity. The unit ships pre-assembled in black and includes a lockable front door that opens 230 degrees. A 2U sliding drawer is included for tools or peripherals.

Installation Checklist

Verify that your wall structure can bear the combined load of the cabinet and installed hardware up to 130 lbs. Confirm the mounting hardware suits your wall material and that the 23.62-inch width and depth fit the chosen location. Ensure the 22-inch maximum chassis depth accommodates your servers or network gear. Plan cable routes through the top, bottom or rear tunnels before securing the cabinet. Optional dual AC fans and caster or stand kits require separate provisioning.

Upgrade Context

This cabinet replaces open-frame racks or desktop stacking when physical security, dust protection and lockable access are needed. The jump is worth it when equipment depth stays within 22 inches and the 12U height covers current and near-term devices. It is not suited for deeper blade chassis, full-height rackmount UPS units or installations requiring more than 12U of continuous rack space. Buyers needing forced-air cooling beyond optional dual fans or a higher static load rating should consider floor-standing alternatives.

Highlights

  • 12U capacity fits dense server deployments
  • 130 lbs weight capacity supports heavy equipment
  • 22 inch depth accommodates standard chassis
  • 230 degree door swing eases rear access
  • Pre-assembled welded frame saves installation time

Specifications

BrandiStarUSA
ModelWM1260-DWR2U
TypeWall Mount Cabinet
Rack Units12U
ColorBlack
MaterialPosts: 2.0mm SPCC High-Quality Cold Roll Steel
Enclosure: SPCC 1.2mm
Weight Capacity130 lbs.
SpecificationSupported Chassis Depth: 22" and under
Internal Dimensions:
Depth: 22" max
FeaturesSturdy and Rugged Welded Frame Structure Comes Pre-Assembled
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Wallmount or Desktop Standalone with Optional Caster or Stand

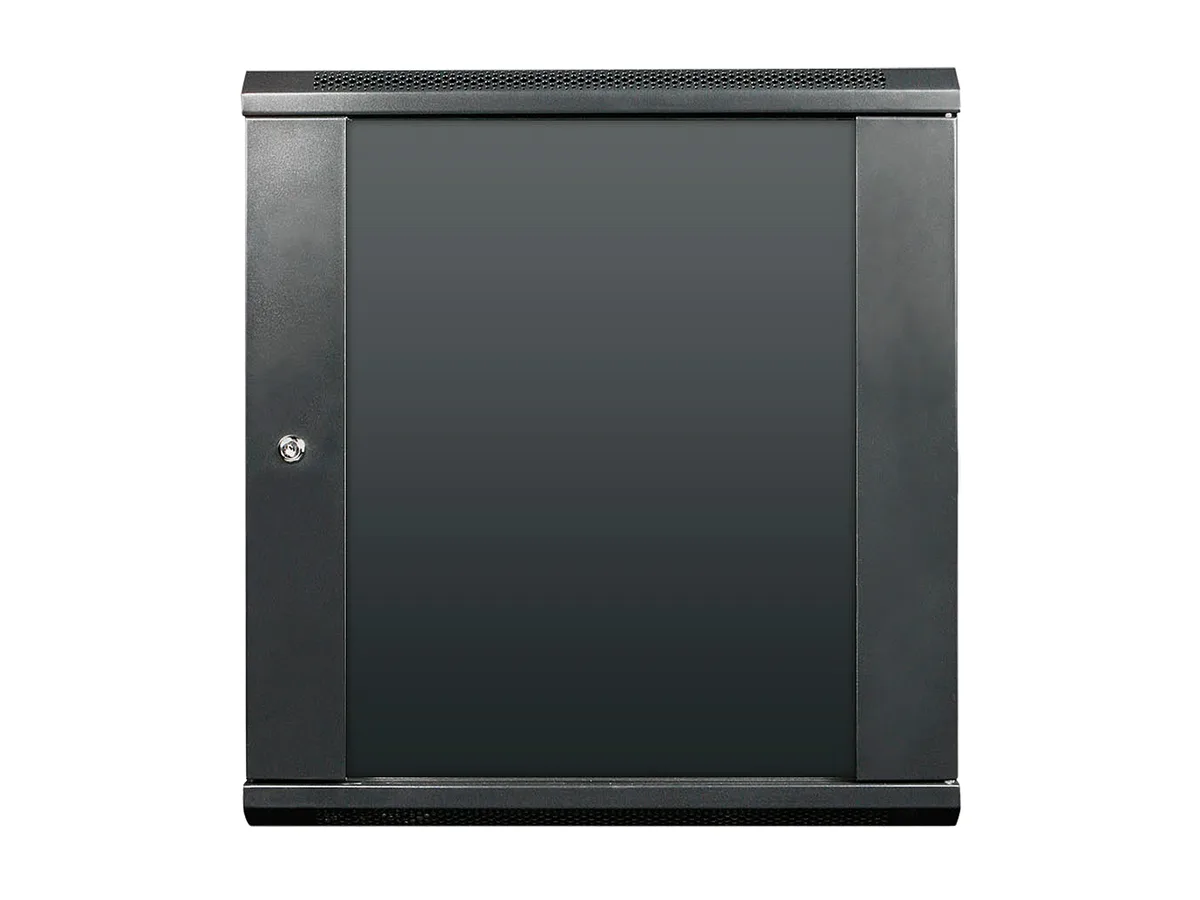

Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
Comes with M6 Mounting Screws and Cage Nuts
Easily to Switch Door Side and Door Opens 230 Degree

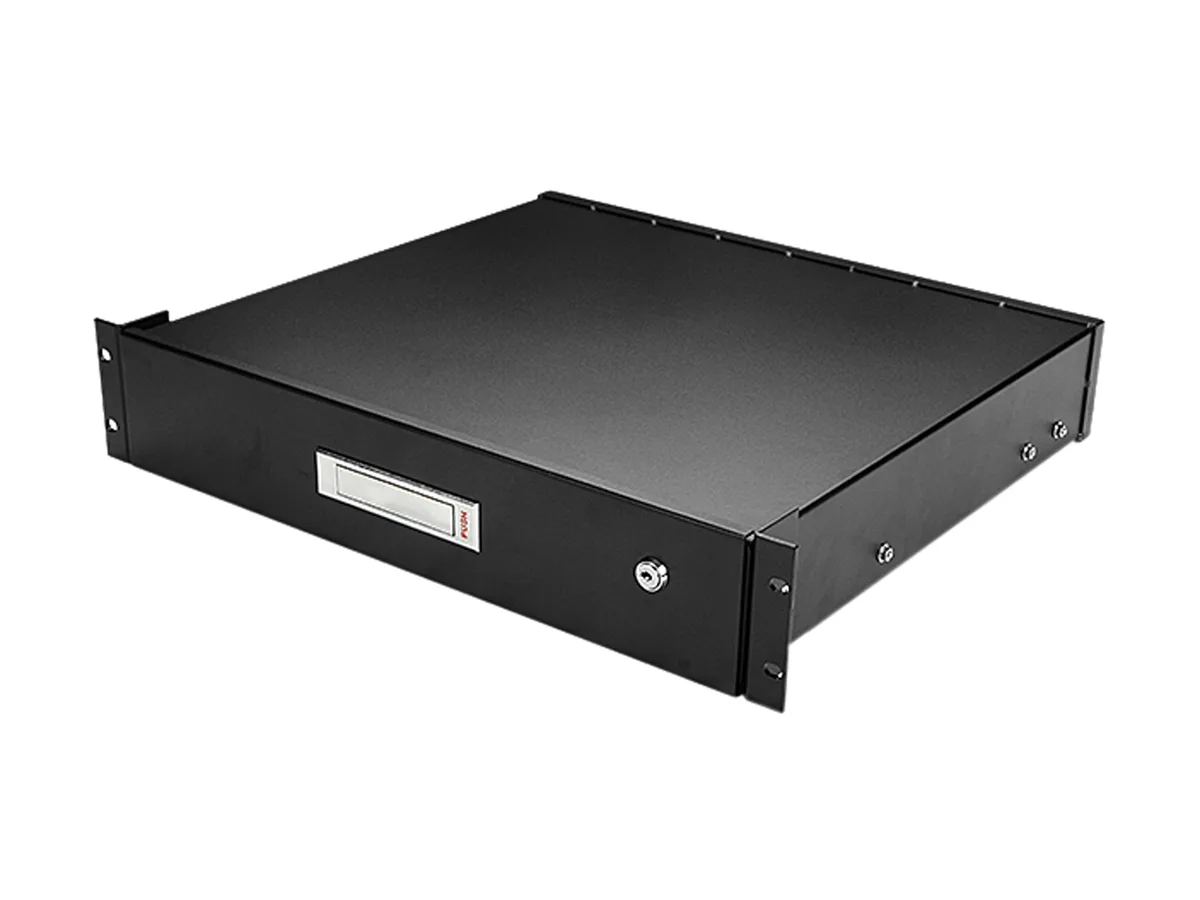

Comes with a 2U Drawer
Industry StandardANSI / EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB / T3047.2-92
Unit Dimension25.00" x 23.62" x 23.62"
Shipping weight36.06 kg
Package size706 × 683 × 663 mm

Questions about this item

Does the WM1260-DWR2U ship with mounting hardware or do I need to buy cage nuts separately?

The cabinet comes with M6 mounting screws and cage nuts included in the package.

How do I decide between the 12U height and a taller model for my equipment?

This unit provides 12 rack units of vertical space and supports chassis up to 22 inches deep; choose a taller rack only if you need more than 12U of gear.

What does the 130 lb weight capacity mean when the rack is mounted on a wall?

The welded 2.0 mm SPCC steel frame is rated to hold 130 lbs of installed equipment when properly secured to wall studs.
