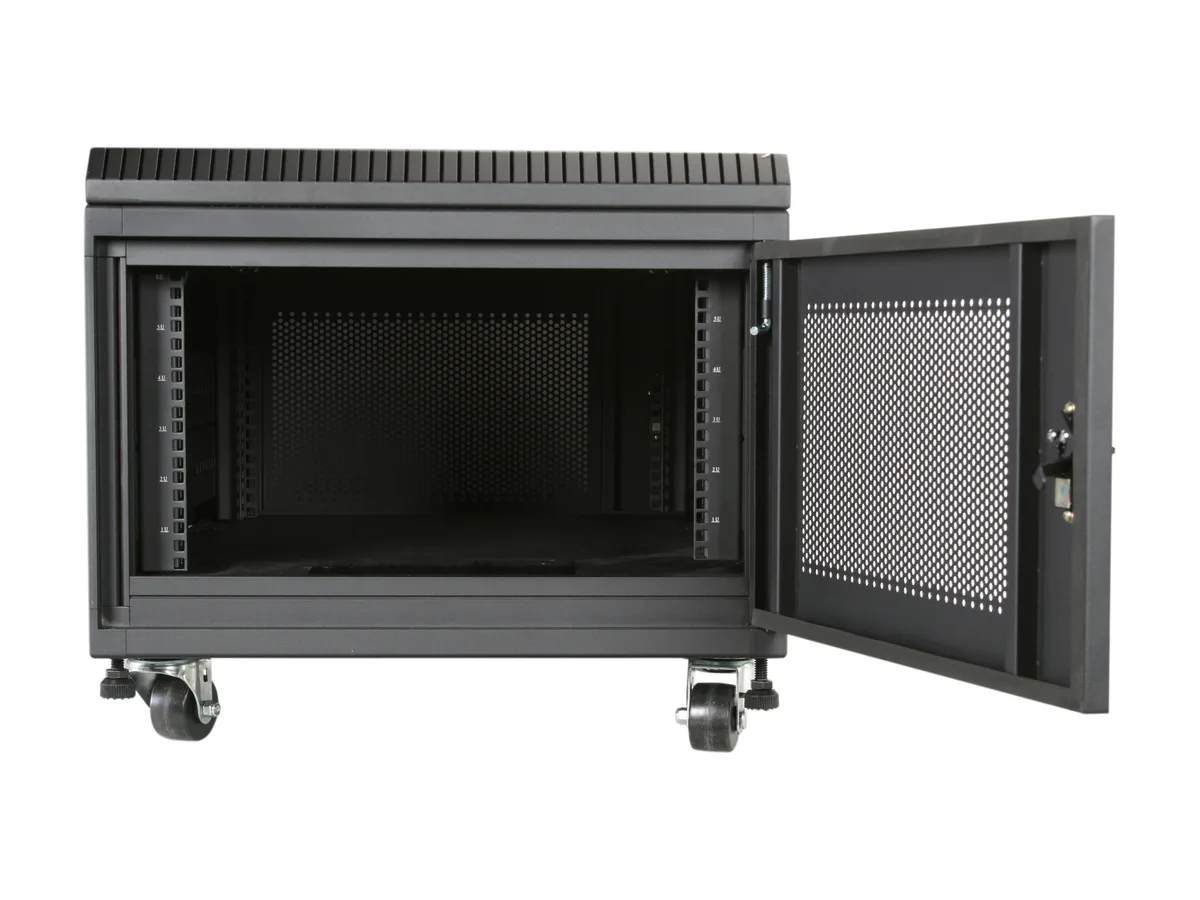

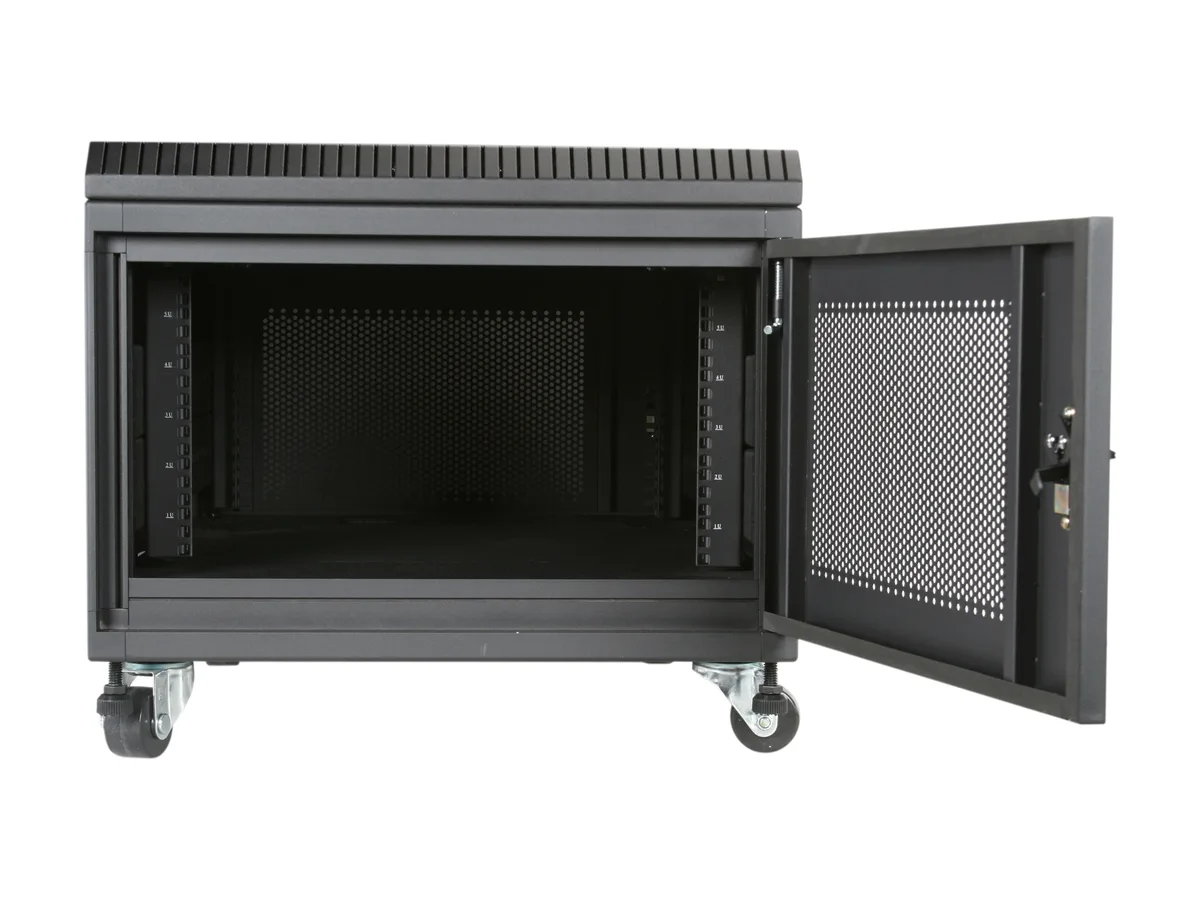

Black 6U server rack cabinet with aluminum frame, steel panels, vented doors, 900mm depth

iStarUSA Inc.

iStarUSA Inc. WG-690 6U 900mm Depth Server Rack

SKU CH-78V0-H6PZJ MPN WG-690

A 6U rack cabinet with 900 mm depth and 2000 lb capacity for secure equipment mounting

  • TypeRack Enclosure
  • Rack Units6U
  • ColorBlack
  • MaterialFrame:Aluminum Base:SPCC Cold Rolled Steel t1.2 Mounting Rai
  • Cooling (Optional)120mm AC Cooling Fans Provide Excellent Air Circulation
  • Weight Capacity2000 lbs.

Rack Units 6U

  • Compact 6U cabinet fits 29" deep rack equipment
  • Aluminium frame with 2.0 mm steel rails supports 2000 lbs load
  • Lockable front, rear and side doors secure hardware from unauthorised access
  • Vented doors plus optional 120 mm fans deliver strong airflow for cooling
  • Desk-side footprint of 23.60" x 21.00" x 35.40" suits office or studio placement

Compact 6U Server Cabinet

The iStarUSA WG-690 is a 6U rack enclosure designed for offices, studios and small-to-medium businesses that need secure, desk-side mounting for standard 19-inch equipment. Its aluminium frame and cold-rolled steel panels support up to 2000 lbs of hardware while fitting chassis depths of 29 inches or less.

Vented Doors With Optional 120mm Fans

Vented front, rear and side panels promote airflow through the cabinet, and optional 120mm AC fans can be added for active circulation. The steel construction and lockable doors help contain noise from installed servers, making the unit suitable for quiet office or studio environments.

Aluminium Frame With Lockable Steel Panels

The frame uses aluminium while the base, rails, top, sides and doors are built from SPCC cold-rolled steel in thicknesses of 1.2 mm, 1.5 mm and 2.0 mm. Front, rear and side security locks prevent unauthorised access, and the 122 lb cabinet measures 23.60 by 21.00 by 35.40 inches for straightforward placement beside a desk.

Highlights

  • Compact 6U cabinet fits 29" deep rack equipment
  • Aluminium frame with 2.0 mm steel rails supports 2000 lbs load
  • Lockable front, rear and side doors secure hardware from unauthorised access
  • Vented doors plus optional 120 mm fans deliver strong airflow for cooling
  • Desk-side footprint of 23.60" x 21.00" x 35.40" suits office or studio placement

Specifications

BrandiStarUSA
ModelWG-690
TypeRack Enclosure
Rack Units6U
ColorBlack
MaterialFrame:Aluminum
Base:SPCC Cold Rolled Steel t1.2
Mounting Rails:SPCC Cold Rolled Steel t2.0
Top Panel:SPCC Cold Rolled Steel t1.2
Side Panels:SPCC Cold Rolled Steel t1.2
Doors:SPCC Cold Rolled Steel t1.5
Cooling (Optional)120mm AC Cooling Fans Provide Excellent Air Circulation
Weight Capacity2000 lbs.
FeaturesRoHS Compliance Version: Yes
Supported Chassis Depth: 29" and under
Internal Dimensions: Depth: 29" max
Universal Fit Most of Rackmount Chassis and Equipment.
Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data.
Easy Cabling Management. Cable Entry Provided from Top/ Bottom.
Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis.
Vented Doors Provide Maximum Air Flow.
Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line.
Locking Mechanism Desig
Unit Dimension23.60" x 21.00" x 35.40"
Unit Weight122 lbs.
Shipping weight60.17 kg
Package size932 × 640 × 561 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 19-inch mounting rails and what step do people miss?

Mount the SPCC t2.0 rails to the aluminum frame using the supplied hardware, then level the cabinet on its casters before tightening — skipping the leveling step leaves doors misaligned.

What maintenance will the 120mm cooling fans need later?

Vacuum dust from the fan intakes and vented doors every few months; the fans are AC mains units, so replace any that develop bearing noise or stop spinning.

What limit appears first under sustained full load?

The 29-inch maximum chassis depth restricts equipment choices before the 2000 lb weight capacity or 6U height become constraints.
