Silver aluminium front bezel on black 4U steel rackmount chassis, 19 inches wide

iStarUSA Inc.

iStarUSA Inc. D-400SEA-SL-HDD2535 4U server rack

SKU CH-THY2-SXFMP MPN D-400SEA-SL-HDD2535

A 4U rack-mount chassis with a silver aluminium front bezel, black 1.2mm steel frame, one 80 mm and one 120 mm fan, seven expansion slots, four 5.25″ bays, three internal 3.5″ bays.

  • TypeRack Mount Cabinet
  • Rack Units4U
  • ColorColor of Front Bezel: Silver Color of Main Chassis: Black
  • MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
  • Cooling (Optional)1 x 80mm
  • Cooling (Standard)1 x 80mm, 1 x 120mm
  • 4U rack height fits standard cabinets
  • Silver aluminium front bezel adds professional appearance
  • 2 mm Japanese zinc-coated steel chassis resists corrosion
  • Standard 80 mm and 120 mm fans provide airflow
  • Seven expansion slots support multiple add-in cards

4U Rackmount Chassis with Silver Bezel

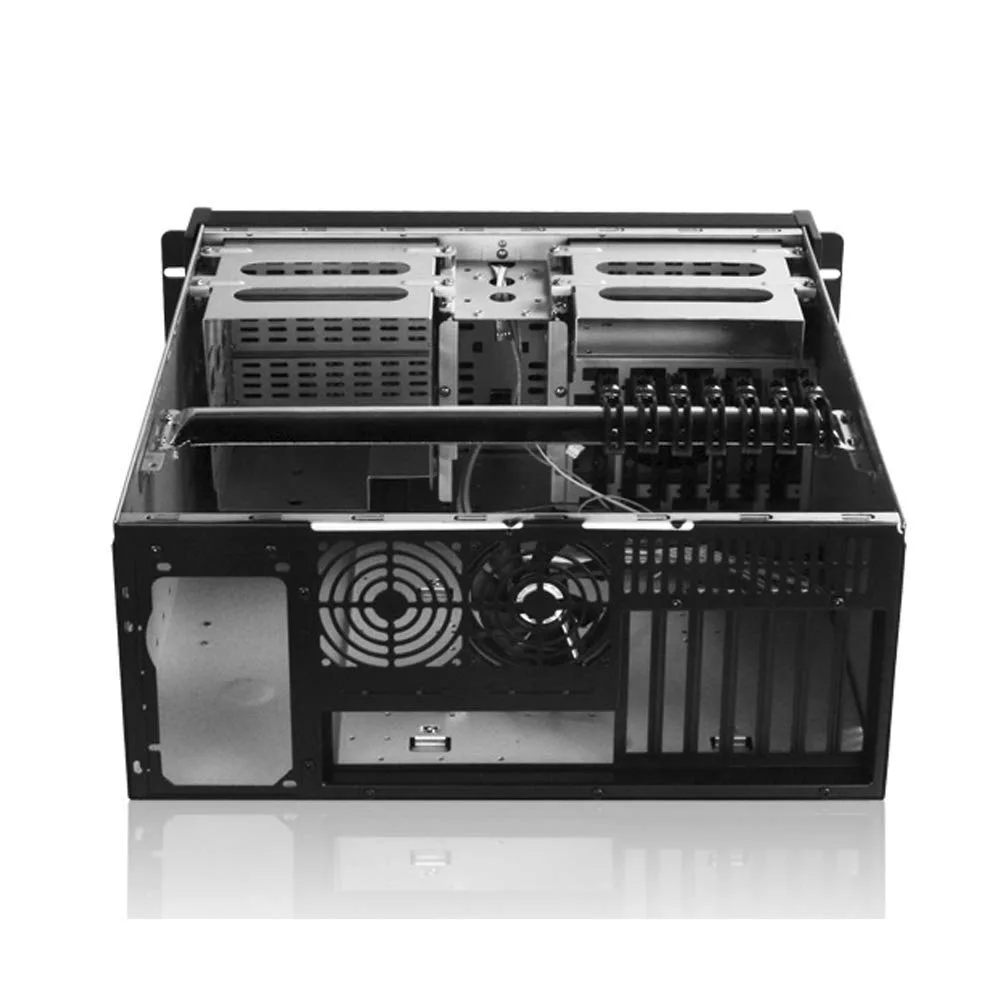

The iStarUSA D-400SEA-SL-HDD2535 is a 4U server chassis built from 1.2 mm SECC zinc-coated steel with an aluminium-alloy front bezel. It fits a standard 19-inch rack and accepts ATX or microATX motherboards up to 12 by 9.6 inches. Seven low-profile expansion slots are available for add-in cards.

Suited for RAID Storage Builds

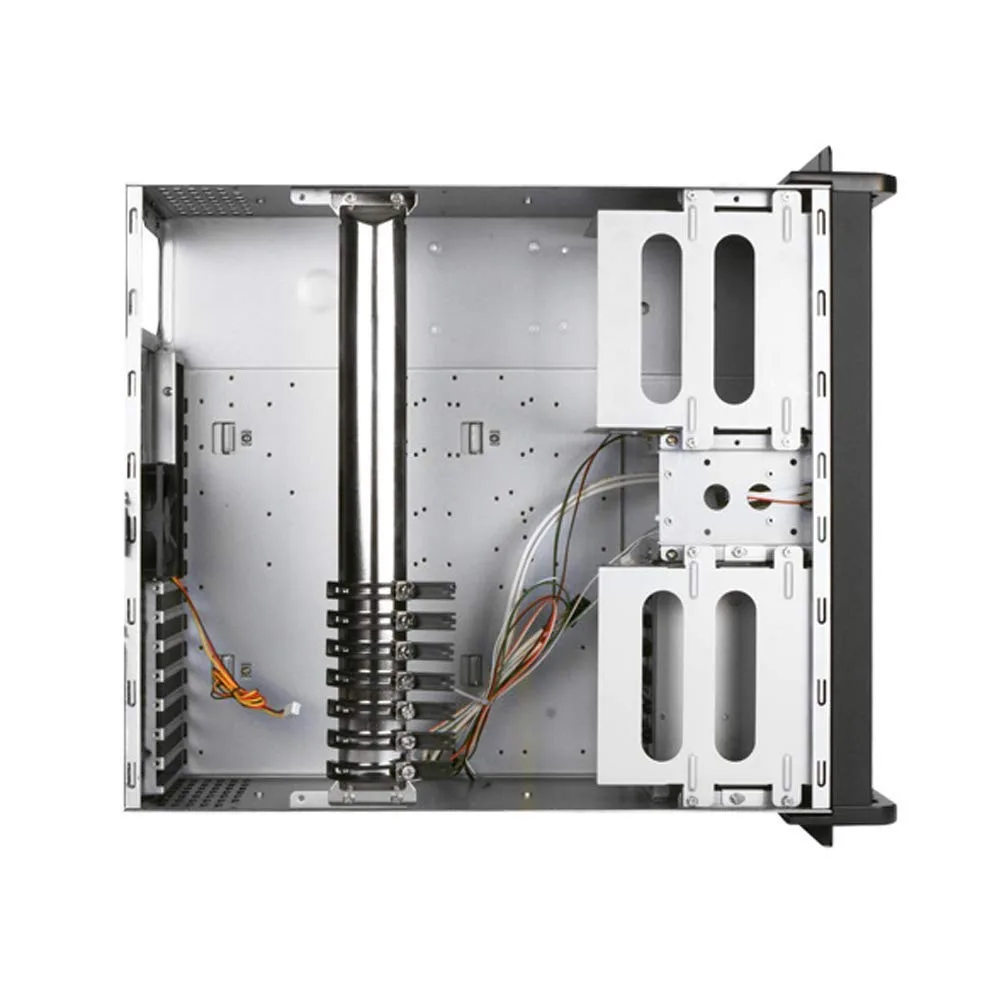

This chassis holds one external 3.5-inch bay, two internal 3.5-inch bays and four 5.25-inch bays, giving room for up to five drives in a RAID array when paired with a BPU or T-Series backplane. Builders who need hot-swap trays without a backplane, or who require more than seven expansion slots, should consider a different enclosure.

PS2 or Mini-Redundant Power Supply Support

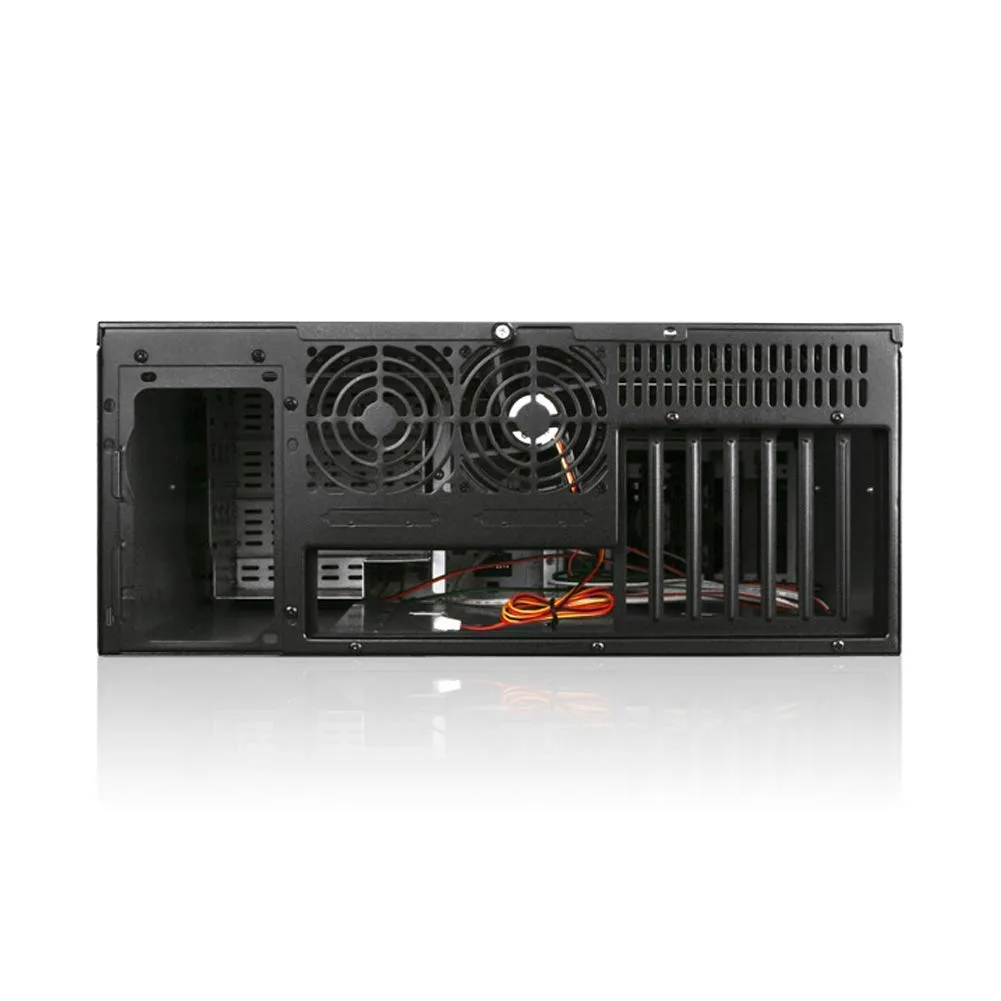

The unit ships with one 80 mm and one 120 mm fan installed, and an optional second 80 mm fan can be added. Front-panel indicators show power, drive activity, temperature and fan status when a TC-ISF08 sensor board is fitted. A key-locked bezel secures the drives and two USB 2.0 ports provide front access.

Highlights

  • 4U rack height fits standard cabinets
  • Silver aluminium front bezel adds professional appearance
  • 2 mm Japanese zinc-coated steel chassis resists corrosion
  • Standard 80 mm and 120 mm fans provide airflow
  • Seven expansion slots support multiple add-in cards

Specifications

BrandiStarUSA
ModelD-400SEA-SL-HDD2535
TypeRack Mount Cabinet
Rack Units4U
ColorColor of Front Bezel: Silver
Color of Main Chassis: Black
MaterialMaterial of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)1 x 80mm
Cooling (Standard)1 x 80mm, 1 x 120mm
SpecificationStandard Drive Bays:
- 3.5" Drives: 1
- 3.5" Drive (internal): 2
- 5.25" Drives: 4
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08)
Switches: Power, Reset
Supported PSU Type: PS2, Mini Redundant
Expansion Slots: 7
Security: Front Bezel Key Lock
Front Connector: 2 x USB 2.0
Motherboard Size: 12" x 9.6" (ATX, microATX)

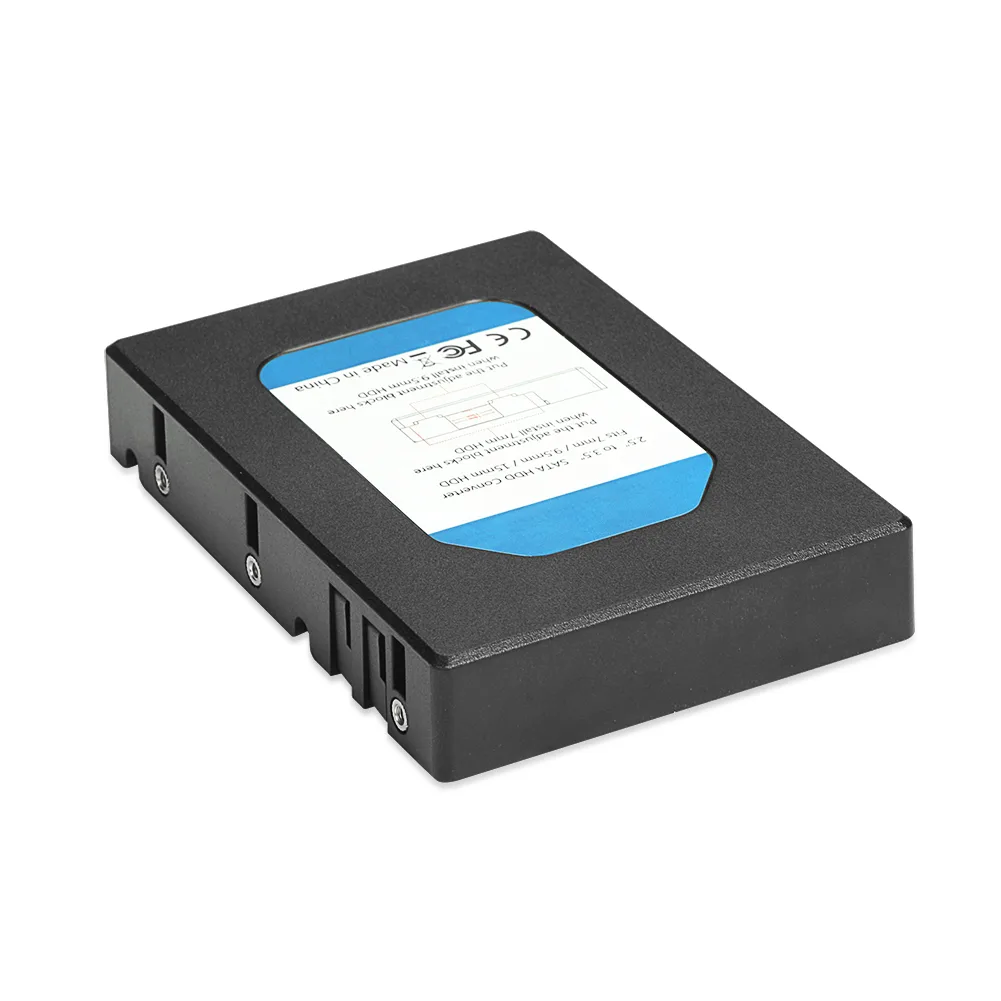

FeaturesiStarUSA 4U industrial rackmount chassis D Storm D-400SEA-SL-HDD2535SI. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for RAID configuration. D-400SEA-SL-HDD2535SI provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, also with internal 2.5" to 3.5" HDD/SSD Converter.
Unit Dimension19.00" x 7.00" x 20.80"
Shipping weight15.42 kg
Package size686 × 559 × 305 mm

Questions about this item

How deep is the 4U rackmount chassis so I know it fits my cabinet?

The unit depth is 20.80 inches, so verify your cabinet provides at least that much clear rail-to-door space before mounting.

Which screws and rails are used to secure the 1.2mm SECC steel chassis in a standard 19-inch rack?

Use the included rack-mount ears and M6 cage nuts on 19.00-inch wide posts; the most common mistake is forgetting the middle screw on each ear, which lets the chassis sag under drive weight.

When do the 80 mm and 120 mm fans typically need replacement in this chassis?

Plan to swap both fans after roughly three to four years of continuous duty; the 80 mm unit is accessible behind the front bezel, while the 120 mm unit requires removing the top cover.
