Silver front bezel 3U rackmount chassis with 20 inch sliding rails

iStarUSA Inc.

iStarUSA Inc. D-300SEA-SL-RAIL24 3U server rack with 20" sliding rails

SKU CH-TX7S-9BA34 MPN D-300SEA-SL-RAIL24

3U rack-mount cabinet holds two 3.5″ drives, one internal 3.5″ bay, four 5.25″ bays and supports 1U or 2U PSUs, supplied with 20″ sliding rails

  • TypeRack Mount Cabinet
  • Rack Units3U
  • ColorColor of Front Bezel: Silver Color of Main Chassis: Black
  • MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
  • Cooling (Optional)1 x 60mm, 3 x 80mm (bracket DD-FANGUARD-8 required)
  • Cooling (Standard)1 x 60mm
  • 3U compact height fits dense server rooms
  • Silver aluminium front bezel adds professional look
  • 2 mm Japan-made steel chassis ensures rigidity
  • Front dual USB 2.0 ports give easy access
  • Included 20" sliding rails simplify installation

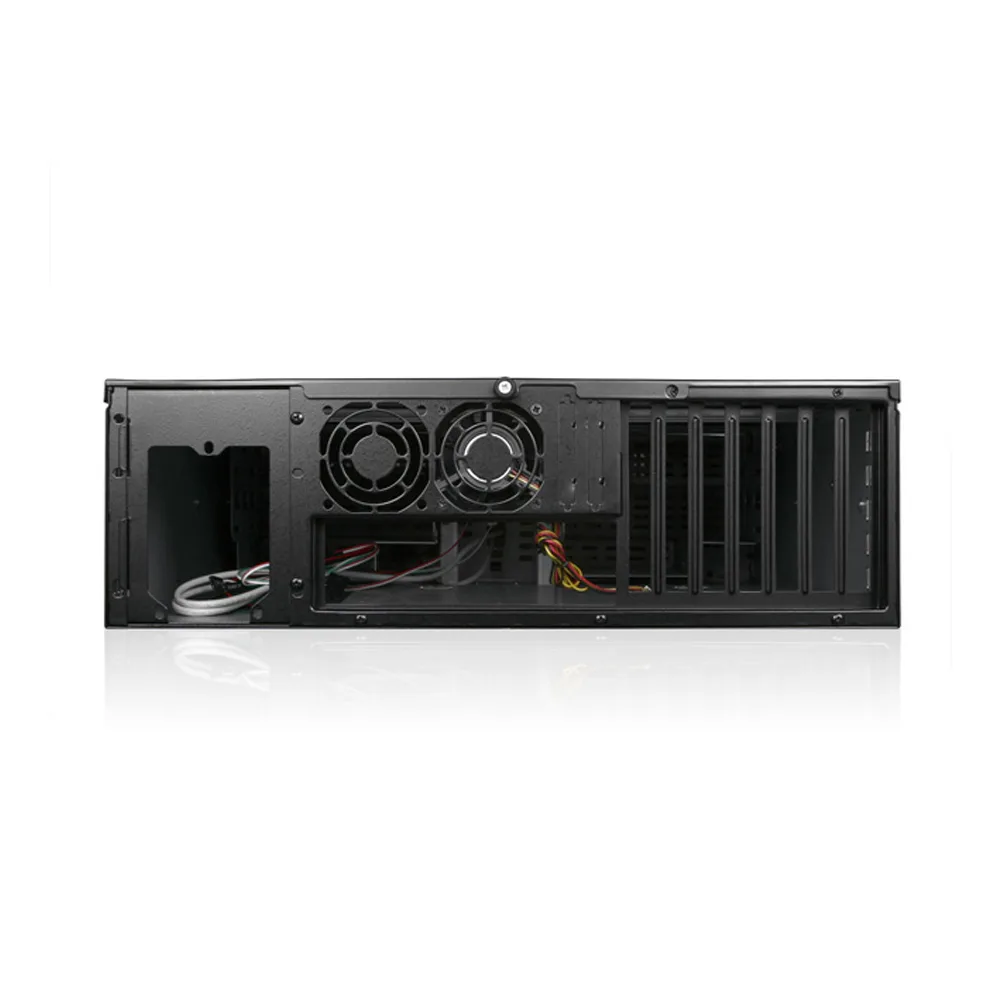

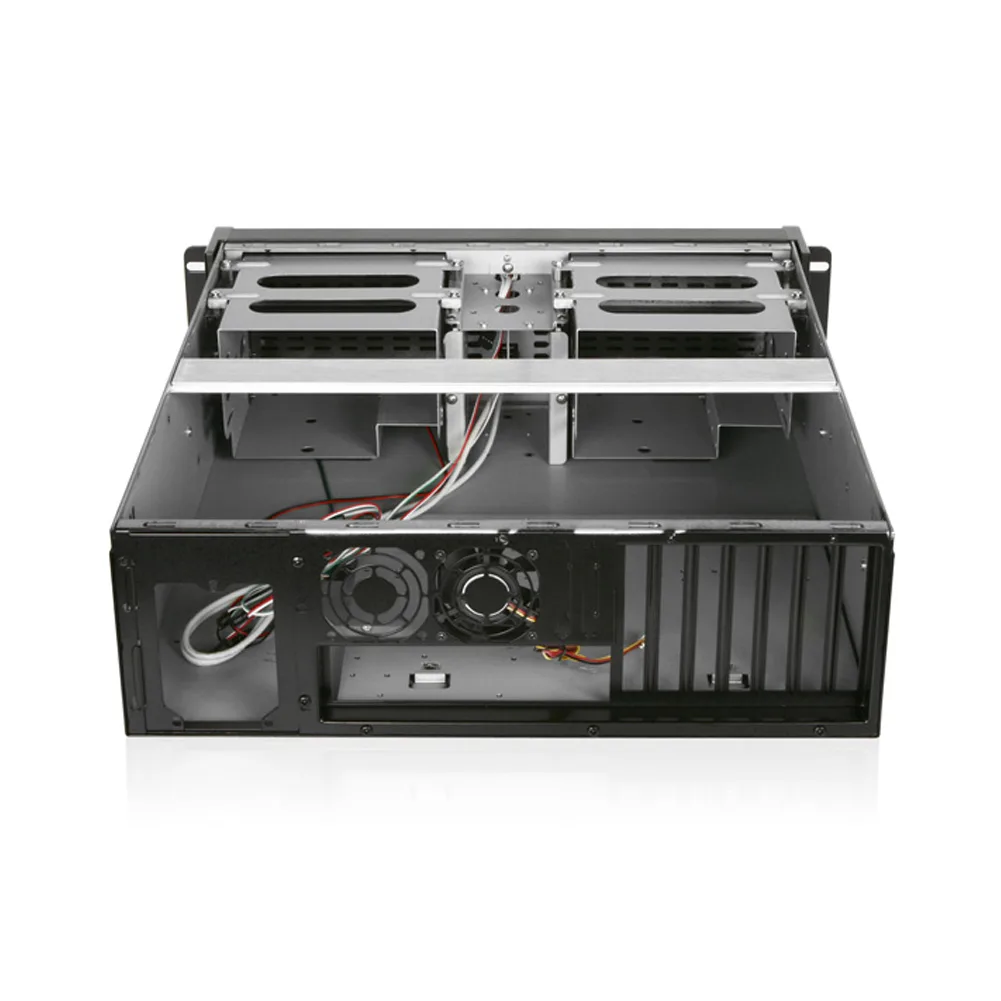

3U rackmount chassis with sliding rails

This 3U server chassis fits a standard 19-inch rack and ships with a 20-inch sliding rail kit for straightforward installation. The silver aluminium front bezel includes a key lock, while the main body uses 1.2mm zinc-coated steel from Japan. It accepts ATX or microATX motherboards up to 12 by 9.6 inches.

Seven expansion slots and dual PSU support

The chassis provides seven low-profile expansion slots and accommodates either 1U or 2U power supplies, letting builders match the power subsystem to their workload. A single 60mm fan is fitted as standard, with mounting points for one additional 60mm and three 80mm fans when the optional DD-FANGUARD-8 bracket is added.

Front USB 2.0 ports and drive bay mix

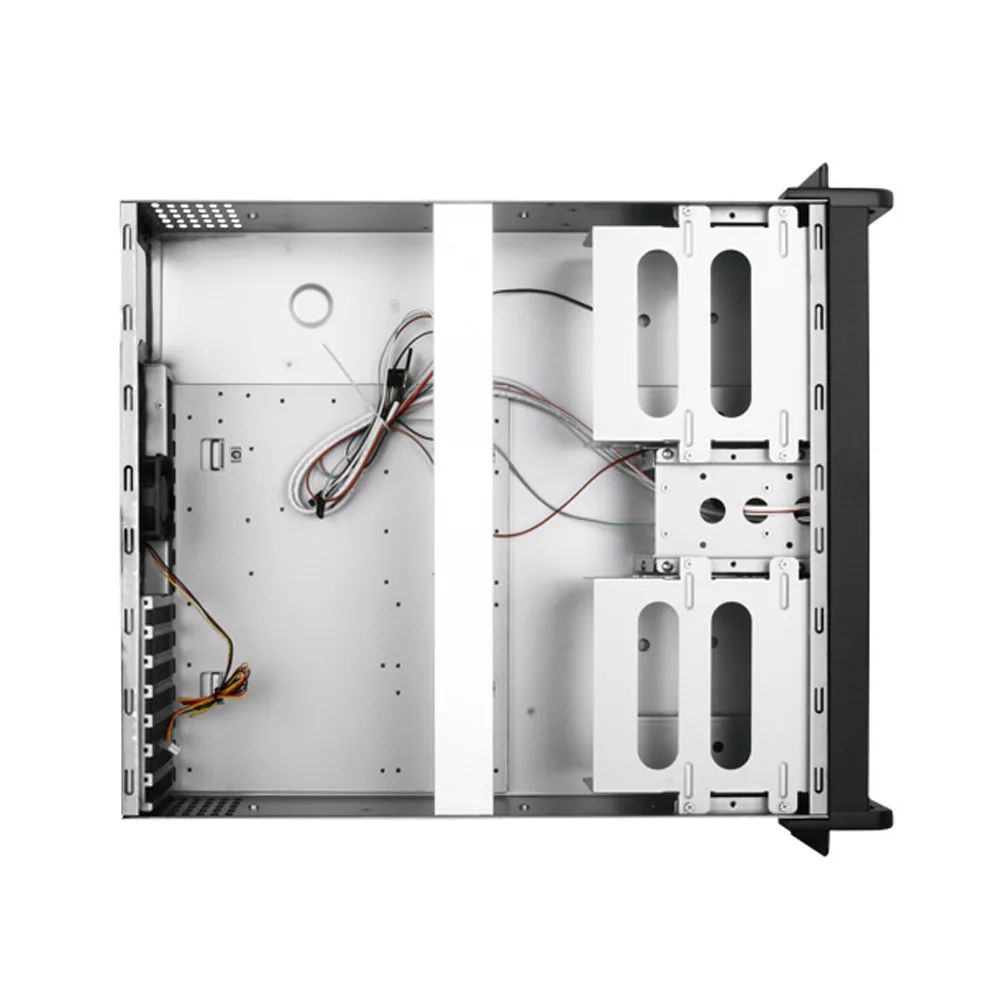

Two front-access USB 2.0 ports give quick peripheral connectivity without reaching to the rear. Internal storage capacity comprises two 3.5-inch bays, one internal 3.5-inch bay and four 5.25-inch bays, while front-panel LEDs show power, drive activity, temperature and fan status when the optional TC-ISF08 sensor board is installed.

Highlights

  • 3U compact height fits dense server rooms
  • Silver aluminium front bezel adds professional look
  • 2 mm Japan-made steel chassis ensures rigidity
  • Front dual USB 2.0 ports give easy access
  • Included 20" sliding rails simplify installation

Specifications

BrandiStarUSA
ModelD-300SEA-SL-RAIL24
TypeRack Mount Cabinet
Rack Units3U
ColorColor of Front Bezel: Silver
Color of Main Chassis: Black
MaterialMaterial of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)1 x 60mm, 3 x 80mm (bracket DD-FANGUARD-8 required)
Cooling (Standard)1 x 60mm
SpecificationStandard Drive Bays:
- 3.5" Drives: 2
- 3.5" Drive (internal): 1
- 5.25" Drives: 4
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power, Reset
Supported PSU Type: 1U, 2U
Expansion Slots: 7
Security: Front Bezel Key Lock
Front Connector: 2 x USB 2.0
Motherboard Size: 12" x 9.6" (ATX, microATX)
FeaturesPatented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
Front Access USB2.0 x2
60mm x1 Cooling Fan
Power and HDD LED
Power and Alarm Reset Switch
Optional Aluminum Chassis
with 20" Sliding Rail Kit
Unit Dimension19.00" x 5.25" x 20.80"
Shipping weight15.88 kg
Package size686 × 559 × 254 mm

Questions about this item

How much space does the 3U height leave for components inside the chassis?

The 3U height provides 5.25 inches of vertical clearance for motherboards up to 12 by 9.6 inches, two 3.5-inch drives, one internal 3.5-inch drive and four 5.25-inch bays.

What does the 20-inch sliding rail kit require from the rack cabinet?

The 20-inch sliding rails mount in a standard 19-inch wide rack and need at least 20.8 inches of usable depth to extend fully.

What extra hardware is needed to install the optional three 80mm fans?

The optional three 80mm fan positions require the DD-FANGUARD-8 bracket, which is sold separately.
