Red aluminium front bezel on black steel 3U rackmount chassis, 19 inches wide

iStarUSA Inc.

iStarUSA Inc. D-300SEA-RD-T7SA 3U server rack

SKU CH-S84S-3NCX0 MPN D-300SEA-RD-T7SA

A 3U rack-mount chassis with a red aluminium front bezel, two front USB 2.0 ports, a 60 mm fan and seven expansion slots

  • TypeRack Mount Cabinet
  • Rack Units3U
  • ColorColor of Front Bezel: Red Color of Main Chassis: Black
  • MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
  • Cooling (Optional)1 x 60mm, 3 x 80mm (bracket DD-FANGUARD-8 required)
  • Cooling (Standard)1 x 60mm
  • 3U compact form factor fits dense rack deployments
  • Patented aluminum front bezel with key lock secures hardware
  • Supports up to seven expansion cards for add-in flexibility
  • Front-access dual USB 2.0 ports simplify peripheral connection
  • Standard 60 mm fan with optional 80 mm upgrades aids thermal management

Compact 3U rackmount chassis

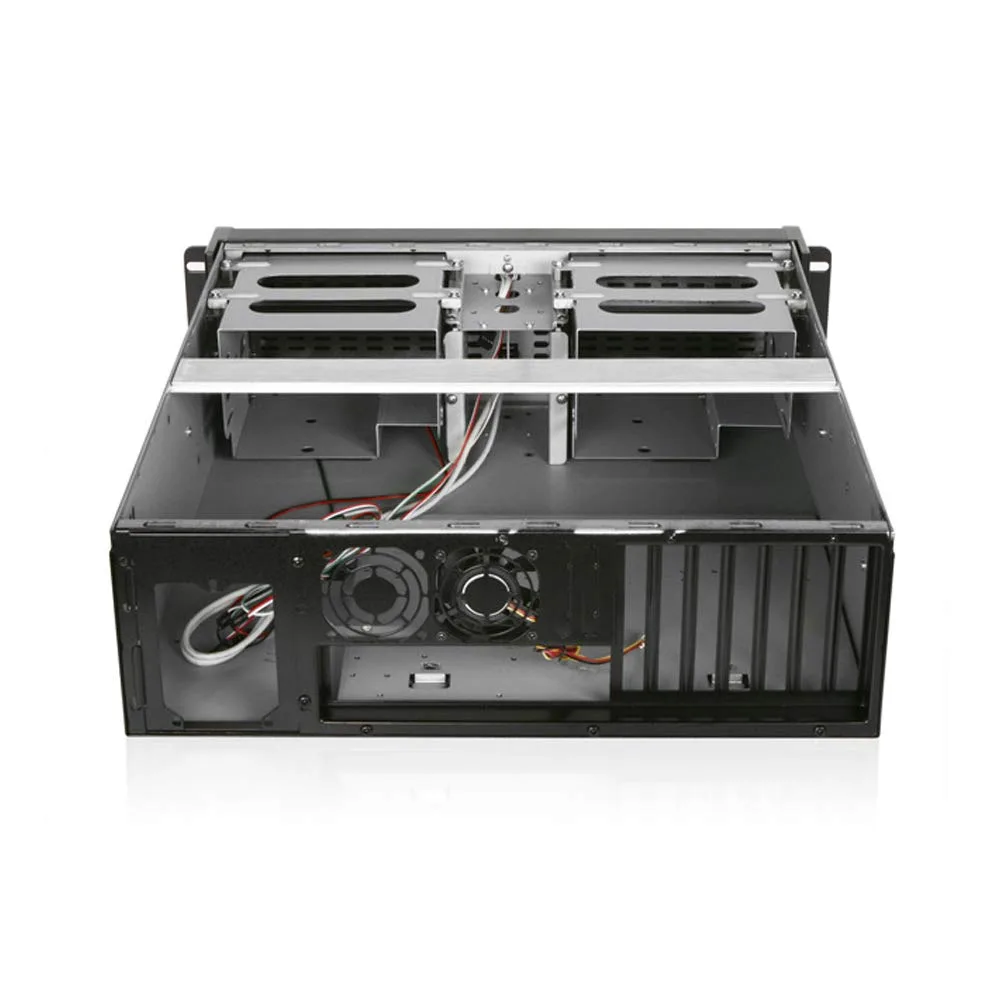

The iStarUSA D-300SEA-RD-T7SA is a 3U server rack cabinet with a red aluminium front bezel and black 1.2mm SECC zinc-coated steel chassis. It supports ATX and microATX motherboards up to 12 by 9.6 inches and accepts 1U or 2U power supplies. A single 60mm fan is fitted as standard.

Suits space-constrained rack builds

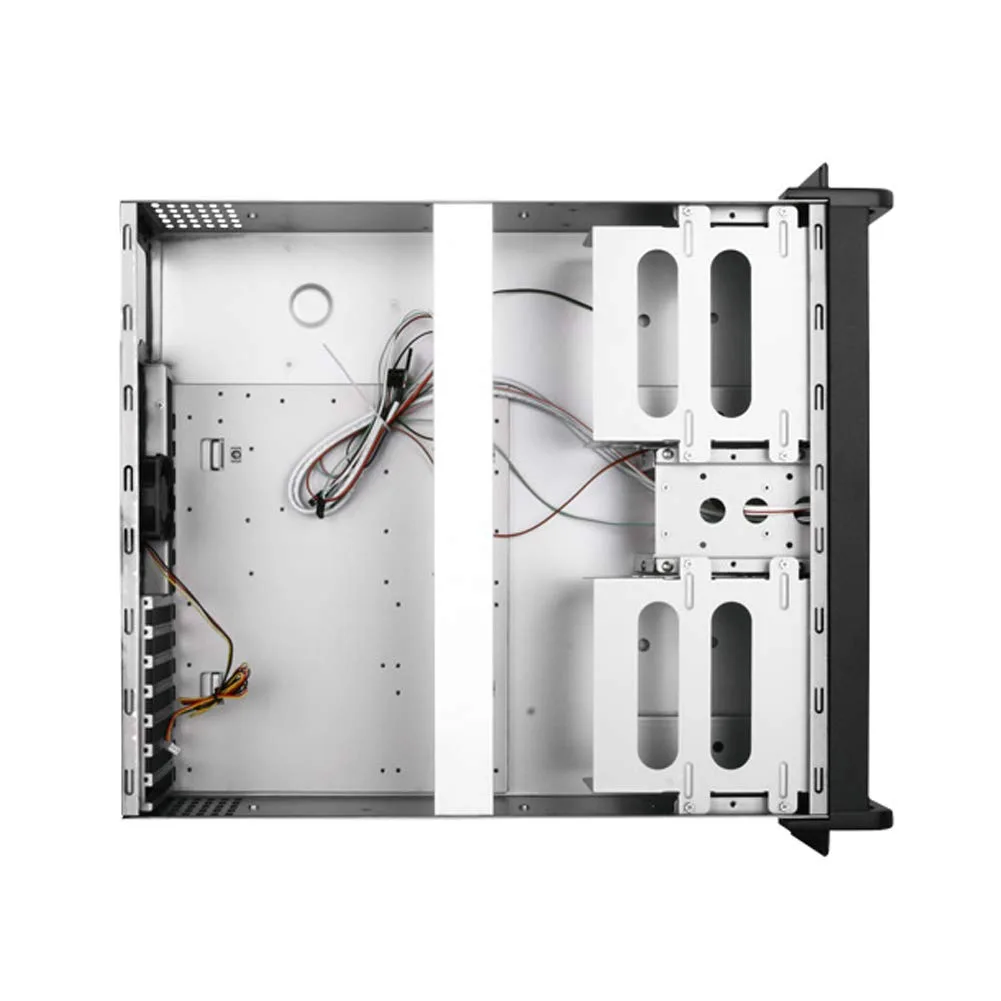

This unit fits builders who need up to four 5.25-inch bays, two external 3.5-inch bays and one internal 3.5-inch bay in a shallow 20.80-inch depth. Front-panel USB 2.0 ports, power and HDD LEDs, plus power and alarm reset switches are included. Buyers who require more than seven expansion slots or hot-swap drive carriers without adding optional hardware should look elsewhere.

Seven expansion slots define capacity

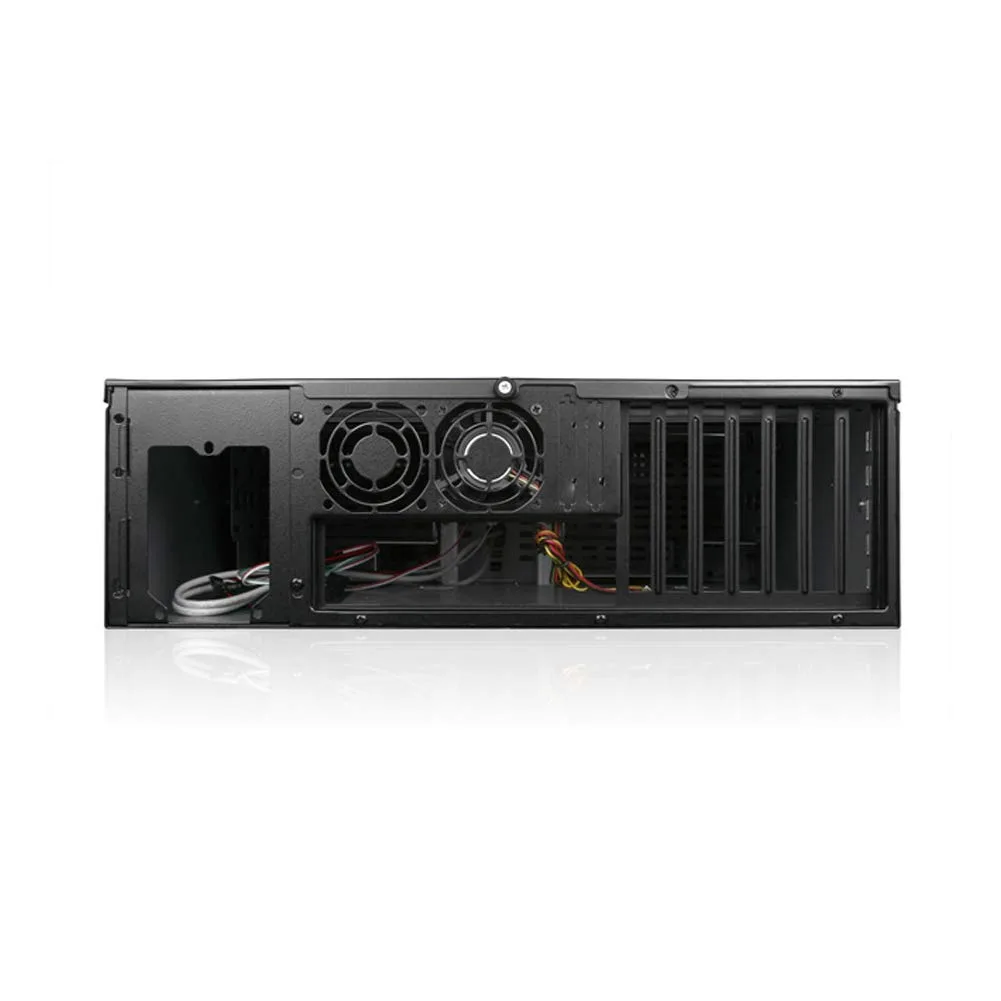

The chassis provides exactly seven low-profile expansion slots, limiting add-in cards to that number. Optional cooling upgrades to one 60mm and three 80mm fans require the DD-FANGUARD-8 bracket. Temperature and fan indicators need the separate TC-ISF08 sensor board to function.

Highlights

  • 3U compact form factor fits dense rack deployments
  • Patented aluminum front bezel with key lock secures hardware
  • Supports up to seven expansion cards for add-in flexibility
  • Front-access dual USB 2.0 ports simplify peripheral connection
  • Standard 60 mm fan with optional 80 mm upgrades aids thermal management

Specifications

BrandiStarUSA
ModelD-300SEA-RD-T7SA
TypeRack Mount Cabinet
Rack Units3U
ColorColor of Front Bezel: Red
Color of Main Chassis: Black
MaterialMaterial of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)1 x 60mm, 3 x 80mm (bracket DD-FANGUARD-8 required)
Cooling (Standard)1 x 60mm
SpecificationStandard Drive Bays:
- 3.5" Drives: 2
- 3.5" Drive (internal): 1
- 5.25" Drives: 4
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power, Reset
Supported PSU Type: 1U, 2U
Expansion Slots: 7
Security: Front Bezel Key Lock
Front Connector: 2 x USB 2.0
Motherboard Size: 12" x 9.6" (ATX, microATX)
FeaturesPatented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
Front Access USB2.0 x2
60mm x1 Cooling Fan
Power and HDD LED
Power and Alarm Reset Switch
Optional Aluminum Chassis

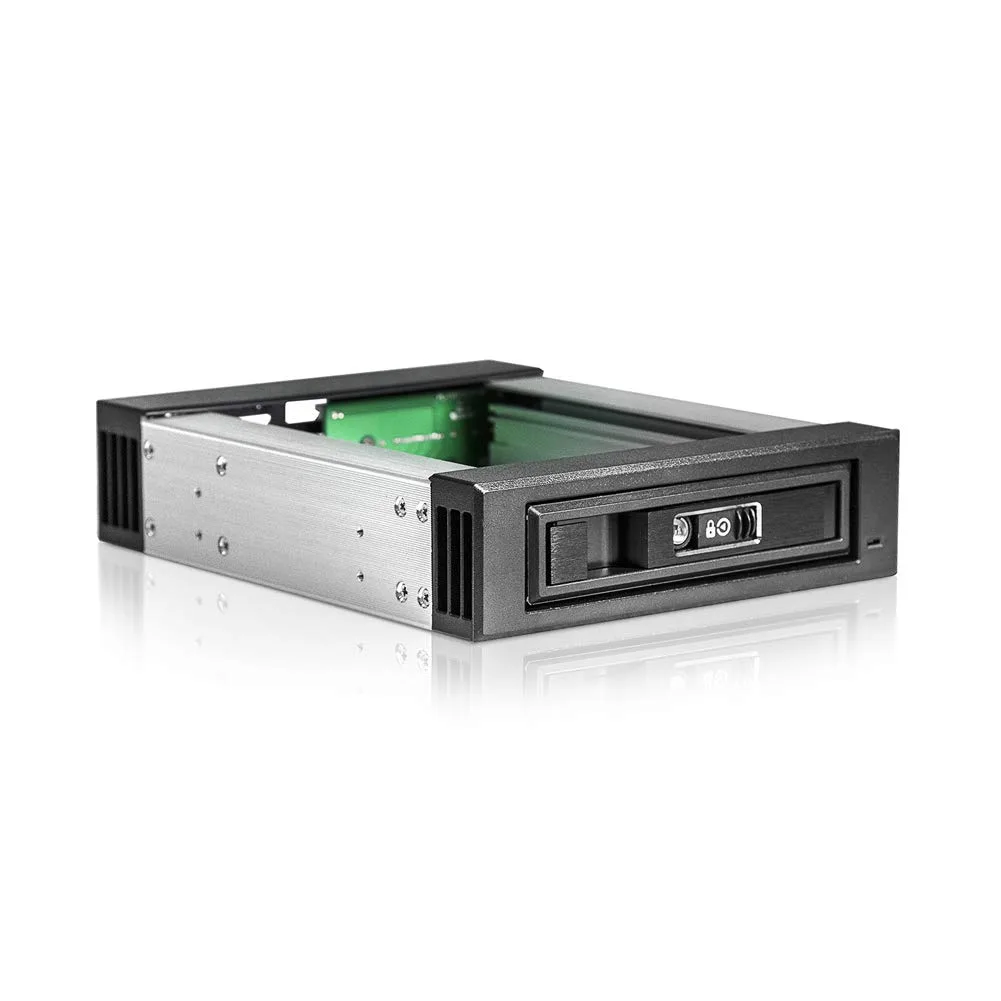

with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
Unit Dimension19.00" x 5.25" x 20.80"
Shipping weight14.06 kg
Package size686 × 559 × 254 mm

Questions about this item

What front-panel interface does the chassis provide and what USB standard does it use?

The front bezel includes two USB 2.0 ports for direct device connection.

What are the exact external dimensions and rack-unit height of this 3U chassis?

It measures 19.00 inches wide, 5.25 inches high (3U), and 20.80 inches deep.

How is the chassis secured in a rack and which mounting holes are used?

The unit mounts in a standard 19-inch rack using the front flange screw holes; the patented aluminium front panel includes a key lock for bezel security.
