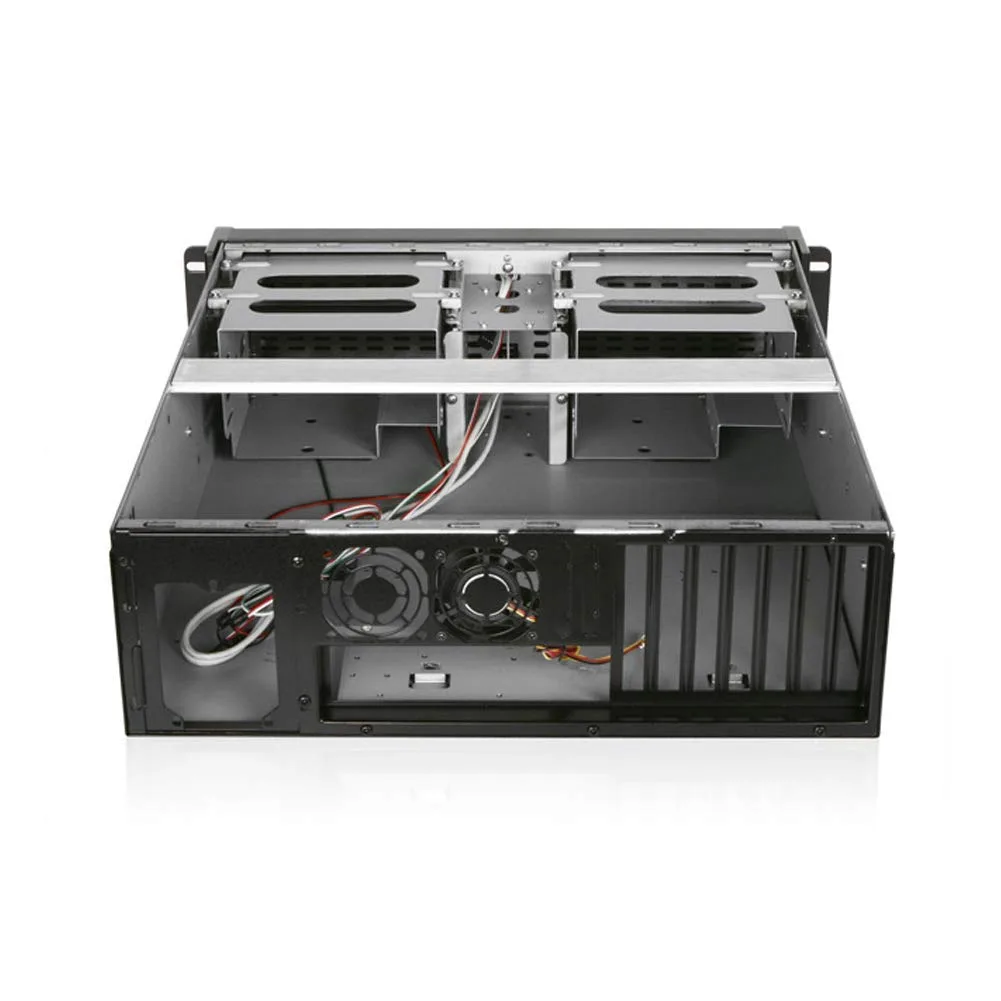

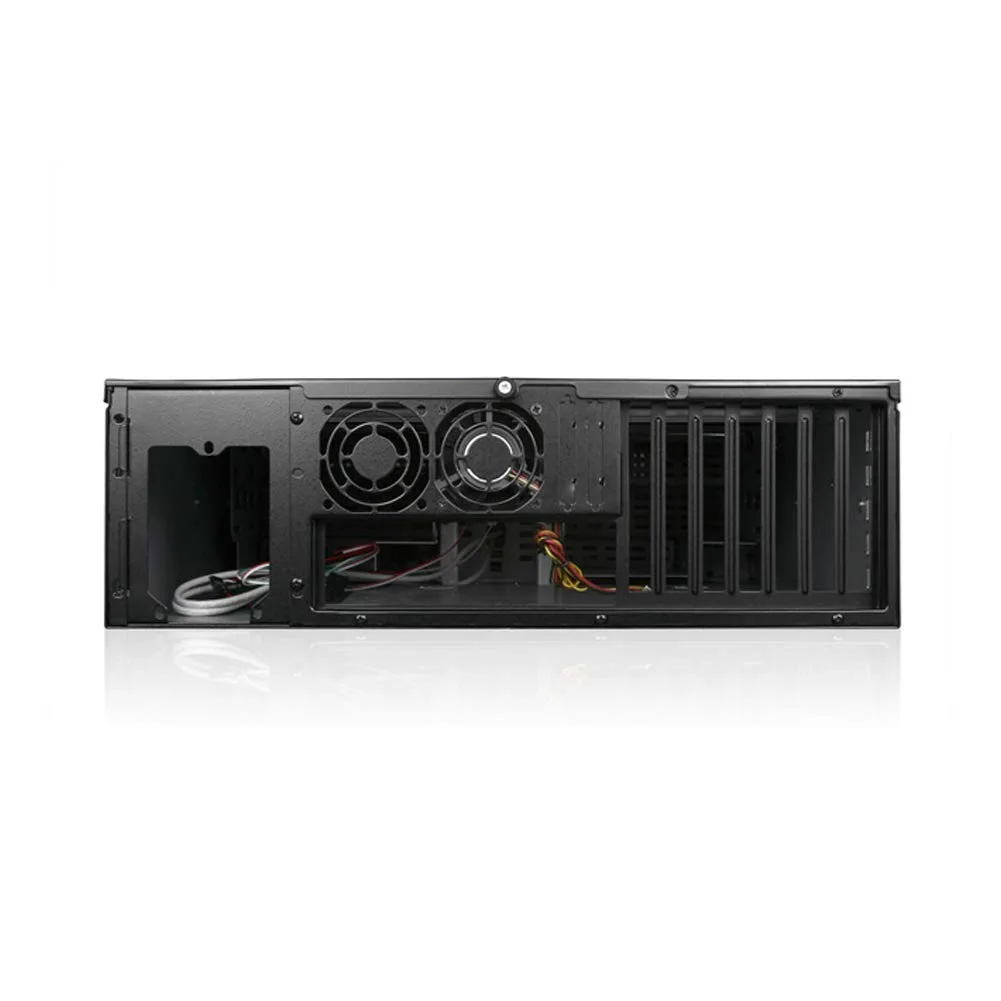

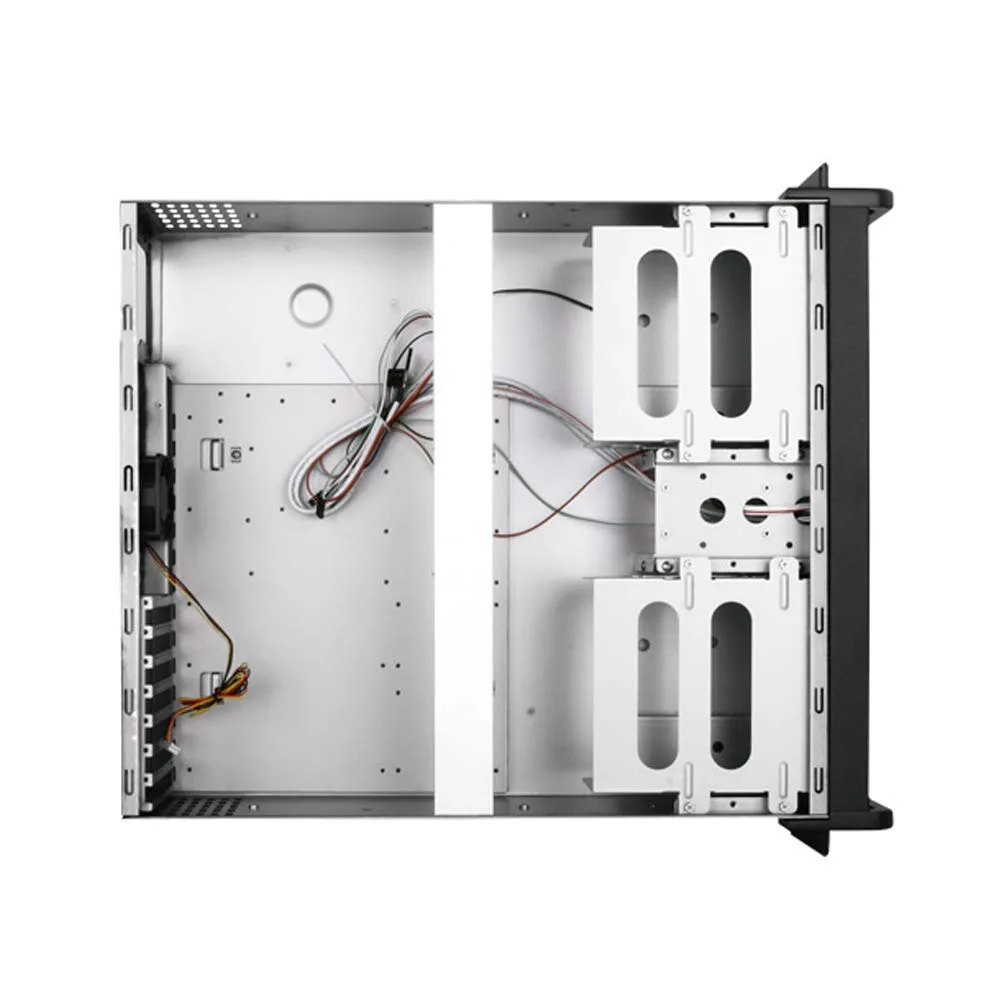

Black 3U rackmount chassis with blue aluminium front bezel, 19 by 5.25 by 20.8 inches

iStarUSA Inc.

iStarUSA Inc. D-300SEA-BL-HDD2535 3U server rack

SKU CH-PG40-6MW6S MPN D-300SEA-BL-HDD2535

A 3U rack-mount chassis with a blue aluminium front bezel, seven expansion slots, two front 3.5-inch bays, one internal 3.5-inch bay, four 5.25-inch bays and an included 2.5-to-3.5-inch converter

  • TypeRack Mount Cabinet
  • Rack Units3U
  • ColorColor of Front Bezel: Blue Color of Main Chassis: Black
  • MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
  • Cooling (Optional)1 x 60mm, 3 x 80mm (bracket DD-FANGUARD-8 required)
  • Cooling (Standard)1 x 60mm
  • 3U rack height fits standard cabinets
  • Blue aluminium front bezel adds visual identity
  • 2 mm Japanese SECC steel chassis resists flex
  • Seven full-length expansion slots support add-in cards
  • Front USB 2.0 ports give quick external access

Compact 3U rackmount chassis

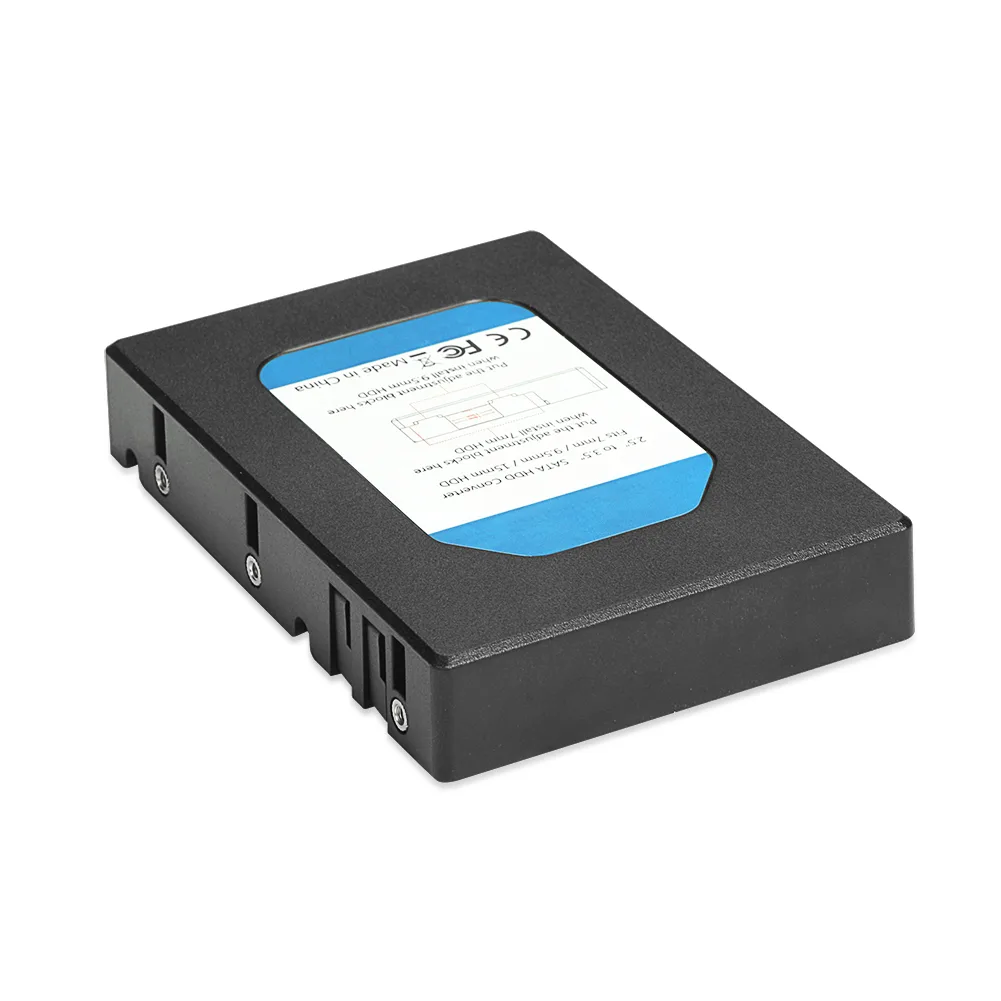

The iStarUSA D-300SEA-BL-HDD2535 is a 3U server rack with a blue aluminium front bezel and a black 1.2mm SECC zinc-coated steel chassis. It fits standard 19-inch racks and accepts ATX or microATX motherboards up to 12 by 9.6 inches. The unit includes a 2.5-inch to 3.5-inch drive converter for flexible storage.

Upgrade from tower or 2U cases

This chassis replaces tower servers or 2U racks when you need seven full-length expansion slots and room for four 5.25-inch bays plus three 3.5-inch drives. The jump is worth it when hot-swappable storage or RAID via optional BPU backplanes becomes a requirement. Builders who need more than seven slots or deeper motherboard support should look elsewhere.

Straightforward rack installation

Mounting uses standard 19-inch rails and the chassis depth of 20.80 inches fits many cabinets. A single 60mm fan is standard; adding three 80mm fans requires the DD-FANGUARD-8 bracket. Front USB 2.0 ports, power and reset switches, and a key lock are accessible behind the bezel. Temperature and fan indicators need the optional TC-ISF08 sensor board to function.

Highlights

  • 3U rack height fits standard cabinets
  • Blue aluminium front bezel adds visual identity
  • 2 mm Japanese SECC steel chassis resists flex
  • Seven full-length expansion slots support add-in cards
  • Front USB 2.0 ports give quick external access

Specifications

BrandiStarUSA
ModelD-300SEA-BL-HDD2535
TypeRack Mount Cabinet
Rack Units3U
ColorColor of Front Bezel: Blue
Color of Main Chassis: Black
MaterialMaterial of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)1 x 60mm, 3 x 80mm (bracket DD-FANGUARD-8 required)
Cooling (Standard)1 x 60mm
SpecificationStandard Drive Bays:
- 3.5" Drives: 2
- 3.5" Drive (internal): 1
- 5.25" Drives: 4
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power, Reset
Supported PSU Type: 1U, 2U
Expansion Slots: 7
Security: Front Bezel Key Lock
Front Connector: 2 x USB 2.0
Motherboard Size: 12" x 9.6" (ATX, microATX)
FeaturesThe 3U industrial rackmount chassis D Storm D-300SEA-BL-HDD2535SI. Optional BPU series enable hot-swappable storage and RAID configuration. D-300SEA-BL-HDD2535SI backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance, also with internal 2.5" to 3.5" HDD/SSD Converter.
Unit Dimension19.00" x 5.25" x 20.80"
Shipping weight13.15 kg
Package size686 × 559 × 254 mm

Questions about this item

Will the 19.00-inch wide chassis fit a standard 19-inch rack and what depth clearance does the 20.80-inch body need?

The chassis is exactly 19.00 inches wide for standard 19-inch racks and 20.80 inches deep, so allow at least that much clear depth behind the front mounting rails.

How do I install the optional three 80mm fans and the required DD-FANGUARD-8 bracket?

Mount the DD-FANGUARD-8 bracket into the designated fan area, then screw the three 80mm fans onto the bracket; the single standard 60mm fan fits directly into its rear slot without extra parts.

When should I replace the standard 60mm fan or add the optional 80mm fans for heavier thermal loads?

Replace the 60mm fan if airflow drops or noise rises; add the three 80mm fans with the DD-FANGUARD-8 bracket when component density or ambient temperature pushes the chassis beyond the single fan's capacity.
