Black 3U rackmount chassis with aluminium front bezel and steel body, 19 by 5.25 by 20.8 inches

iStarUSA Inc.

iStarUSA Inc. D-300SEA-BK-HDD2535 3U server rack

SKU CH-6A7S-YNQBC MPN D-300SEA-BK-HDD2535

A 3U rackmount chassis with an aluminium front bezel, seven expansion slots and an internal 2.5" to 3.5" drive converter

  • TypeRack Mount Cabinet
  • Rack Units3U
  • ColorColor of Front Bezel: Black Color of Main Chassis: Black
  • MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
  • Cooling (Optional)1 x 60mm, 3 x 80mm (bracket DD-FANGUARD-8 required)
  • Cooling (Standard)1 x 60mm
  • 3U height fits standard 19-inch racks
  • 2mm Japanese steel chassis adds rigidity
  • 5 to 3.5-inch drive converter expands storage options
  • seven full-length expansion slots support add-on cards
  • front-panel USB 2.0 ports simplify local access

3U rackmount chassis with internal 2.5 to 3.5

The iStarUSA D-300SEA-BK-HDD2535 is a 3U server rackmount chassis built for industrial and small-business deployments. It fits standard 19-inch racks and includes a front aluminium alloy bezel with a key lock. The chassis ships with a single 60 mm fan and accepts 1U or 2U power supplies. ATX and microATX motherboards up to 12 by 9.6 inches are supported.

Tool-free drive installation

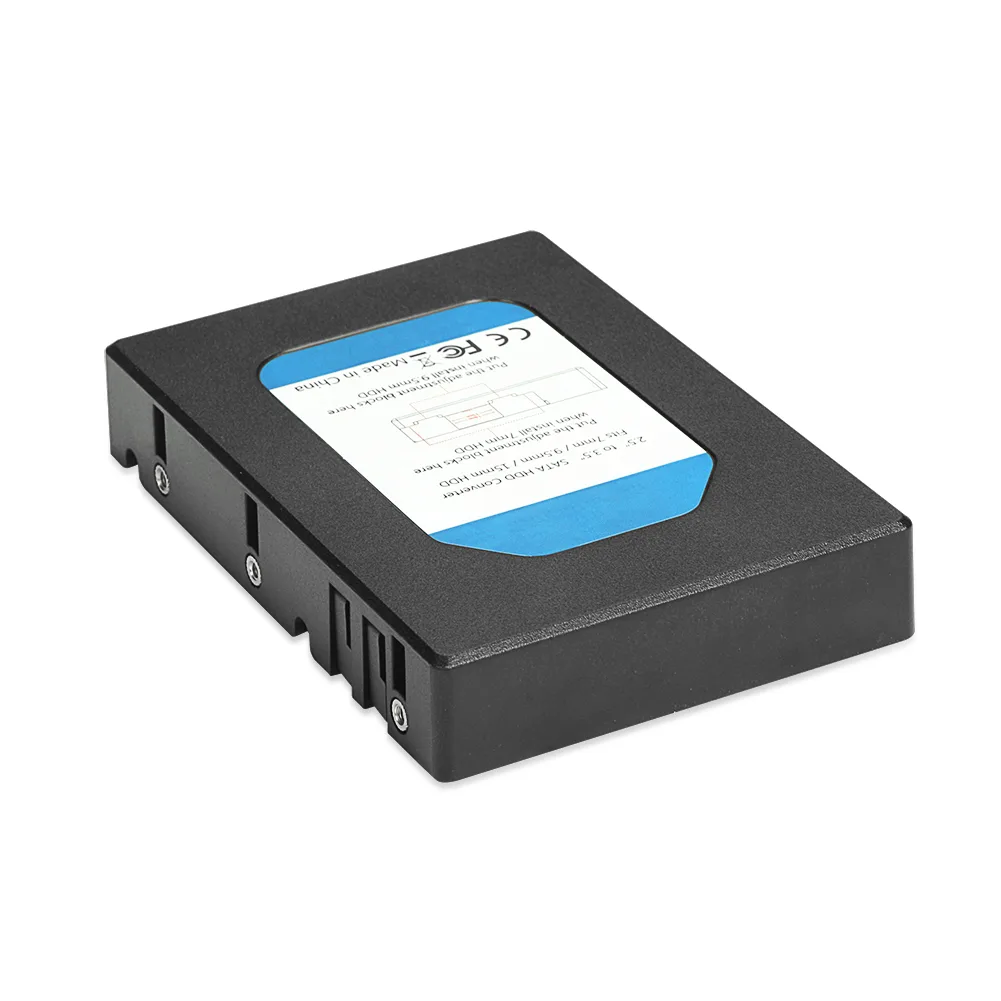

Two external 3.5-inch bays, one internal 3.5-inch bay and four 5.25-inch bays provide flexible storage layout. An internal 2.5-inch to 3.5-inch converter is included for SSD mounting. Optional cooling adds one 60 mm and three 80 mm fans using the DD-FANGUARD-8 bracket. Seven full-length expansion slots accommodate add-in cards, while front-panel USB 2.0 ports simplify peripheral access.

Verify rack depth and motherboard clearance before

The unit measures 19.00 by 5.25 by 20.80 inches, so confirm your rack depth exceeds 20.80 inches with cable allowance. Ensure the chosen 1U or 2U power supply matches the chassis mounting pattern. Temperature and fan indicators require the optional TC-ISF08 sensor board. Buyers needing hot-swap backplanes or more than seven expansion slots should consider other form factors.

Highlights

  • 3U height fits standard 19-inch racks
  • 2mm Japanese steel chassis adds rigidity
  • 5 to 3.5-inch drive converter expands storage options
  • seven full-length expansion slots support add-on cards
  • front-panel USB 2.0 ports simplify local access

Specifications

BrandiStarUSA
ModelD-300SEA-BK-HDD2535
TypeRack Mount Cabinet
Rack Units3U
ColorColor of Front Bezel: Black
Color of Main Chassis: Black
MaterialMaterial of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)1 x 60mm, 3 x 80mm (bracket DD-FANGUARD-8 required)
Cooling (Standard)1 x 60mm
SpecificationStandard Drive Bays:
- 3.5" Drives: 2
- 3.5" Drive (internal): 1
- 5.25" Drives: 4
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power, Reset
Supported PSU Type: 1U, 2U
Expansion Slots: 7
Security: Front Bezel Key Lock
Front Connector: 2 x USB 2.0
Motherboard Size: 12" x 9.6" (ATX, microATX)
FeaturesThe 3U industrial rackmount chassis D Storm D-300SEA-BK-HDD2535SI. Optional BPU series enable hot-swappable storage and RAID configuration. D-300SEA-BK-HDD2535SI backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance, also with internal 2.5" to 3.5" HDD/SSD Converter.
Unit Dimension19.00" x 5.25" x 20.80"
Shipping weight11.34 kg
Package size686 × 559 × 229 mm

Questions about this item

How do I confirm the chassis is operating correctly after installation?

Verify the front-panel Power, HDD, Temperature and Fan LEDs are lit or blinking as expected; Temperature and Fan indicators require the optional TC-ISF08 sensor board to function.

What ships with the D-300SEA-BK-HDD2535 and what must be purchased separately?

The unit includes the 3U chassis with black aluminium front bezel, one standard 60 mm fan, 2.5" to 3.5" drive converter, front bezel key lock, two USB 2.0 ports and mounting hardware; optional extras are three 80 mm fans (require DD-FANGUARD-8 bracket), TC-ISF08 sensor board and BPU hot-swap backplanes.

Which drive-bay configuration should I choose for mixed 3.5" and 5.25" storage?

The chassis provides two external 3.5" bays, one internal 3.5" bay and four 5.25" bays; select this model when you need that exact mix without adding conversion kits.
