Red aluminium front bezel on black 2U rackmount chassis with handles

iStarUSA Inc.

iStarUSA Inc. D-200SEA-RD-T7SA 2U Server Rack Red Front Bezel

SKU CH-B7EC-DBVY5 MPN D-200SEA-RD-T7SA

A 2U rack-mount cabinet with a red aluminium front bezel, 19.00" x 3.50" x 20.80", holding two 3.5" and two 5.25" drives, an 80mm fan, front USB 2.0, and three expansion slots

  • TypeRack Mount Cabinet
  • Rack Units2U
  • ColorColor of Front Bezel: Red Color of Main Chassis: Black
  • MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
  • Cooling (Optional)3 x 60mm (bracket DD-FANGUARD-6 required)
  • Cooling (Standard)1 x 80mm
  • Patented aluminium front panel with key lock secures the 2U chassis
  • Red anodised front bezel adds instant visual identification in dense racks
  • 2 mm SECC zinc-coated steel frame resists flex during transport
  • Front-access dual USB 2.0 ports simplify maintenance without opening the cabinet
  • Standard 80 mm fan plus optional triple 60 mm brackets scale airflow to load

Compact 2U rackmount chassis

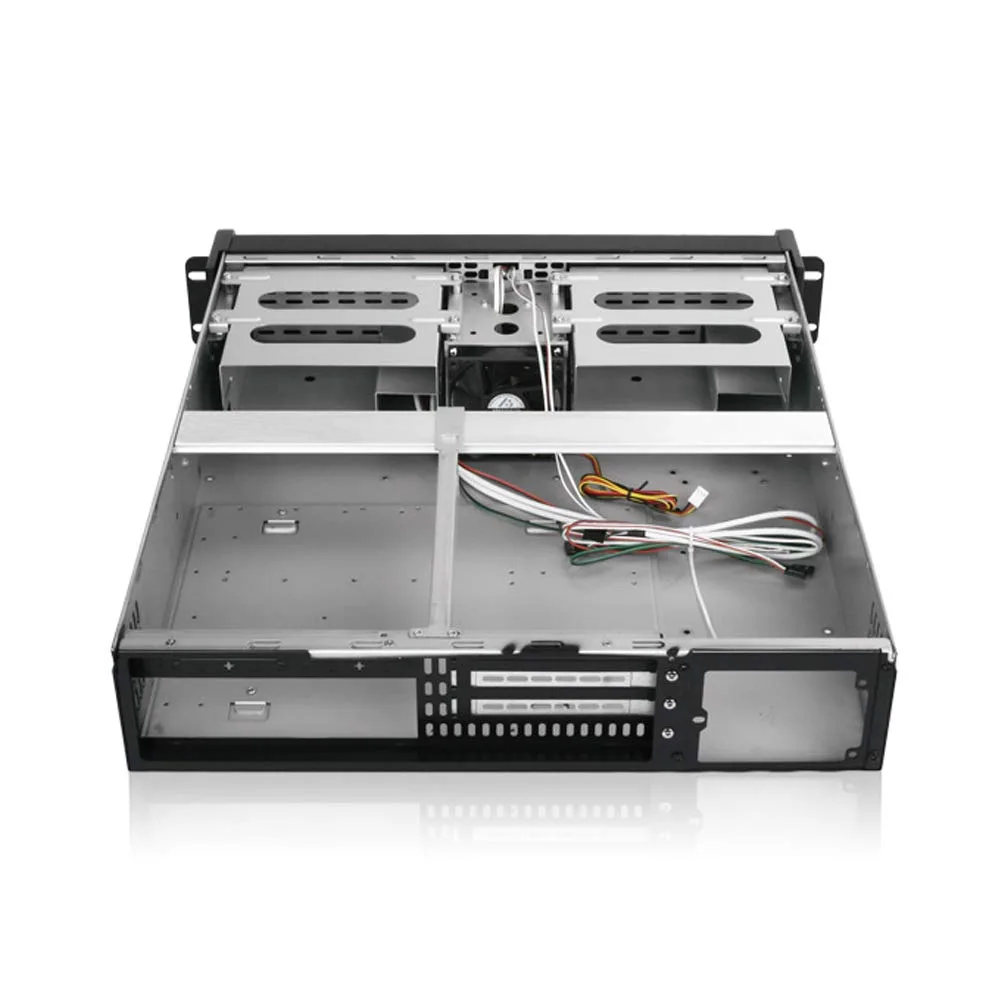

The iStarUSA D-200SEA-RD-T7SA is a 2U server rack cabinet with a red aluminum-alloy front bezel and a 1.2mm SECC zinc-coated steel main chassis. It supports ATX, microATX and mini-ITX motherboards up to 12" x 9.6" and provides two 3.5" and two 5.25" drive bays. Three low-profile expansion slots are available for add-in cards. A key lock on the front bezel secures the interior.

Drive bay and cooling constraints

Only two 3.5" and two 5.25" bays are provided, so deployments needing more than four drives must use external enclosures. The standard configuration includes a single 80mm fan; adding three 60mm fans requires the optional DD-FANGUARD-6 bracket. Temperature and fan-speed LEDs function only when the TC-ISF08 sensor board is installed. The chassis accepts 2U form-factor power supplies only.

Installation notes

The unit fits a standard 19.00" rack and measures 3.50" high by 20.80" deep. Front-panel USB 2.0 ports, power and reset switches, and power/HDD LEDs are wired to standard motherboard headers. Builders must verify that their 2U PSU and CPU cooler clearances match the 3.50" internal height. The patented aluminum front panel with locks adds physical security but requires the key for routine drive access.

Highlights

  • Patented aluminium front panel with key lock secures the 2U chassis
  • Red anodised front bezel adds instant visual identification in dense racks
  • 2 mm SECC zinc-coated steel frame resists flex during transport
  • Front-access dual USB 2.0 ports simplify maintenance without opening the cabinet
  • Standard 80 mm fan plus optional triple 60 mm brackets scale airflow to load

Specifications

BrandiStarUSA
ModelD-200SEA-RD-T7SA
TypeRack Mount Cabinet
Rack Units2U
ColorColor of Front Bezel: Red
Color of Main Chassis: Black
MaterialMaterial of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)3 x 60mm (bracket DD-FANGUARD-6 required)
Cooling (Standard)1 x 80mm
SpecificationStandard Drive Bays:
- 3.5" Drives: 2
- 5.25" Drives: 2
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08)
Switches: Power, Reset
Supported PSU Type: 2U
Expansion Slots: 3
Security: Front Bezel Key Lock
Front Connector: 2 x USB 2.0
Motherboard Size: 12" x 9.6" (ATX, microATX, mini-ITX)
FeaturesPatented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
Front Access USB2.0 x2
80mm x1 cooling fan
Power and HDD LED
Power and Alarm Reset Switch
Optional Aluminum Chassis

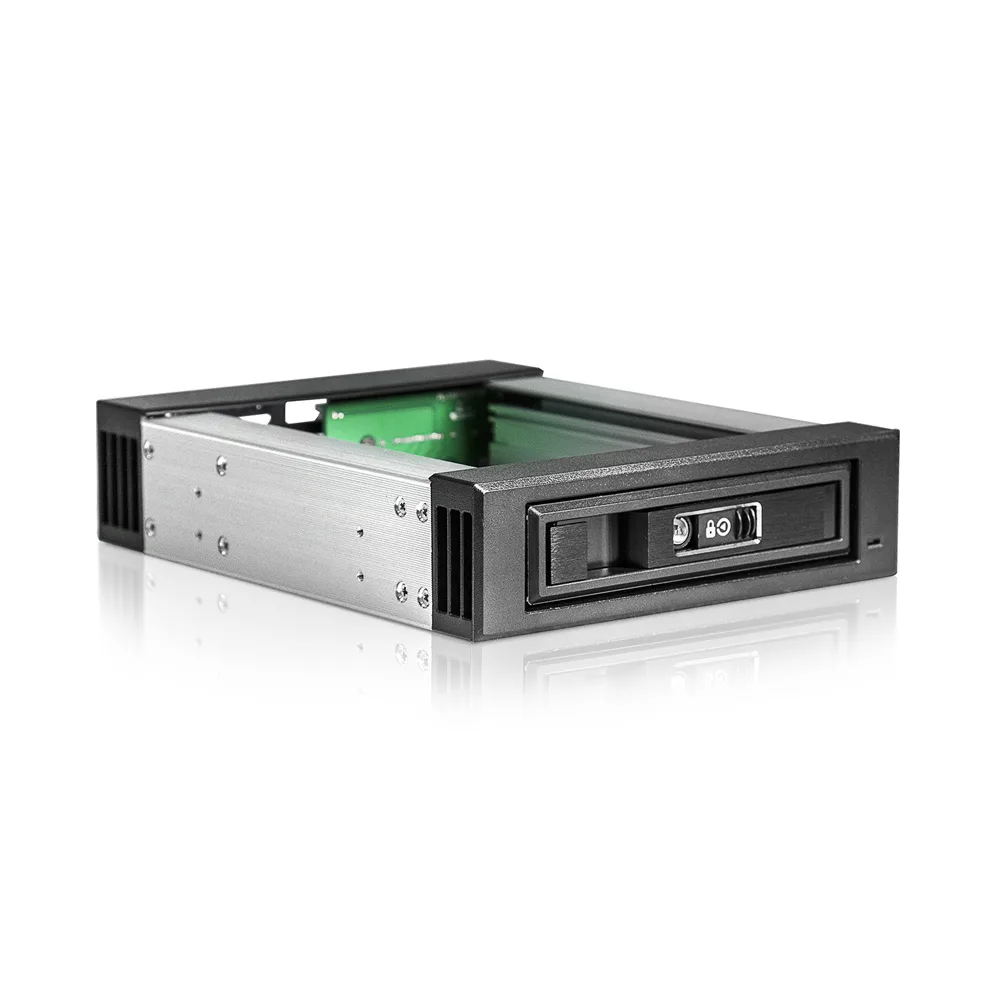

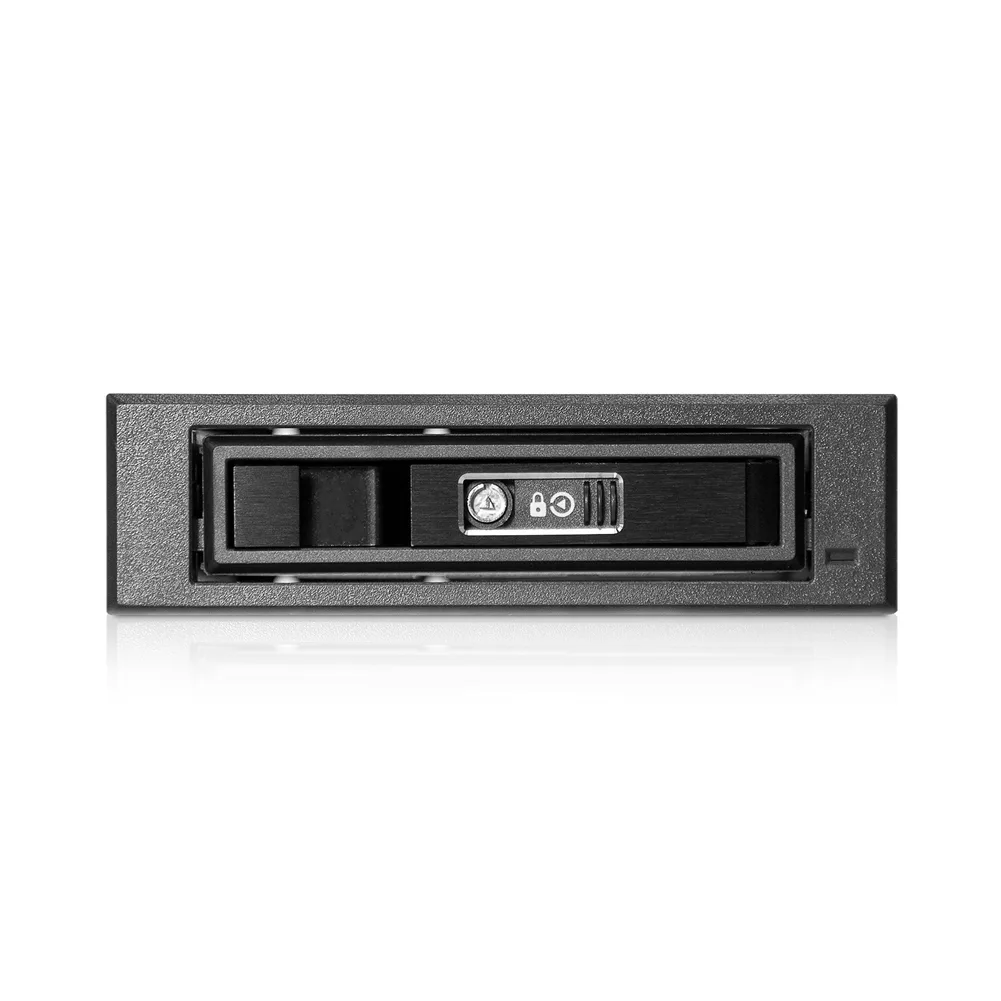

With rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
Unit Dimension19.00" x 3.50" x 20.80"
Shipping weight11.79 kg
Package size686 × 559 × 229 mm

Questions about this item

Should I choose the 3.5" or 5.25" drive bays for my build?

The chassis includes two 3.5" and two 5.25" bays as standard. Use 3.5" bays for hard drives and 5.25" bays for optical drives or hot-swap cages.

What does the 2U rack height mean once the chassis is installed in a cabinet?

A 2U height occupies 3.50 inches of vertical rack space, leaving room for other equipment above and below in a standard 19.00-inch rack.

How do the front USB 2.0 ports connect to the motherboard inside?

Two front-access USB 2.0 ports route to an internal header on ATX, microATX or mini-ITX boards up to 12 x 9.6 inches.
