Red aluminium bezel on black 2U rackmount chassis with 20 inch sliding rails

iStarUSA Inc.

iStarUSA Inc. D-200SEA-RD-RAIL24 2U server rack with red bezel and 20" rails

SKU CH-14E6-SEKXH MPN D-200SEA-RD-RAIL24

A 2U rackmount chassis with a red aluminium front bezel, two 3.5" and two 5.25" drive bays, one 80 mm fan and a 20" sliding rail kit included

  • TypeRack Mount Cabinet
  • Rack Units2U
  • ColorColor of Front Bezel: Red Color of Main Chassis: Black
  • MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
  • Cooling (Optional)3 x 60mm (bracket DD-FANGUARD-6 required)
  • Cooling (Standard)1 x 80mm
  • Patented aluminium front panel with key lock secures the chassis
  • Red anodised aluminium bezel gives the rack a distinctive look
  • 2U height fits standard 19-inch cabinets while saving vertical space

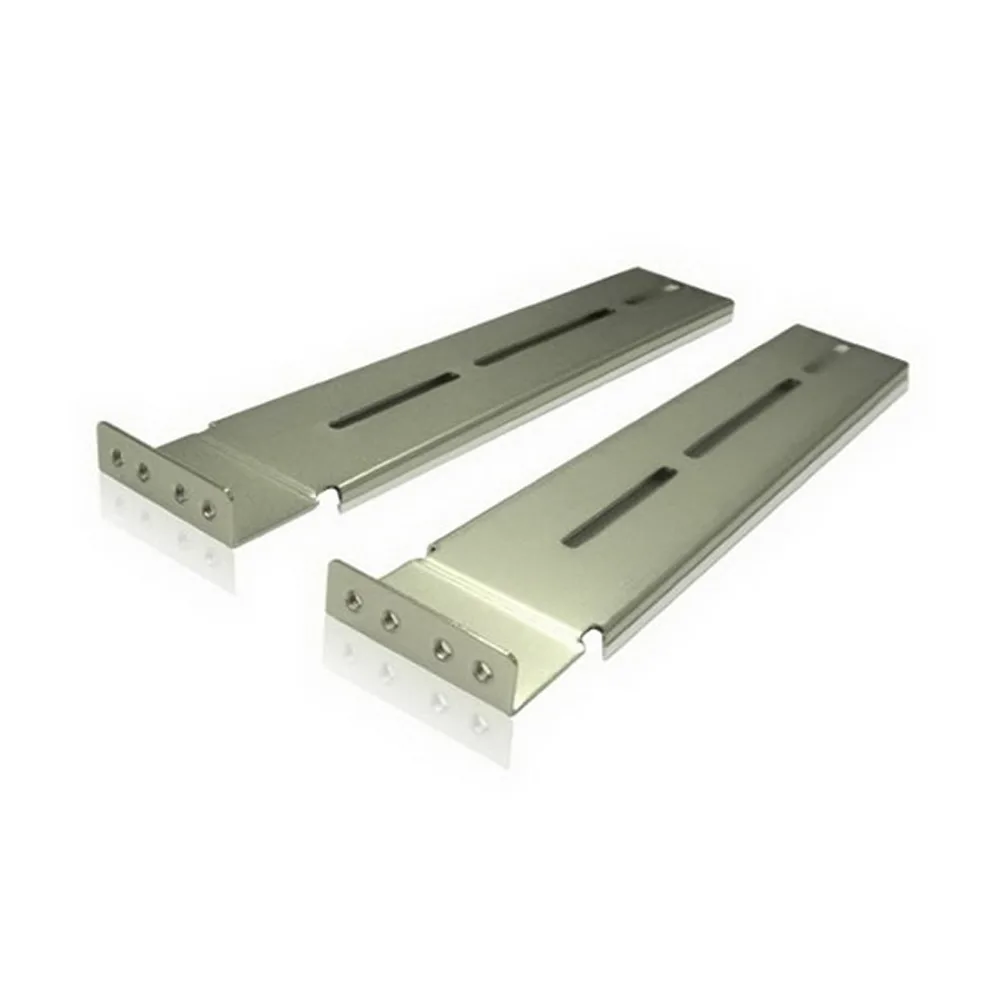

  • 20-inch sliding rail kit enables smooth server access for maintenance
  • 80 mm standard fan plus optional 60 mm fan bracket supports active cooling

Compact 2U rackmount chassis

The iStarUSA D-200SEA-RD-RAIL24 is a 2U server rack with a patented red aluminium front bezel and black 1.2mm SECC steel chassis. It ships with a 20-inch sliding rail kit for direct installation into standard 19-inch cabinets. The unit targets integrators building space-constrained servers or network appliances.

Build integration and clearances

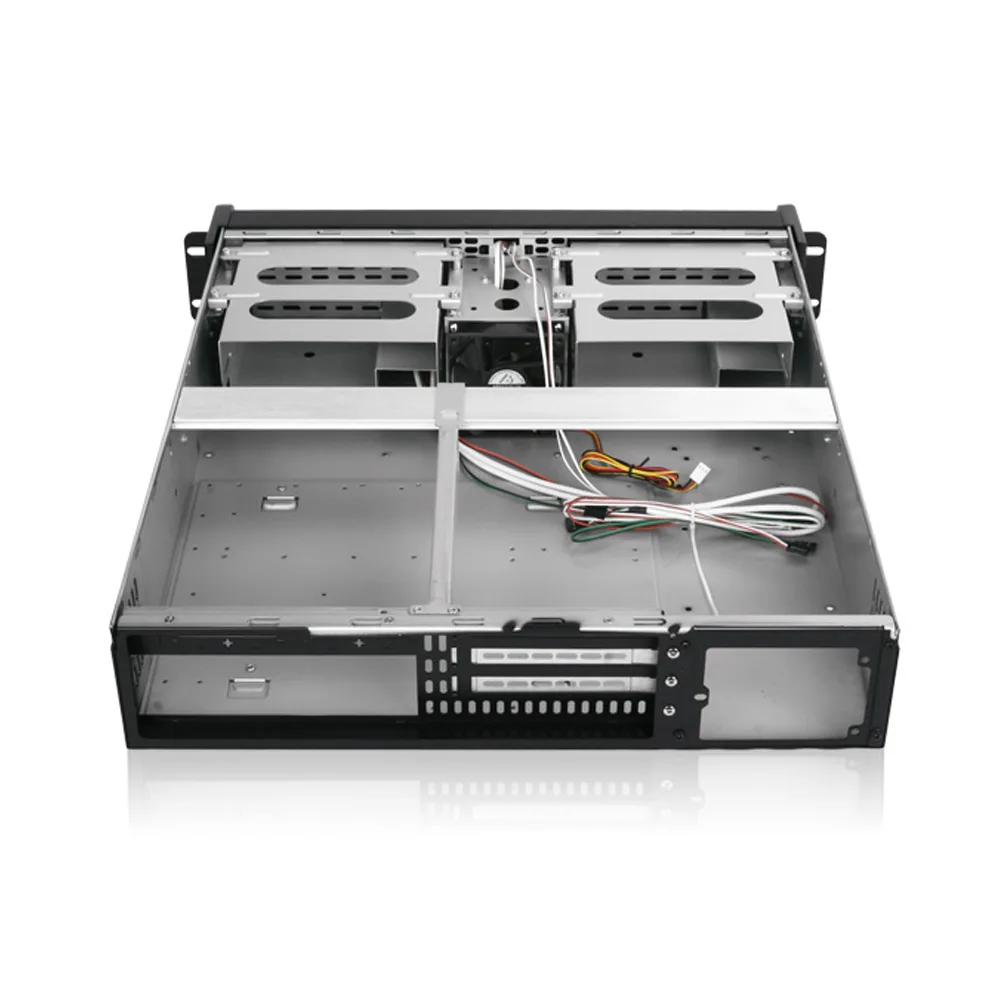

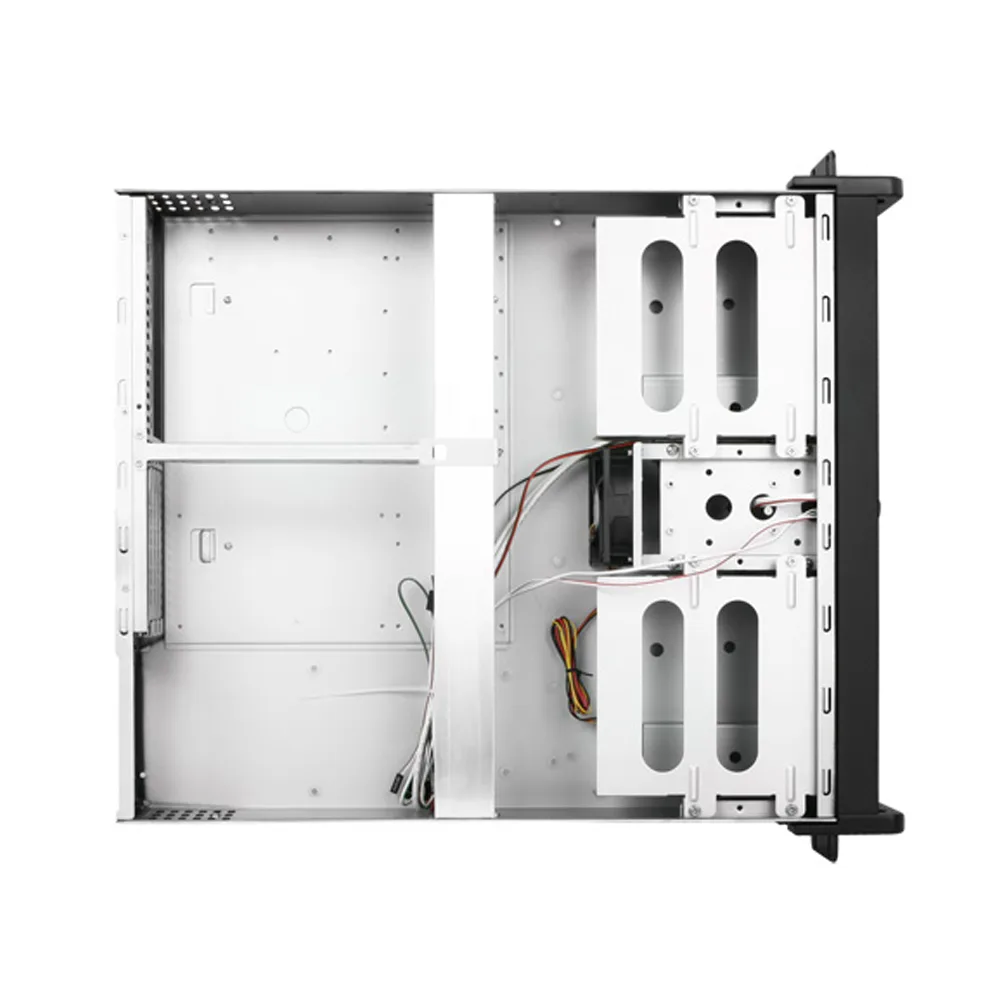

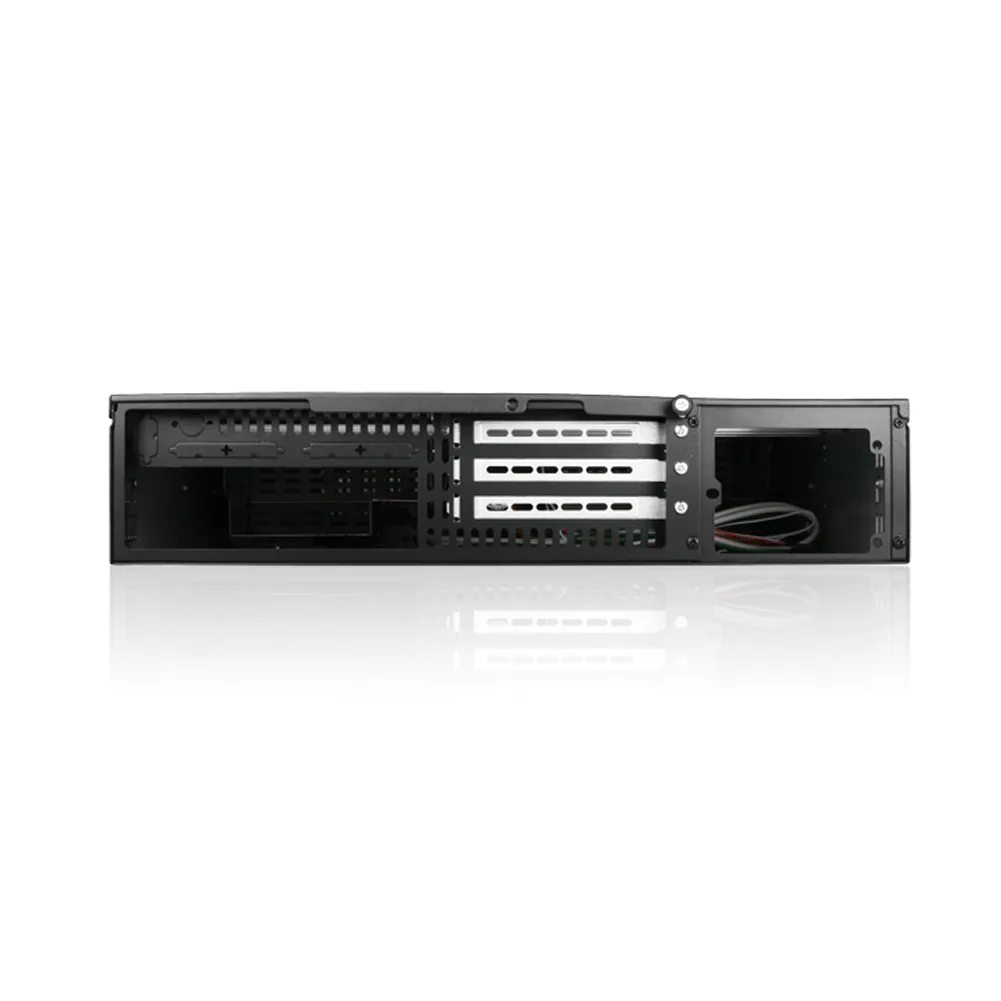

The chassis accepts ATX, microATX and mini-ITX motherboards up to 12 by 9.6 inches and provides three full-height expansion slots. A single 80mm fan is fitted as standard; three additional 60mm positions are available when the DD-FANGUARD-6 bracket is added. Two 3.5-inch and two 5.25-inch drive bays handle internal storage, while a 2U power supply sits at the rear.

Front-panel security and connectivity

A keyed lock on the aluminium bezel secures the drive bays and front controls. Two USB 2.0 ports, power and HDD LEDs, plus power and alarm reset switches sit behind the locked door for operator access. Temperature and fan-speed indicators require the optional TC-ISF08 sensor board to function.

Highlights

  • Patented aluminium front panel with key lock secures the chassis
  • Red anodised aluminium bezel gives the rack a distinctive look
  • 2U height fits standard 19-inch cabinets while saving vertical space
  • 20-inch sliding rail kit enables smooth server access for maintenance
  • 80 mm standard fan plus optional 60 mm fan bracket supports active cooling

Specifications

BrandiStarUSA
ModelD-200SEA-RD-RAIL24
TypeRack Mount Cabinet
Rack Units2U
ColorColor of Front Bezel: Red
Color of Main Chassis: Black
MaterialMaterial of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)3 x 60mm (bracket DD-FANGUARD-6 required)
Cooling (Standard)1 x 80mm
SpecificationStandard Drive Bays:
- 3.5" Drives: 2
- 5.25" Drives: 2
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power, Reset
Supported PSU Type: 2U
Expansion Slots: 3
Security: Front Bezel Key Lock
Front Connector: 2 x USB 2.0
Motherboard Size: 12" x 9.6" (ATX, microATX, mini-ITX)
FeaturesPatented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
Front Access USB2.0 x2
80mm x1 cooling fan
Power and HDD LED
Power and Alarm Reset Switch
Optional Aluminum Chassis
With 20" Sliding Rail Kit
Unit Dimension19.00" x 3.50" x 20.80"
Shipping weight13.61 kg
Package size686 × 559 × 229 mm

Questions about this item

How deep is the 2U chassis so I know if it fits my 24" deep rack?

The unit measures 20.80 inches deep, leaving clearance in a standard 24 inch deep rack.

How loud is the included 80mm fan when the server runs continuously?

The chassis ships with one 80mm fan; noise level depends on the specific fan model installed.

Which motherboard form factors does the D-200SEA-RD-RAIL24 support?

It accepts ATX, microATX and mini-ITX boards up to 12 x 9.6 inches.
