Red aluminium front bezel on black steel 2U rackmount chassis, two 3.5 inch and two 5.25 inch drive bays visible

iStarUSA Inc.

iStarUSA Inc. D-200SEA-RD-HDD2535 2U server rack, red bezel, 2×3.5" + 2×5.25" bays

SKU CH-63K3-WVWBD MPN D-200SEA-RD-HDD2535

A 2U rackmount chassis with two 3.5" and two 5.25" drive bays, a red aluminium front bezel, an 80 mm fan and three expansion slots

  • TypeRack Mount Cabinet
  • Rack Units2U
  • ColorColor of Front Bezel: Red Color of Main Chassis: Black
  • MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
  • Cooling (Optional)3 x 60mm (bracket DD-FANGUARD-6 required)
  • Cooling (Standard)1 x 80mm
  • 2U height fits dense rack layouts
  • Red aluminium front bezel adds visual identification
  • Two 3.5" and two 5.25" bays give four-drive capacity
  • Standard 80 mm fan plus optional 60 mm cooling brackets
  • Front key lock secures drives and controls

2U rackmount chassis with red aluminium bezel

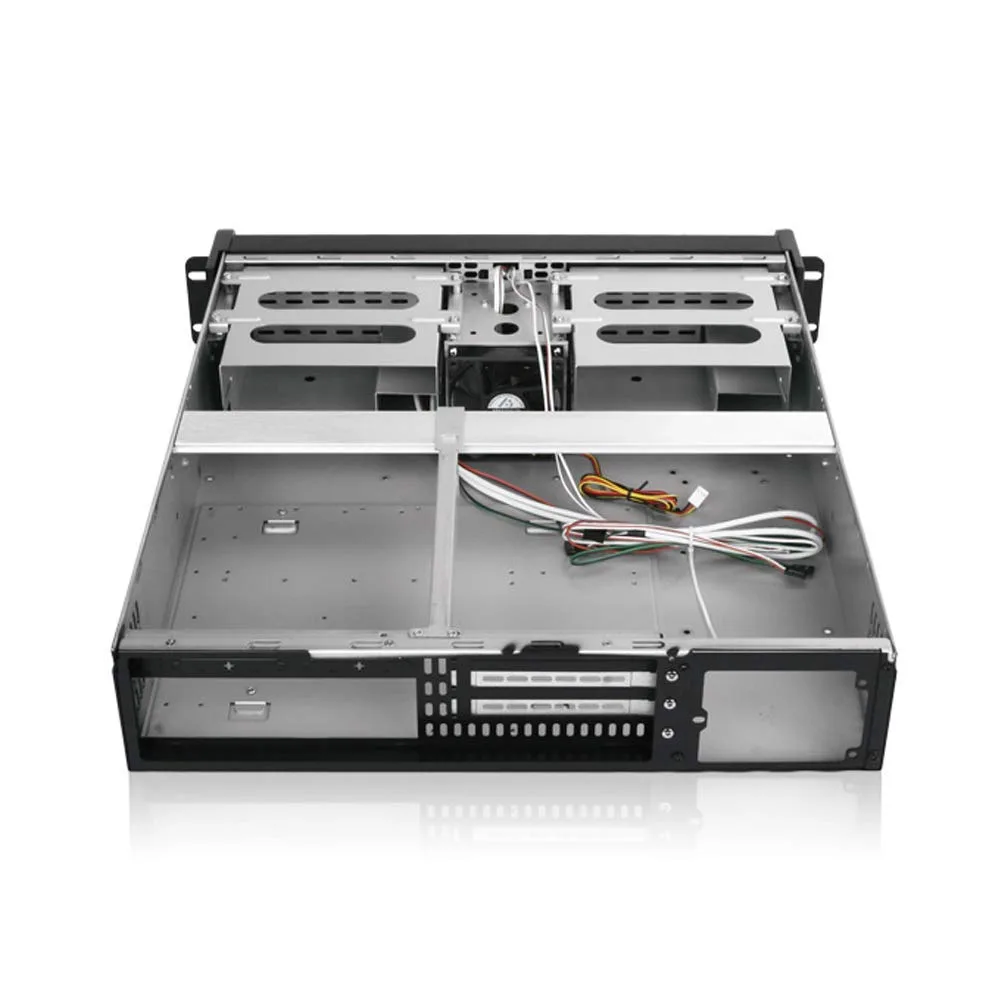

The iStarUSA D-200SEA-RD-HDD2535 is a 2U server rackmount chassis finished with a red aluminium front bezel and a black 1.2mm SECC zinc-coated steel body. It accepts ATX and microATX motherboards up to 12" x 9.6" and provides two 3.5" and two 5.25" drive bays for up to four drives total. Three low-profile expansion slots support PCI, PCI-X, AGP or PCI-Express add-in cards.

Cooling limited to one 80mm fan unless bracket added

Standard airflow relies on a single 80mm fan mounted in the chassis. Optional cooling adds three 60mm fans, but this requires the separate DD-FANGUARD-6 bracket which is not included. Temperature and fan-speed indicators on the front panel only function when the optional TC-ISF08 sensor board is installed, so monitoring is unavailable in the base configuration.

Front bezel lock and short depth ease rack mounting

The lockable front bezel secures drive access and the 20.80" depth fits many standard racks without protruding. Installation uses the included zinc-coated steel handles and standard 19.00" rack rails. Builders should verify that a 2U form-factor power supply and low-profile cards fit their thermal budget, as the compact height restricts cooler clearance and cable routing space.

Highlights

  • 2U height fits dense rack layouts
  • Red aluminium front bezel adds visual identification
  • Two 3.5" and two 5.25" bays give four-drive capacity
  • Standard 80 mm fan plus optional 60 mm cooling brackets
  • Front key lock secures drives and controls

Specifications

BrandiStarUSA
ModelD-200SEA-RD-HDD2535
TypeRack Mount Cabinet
Rack Units2U
ColorColor of Front Bezel: Red
Color of Main Chassis: Black
MaterialMaterial of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)3 x 60mm (bracket DD-FANGUARD-6 required)
Cooling (Standard)1 x 80mm
SpecificationStandard Drive Bays:
- 3.5" Drives: 2
- 5.25" Drives: 2
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power, Reset
Supported PSU Type: 2U
Expansion Slots: 3
Security: Front Bezel Key Lock
Front Connector: 2 x USB 2.0
Motherboard Size: 12" x 9.6" (ATX, microATX)
FeaturesThe 2U compact industrial rackmount chassis D Storm D-200SEA-RD-HDD2535SI. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-RD-HDD2535SI support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, also with Internal 2.5" to 3.5" HDD/SSD Converter.
Unit Dimension19.00" x 3.50" x 20.80"
Shipping weight11.34 kg
Package size686 × 559 × 229 mm

Questions about this item

Should I pick the 3.5" or 5.25" bay version for my drives?

This chassis includes both two 3.5" and two 5.25" bays simultaneously, so you do not choose between them; you can install up to four drives in total.

What does the 2U height mean once the rack is installed?

It occupies 3.50 inches of vertical rack space, fitting a standard 19.00-inch wide cabinet with a depth of 20.80 inches.

Which interface do the front USB ports use and what speed does it cap at?

The front panel provides two USB 2.0 ports, limiting connected devices to the 2.0 signalling rate.
