Black 2U rackmount chassis with aluminium front bezel, two 5.25 and two 3.5 drive bays, front USB 2.0 ports, power and reset switches

iStarUSA Inc.

iStarUSA Inc. D-200SEA-BK-T7SA 2U server rack

SKU CH-PJ6P-KHN62 MPN D-200SEA-BK-T7SA

A 2U rackmount chassis with an aluminium front bezel, two 3.5″ and two 5.25″ drive bays, an 80 mm fan and front USB 2.0 ports

  • TypeRack Mount Cabinet
  • Rack Units2U
  • ColorColor of Front Bezel: Black Color of Main Chassis: Black
  • MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
  • Cooling (Optional)3 x 60mm (bracket DD-FANGUARD-6 required)
  • Cooling (Standard)1 x 80mm
  • Aluminium front bezel with key lock secures equipment
  • 2 mm Japanese SECC steel chassis resists flex
  • Two 3.5″ and two 5.25″ drive bays support SATA and SAS drives
  • Front USB 2.0 ports give quick peripheral access
  • Standard 80 mm fan plus three optional 60 mm mounts aid airflow

2U rackmount chassis for compact servers

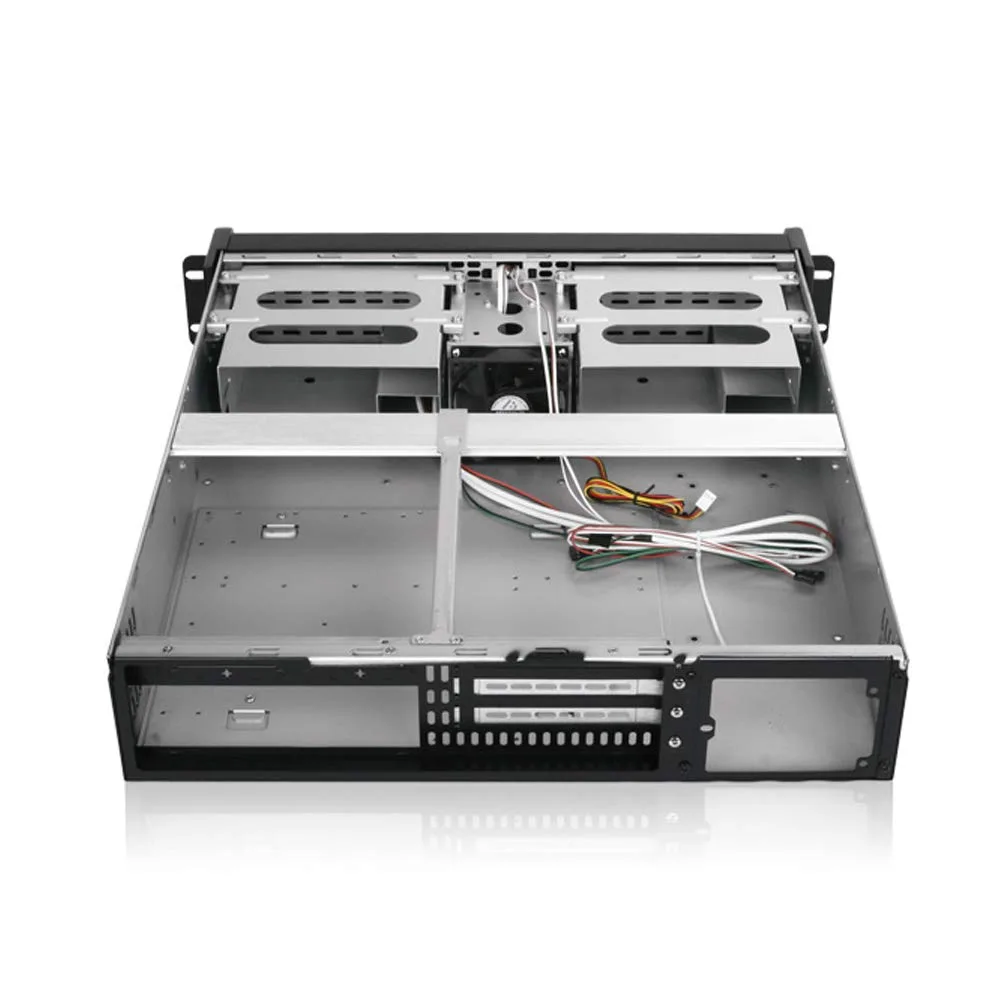

The iStarUSA D-200SEA-BK-T7SA is a 2U rackmount cabinet built for deployments that need a short-depth server in a standard 19-inch rack. Its aluminium front bezel and 1.2mm SECC zinc-coated steel chassis provide a rigid frame for ATX, microATX or mini-ITX boards up to 12 x 9.6 inches. The unit suits edge compute nodes, storage appliances or test rigs where full-depth cabinets are impractical.

Aluminium bezel lock and front USB access

A patented aluminium front panel with a key lock secures the two 5.25-inch and two 3.5-inch drive bays against unauthorised removal. Two USB 2.0 ports sit behind the locked door for quick media or diagnostic access without pulling the server. Power, reset, HDD and temperature LEDs plus a fan alarm switch are visible on the same face, giving operators immediate status at a glance.

Single 80mm fan with 60mm expansion option

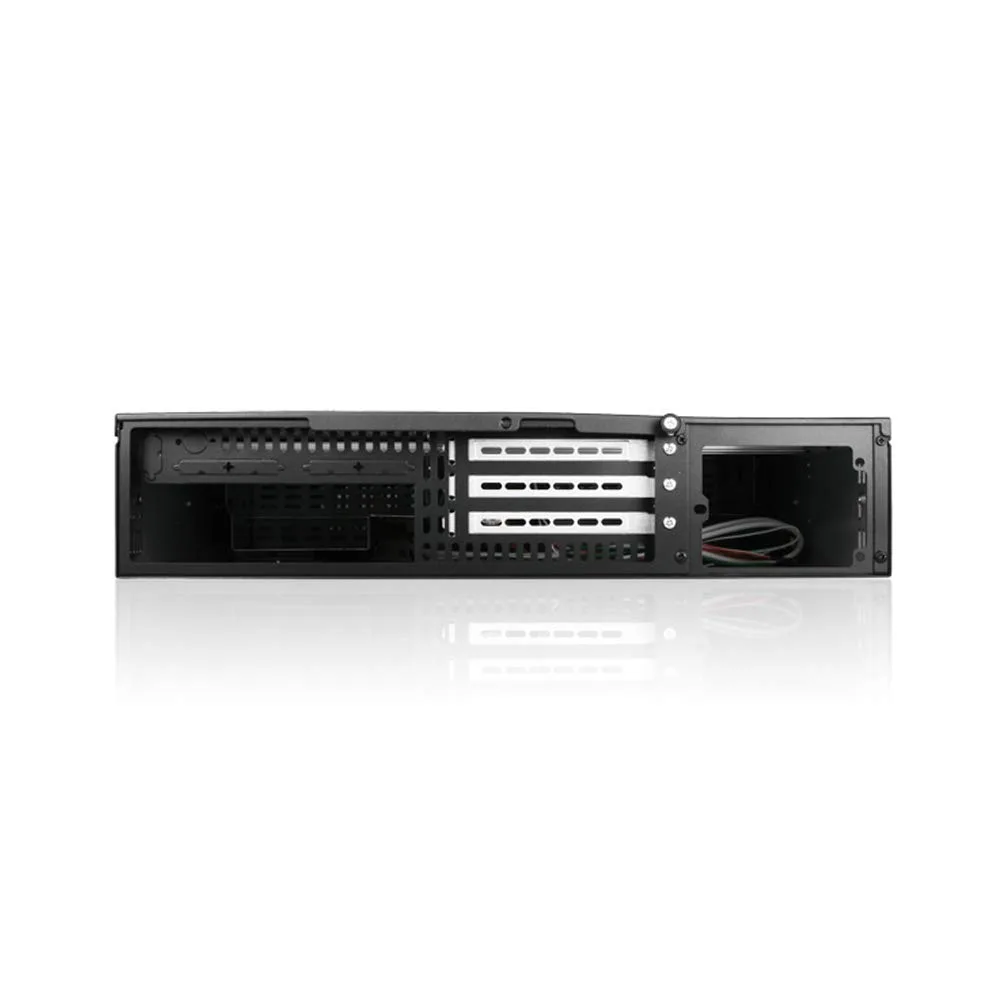

Cooling ships with one 80mm fan mounted as standard; three additional 60mm fans can be added using the optional DD-FANGUARD-6 bracket when higher airflow is required. Three full-height expansion slots support add-in cards such as RAID controllers or NICs, while the 2U power-supply bay accepts redundant or single units. Buyers needing hot-swap SATA or SAS trays or deeper GPU clearance should evaluate larger enclosures.

Highlights

  • Aluminium front bezel with key lock secures equipment
  • 2 mm Japanese SECC steel chassis resists flex
  • Two 3.5″ and two 5.25″ drive bays support SATA and SAS drives
  • Front USB 2.0 ports give quick peripheral access
  • Standard 80 mm fan plus three optional 60 mm mounts aid airflow

Specifications

BrandiStarUSA
ModelD-200SEA-BK-T7SA
TypeRack Mount Cabinet
Rack Units2U
ColorColor of Front Bezel: Black
Color of Main Chassis: Black
MaterialMaterial of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)3 x 60mm (bracket DD-FANGUARD-6 required)
Cooling (Standard)1 x 80mm
SpecificationStandard Drive Bays:
- 3.5" Drives: 2
- 5.25" Drives: 2
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08)
Switches: Power, Reset
Supported PSU Type: 2U
Expansion Slots: 3
Security: Front Bezel Key Lock
Front Connector: 2 x USB 2.0
Motherboard Size: 12" x 9.6" (ATX, microATX, mini-ITX)
FeaturesPatented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
Front Access USB2.0 x2
80mm x1 cooling fan
Power and HDD LED
Power and Alarm Reset Switch
Optional Aluminum Chassis
With rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
Unit Dimension19.00" x 3.50" x 20.80"
Shipping weight11.79 kg
Package size686 × 559 × 229 mm

Questions about this item

What motherboard form factors does the 2U rackmount chassis support?

The chassis accepts ATX, microATX and mini-ITX boards up to 12" x 9.6".

How deep is the unit, and will it fit in a standard 19-inch rack?

The unit measures 19.00" wide by 20.80" deep and mounts in a standard 19-inch rack.

How do the front-panel USB ports connect to the motherboard?

Two USB 2.0 headers on the motherboard link to the front bezel via internal cables.
