Black 2U rackmount chassis with aluminium front bezel and single 80mm fan

iStarUSA Inc.

iStarUSA Inc. D-200SEA-BK-HDD2535 2U server rack

SKU CH-6H30-KKB8M MPN D-200SEA-BK-HDD2535

A 2U rackmount chassis with an aluminium front bezel, two 3.5-inch and two 5.25-inch drive bays, three expansion slots and a single 80 mm fan

  • TypeRack Mount Cabinet
  • Rack Units2U
  • ColorColor of Front Bezel: Black Color of Main Chassis: Black
  • MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
  • Cooling (Optional)3 x 60mm (bracket DD-FANGUARD-6 required)
  • Cooling (Standard)1 x 80mm
  • Fits standard 19-inch racks using only 2U of vertical space
  • Aluminium front bezel and 1.2mm zinc-coated steel chassis resist corrosion and impact
  • Single 80mm fan installed with brackets ready for three additional 60mm fans
  • Two 3.5-inch and two 5.25-inch drive bays plus internal 2.5-to-3.5 converter expand storage options
  • Front-panel power and reset switches with power HDD temperature and fan status LEDs

Compact 2U rackmount chassis

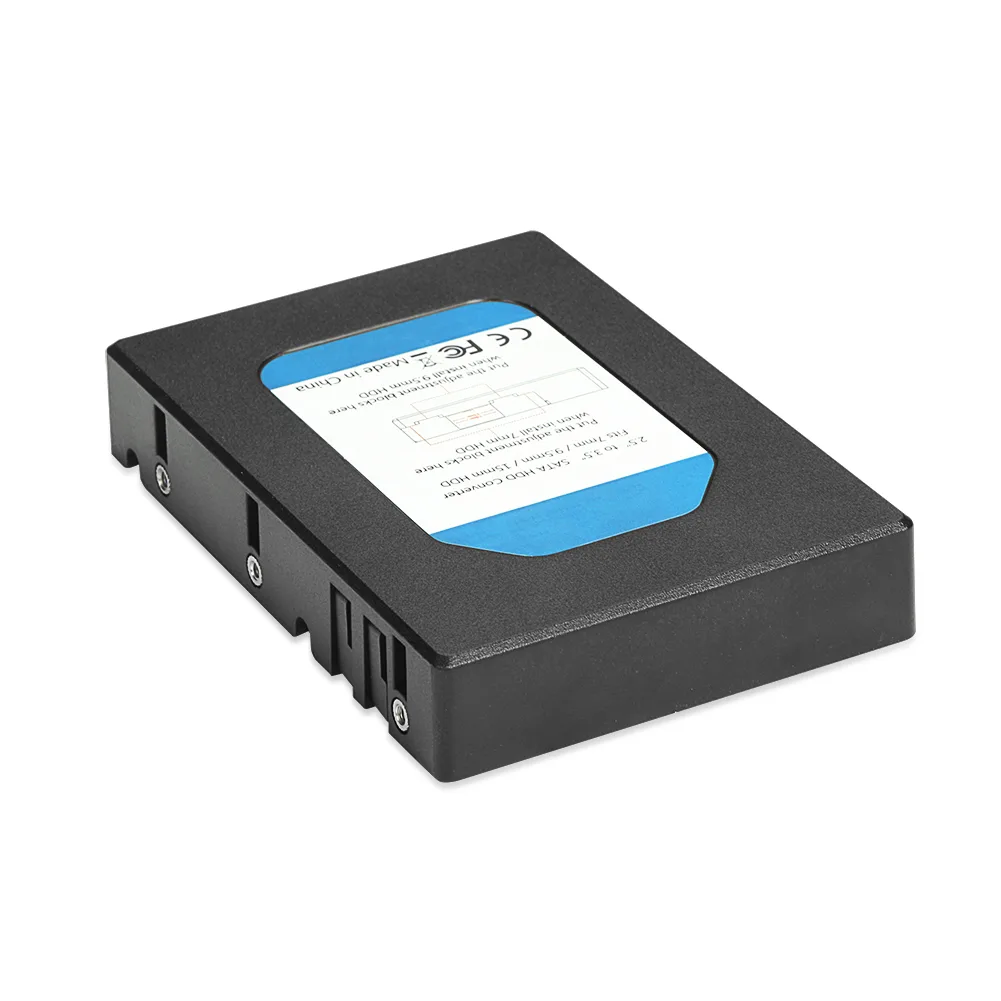

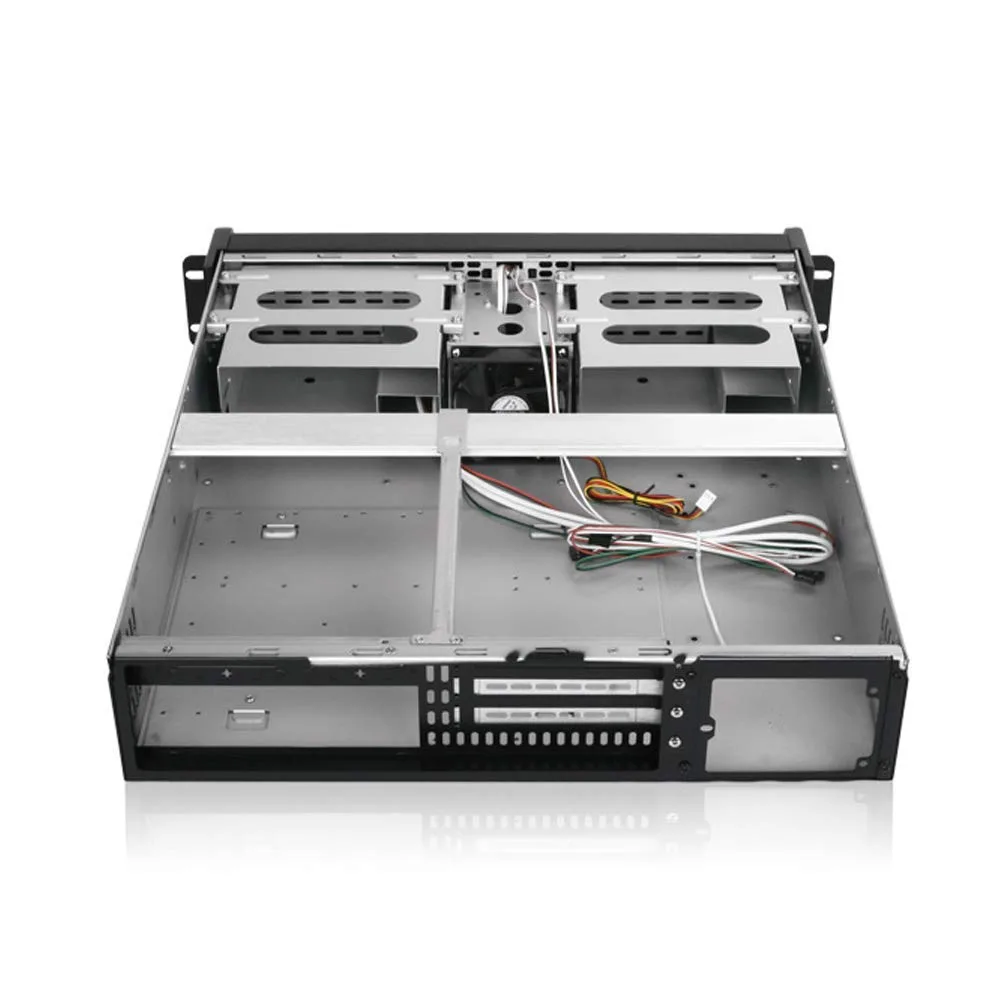

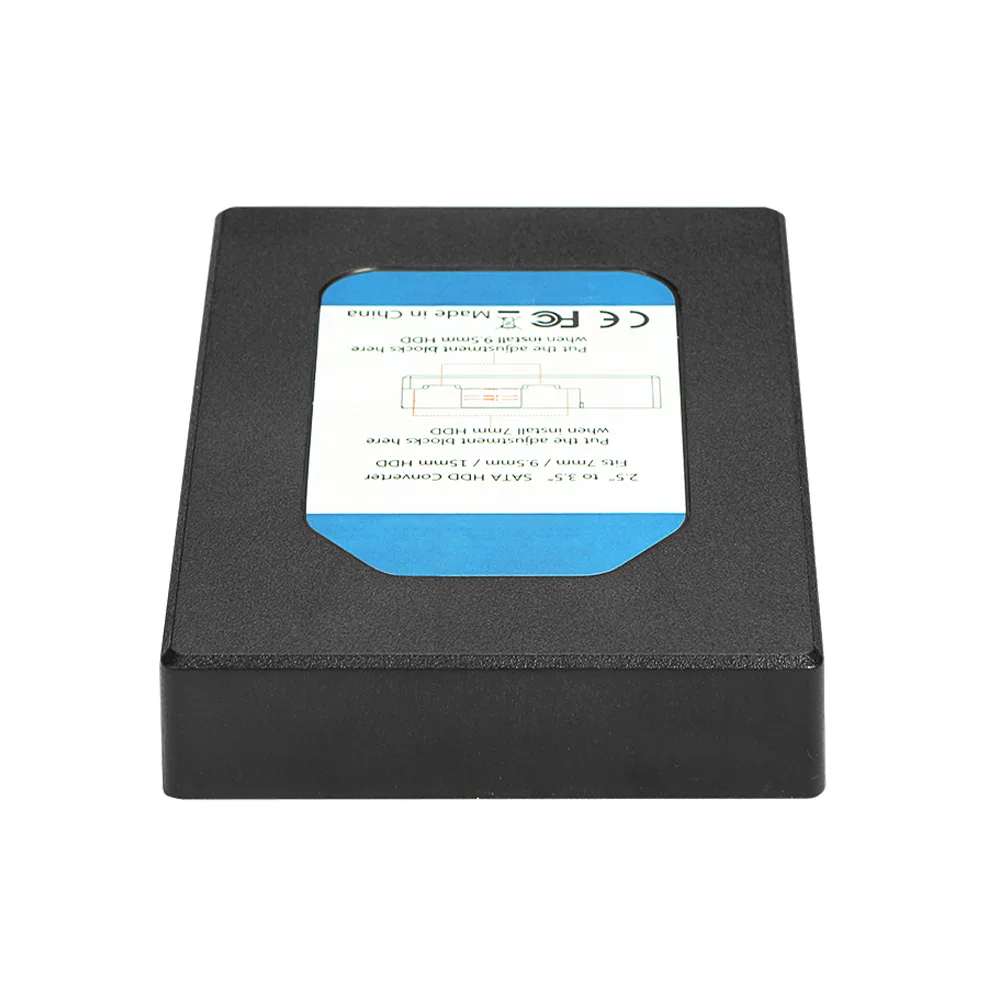

The iStarUSA D-200SEA-BK-HDD2535 is a 2U server rackmount chassis built from 1.2mm SECC zinc-coated steel with an aluminium front bezel. It accepts ATX and microATX motherboards up to 12 x 9.6 inches and includes an internal 2.5 to 3.5 inch drive converter. Three expansion slots support PCI, PCI-X, AGP or PCI-Express add-on cards.

Suited for space-limited server builds

This chassis fits builders who need a short-depth 2U enclosure with front USB 2.0 ports, a key-locked bezel and status LEDs for power, drive activity, temperature and fan status. It is not for installations requiring more than three low-profile expansion cards or drives beyond the two 3.5 inch and two 5.25 inch bays provided.

Straightforward rack installation

The unit mounts in a standard 19 inch rack using the included handles and occupies 3.5 inches of vertical space. A single 80 mm fan is fitted as standard; three optional 60 mm fan positions require the DD-FANGUARD-6 bracket. Temperature and fan monitoring need the separate TC-ISF08 sensor board, which is a common oversight.

Highlights

  • Fits standard 19-inch racks using only 2U of vertical space
  • Aluminium front bezel and 1.2mm zinc-coated steel chassis resist corrosion and impact
  • Single 80mm fan installed with brackets ready for three additional 60mm fans
  • Two 3.5-inch and two 5.25-inch drive bays plus internal 2.5-to-3.5 converter expand storage options
  • Front-panel power and reset switches with power HDD temperature and fan status LEDs

Specifications

BrandiStarUSA
ModelD-200SEA-BK-HDD2535
TypeRack Mount Cabinet
Rack Units2U
ColorColor of Front Bezel: Black
Color of Main Chassis: Black
MaterialMaterial of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)3 x 60mm (bracket DD-FANGUARD-6 required)
Cooling (Standard)1 x 80mm
SpecificationStandard Drive Bays:
- 3.5" Drives: 2
- 5.25" Drives: 2
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power, Reset
Supported PSU Type: 2U

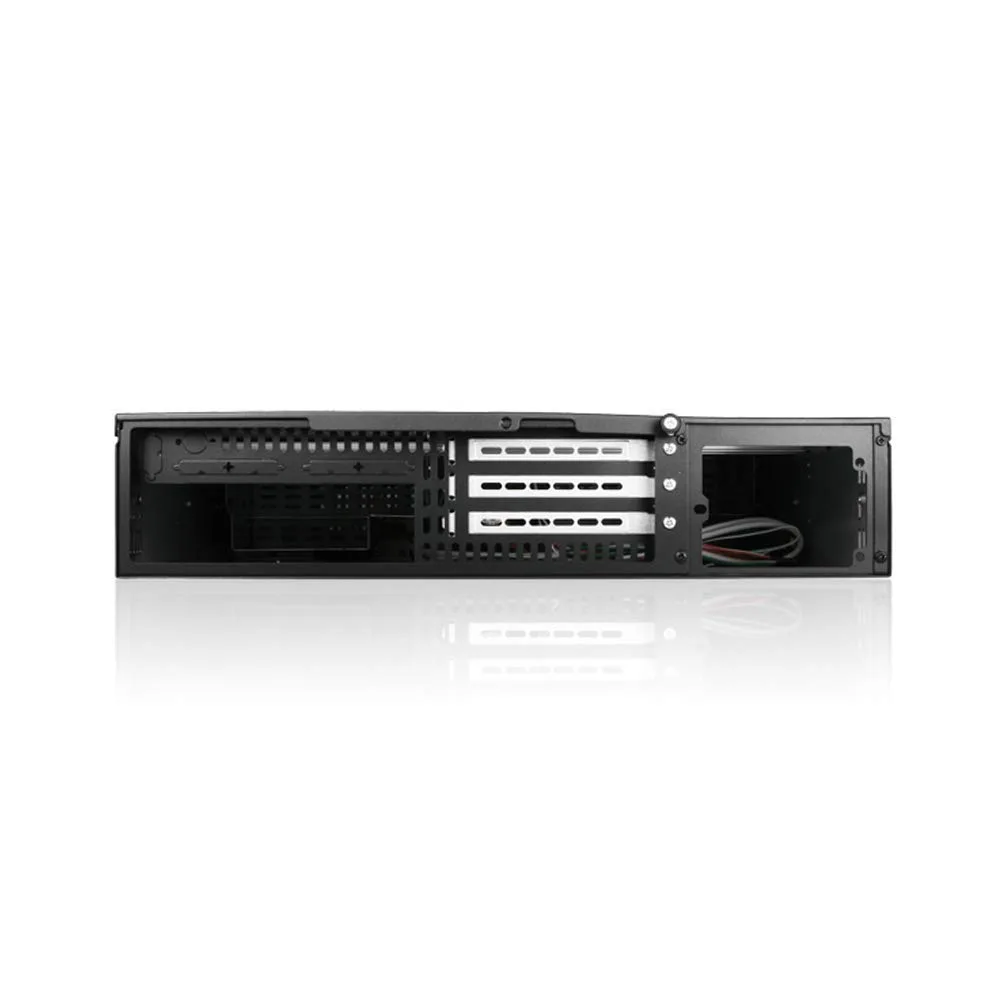

Expansion Slots: 3
Security: Front Bezel Key Lock
Front Connector: 2 x USB 2.0
Motherboard Size: 12" x 9.6" (ATX, microATX)
FeaturesThe 2U compact industrial rackmount chassis D Storm D-200SEA-BK-HDD2535SI. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-BK-HDD2535SI support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, also with Internal 2.5" to 3.5" HDD/SSD Converter.
Unit Dimension19.00" x 3.50" x 20.80"
Shipping weight11.34 kg
Package size686 × 559 × 229 mm

Questions about this item

Which power supply form factor do I need to install in the D-200SEA-BK-HDD2535?

The chassis supports a 2U power supply, so you must use a 2U unit that fits the rack-mount opening.

Will the front-panel temperature and fan-speed LEDs light up without extra hardware?

No, the temperature and fan indicators require the optional TC-ISF08 sensor board to function.

How can I confirm the chassis is cooling properly after I build the system?

Verify the single 80 mm rear fan is spinning and, if you added the optional three 60 mm fans, check their operation and the front-panel temperature LED once the sensor board is installed.
