Rectangular black KVM switch with front pushbuttons, LED indicators, and rear DVI, USB, audio ports

IOGEAR

IOGEAR GCS1642MDPKIT 2-Port Dual-Link DVI Mini DisplayPort KVM Switch

SKU CH-M39B-SSB90 MPN GCS1642MDPKIT

Controls two computers across dual monitors up to 2560×1600 via DVI or Mini DisplayPort with included adapters, cables and USB audio peripheral sharing

  • TypeAccessories
  • Console ConnectorsMonitor: 2 x Dual Link DVI-I Female Keyboard: 1 x USB Type A
  • Computer ConnectionsMonitor: 4 x Dual Link DVI-I or Mini DisplayPort Female Keyb
  • Monitor Connections2 Ports
  • Video ResolutionSingle Link DVI: 1920x1200 Dual Link DVI: 2650x1600 4K UHD:
  • PC SelectionHotkeys, Pushbutton, or Mouse

Option with x4 active MiniDP to DVI Adapters

  • with x4 active MiniDP to DVI Adapters
  • Standard
  • Control two computers across dual monitors with pushbutton switching
  • Mix DVI and Mini DisplayPort sources using included active adapters
  • Switch via hotkeys, pushbutton or mouse without software
  • Supports up to 2560x1600 Dual-Link DVI and 3840x2160 4K UHD resolution
  • Kit includes all cables, adapters and power supply for immediate use

Dual-monitor KVM for two computers

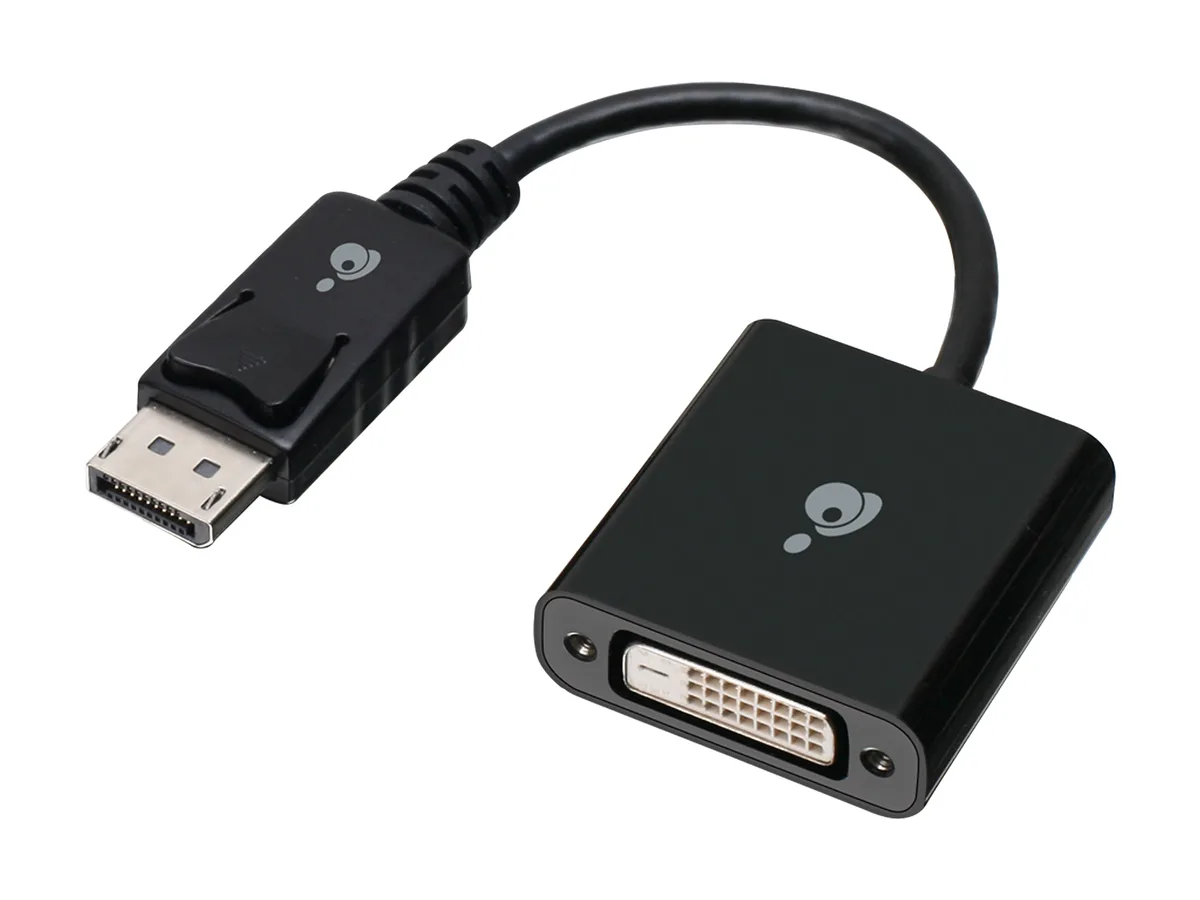

The IOGEAR GCS1642MDPKIT lets you control two computers from one keyboard, one mouse and two DVI monitors. It supports Dual-Link DVI up to 2560x1600 and 4K UHD 3840x2160 depending on the source. The kit includes four active Mini DisplayPort to DVI adapters so you can mix DVI and mDP computer outputs. Audio, microphone and two USB 2.0 peripheral ports are built in.

Ideal for mixed DVI and mDP sources

Suits home offices or small businesses that need dual-view switching between two computers with different video outputs. Not for users whose monitors only have DisplayPort inputs, because the included adapters only convert mDP sources to DVI. Buyers needing more than two computer ports or higher refresh rates at 4K should look elsewhere. The switch operates between 0 and 50 degrees Celsius with humidity up to 80 percent.

Plug-and-play with included cables

No software installation is required; switching works via pushbutton, hotkeys or mouse gestures. The box supplies two Dual-Link DVI-D KVM cables, two Dual-Link DVI-D cables, the four adapters and a 5.3V 2.4A power adapter. A common issue is forgetting to connect the USB Type-B cables from each computer, which leaves keyboard and mouse control inactive. Ensure both DVI and USB links are seated for full operation.

Highlights

  • Control two computers across dual monitors with pushbutton switching
  • Mix DVI and Mini DisplayPort sources using included active adapters
  • Switch via hotkeys, pushbutton or mouse without software
  • Supports up to 2560x1600 Dual-Link DVI and 3840x2160 4K UHD resolution
  • Kit includes all cables, adapters and power supply for immediate use

Specifications

BrandIOGEAR
ModelGCS1642MDPKIT
TypeAccessories
Console ConnectorsMonitor: 2 x Dual Link DVI-I Female
Keyboard: 1 x USB Type A Female
Mouse: 1 x USB Type A Female
Audio: 1 x Mini Stereo Jack Female (Green)
Microphone: 1 x Mini Stereo Jack Female (Pink)
Computer ConnectionsMonitor: 4 x Dual Link DVI-I or Mini DisplayPort Female
Keyboard & Mouse: 2 x USB Type B Female
Audio: 2 x Mini Stereo Jack Female (Green)
Microphone: 2 x Mini Stereo Jack Female (Pink)
Monitor Connections2 Ports
Video ResolutionSingle Link DVI: 1920x1200
Dual Link DVI: 2650x1600
4K UHD: 3840x2160
(depends on source)
PC SelectionHotkeys, Pushbutton, or Mouse
AutoScan Interval1~99 seconds (5 seconds by default)
LED IndicatorsMode: 1 x Orange
KVM: 2 x Green
Audio: 2 x Green
USB Peripherals : 2 x Green
Temperature0ºC to 50ºC(32ºF to 122ºF)
Humidity0% to 80%,Non-Condensing
Power FeaturesDC 5.3V 2.4A
FeaturesShare 2 monitors, a keyboard and mouse between 2 DVI or Mini DisplayPort computers
Resolution:
Dual-Link DVI resolution: (2560 x 1600)
4K UHD Resolution: (3840x2160)
Plug-N-Play - No software installation required
Built-in USB 2.0 Hub
IOGEAR's DynaSync technology: Remembers monitors configurations when switching
Computer switching via front panel pushbuttons, hotkeys, or mouse
2.1 stereo sound - Full bass response and microphone support
Complete keyboard and mouse emulation for error free booting and real-time switching
Asynchronous hotkey switching between KVM focus, USB peripheral,
Dimensions10.20" x 2.90" x 1.70" (H x L x D)
Weight2.00 lbs.

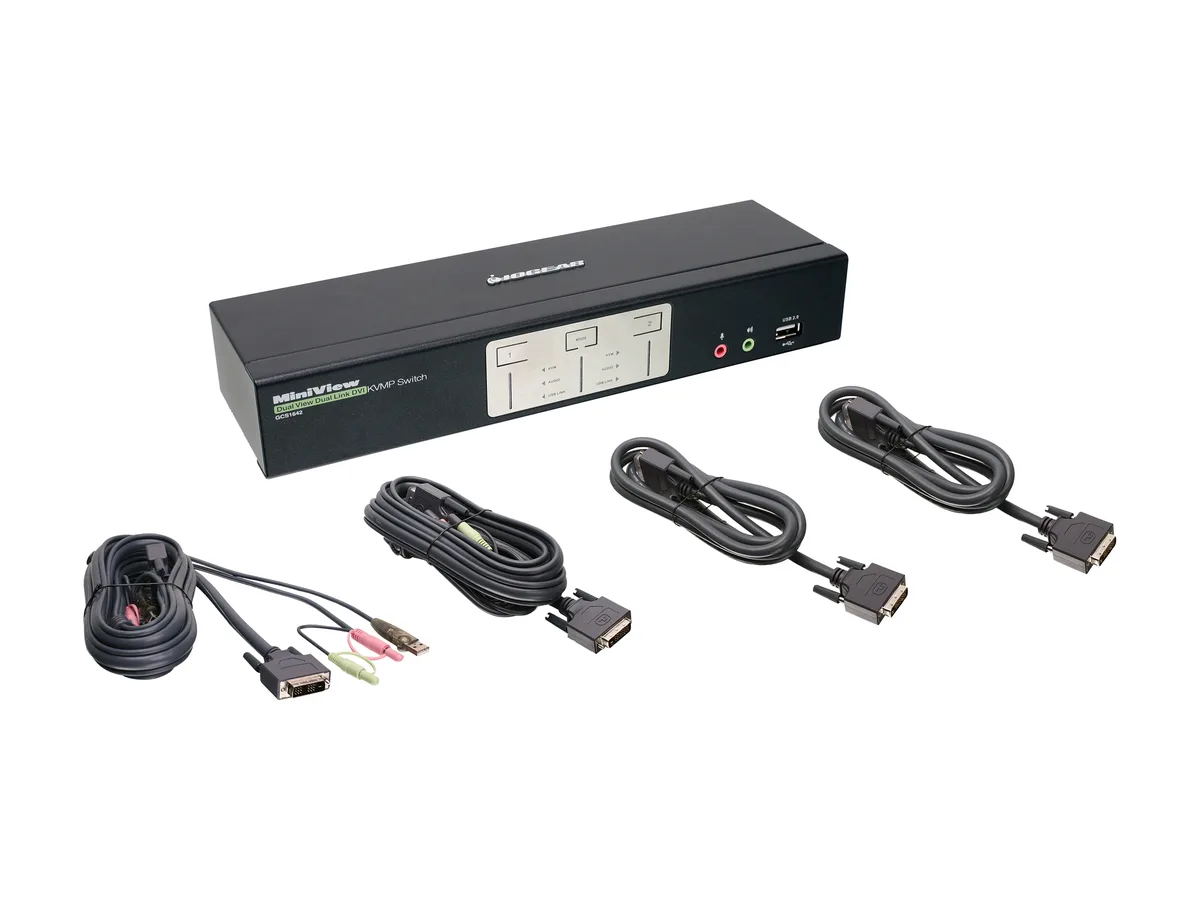

Package Contents1 x 2-Port Dual Monitor Dual-Link DVI KVMP Switch
4 x Active Mini DisplayPort to DVI Adapters (GMDPDVI4KA)
2 x Dual-Link DVI-D KVM Cables
2 x Dual-Link DVI-D Cables
1 x Power Adapter
1 x Quick Start Guide
1 x Warranty Card
Shipping weight3.04 kg
Package size381 × 254 × 210 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What dual-link DVI cables must I already have to connect my two monitors to the console ports?

You need two dual-link DVI cables with DVI-I or DVI-D plugs to match the two female DVI-I console ports on the switch.

Will the 4K UHD 3840x2160 resolution work if one of my two computers only has single-link DVI outputs?

Single-link DVI is limited to 1920x1200, so that computer cannot drive 4K; the other computer must supply dual-link DVI or Mini DisplayPort for 3840x2160.

Which LED indicators confirm that both monitors, keyboard, mouse and audio are active on the selected computer?

Two green KVM LEDs show the active computer, two green USB peripheral LEDs confirm keyboard and mouse, and two green audio LEDs confirm speaker and microphone paths.
