Rectangular silver KVM switch with DVI, USB and audio ports on front and rear, 10.2 by 2.9 by 1.7 inches

IOGEAR

IOGEAR GCS1642 2-Port Dual View Dual Link DVI KVM Switch

SKU CH-3HTM-EZA76 MPN GCS1642

Controls two computers across dual DVI monitors up to 2560 x 1600 with USB 2.0 peripheral sharing and audio switching

  • TypeDVI, USB
  • PC Connectors4 x Dual Link DVI-I Female 2 x USB Type B Female 2 x Mini St
  • Console Connectors2 x Dual Link DVI-I Female 1 x USB Type A Female 1 x USB Typ
  • Monitor Connections2 Ports
  • Video Resolution2560 x 1600
  • PC SelectionHotkeys, Pushbutton, or 3-button USB Mouse

Option Standard

  • Control two computers with one dual-monitor setup using DualView Dual-Link DVI
  • Achieve crisp 2560 x 1600 resolution on each display for detailed work
  • Switch instantly via hotkeys, front push-button, or three-button USB mouse
  • Share USB 2.0 peripherals and stereo audio without unplugging cables
  • Compact 10.2 x 2.9 x 1.7 inch chassis fits neatly on any desk

Dual-Link DVI KVM for two systems

The IOGEAR GCS1642 connects two computers to a shared dual-monitor console using Dual-Link DVI and USB. It supports resolutions up to 2560 x 1600 across both displays. Switching is handled by hotkeys, a front pushbutton, or a three-button USB mouse. The unit includes a 2.0 hub for peripheral sharing and separate audio jacks for speakers and microphone.

Fits a dual-head workstation with two PCs

Each computer requires two Dual-Link DVI outputs, one USB Type-B port, and audio connections to reach the switch. The console side provides two DVI inputs for monitors, two USB Type-A ports for keyboard and mouse, and audio jacks. A 5.3 V, 2.4 A power adapter is required for operation. The chassis measures 10.2" x 2.9" x 1.7" for desk or rack placement.

Cables and Quad-View expansion included

The package supplies two Dual-Link DVI-D KVM cables and two additional Dual-Link DVI-D cables so both video channels are ready immediately. Linking a second GCS1642 enables Quad View (DCC Mode) across four monitors. An installation guide and warranty card complete the bundle.

Highlights

  • Control two computers with one dual-monitor setup using DualView Dual-Link DVI
  • Achieve crisp 2560 x 1600 resolution on each display for detailed work
  • Switch instantly via hotkeys, front push-button, or three-button USB mouse
  • Share USB 2.0 peripherals and stereo audio without unplugging cables
  • Compact 10.2 x 2.9 x 1.7 inch chassis fits neatly on any desk

Specifications

BrandIOGEAR
ModelGCS1642
TypeDVI, USB
PC Connectors4 x Dual Link DVI-I Female
2 x USB Type B Female
2 x Mini Stereo Jack Female (Green)
2 x Mini Stereo Jack Female (Pink)
Console Connectors2 x Dual Link DVI-I Female
1 x USB Type A Female
1 x USB Type A Female
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
Monitor Connections2 Ports
Video Resolution2560 x 1600
PC SelectionHotkeys, Pushbutton, or 3-button USB Mouse
AutoScan Interval1~99 seconds (5 seconds by default)
LED IndicatorsMode: 1 (Orange)
KVM: 2 (Green)
Audio: 2 (Green)
USB Peripherals: 2 (Green)
Power FeaturesDC 5.3V
2.4A
FeaturesDualView Dual-Link DVI support - Share 2 DVI monitors with a single keyboard and mouse along 2 computers
High resolution - Up to 2560 x 1600
Multi OS platform support
2-portUSB 2.0hub for peripherals sharing
Asynchronous hotkey switching between KVM focus, USB peripheral, and Audio ports
IOGEAR'sDynaSync reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
HDCP Compliant
Audio enabled - Microphone support and full bass response provides 2.1 stereo sound
Complete keyboard and mouse emulation
Dimensions10.2" x 2.9" x 1.7"

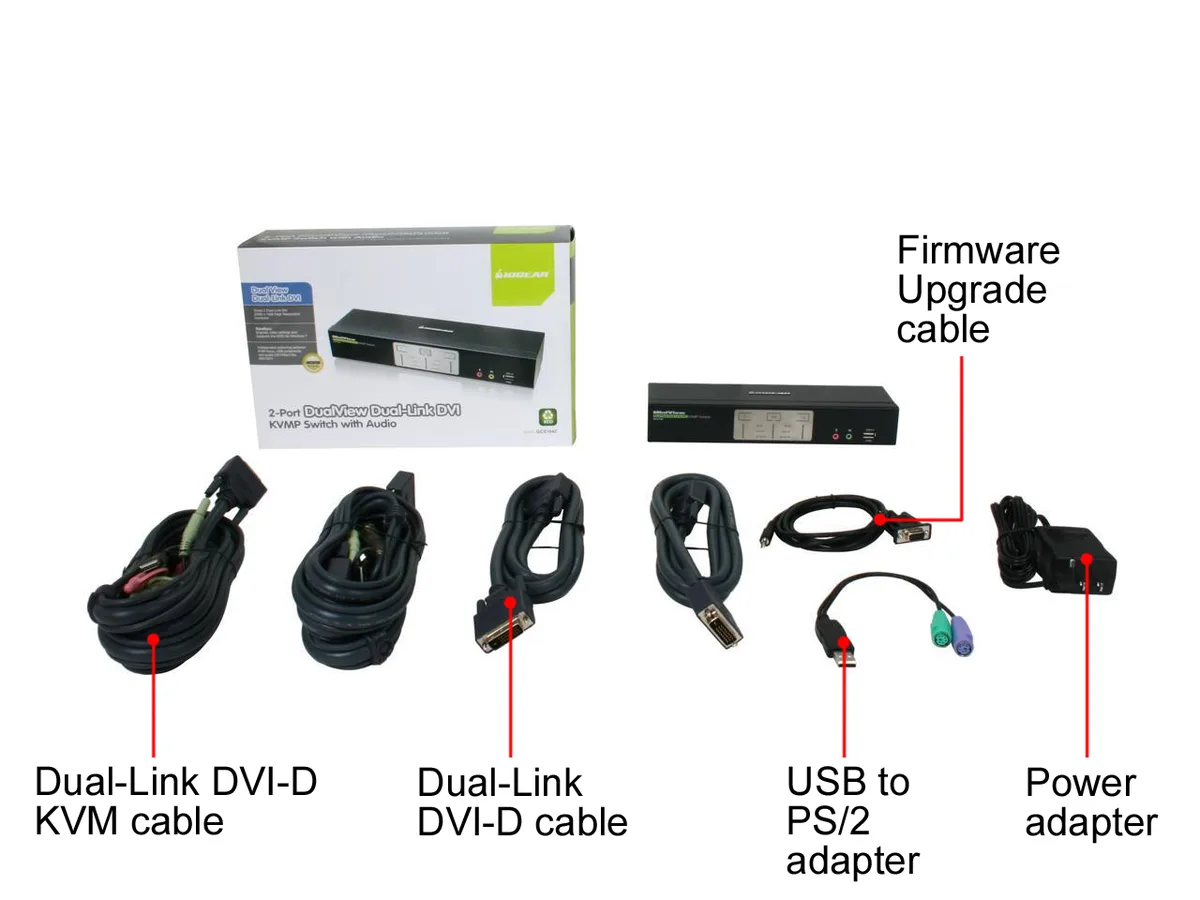

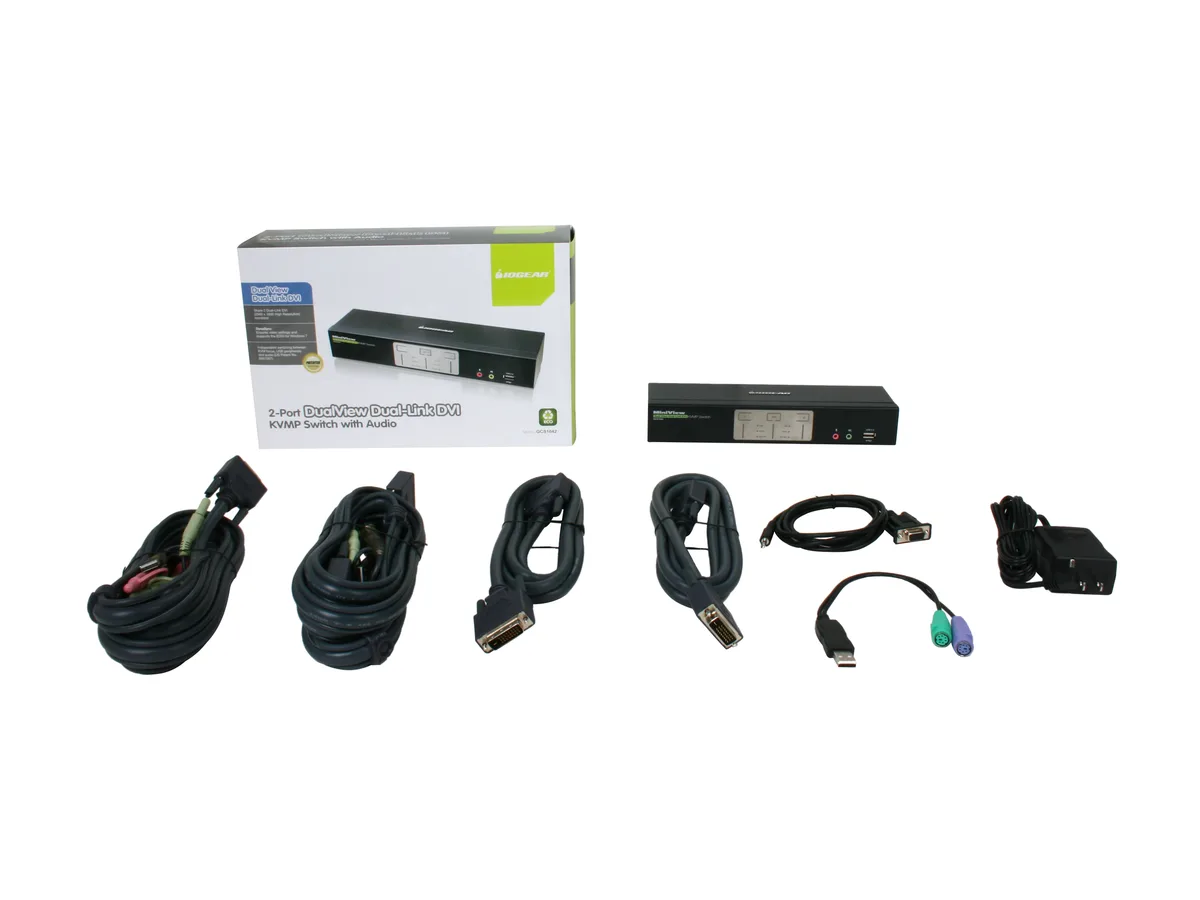

Package Contents1 x 2-Port Dual View Dual-Link DVI KVMP Switch
2 x Dual-Link DVI-D KVM Cable
2 x Dual-Link DVI-D Cable
1 x Power Adapter
1 x Installation Guide
1 x Warranty Card
Shipping weight2.41 kg
Package size330 × 206 × 104 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 2560 x 1600 resolution hold steady during long sessions?

The switch is rated for 2560 x 1600 and draws 5.3 V at 2.4 A from the included adapter, so the signal stays stable as long as the power supply is connected.

How much heat or fan noise appears after hours of use?

The unit has no fan and relies on passive cooling; the metal chassis runs warm but stays within normal operating temperature during continuous use.

Which cables and power supply must I already have on my desk?

You need two Dual-Link DVI cables for the monitors, two USB Type-B cables for the computers, and the supplied 5.3 V 2.4 A power adapter.
