Intellinet Network Solutions

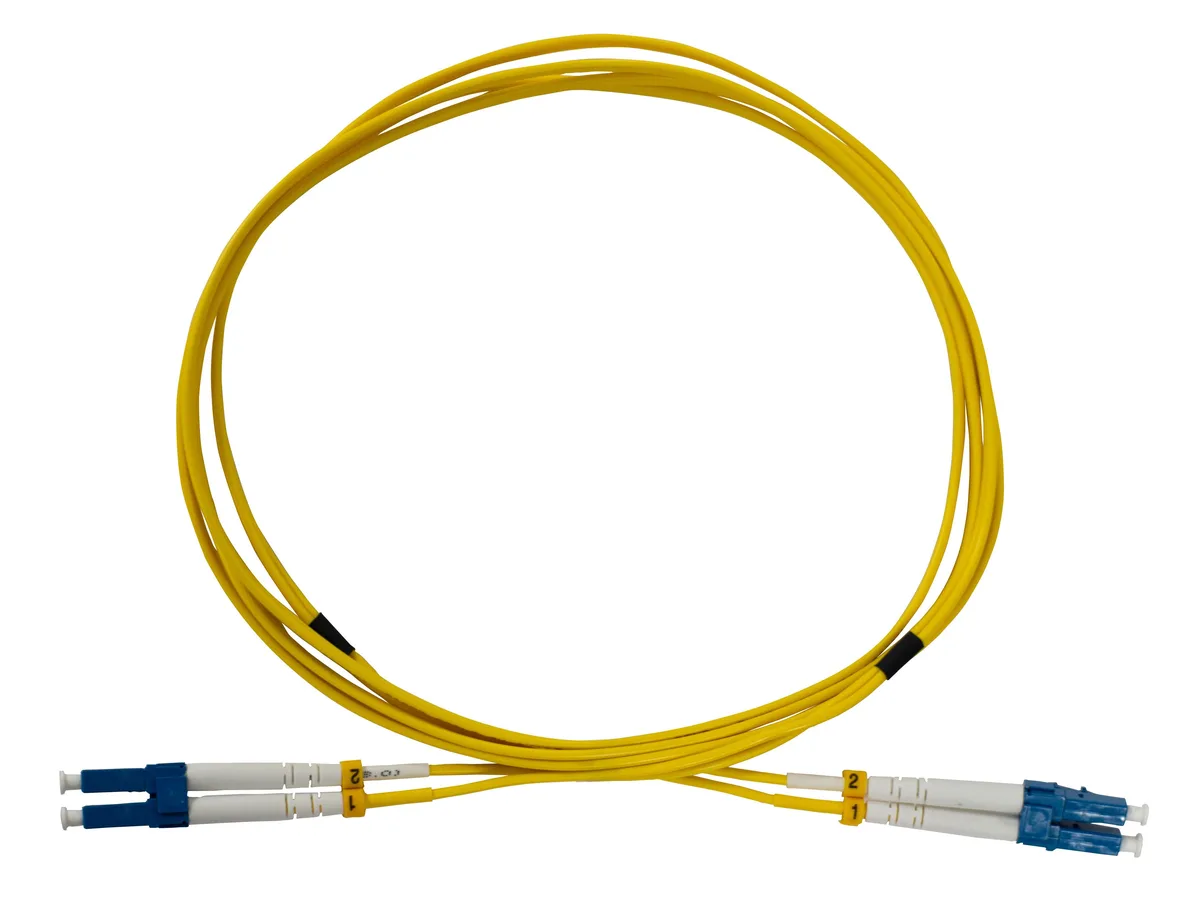

Intellinet Network Solutions Singlemode Duplex BIF Fiber Cable 4 m LC/LC UPC 9/125 µm G.657.A1 Yellow
A 4 m singlemode duplex patch cord with LC/UPC connectors, bend-insensitive G.657.A1 fiber and Corning glass for low-loss 40G links
- TypeFiber
- Connector ALC
- Connector BLC
- Length4 m
- ColorYellow
- ShieldedNo
- Reliable high-speed links with OS2 single-mode fiber
- Reduced return loss using UPC ultra-physical-contact connectors
- Maintains signal integrity when bent with G.657.A1 bend-insensitive design
- Low attenuation and high bandwidth from Corning ultra-pure glass
- Ready for 40G Ethernet and beyond with low signal loss
Versatile Connectivity for Data Centres
This singlemode duplex patch cable is built for interconnect and cross-connect use in entrance facilities, telecommunications rooms, data centres and at the desk. The 4 m length suits rack-to-rack or desk-to-panel runs. Yellow jacket colour identifies the OS2 singlemode fibre type at a glance. UPC polished LC connectors on both ends provide a superior surface finish and improved return loss.
Bend Insensitive Fibre Reduces Attenuation
Corning ultra-pure glass core delivers low signal loss and high bandwidth for 40G Ethernet links and beyond. G.657.A1 bend insensitive design minimises attenuation when the cable is bent or twisted during routing. Each unit ships with a factory test report confirming insertion loss and return loss performance. OFNR rating allows in-wall and riser installation without additional conduit.

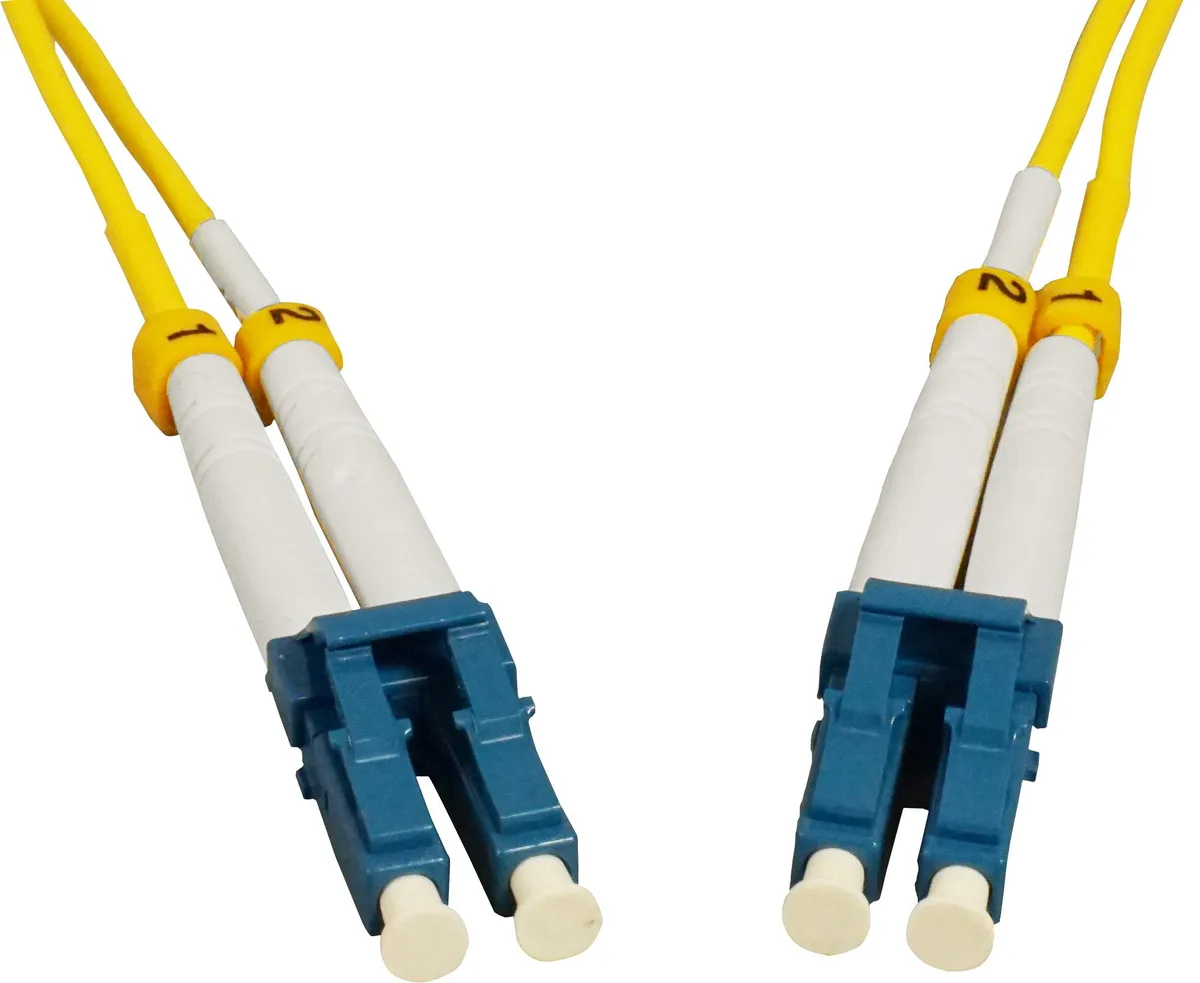

Duplex LC Pair Simplifies Patch Panel Layout
Dual LC connectors enable transmit and receive paths in a single cable assembly, freeing panel ports compared to simplex pairs. 2.0 mm jacket diameter eases routing through dense cable managers and tight trunking. No external shielding means the cable remains lightweight and flexible for frequent re-patching. Buyers needing armoured or outdoor-rated plant cable should select a different construction.
Highlights
- Reliable high-speed links with OS2 single-mode fiber
- Reduced return loss using UPC ultra-physical-contact connectors
- Maintains signal integrity when bent with G.657.A1 bend-insensitive design
- Low attenuation and high bandwidth from Corning ultra-pure glass
- Ready for 40G Ethernet and beyond with low signal loss
Specifications
| Brand | Intellinet Network Solutions |
|---|---|
| Model | Singlemode Duplex BIF |
| Type | Fiber |
| Connector A | LC |
| Connector B | LC |
| Length | 4 m |
| Color | Yellow |
| Shielded | No |
| Features | 9/125 µm, Bend Insensitive Fiber Cable G.657.A1 |
Questions about this item
How do I install this LC/LC duplex patch cable and what step is often missed?
Clean both LC ferrules with a lint-free wipe and isopropyl alcohol before mating them to the transceivers; the step most often skipped is inspecting the end-faces under a microscope to confirm no contamination remains.
What maintenance or replacement will this cable need over its service life?
Only periodic end-face cleaning and visual inspection are required; the Corning glass and G.657.A1 bend-insensitive design resist fatigue, so the cable itself does not need scheduled replacement.
What is the first limit that appears when this cable runs 40G Ethernet continuously?
The 4 m length keeps insertion loss well within the OS2 budget for 40G, so the practical limit is the transceiver’s optical power budget rather than the cable’s attenuation.
