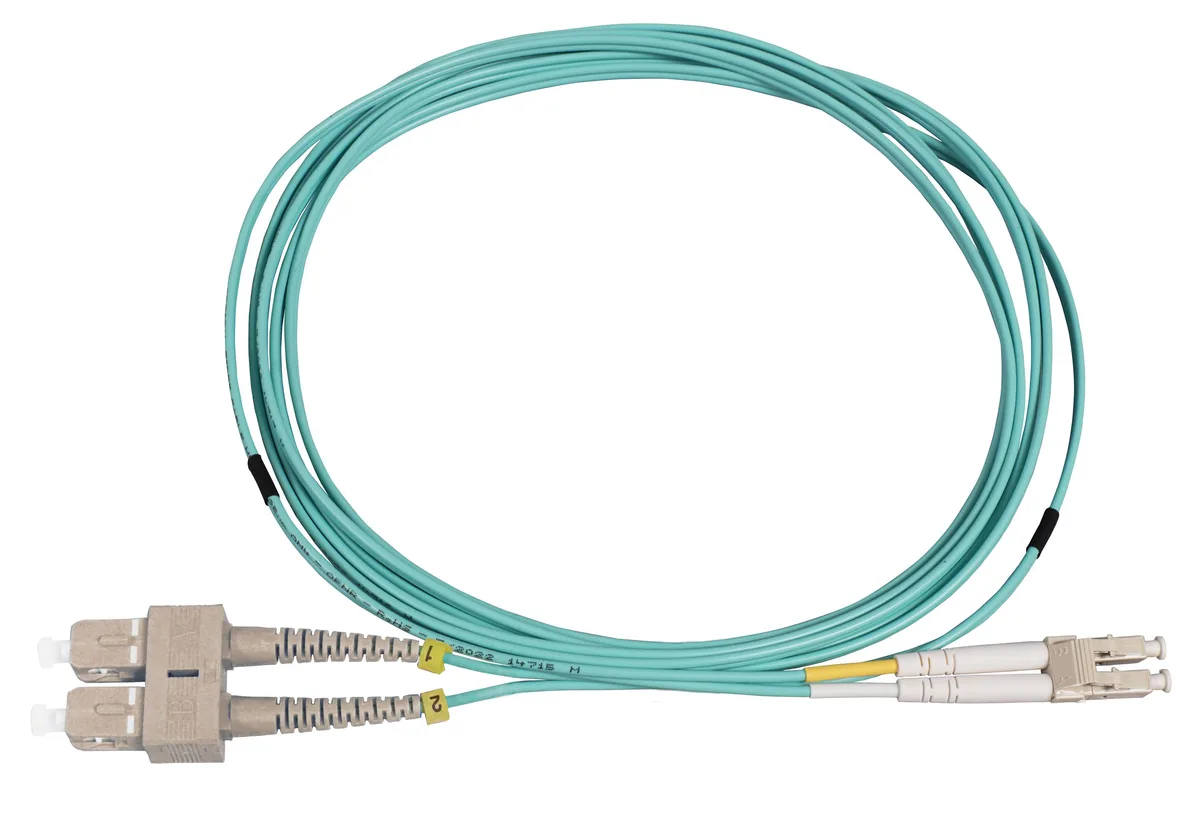

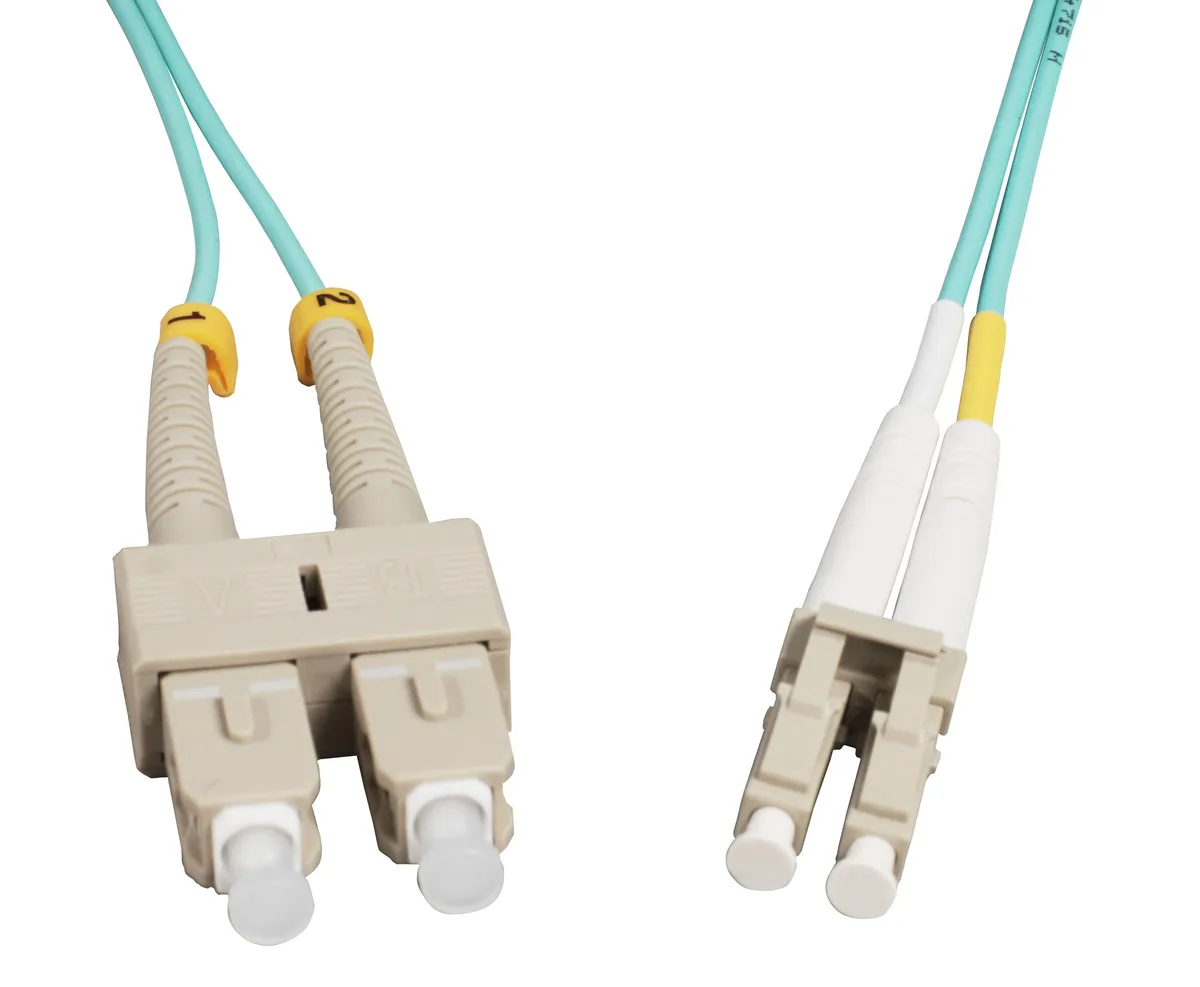

Intellinet Network Solutions OM4 LC-SC Duplex Fiber Patch Cable 2 m Aqua 50/125 BIMMF
A 2 m duplex fiber patch cable with LC and SC connectors using OM4 50/125 µm bend-insensitive multimode fiber for 10, 40 and 100 G Ethernet links
- TypeFiber
- Connector ALC
- Connector BSC
- Length2 m
- ColorAqua Blue
- ShieldedNo
- Supports 40G and 100G Ethernet speeds with OM4 multimode fiber
- Bend-insensitive design reduces signal loss during tight routing and maintenance
- UPC connectors deliver improved return loss for cleaner signal integrity
- Corning ultra-pure glass core provides low attenuation over 2 m links
- Includes factory test report verifying performance before installation
Duplex OM4 Patch Cable for Data Centres
This 2-metre aqua-coloured cable connects LC and SC interfaces using 50/125 µm bend-insensitive multimode fibre. It is built for cross-connect and interconnect work in entrance facilities, telecommunications rooms and data centres where short-to-medium reach links are required.
UPC Connectors and Corning Glass with Test Report
Ultra Physical Contact ferrules give a finer end-face finish and lower return loss, while Corning ultra-pure glass provides low attenuation and high bandwidth. Every unit ships with its own factory test report confirming insertion loss and geometry.
Simple Plug-In Install with Bend Margin
The bend-insensitive design tolerates tight routing around cable trays and patch panels without excess attenuation. Installers only need to clean both end-faces before mating; the main risk is skipping that cleaning step, which degrades return loss.
Highlights
- Supports 40G and 100G Ethernet speeds with OM4 multimode fiber
- Bend-insensitive design reduces signal loss during tight routing and maintenance
- UPC connectors deliver improved return loss for cleaner signal integrity
- Corning ultra-pure glass core provides low attenuation over 2 m links
- Includes factory test report verifying performance before installation
Specifications
| Brand | Intellinet Network Solutions |
|---|---|
| Model | OM4 Multimode Duplex |
| Type | Fiber |
| Connector A | LC |
| Connector B | SC |
| Length | 2 m |
| Color | Aqua Blue |
| Shielded | No |
| Features | 50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC |
Questions about this item
Will the LC or SC connectors on this OM4 duplex patch cable need periodic cleaning or replacement?
The UPC-polished LC and SC connectors benefit from regular inspection and cleaning with lint-free wipes and isopropyl alcohol; no scheduled replacement is required unless end-face damage is found.
What bandwidth distance limit appears first when this 2 m OM4 cable runs 40 G Ethernet continuously?
At 40 G Ethernet the OM4 50/125 µm fiber supports up to 100 m, so a 2 m link is far below the distance limit; the practical constraint becomes the transceiver rather than the cable.
How much heat or power does this 2 m OM4 duplex cable add when it carries 100 G traffic all day?
The passive glass fiber and UPC connectors draw no power and generate no measurable heat; all thermal load comes from the active transceivers at each end.
