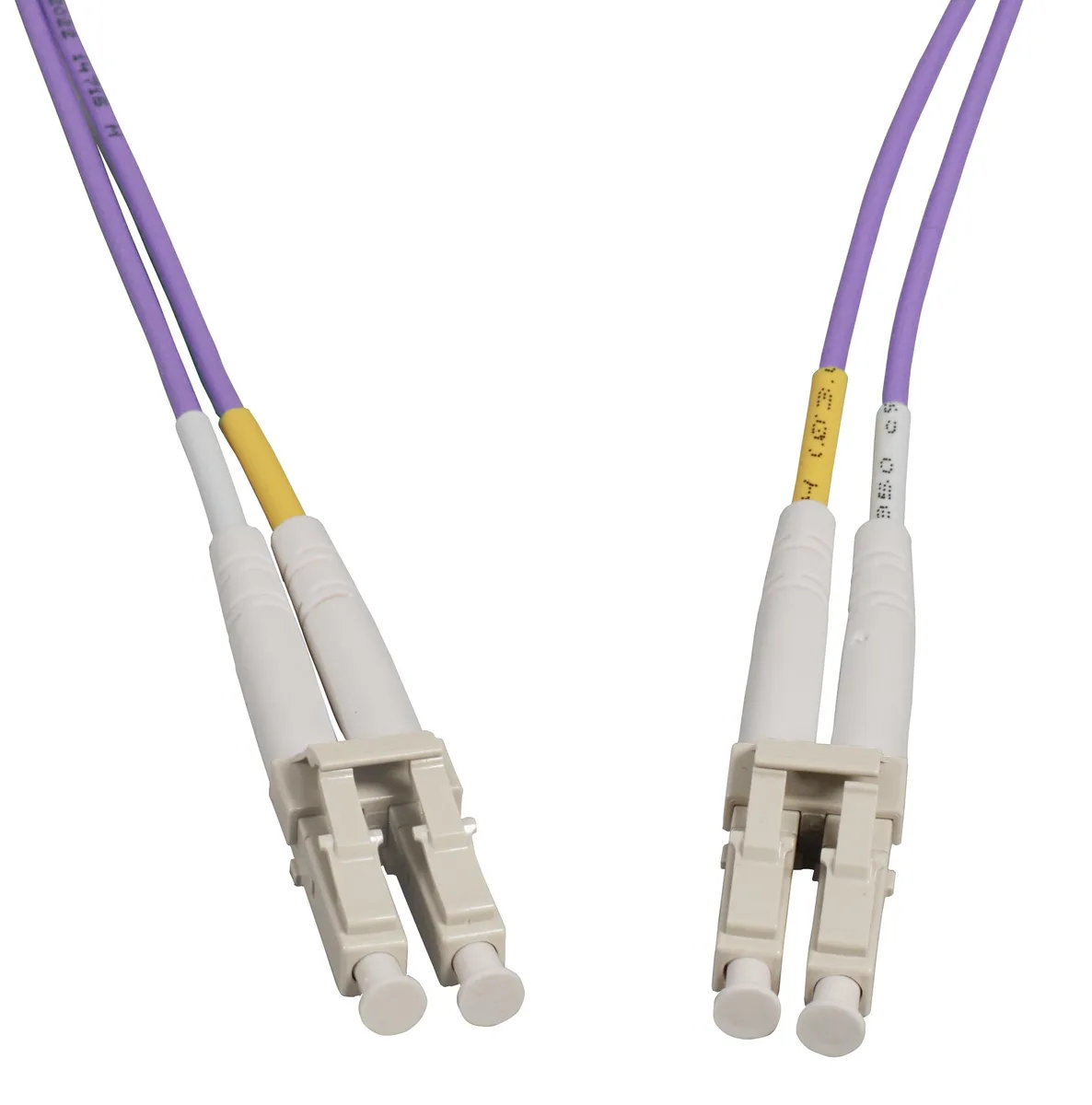

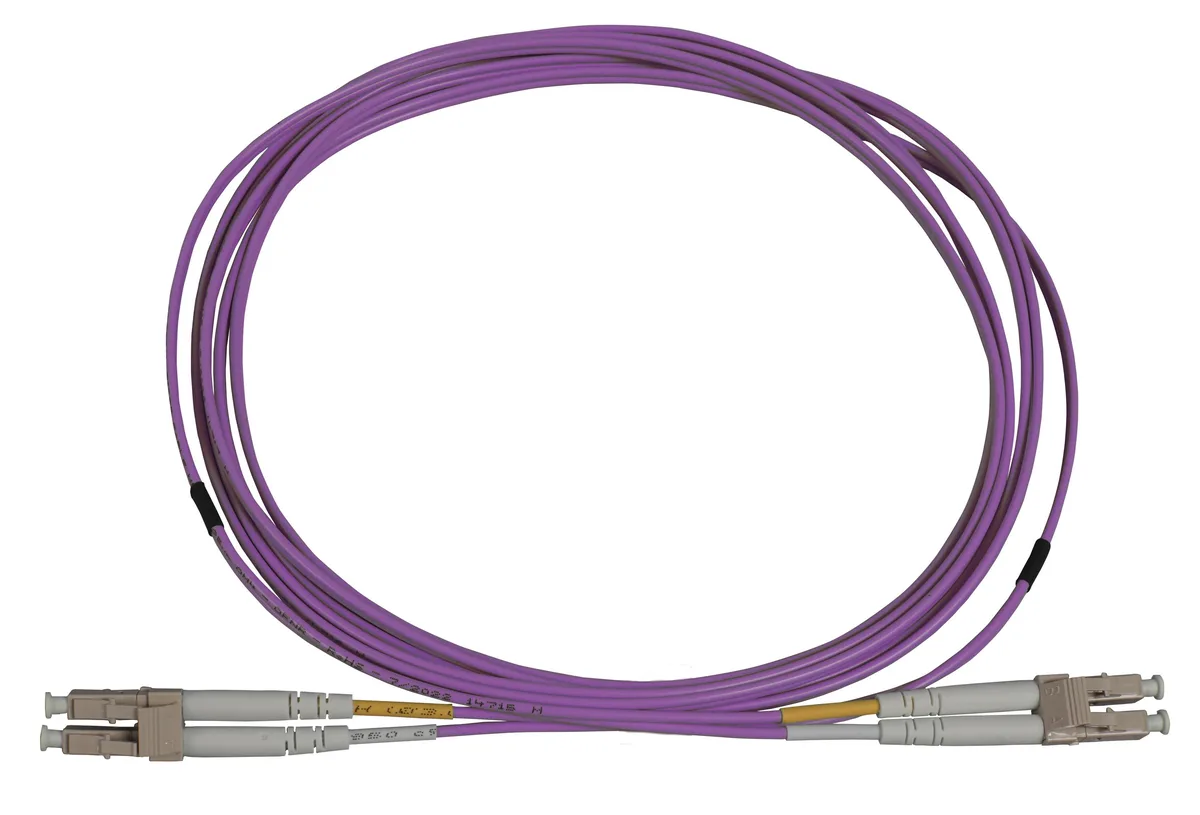

Violet duplex fibre patch cable with LC connectors both ends, 1 metre length

Intellinet Network Solutions

Intellinet Network Solutions OM4 LC/LC Duplex 1 m Violet 50/125 µm BIMMF

SKU CH-NDHD-FZAAM

A 1 m violet duplex patch cable with LC/UPC connectors and OM4 bend-insensitive multimode fiber for 10, 40 and 100 G Ethernet links

  • TypeFiber
  • Connector ALC
  • Connector BLC
  • Length1 m
  • ColorViolet
  • ShieldedNo
  • OM4 multimode supports 10G, 40G and 100G Ethernet speeds
  • UPC connectors give superior surface finish and improved return loss
  • Bend-insensitive fiber reduces attenuation when twisted or bent
  • Corning ultra-pure glass provides low attenuation and high bandwidth
  • Each cable ships with its own test report included

OM4 Duplex Patch Cable

This 1 m violet fiber patch cable uses OM4 multimode fiber with a 50/125 µm core and LC/UPC connectors on both ends. It is built for short to medium-range links in data centers, entrance facilities and telecommunications rooms. The bend-insensitive design reduces attenuation when cables are routed through tight spaces. Each unit ships with a factory test report.

Replacing older OM3 or OM2 links

The OM4 rating supports 10, 40 and 100 GbE speeds where legacy multimode cables would limit throughput. Upgrade when existing patch cords cannot meet the bandwidth or distance requirements of current switch uplinks. The jump is worth it whenever link budgets demand the lower loss and higher modal bandwidth of OM4 glass.

Simple LC duplex installation

Push-pull LC connectors seat with an audible click and require no tools. The 2.0 mm jacket is flexible enough for dense patch panels but stiff enough to hold shape in cable managers. Common issues are contaminated end-faces — clean with a lint-free wipe and isopropyl before mating — and exceeding the minimum bend radius during dressing.

Highlights

  • OM4 multimode supports 10G, 40G and 100G Ethernet speeds
  • UPC connectors give superior surface finish and improved return loss
  • Bend-insensitive fiber reduces attenuation when twisted or bent
  • Corning ultra-pure glass provides low attenuation and high bandwidth
  • Each cable ships with its own test report included

Specifications

BrandIntellinet Network Solutions
ModelOM4 Multimode Duplex
TypeFiber
Connector ALC
Connector BLC
Length1 m
ColorViolet
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

Will the 2.0 mm jacket fit through standard LC patch-panel ports?

Yes — the 2.0 mm duplex cable uses standard LC connectors that match any LC patch-panel port.

What is the critical step when seating the UPC connectors to avoid return-loss problems?

Clean both end faces with a lint-free wipe and isopropyl alcohol, then push each LC connector straight in until the latch clicks.

When should I replace this OM4 patch cord in a 40G or 100G link?

Replace it if insertion loss exceeds your link budget, if the violet jacket shows kinks or cracks, or if the end faces fail a microscope inspection.
