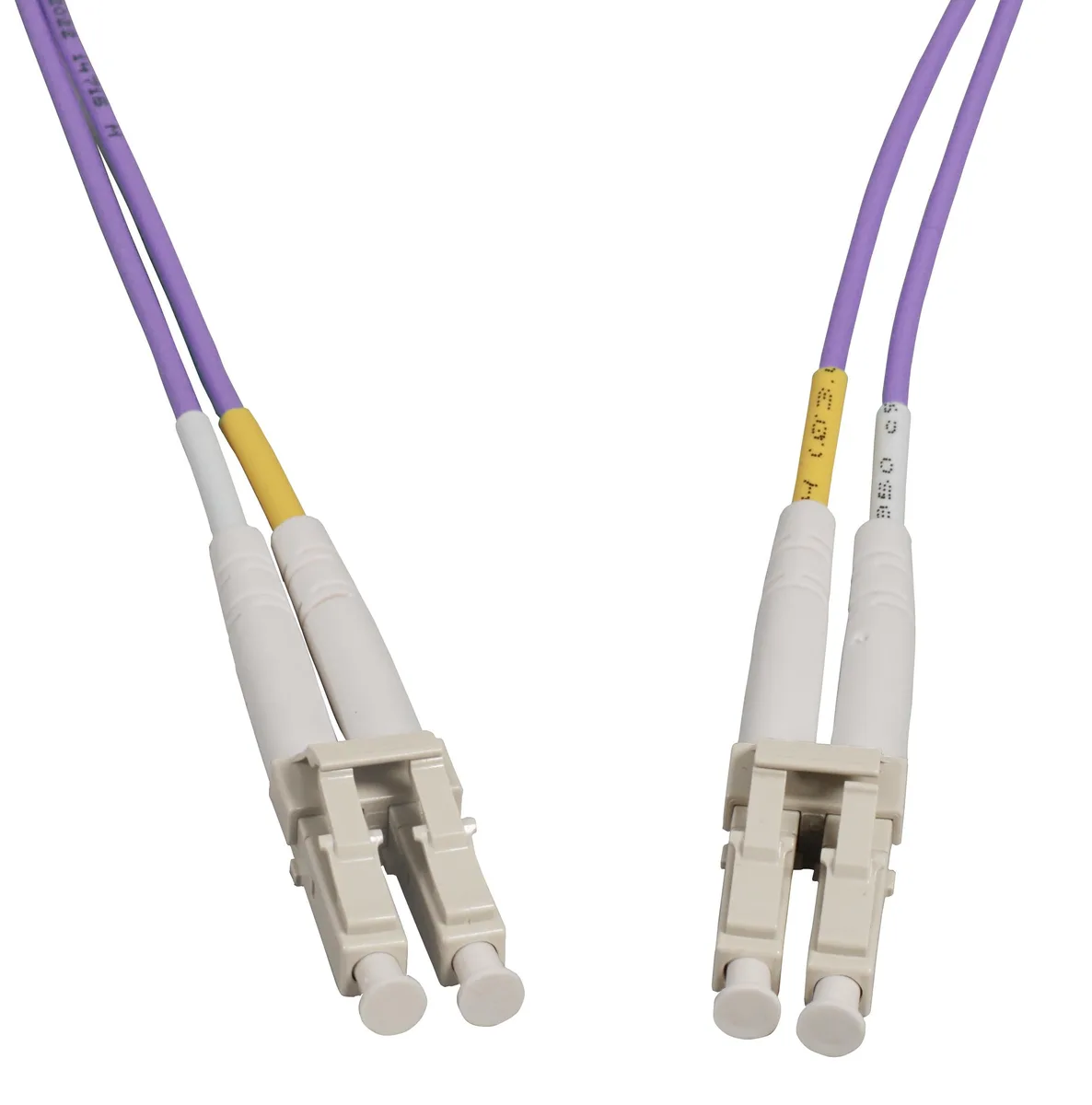

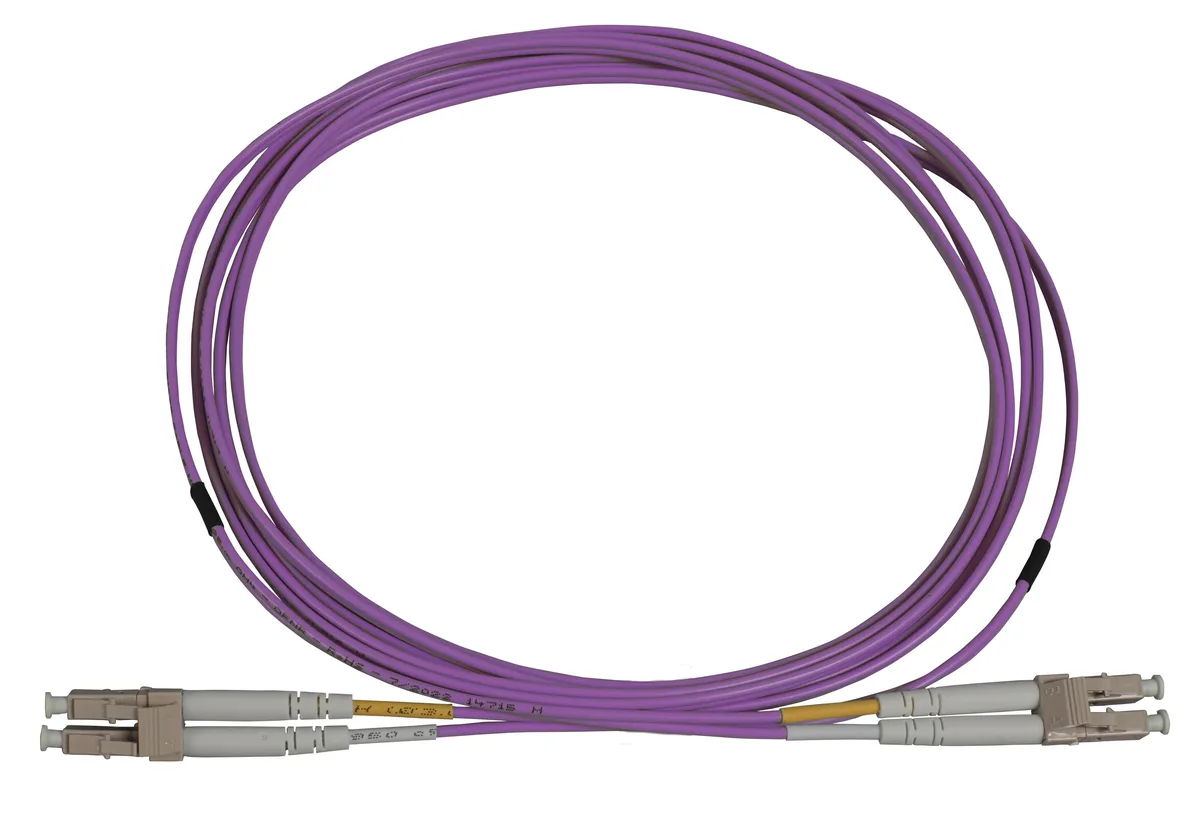

Violet duplex fiber patch cable with LC connectors, 1.5 m length

Intellinet Network Solutions

Intellinet Network Solutions OM4 LC/LC Duplex 1.5 m Violet 50/125 µm BIMMF

SKU CH-7EKR-PS8GD

A 1.5 m violet duplex patch cable with LC/UPC connectors and OM4 50/125 µm bend-insensitive multimode fiber for 10, 40 and 100 GbE links

  • TypeFiber
  • Connector ALC
  • Connector BLC
  • Length1.5 m
  • ColorViolet
  • ShieldedNo
  • OM4 multimode fiber supports 40G and 100G Ethernet speeds
  • Bend-insensitive design reduces signal loss when cables are twisted
  • UPC connectors deliver better surface finish for improved return loss
  • Corning ultra-pure glass provides low attenuation and high bandwidth
  • 5 m duplex length suits data center cross-connect applications

OM4 Duplex Fiber Patch Cable

This 1.5 metre duplex patch cable uses OM4 multimode fiber with LC/UPC connectors on both ends. The violet jacket identifies the cable as OM4 in structured cabling environments. It is built with Corning bend-insensitive glass (50/125 µm) and ships with a factory test report.

For High-Speed Data Centre Links

Suited for 10G, 40G and 100G Ethernet runs inside data centres, entrance facilities and telecommunications rooms. The bend-insensitive design tolerates tight routing without excess loss. Not for single-mode infrastructures, outdoor plant, or installations that require armoured or plenum-rated jackets.

OM4 Bandwidth for 40G and 100G Ethernet

The OM4 classification supports the high modal bandwidth needed for 40G and 100G short-reach transmission. This rating is the decisive factor when choosing between OM3 and OM4 for modern parallel-optic links.

Highlights

  • OM4 multimode fiber supports 40G and 100G Ethernet speeds
  • Bend-insensitive design reduces signal loss when cables are twisted
  • UPC connectors deliver better surface finish for improved return loss
  • Corning ultra-pure glass provides low attenuation and high bandwidth
  • 5 m duplex length suits data center cross-connect applications

Specifications

BrandIntellinet Network Solutions
ModelOM4 Multimode Duplex
TypeFiber
Connector ALC
Connector BLC
Length1.5 m
ColorViolet
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

How far can this 1.5 m OM4 patch cable reliably carry a 40G Ethernet signal?

OM4 multimode fiber is specified for 40G Ethernet over short to medium ranges; at 1.5 metres the link is well within the supported distance for 40G and 100G applications.

Does the 2.0 mm duplex jacket and bend-insensitive fiber keep heat or noise low during continuous operation?

The cable is passive with no active components, so it generates no heat or noise; the 2.0 mm OFNR jacket and Corning bend-insensitive fiber maintain low attenuation even when routed tightly.

What connector polishing and fiber core size must my existing transceivers match for this LC duplex patch cord?

The cable uses LC/UPC connectors on a 50/125 µm OM4 multimode core; your transceivers must support LC UPC multimode interfaces at the same core diameter.
