Intellinet Network Solutions
Intellinet Network Solutions OM3 Multimode Duplex SC/SC UPC Aqua 7 m 2.0 mm 50/125 BIMMF
A 7 m duplex SC/SC UPC patch cable with OM3 50/125 µm bend-insensitive multimode fiber for 10, 40 and 100 GbE links
- TypeFiber
- Connector ASC
- Connector BSC
- Length7 m
- ColorAqua Blue
- ShieldedNo
- OM3 multimode fiber supports 40 Gbps and 100 Gbps Ethernet links
- UPC connectors deliver low return loss for cleaner signal transmission
- Bend-insensitive design reduces attenuation when cables are routed around tight corners
- Corning ultra-pure glass core provides low attenuation and high bandwidth
- Each cable includes a factory test report verifying performance

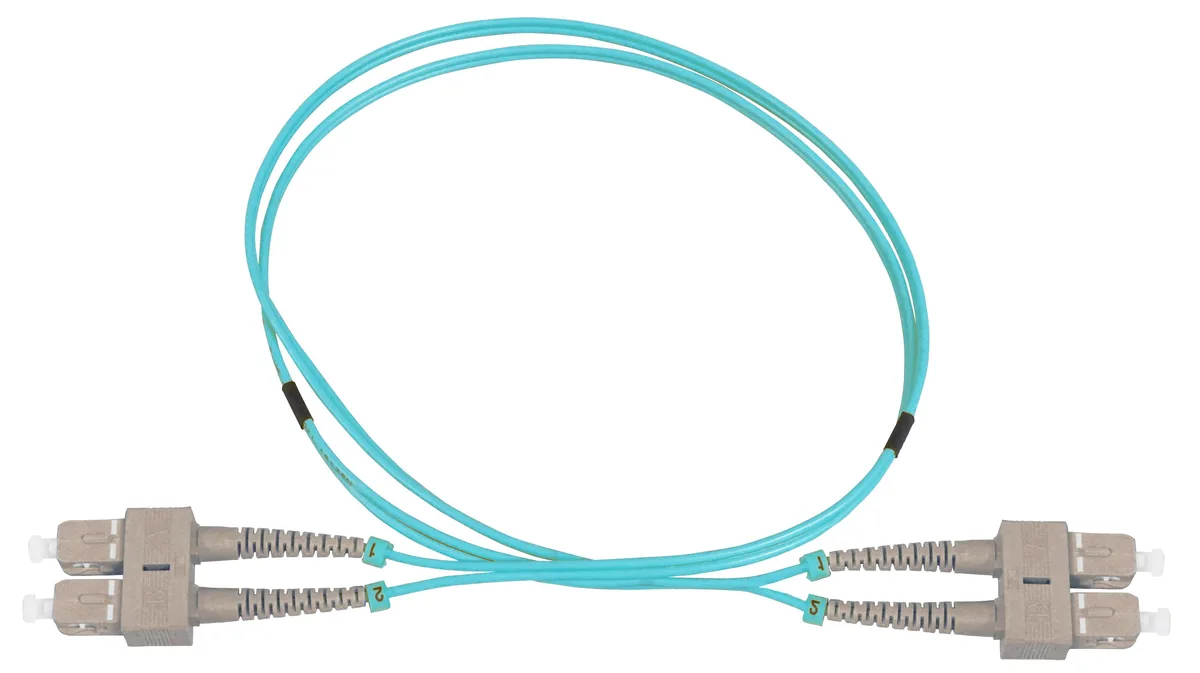

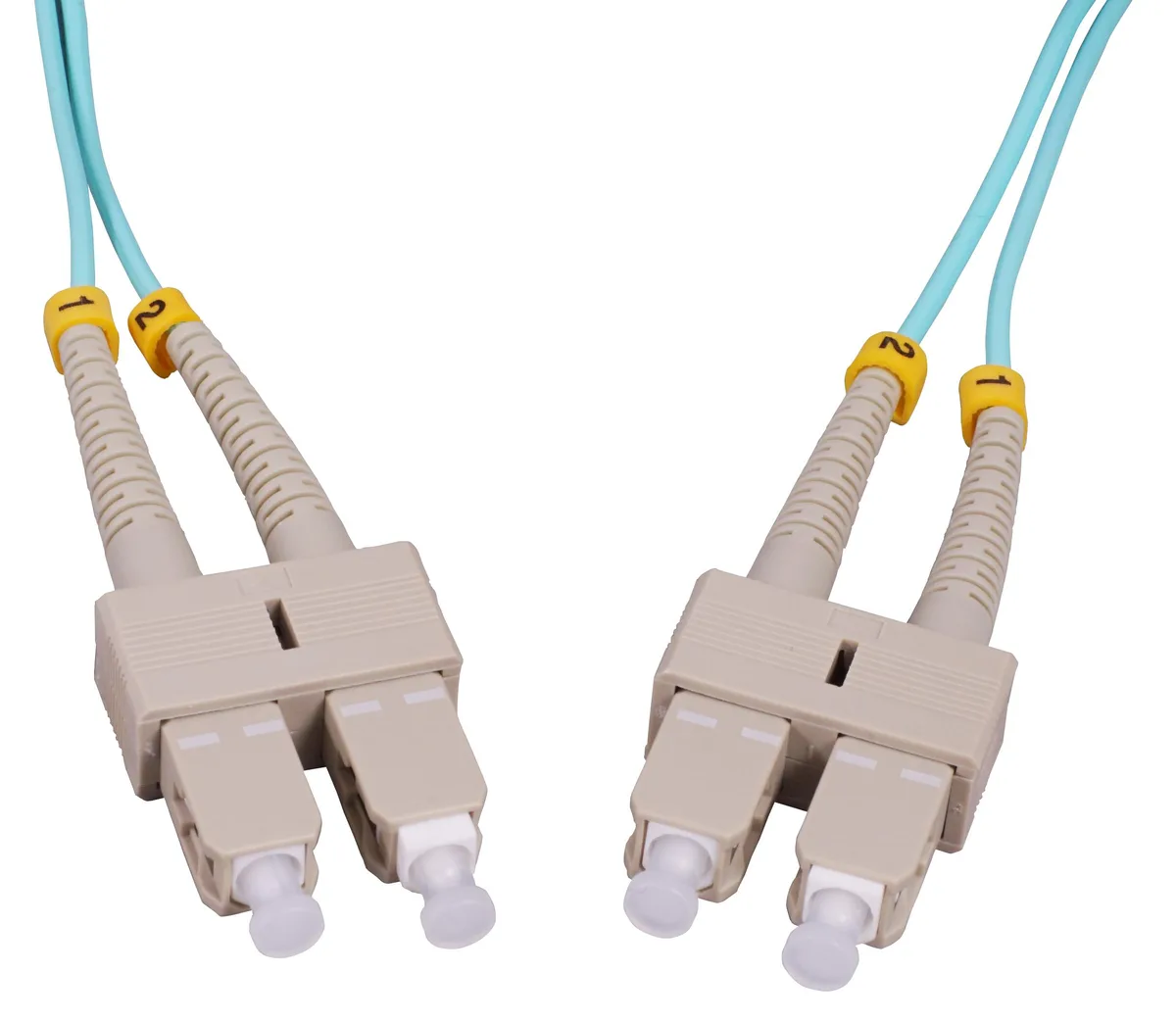

7 m OM3 duplex SC/SC patch cable
This seven-metre aqua patch cable uses OM3 multimode fibre with 50/125 µm bend-insensitive glass and SC UPC connectors on both ends. It is built for short to medium-range links in data centres, telecom rooms and workstation cross-connects. The Corning ultra-pure glass core keeps attenuation low for high-speed Ethernet runs. Each unit ships with its own test report.
Suited for 10G 40G 100G multimode links
Network teams running 10, 40 or 100 Gigabit Ethernet over multimode fibre will find the bandwidth and return-loss performance match those tiers. The bend-insensitive design eases routing through dense panels and tight bends without excess loss. Installers who need single-mode reach, LC connectors or a different jacket rating should select another cable type.
Test report validates loss budget
The included factory test report documents insertion loss and return loss for both fibres, giving installers a documented baseline for link certification. UPC polish on the SC ferrules improves return loss compared with standard PC finishes, helping meet tight loss budgets. No software, tools or additional accessories are bundled with the cable.
Highlights
- OM3 multimode fiber supports 40 Gbps and 100 Gbps Ethernet links
- UPC connectors deliver low return loss for cleaner signal transmission
- Bend-insensitive design reduces attenuation when cables are routed around tight corners
- Corning ultra-pure glass core provides low attenuation and high bandwidth
- Each cable includes a factory test report verifying performance
Specifications
| Brand | Intellinet Network Solutions |
|---|---|
| Model | OM3 Multimode Duplex |
| Type | Fiber |
| Connector A | SC |
| Connector B | SC |
| Length | 7 m |
| Color | Aqua Blue |
| Shielded | No |
| Features | 50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC |
Questions about this item
What type of transceiver ports must my switch or server have for this SC UPC duplex cable to plug in directly?
Your equipment needs SC UPC transceiver ports — one for each of the two fibres in the duplex assembly.
If I keep older OM1 or OM2 patch panels, will this 50/125 µm OM3 cable mate with them without extra adapters?
Yes — the SC connectors are the same physical interface, so the cable plugs straight into legacy SC panels, though the link will run at the lower OM1 or OM2 bandwidth.
How can I verify the cable meets its rated performance after installation?
Each cable ships with a factory test report showing insertion loss and return loss for both fibres; compare those figures with your link-loss budget.
