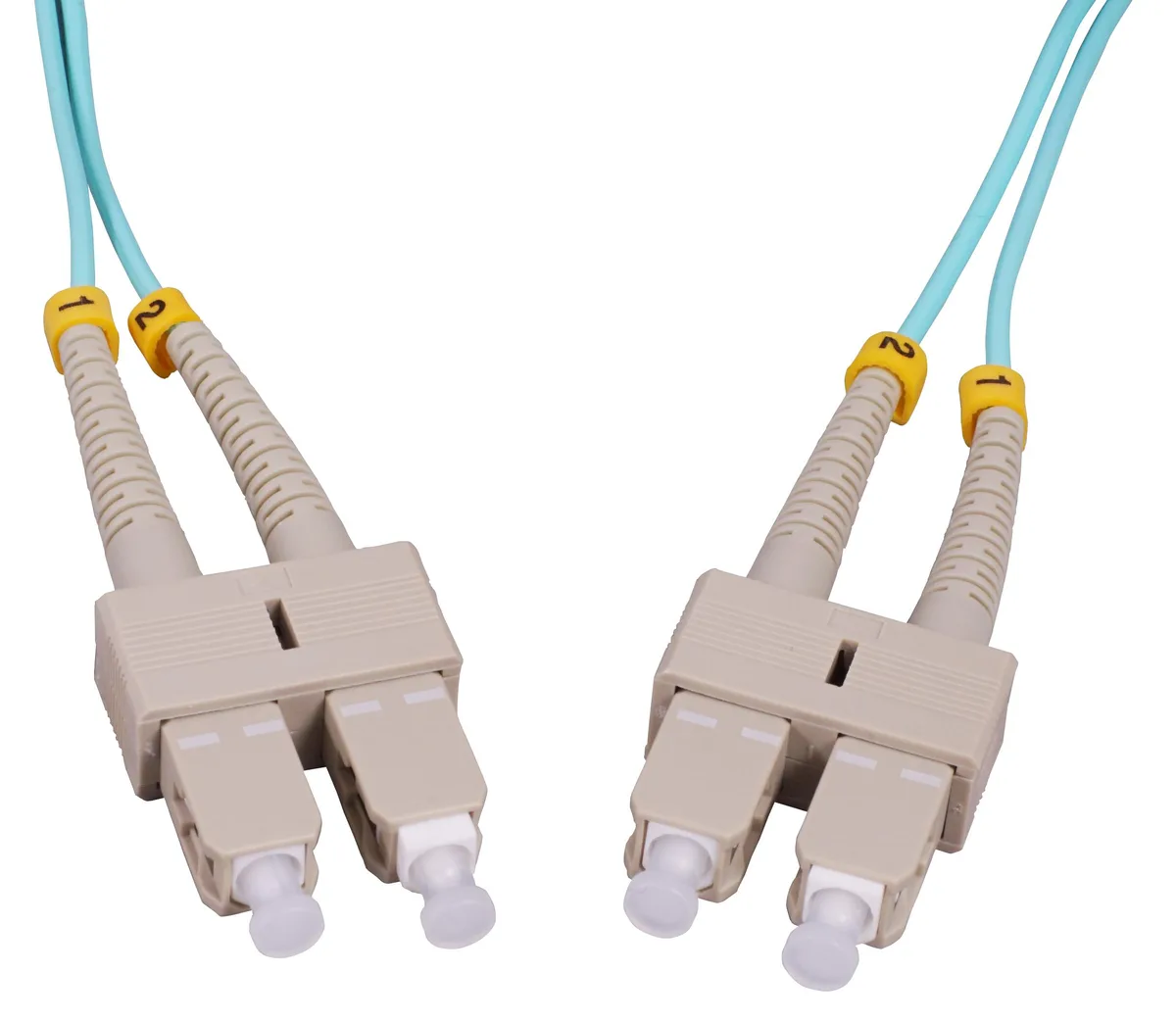

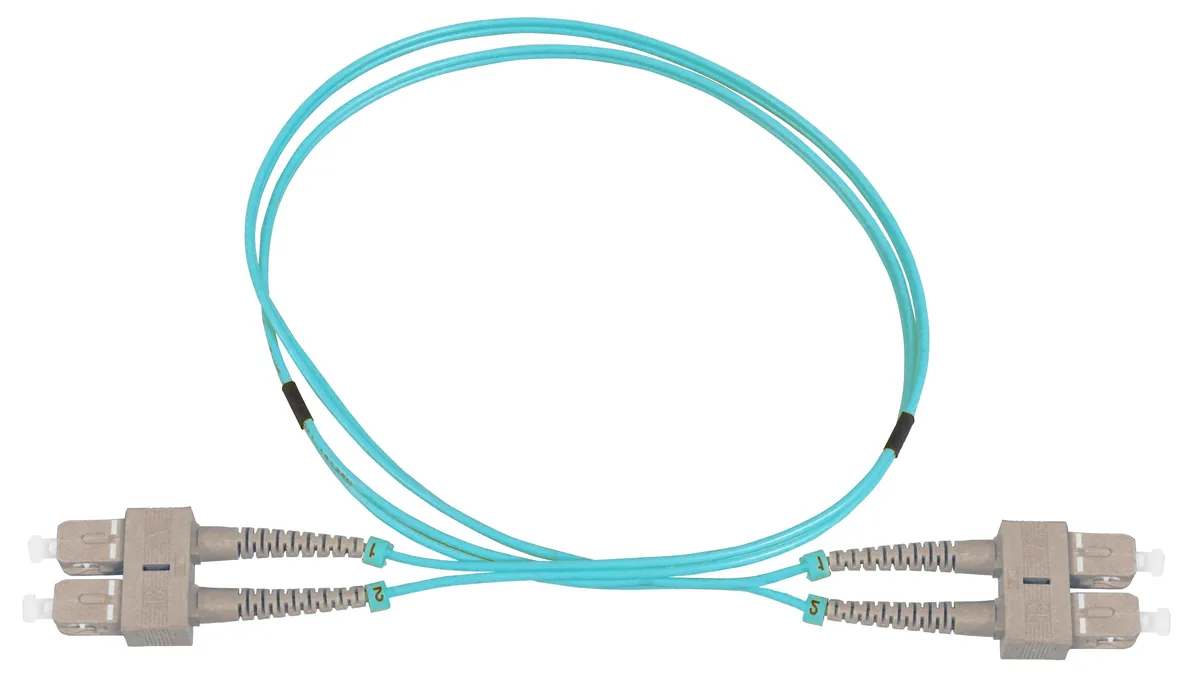

Aqua duplex fiber patch cable with SC connectors on both ends, 1 metre long

Intellinet Network Solutions

Intellinet Network Solutions OM3 Multimode Duplex SC/SC 1 m Aqua 50/125 µm BIMMF

SKU CH-MB8V-JSNJW

A 1 m duplex OM3 multimode fiber patch cable with SC/SC UPC connectors, bend-insensitive 50/125 µm Corning glass and a test report, built for 10 G.

  • TypeFiber
  • Connector ASC
  • Connector BSC
  • Length1 m
  • ColorAqua Blue
  • ShieldedNo
  • Ideal for interconnect and cross-connect applications in data centers
  • UPC connectors provide a better surface finish and improved return loss
  • OM3 multimode fiber supports high bandwidth for short to medium-range transmission
  • Bend insensitive design reduces attenuation when bent or twisted
  • Made from Corning ultra-pure glass for low attenuation and high bandwidth

1 m OM3 Duplex SC/SC Patch Cable

This one-metre duplex patch cable uses OM3 multimode fibre with 50/125 µm core/cladding and SC UPC connectors on both ends. It is built for interconnect and cross-connect tasks in entrance facilities, telecommunications rooms, data centres and desk-side links. The aqua jacket identifies the OM3 rating at a glance. Bend-insensitive fibre reduces attenuation when the cable is routed around tight corners.

Sustained High-Speed Transmission

OM3 multimode fibre supports 10 GbE over short to medium distances and is optimised for 40 GbE and 100 GbE in data-centre environments. Low signal loss and high bandwidth maintain stable throughput during continuous heavy traffic rather than only in brief bursts. UPC polishing on the SC ferrules improves return loss, helping preserve signal integrity over extended operating periods. Corning ultra-pure glass contributes to consistent attenuation performance.

Practical Limits of OM3 Multimode

The OM3 standard reaches its distance ceiling at 100 m for 10 GbE and at shorter spans for 40 GbE and 100 GbE, so this cable is not suited for long-haul campus or metro links. Single-mode infrastructure is required beyond those ranges. The duplex SC interface occupies two panel ports and does not fit LC-density patch panels. Buyers needing higher port density or longer reach should plan a different fibre type and connector format.

Highlights

  • Ideal for interconnect and cross-connect applications in data centers
  • UPC connectors provide a better surface finish and improved return loss
  • OM3 multimode fiber supports high bandwidth for short to medium-range transmission
  • Bend insensitive design reduces attenuation when bent or twisted
  • Made from Corning ultra-pure glass for low attenuation and high bandwidth

Specifications

BrandIntellinet Network Solutions
ModelOM3 Multimode Duplex
TypeFiber
Connector ASC
Connector BSC
Length1 m
ColorAqua Blue
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

Does the 2.0 mm duplex jacket generate noticeable heat or power draw when running 40G Ethernet links continuously?

This is a passive fiber patch cable with no electrical components, so it produces no heat and draws no power regardless of the data rate.

What equipment must already have SC UPC ports for this 1 m aqua OM3 cable to connect directly?

Both ends need SC UPC interfaces — typically transceivers, patch panels, or switches equipped with SC connectors — because the cable terminates in SC UPC connectors on each side.

Can the bend-insensitive 50/125 µm fiber be used alongside existing OM3 50/125 µm cabling in the same 10G or 40G links?

Yes, it matches the same OM3 50/125 µm specification, so it interoperates with existing OM3 multimode infrastructure for 10G, 40G, and 100G Ethernet.
