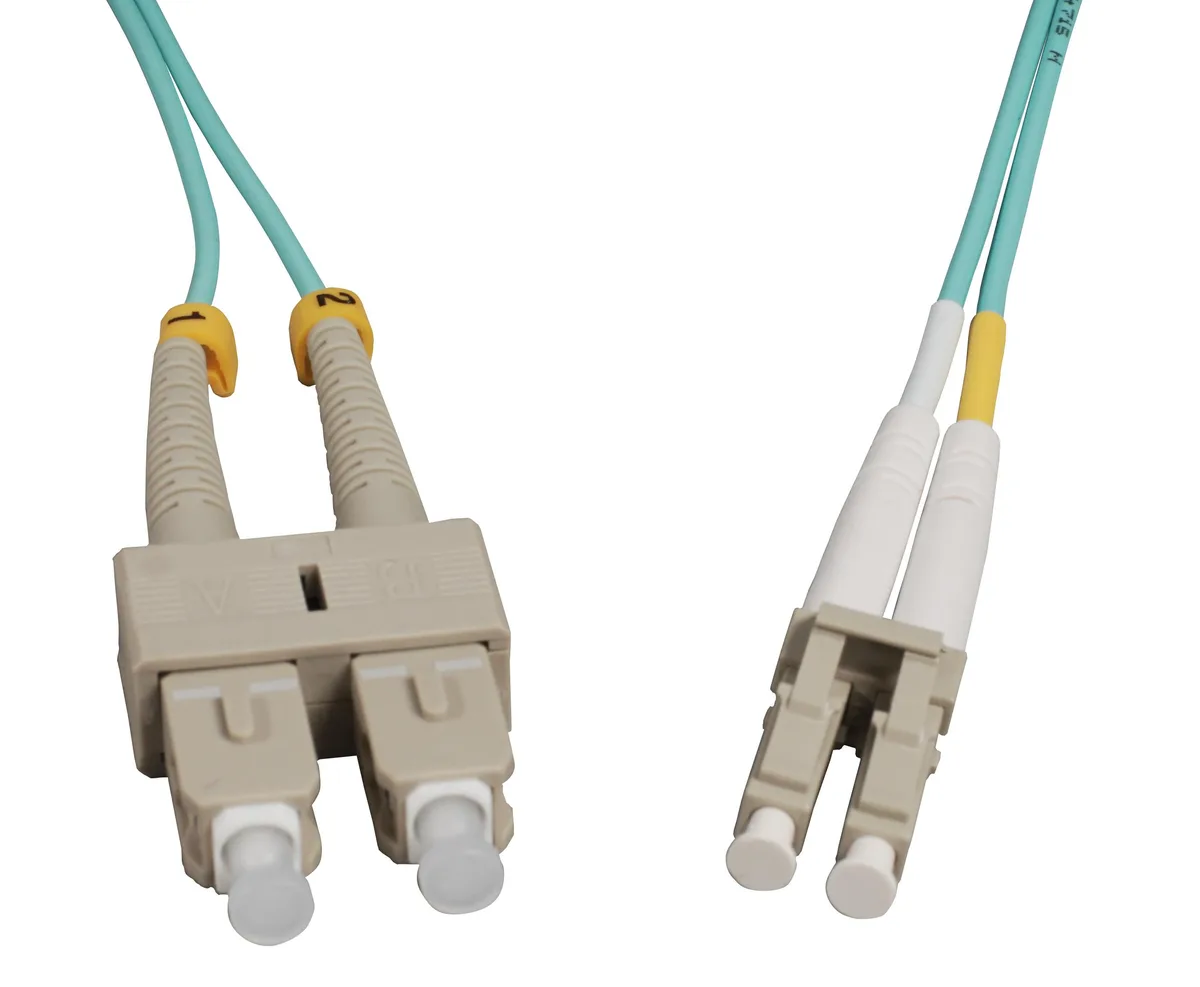

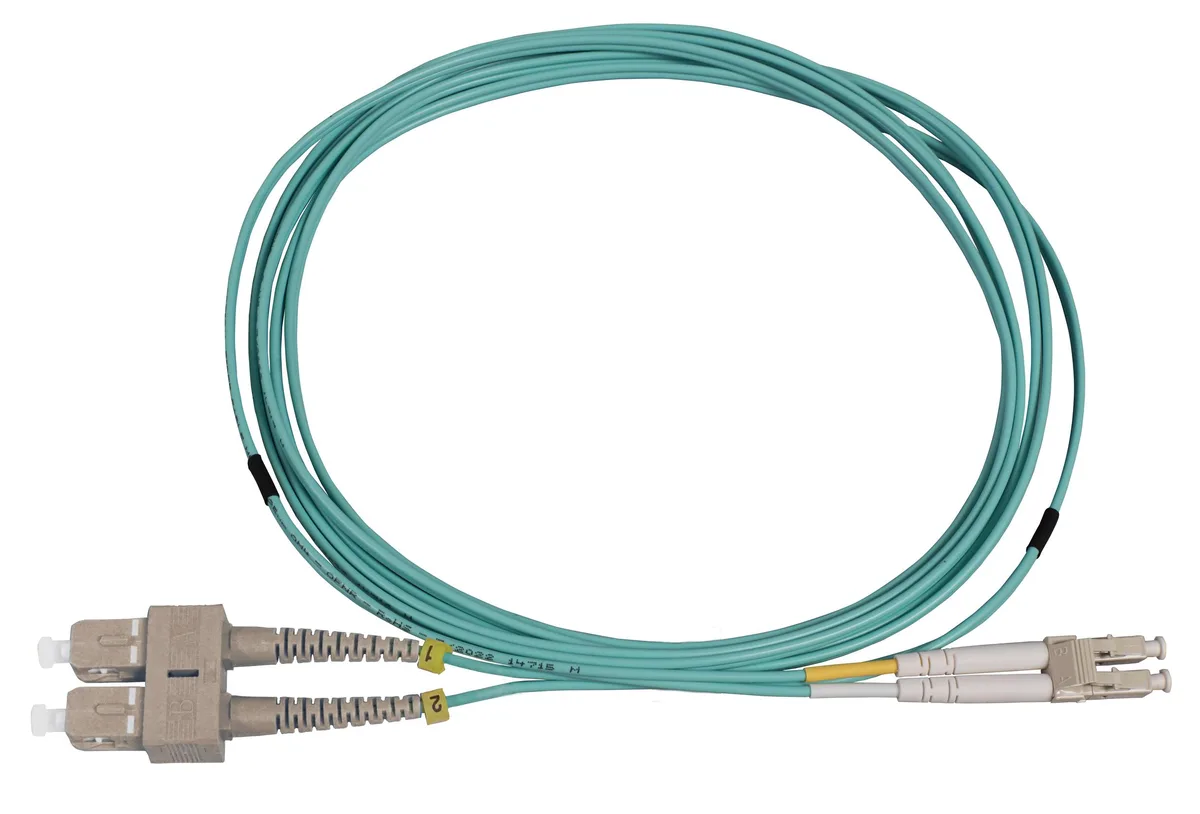

Aqua duplex fiber patch cable with LC and SC connectors, 3 m length

Intellinet Network Solutions

Intellinet Network Solutions OM3 Multimode Duplex LC to SC UPC Fiber Patch Cable 3 m Aqua 50/125 µm BIMMF

SKU CH-VFMM-564S9

A 3 m duplex fiber patch cable with LC and SC UPC connectors, OM3 multimode 50/125 µm bend-insensitive glass for 10, 40 and 100 GbE links

  • TypeFiber
  • Connector ALC
  • Connector BSC
  • Length3 m
  • ColorAqua Blue
  • ShieldedNo
  • Versatile connectivity for data-centre and desk applications
  • UPC connectors deliver improved return loss
  • OM3 multimode supports 10, 40 and 100 G Ethernet
  • Bend-insensitive design reduces attenuation when twisted
  • Corning ultra-pure glass provides low attenuation and high bandwidth

Purpose and Environment

This fiber patch cable connects LC and SC equipment in data centers, telecommunications rooms, entrance facilities, and desk-side links. It is built for short to medium-range, high-speed multimode runs where OM3 bandwidth is required. The aqua jacket identifies the OM3 rating at a glance. Installers who need single-mode reach or a different connector pairing should select another cable.

Interface Limits

The duplex OM3 multimode fiber supports 10 GbE and is optimized for 40 GbE and 100 GbE links within the distance limits of the OM3 standard. UPC polish on both ends improves return loss for cleaner signal integrity. The 2.0 mm jacket and OFNR rating suit indoor routing, but the cable is not armored for outdoor or heavy-crush environments.

Deciding Specification

The 50/125 µm bend-insensitive multimode fiber made from Corning ultra-pure glass reduces attenuation when the cable is bent or twisted during installation. Each unit ships with a factory test report confirming the measured loss. Choose this cable when bend tolerance and verified OM3 performance are the deciding factors.

Highlights

  • Versatile connectivity for data-centre and desk applications
  • UPC connectors deliver improved return loss
  • OM3 multimode supports 10, 40 and 100 G Ethernet
  • Bend-insensitive design reduces attenuation when twisted
  • Corning ultra-pure glass provides low attenuation and high bandwidth

Specifications

BrandIntellinet Network Solutions
ModelOM3 Multimode Duplex
TypeFiber
Connector ALC
Connector BSC
Length3 m
ColorAqua Blue
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

Which length should I choose for a rack-to-rack link?

The cable is supplied at 3 m (6.6 ft); select this length when the patch panel and switch ports are within that distance.

What speeds can this cable actually carry in a live 40G Ethernet link?

OM3 multimode with UPC connectors supports 40G Ethernet over short runs; the 3 m length stays well within the OM3 reach for 40G.

Does the LC/SC duplex interface limit the cable to a specific Ethernet standard?

The duplex LC-to-SC UPC interface is the physical connector pair; it works with any Ethernet standard that uses duplex multimode fibre, including 10G, 40G and 100G.
